WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-17

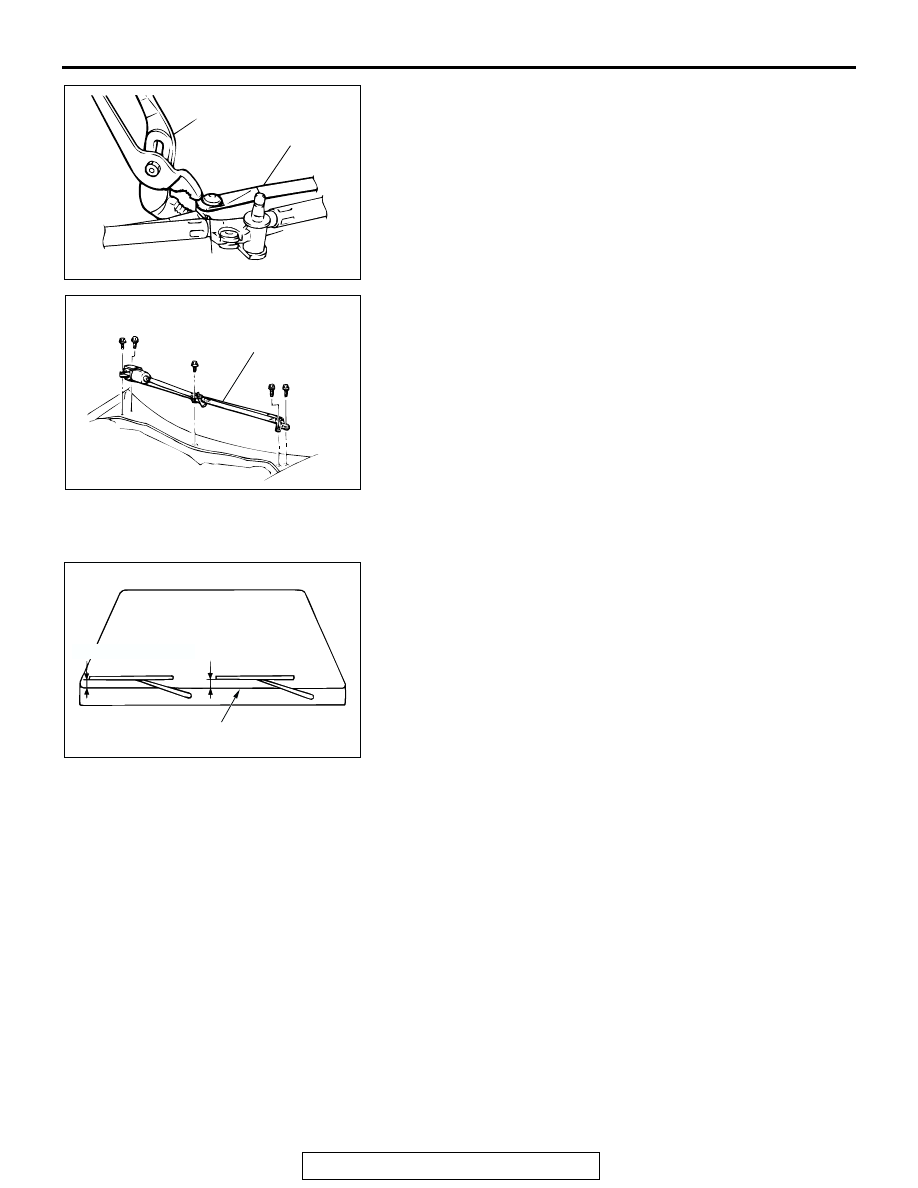

3. Use water pump pliers to engage securely the driver's side

link with the center crank arm.

4. Install the five mounting bolts in the shown order to install

the wiper motor and link assembly.

5. Secure the wiper motor and link assembly in the wiper park

position. (Refer to, Wiper Motor Check

P.51-18

.)

.

>>B<< WIPER ARM AND BLADE ASSEMBLY
INSTALLATION
Install the wiper blade at the specified position (standard
value).

Standard value:
Driver's side: 33

− 43 mm (1.3 − 1.7 inches)

Passenger's side: 38

− 48 mm (1.5 − 1.9 inches)

AX0708AW

AC001698

WATER PUMP PLIERS

DRIVER'S SIDE LINK

CENTER CRANK ARM

AB

AX0608AW

AC001699

BOLT INSTALLATION ORDER

1

2

3

4 5

WIPER MOTOR AND
LINK ASSEMBLY

AB

AC000427AC

DRIVER'S SIDE

PASSENGER'S SIDE

FRONT DECK GARNISH END

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-18

INSPECTION

M1511019100567

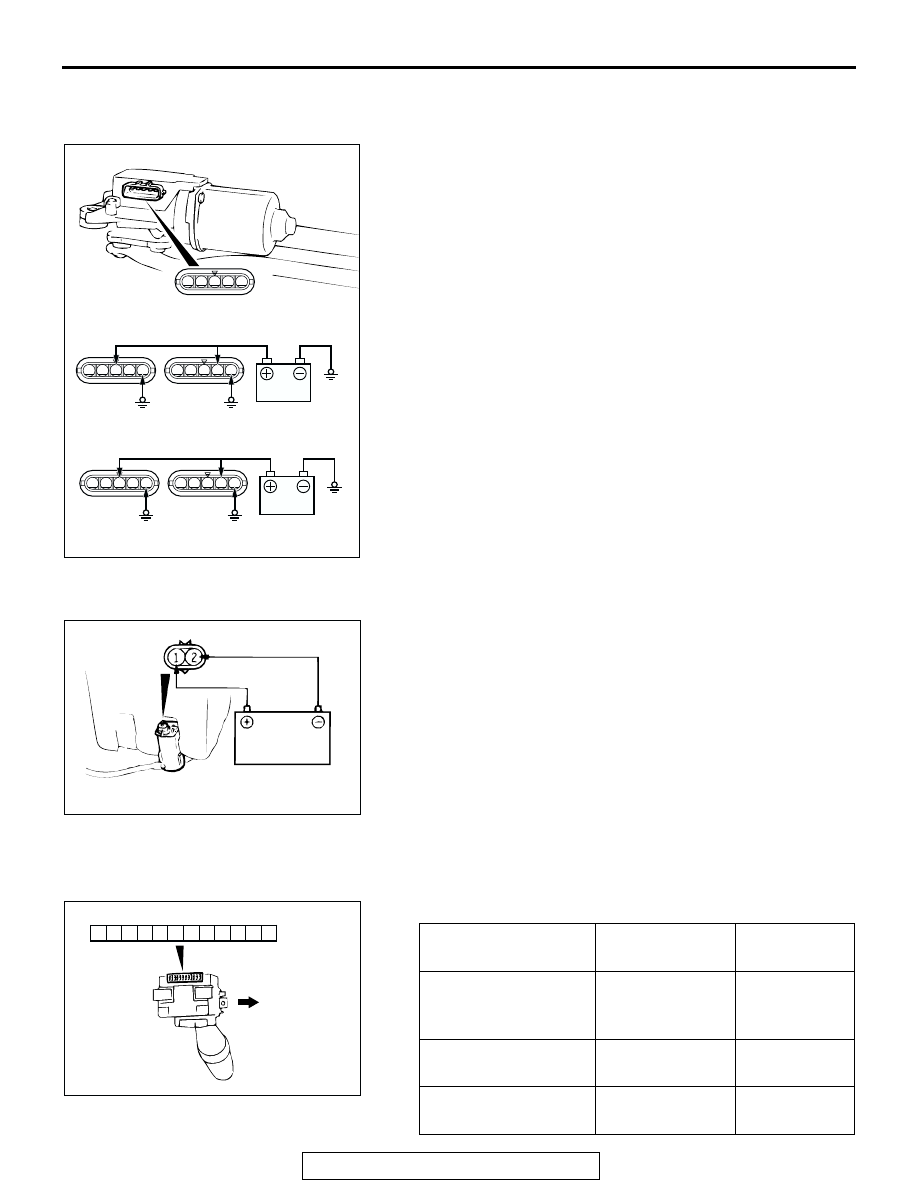

FRONT WIPER MOTOR CHECK

Check the wiper motor after disconnecting the wiring harness
connector, and with the wiper motor remaining installed to the
body.

.

Wiper Motor at Low-Speed and High-Speed Operation
Connect the battery to the wiper motor as shown in the illustra-
tion, and then check the operation of the wiper motor at low
speed and at high speed.

.

Wiper Motor at Stop Position Operation
1. Run the wiper motor at low-speed, disconnect the battery,

and stop the motor.

2. Reconnect the battery as shown in the illustration, and

confirm that the motor starts turning at low-speed, and then
stops at the automatic stop position.

FRONT WASHER MOTOR CHECK

1. With the washer motor installed to the washer tank, fill the

washer tank with water.

2. Check that water is sprayed out strongly when battery

voltage is applied to terminal (1) and terminal (2) is
grounded.

WINDSHIELD WIPER AND WINDSHIELD WASHER
SWITCH CHECK

1. Windshield wiper and washer switch

1

2

3

4

5

1

2

3

4

5

1

2

3

4

5

AC001700

1

2

3

4

5

1

2

3

4

5

INSPECTION WHILE OPERATING

INSPECTION WHILE STOPPED

LOW-SPEED

HIGH-

SPEED

LOW-SPEED

AUTO
STOP

AB

AC001701

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

21

− 23, 22 − 23,

23

− 30, 23 − 31,

23

− 32

Open circuit

Windshield mist wiper
switch

23

− 32

Less than 2
ohm

Windshield intermittent
wiper switch

23

− 31

Less than 2
ohm

21

22

23

24

25

26

27

28

29

30

31

32

AC002017AC

UPPER SIDE

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-19

2. Windshield intermittent wiper interval adjusting knob

Measure the resistance value at terminal numbers 27 and
28. The resistance value should rise smoothly from
approximately 0

Ω ("FAST" position) to approximately 1 kΩ

("SLOW" position).

REAR WIPER AND WASHER

GENERAL INFORMATION

M1511000100138

OPERATION
Rear Wiper Operation

• If the rear wiper and washer switch is turned to

the "INT" position with the ignition switch at
"ACC" or "ON" position, the ETACS-ECU causes
the rear wiper to operate continuously two times,
then intermittently at eight-second intervals.

• If the selector lever is moved to the "R" position

when the rear wiper and washer switch is turned
the "INT" position and the ignition switch at
"ACC" or "ON" position, park/neutral position
switch "R" turns ON. One second later, the
ETACS-ECU causes the rear wiper to operate
two times continuously to ensure good rearward
visibility. The ETACS-ECU then causes the rear
wiper to again operate intermittently at eight-sec-
ond intervals.

Rear Washer Operation

• If the rear wiper and washer switch is turned the

"WASHER" position with the ignition switch at
"ACC" or "ON" position, the rear washer ON sig-
nal is sent to the ETACS-ECU, causing the rear
wiper signal to turn on after 0.9 seconds. After the
rear washer switch signal turns off, the rear wiper
signal turns off in three seconds.

• If the rear wiper and washer switch is turned to

the "WASHER" position while the rear wiper is at
intermittent mode, the rear washer works for that
period when the washer switch remains on. Then
the rear wipers return to the intermittent mode.

EXTERIOR DIAGNOSIS

M1511000700118

The rear wiper and washer are controlled by
ETACS-ECU. For troubleshooting, refer to GROUP
54B, SWS Diagnosis

P.54B-19

.

Windshield low-speed
wiper switch

23

− 30

Less than 2
ohm

Windshield high-speed
wiper switch

21

− 23

Less than 2
ohm

Windshield washer
switch

22

− 23

Less than 2
ohm

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-20

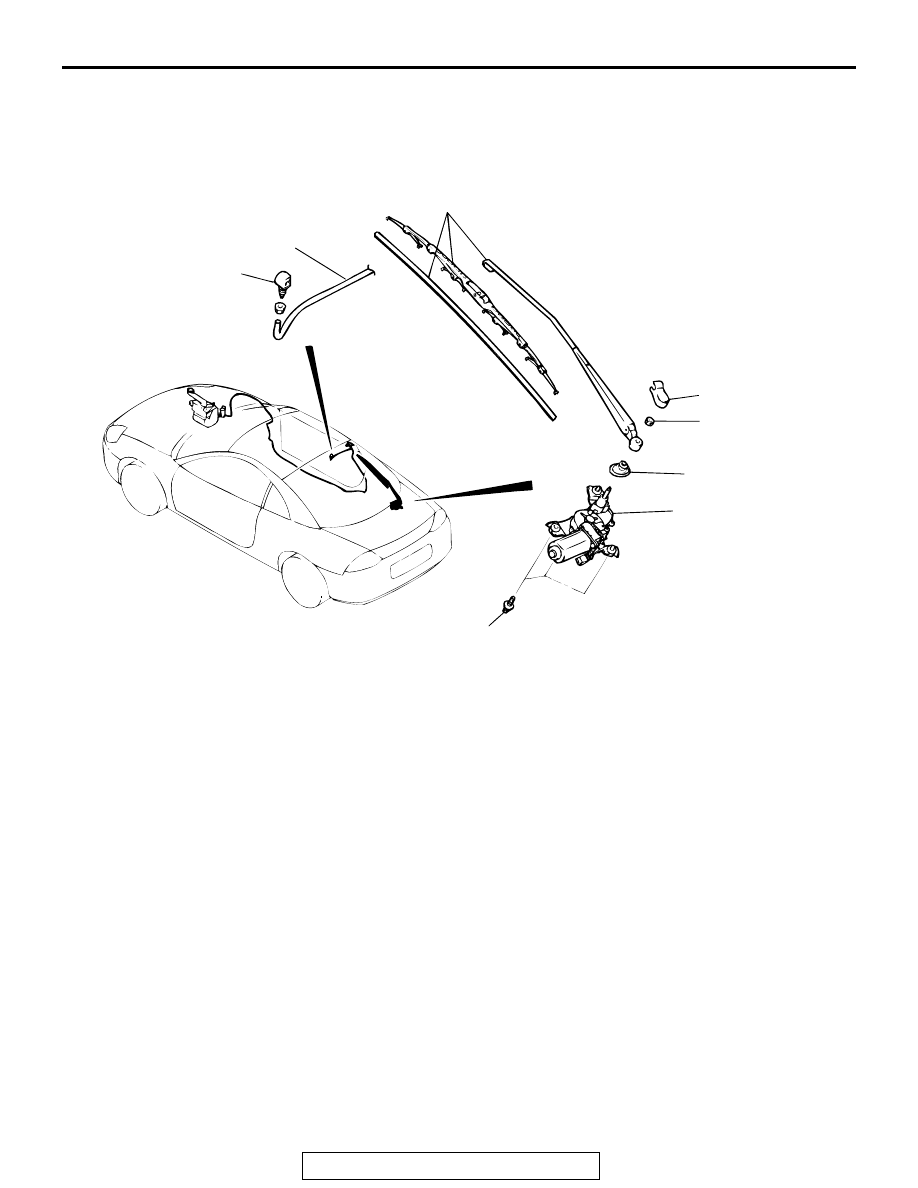

REAR WIPER

REMOVAL AND INSTALLATION

M1511008800089

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column Switch

P.54A-132

.

AC003327

AX0175AW

9.8 ± 2.0 N·m
87 ± 17 in-lb

1

3

4

4.9 ±0.7 N·m
43 ± 6 in-lb

2

5

6

AB

•

WASHER TANK ASSEMBLY AND
REAR WASHER MOTOR (REFER
TO GROUP 51, WINDSHIELD
WIPER AND WASHER

P.51-15

.)

REAR WIPER MOTOR ASSEMBLY
REMOVAL STEPS
1. COVER

>>A<<

2. REAR WIPER ARM AND BLADE

ASSEMBLY

• LIFTGATE LOWER TRIM (REFER

TO GROUP 42, LIFTGATE TRIM

P.42-73

.)

>>B<<

3. GROMMET
4. REAR WIPER MOTOR ASSEMBLY

REAR WASHER HOSE REMOVAL
STEPS
• QUARTER TRIM, LOWER <RH>

(REFER TO GROUP 52A, TRIMS

P.52A-8

.)

5. REAR WASHER HOSE

>>A<<

6. WASHER NOZZLE
