GARNISHES AND MOLDINGS

TSB Revision

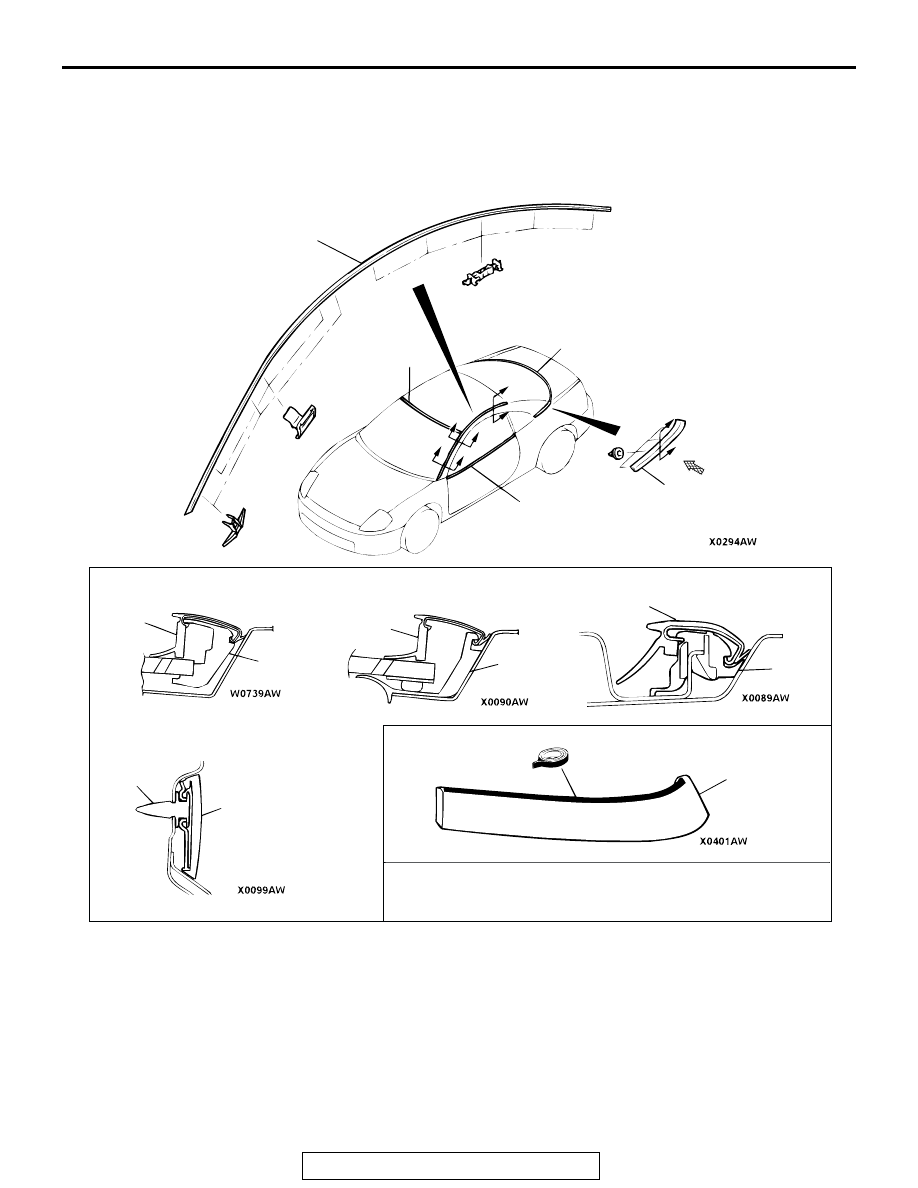

EXTERIOR

51-9

GARNISHES AND MOLDINGS

 REMOVAL AND INSTALLATION

M1511004400164

<ECLIPSE>

AC003619

ADHESIVE TAPE: DOUBLE-SIDED TAPE
 [ 3 mm ( 0.1 in ) WIDTH AND 5 mm ( 0.2 in ) THICKNESS ]

VIEW A

5

1

SECTION A – A

1

1

5

SECTION B – B

SECTION C – C

SECTION D – D

A

A

B

B

C

C

D

D

5

4

2

1

VIEW A

CLIP

CLIP

CLIP

CLIP

AB

3

<<A>>

>>B<< 1. ROOF DRIP MOLDING

2. WINDSHIELD UPPER MOLDING

(REFER TO GROUP 42,
WINDSHIELD

P.42-14

.)

3. BELT LINE MOLDING (REFER TO

GROUP 42

P.42-66

 .)

4. REAR WINDOW LOWER MOLDING

(REFER TO GROUP 42, LIFTGATE
GLASS

P.42-23

.)

<<B>> >>A<<

5. REAR PILLAR GARNISH

GARNISHES AND MOLDINGS

TSB Revision

EXTERIOR

51-10

Required Special Tools:

• MB990449: Window Molding Remover
• MB990784: Ornament Remover

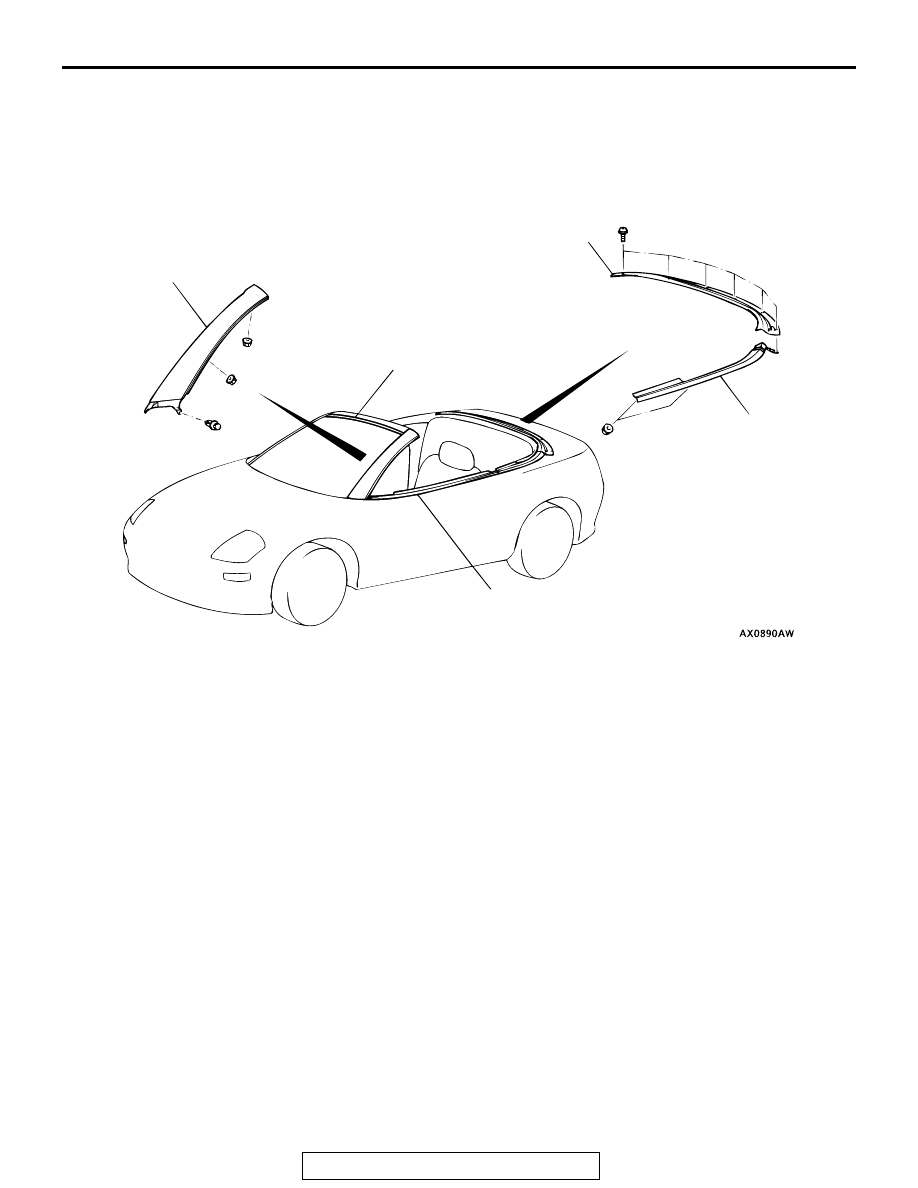

<ECLIPSE SPYDER>

AC003620

1

2

3

4

5

AB

1. DRIP GARNISH
2. WINDSHIELD UPPER MOLDING

(REFER TO GROUP 42,
WINDSHIELD

P.42-14

.)

3. BELT LINE MOLDING (REFER TO

GROUP 42, DOOR WINDOW
GLASS RUNCHANNEL AND DOOR
OPENING WEATHERSTRIP

P.42-66

.)

4. BACK BELT MOLDING
5. QUARTER BELT SIDE GARNISH

GARNISHES AND MOLDINGS

TSB Revision

EXTERIOR

51-11

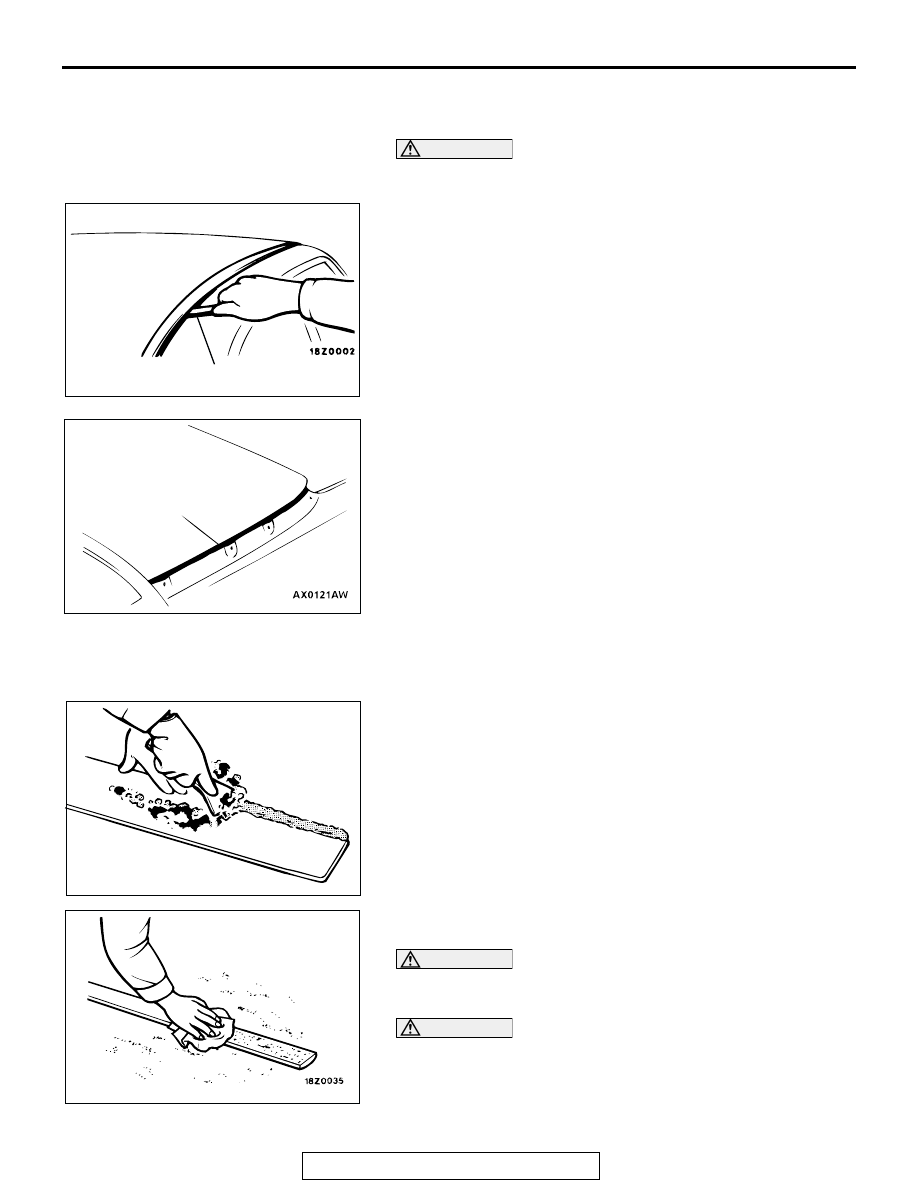

REMOVAL SERVICE POINTS

.

<<A>> ROOF DRIP MOLDING REMOVAL

CAUTION

If the molding has become warped, it should not be
reused.
Use special tool MB990449 to lever out the molding.

.

<<B>> REAR PILLAR GARNISH REMOVAL

1. Use a resin spatula to scrape off the double-sided tape.
2. Wipe the body surface and clean it with a shop moistened

with isopropyl alcohol.

INSTALLATION SERVICE POINTS

.

>>A<< REAR PILLAR GARNISH INSTALLATION.
1. Scrape off the double-sided tape with a resin spatula or

gasket scraper.

2. Use a shop towel moistened with 3M

 AAD Part number

8906 or equivalent to wipe the protect molding surface.

CAUTION

Do not remove all of the residual adhesive.
3. Remove only a small portion of the residual adhesive.

CAUTION

• Always apply it evenly on the entire surface, because a

lot or little will reduce its strength.

• Do not touch the painted surface.

4. Affix the specified double-sided tape [3 mm (0.1 inch) wide

and 5 mm (0.2 inch) thick].

AC003626AB

MB990449

AC003627

DOUBLE-SIDE TAPE

AB

AC000422

AC003628

GARNISHES AND MOLDINGS

TSB Revision

EXTERIOR

51-12

.

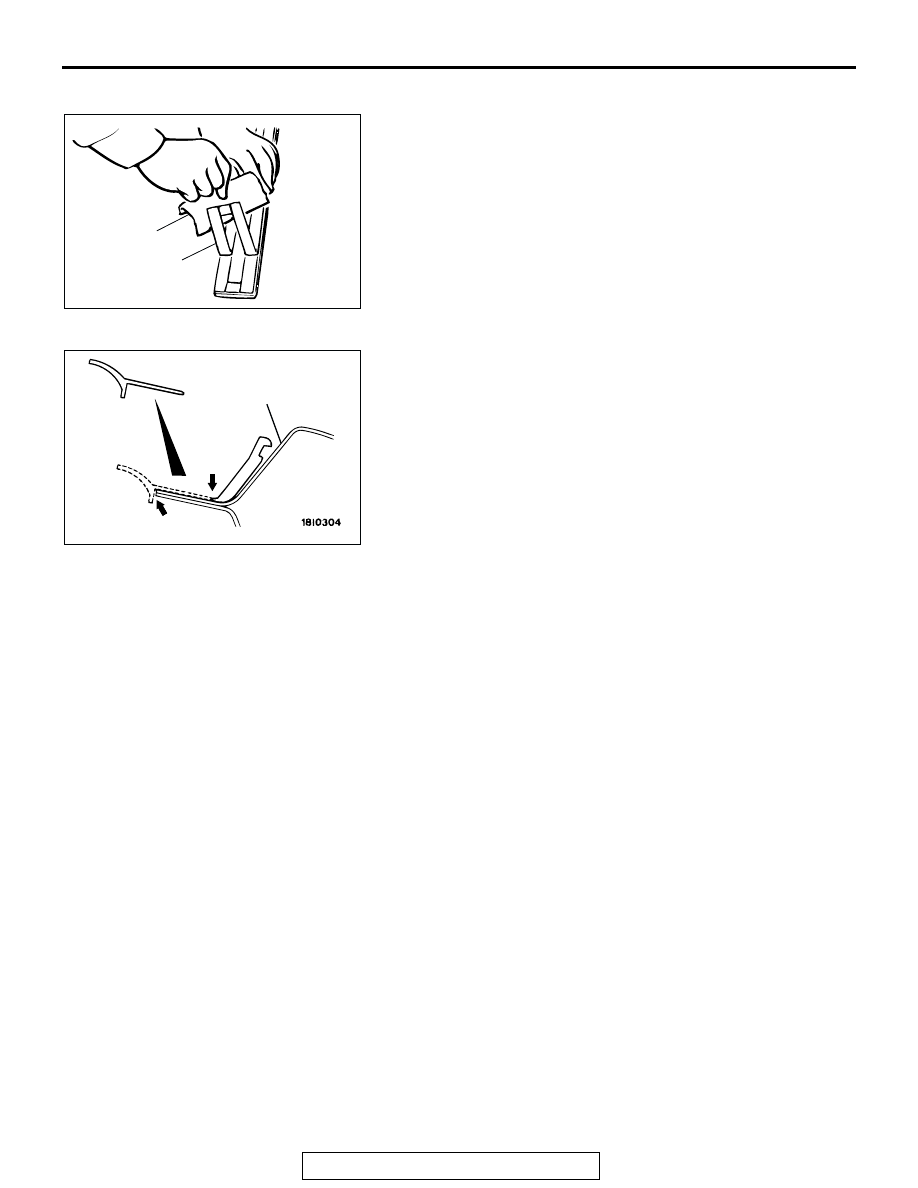

REAR PILLAR GARNISH INSTALLATION
1. Tear off the double-sided tape backing paper.

NOTE: If you attach the adhesive tape to the edge of the
backing paper, if will be easy to tear off.

2. Install the rear pillar garnish.

NOTE:  If the double-sided tape is difficult to affix in cold
temperature, etc., warm the bonding surfaces of the body
and rear pillar garnish to about 40

−

 60

°

C (104

−

 140

°

F)

before affixing the tape.

3. Firmly press in the rear pillar garnish.

.

>>B<< ROOF DRIP MOLDING INSTALLATION
After installing the clip to the outer front pillar in alignment with
its section A, cut from section B.

AC000423 AB

ADHESIVE TAPE

BACKING PAPER

AC003629

FRONT PILLAR
OUTER

SECTION
 B

SECTION A

AB
