c. Return the drum to its original position while holding

the wires to make sure that they do not pull out.

(6) After installing the power window motor assembly to the

window regulator assembly, cut and remove the wires
witch are compressing the springs.

3. Operation check

CAUTION

• Do not operate the window regulator assembly before

installing the window glass, otherwise the limit switch
will be set.

• Window glass safety mechanism does not operate

when the window glass is closed fully at first time.

(1) Install the window glass to the window regulator

assembly.

(2) Close the window glass completely.

NOTE: Closing the window glass completely will finish
the adjustment of the limit switch.

(3) Check that the limit switch operates correctly.

.

>>B<< DOOR WINDOW GLASS INSTALLATION
1. Temporarily secure the door window glass to the door

window regulator.

2. After raising the door window glass as far as it will go, fully

secure the door window glass to the door window regulator
assembly.

INSPECTION

M1421007600268

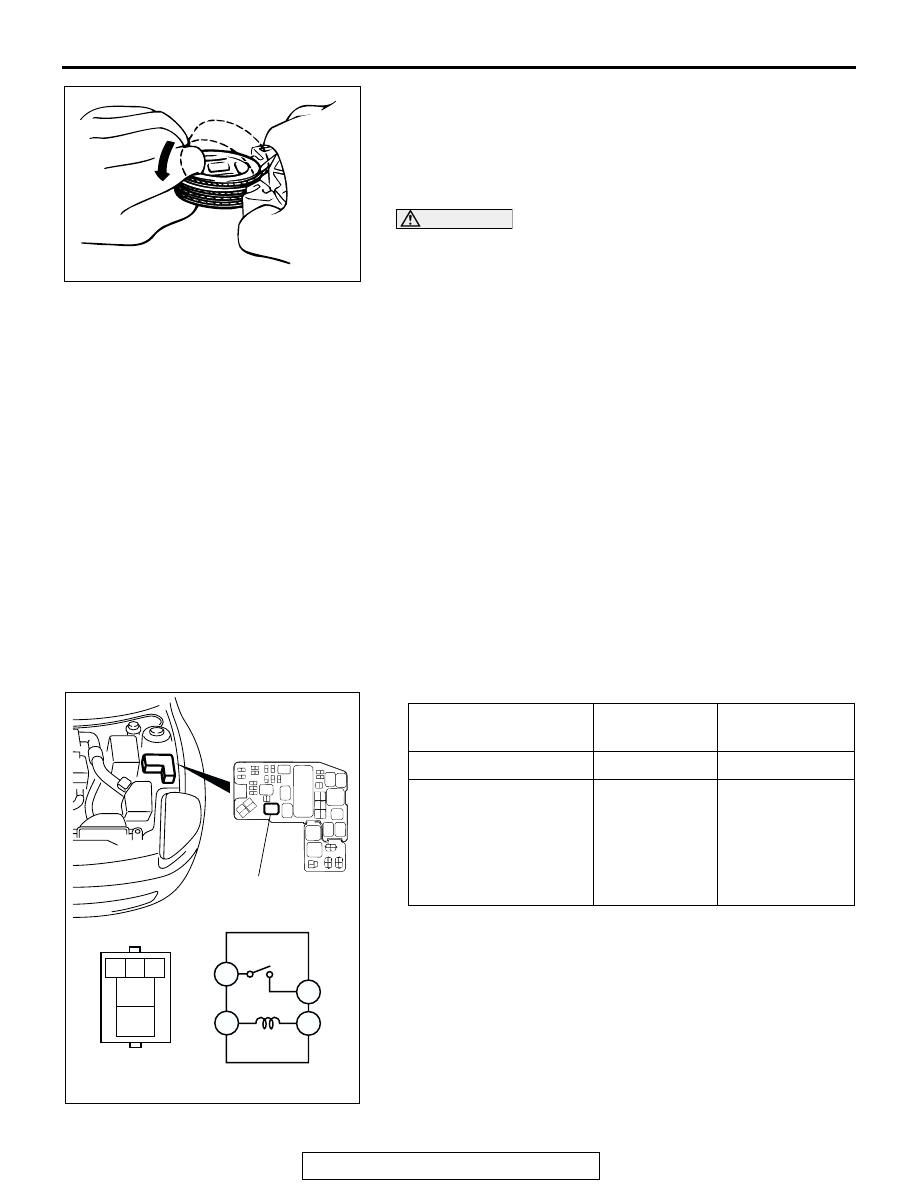

POWER WINDOW RELAY CHECK

AC000497AB

BATTERY
CONNECTION

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

1

− 3

Less than 2 ohm

• Connect terminal 1

to the negative
battery terminal

• Connect terminal 3

to the positive
battery terminal

4

− 5

Less than 2 ohm

1

2 3

4

5

1

3

4

5

ACX01544

AC003899

AC003005

AB

POWER WINDOW

RELAY

FRONT HARNESS

RELAY BOX

DOOR

TSB Revision

BODY

42-62

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

M1423004600168

INSTALLATION SERVICE POINT

.

>>A<< DOOR CHECK INSTALLATION
Install the door check so that the identification mark faces
upwards.

Pre-removal Operation
• Door Trim Removal (Refer to

P.42-54

.)

Post-installation Operation
• Door Inside Handle Play Check (Refer to

P.42-52

.)

• Door Outside Handle Play Check (Refer to

P.42-52

.)

• Door Trim Installation (Refer to

P.42-54

.)

• Door Fit Adjustment (Refer to

P.42-46

.)

AC000499

1

5.0 ± 1.0 N·m

44 ± 9 in-lb

9.0 ± 2.0 N·m

80 ± 17 in-lb

N

3

4

5

2

6

7

AB

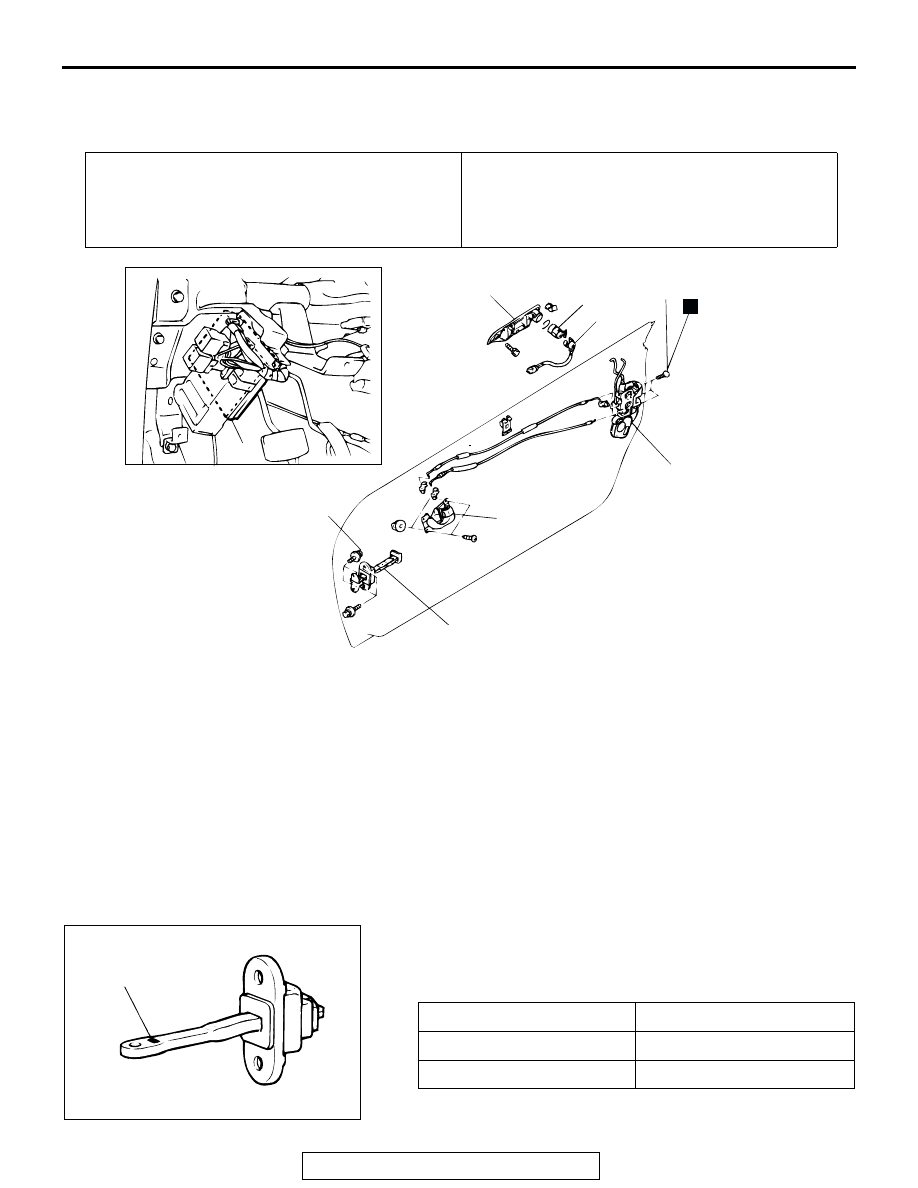

DOOR HANDLE AND DOOR LATCH
ASSEMBLY REMOVAL STEPS
1. ETACS-ECU
2. DOOR INSIDE HANDLE
• WATERPROOF FILM (REFER TO

P.42-54

.)

3. DOOR OUTSIDE HANDLE
4. DOOR LOCK KEY CYLINDER

5. DOOR LOCK KEY CYLINDER

SWITCH

6. DOOR LATCH ASSEMBLY
 DOOR CHECK REMOVAL STEPS
• WATERPROOF FILM (REFER TO

P.42-54

.)

>>A<<

7. DOOR CHECK

DOOR HANDLE AND DOOR LATCH
ASSEMBLY REMOVAL STEPS

ITEM

IDENTIFICATION MARK

Left door

1L

Right door

1R

ACX00541

IDENTIFICATION
MARK

AB

DOOR

TSB Revision

BODY

42-63

INSPECTION

M1421007600279

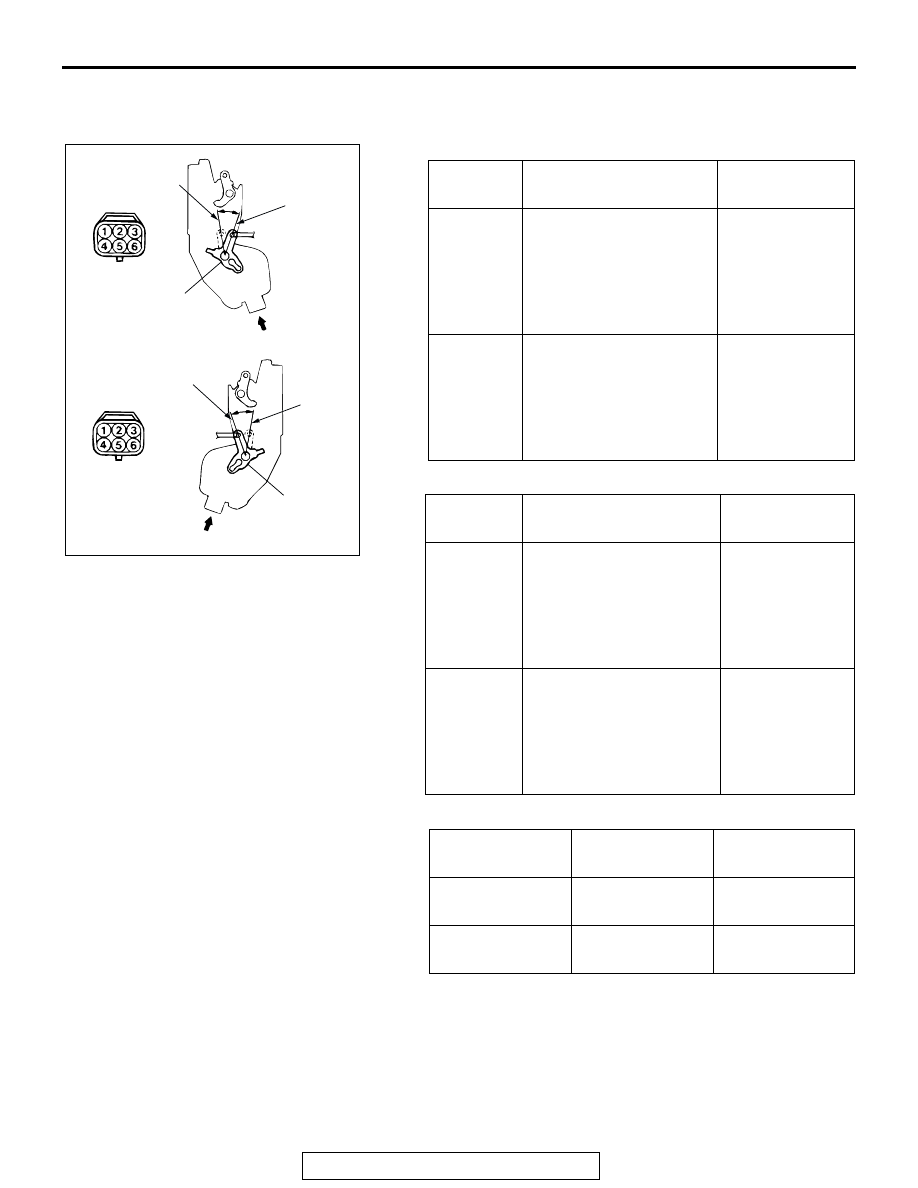

DOOR LOCK ACTUATOR CHECK

ACTUATOR OPERATION CHECK <DRIVER'S SIDE>

ACTUATOR OPERATION CHECK <PASSENGER'S SIDE>

ACTUATOR SWITCH CHECK <DRIVER'S SIDE>

LEVER
POSITION

BATTERY
CONNECTION

LEVER
OPERATION

At the
"LOCK"
position

• Connect terminal 6 to

the negative battery
terminal

• Connect terminal 4 to

the positive battery
terminal

The lever moves
from the "LOCK"
position to the
"UNLOCK"
position.

At the
"UNLOCK"
position

• Connect terminal 4 to

the negative battery
terminal

• Connect terminal 6 to

the positive battery
terminal

The lever moves
from the
"UNLOCK"
position to the
"LOCK" position.

LEVER
POSITION

BATTERY
CONNECTION

LEVER
OPERATION

At the
"LOCK"
position

• Connect terminal 4 to

the negative battery
terminal

• Connect terminal 6 to

the positive battery
terminal

The lever moves
from the "LOCK"
position to the
"UNLOCK"
position.

At the
"UNLOCK"
position

• Connect terminal 6 to

the negative battery
terminal

• Connect terminal 4 to

the positive battery
terminal

The lever moves
from the
"UNLOCK"
position to the
"LOCK" position.

LEVER
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

At the "LOCK"
position

1

− 3

Less than 2 ohm

At the "UNLOCK"
position

1

− 2

Less than 2 ohm

AC000039

LOCK

UNLOCK

VIEW A

VIEW B

UNLOCK

LOCK

B

<DRIVER'S SIDE>

<PASSENGER'S SIDE>

AF

A

LEVER

LEVER

DOOR

TSB Revision

BODY

42-64

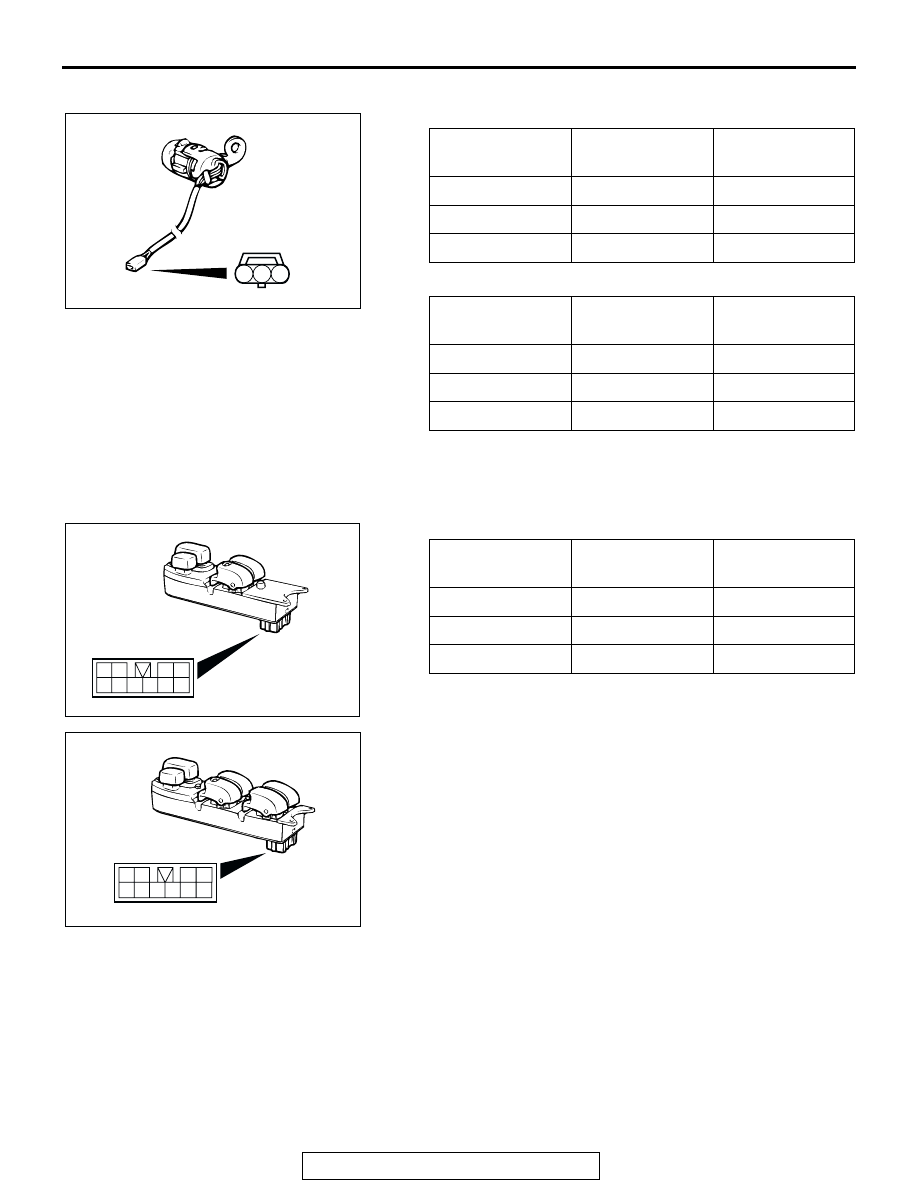

DOOR LOCK KEY CYLINDER SWITCH CHECK

<DRIVER'S SIDE>

<PASSENGER'S SIDE>

CENTER DOOR LOCK SWITCH CONTINUITY
CHECK

Remove the power window switch. (Refer to

P.42-54

.)

<DRIVER'S SIDE>

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

2

− 3

Less than 2 ohm

NEUTRAL (OFF) 1

− 2 − 3

Open circuit

UNLOCK

1

− 2

Less than 2 ohm

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

1

− 2

Less than 2 ohm

NEUTRAL (OFF) 1

− 2 − 3

Open circuit

UNLOCK

2

− 3

Less than 2 ohm

AC000500

1

2

3

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

3

− 9

Less than 2 ohm

OFF

3

− 9 − 10

Open circuit

UNLOCK

9

− 10

Less than 2 ohm

AC000463

1 2

3 4

5 6 7 8 9 10

AB

<ECLIPSE>

AC003390

1 2

3 4

5 6 7 8 9 10

<ECLIPSE SPYDER>

AB
