DOOR

TSB Revision

BODY

42-65

<PASSENGER'S SIDE>

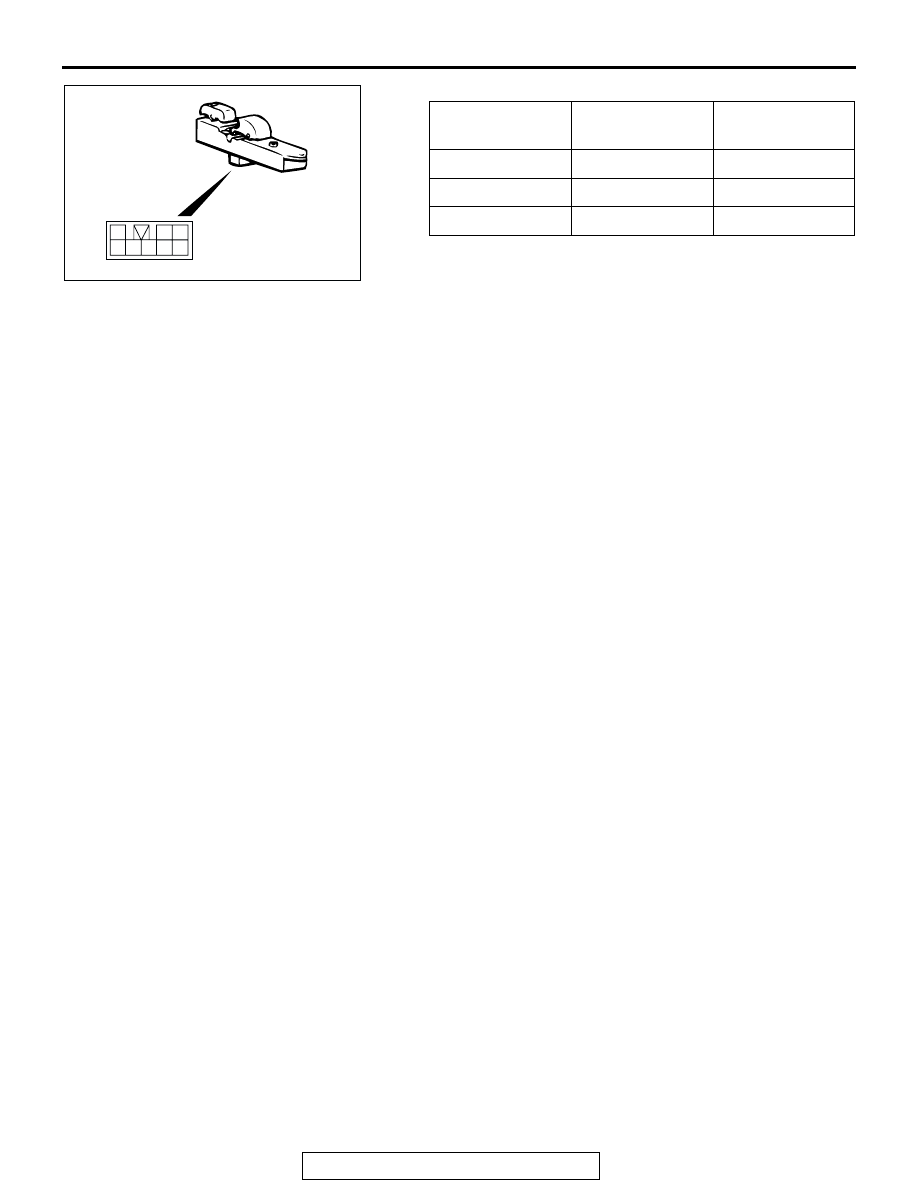

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

1

− 2

Less than 2 ohm

OFF

1

− 2 − 3

Open circuit

UNLOCK

2

− 3

Less than 2 ohm

AC000464

1

2 3

4 5 6 7 8

DOOR

TSB Revision

BODY

42-66

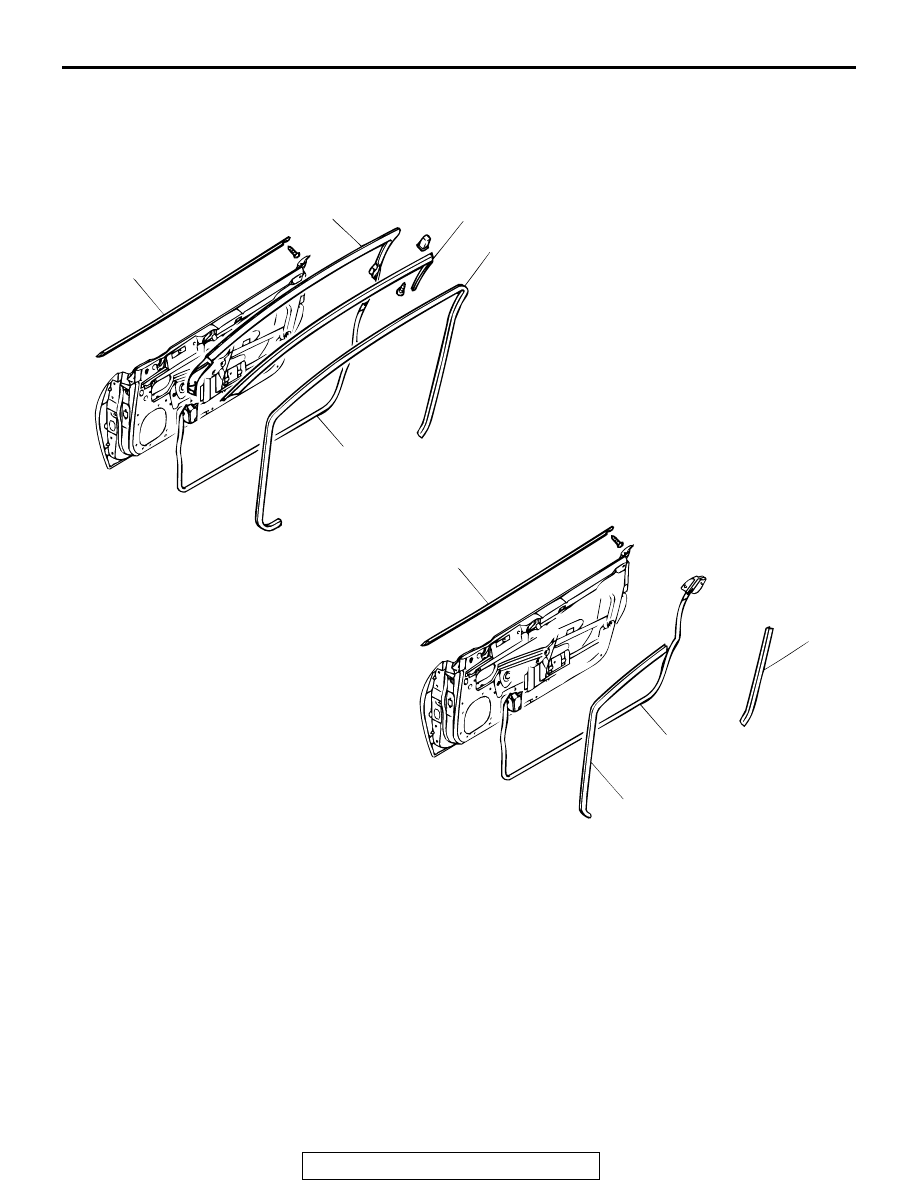

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP

REMOVAL AND INSTALLATION

M1423003100320

AC003394

1

3

4

5

2

1

2

6

7

<ECLIPSE>

<ECLIPSE SPYDER>

AB

DOOR OUTER OPENING
WEATHERSTRIP REMOVAL STEPS
• DOOR TRIM (REFER TO

P.42-54

.)

• DOOR DELTA SASH (REFER TO

P.42-57

.)

1. BELT LINE MOLDING

<<A>> >>A<<

2. DOOR OUTER OPENING

WEATHERSTRIP

DRIP LINE WEATHERSTRIP
REMOVAL STEPS
3. DRIP LINE WEATHERSTRIP
4. DRIP LINE WEATHERSTRIP

HOLDER

DOOR INNER OPENING
WEATHERSTRIP REMOVAL STEPS
• SCUFF PLATE (REFER TO GROUP

52A

P.52A-8

.)

5. DOOR INNER OPENING

WEATHERSTRIP

6. DOOR INNER FRONT OPENING

WEATHERSTRIP

7. DOOR INNER REAR OPENING

WEATHERSTRIP

DOOR

TSB Revision

BODY

42-67

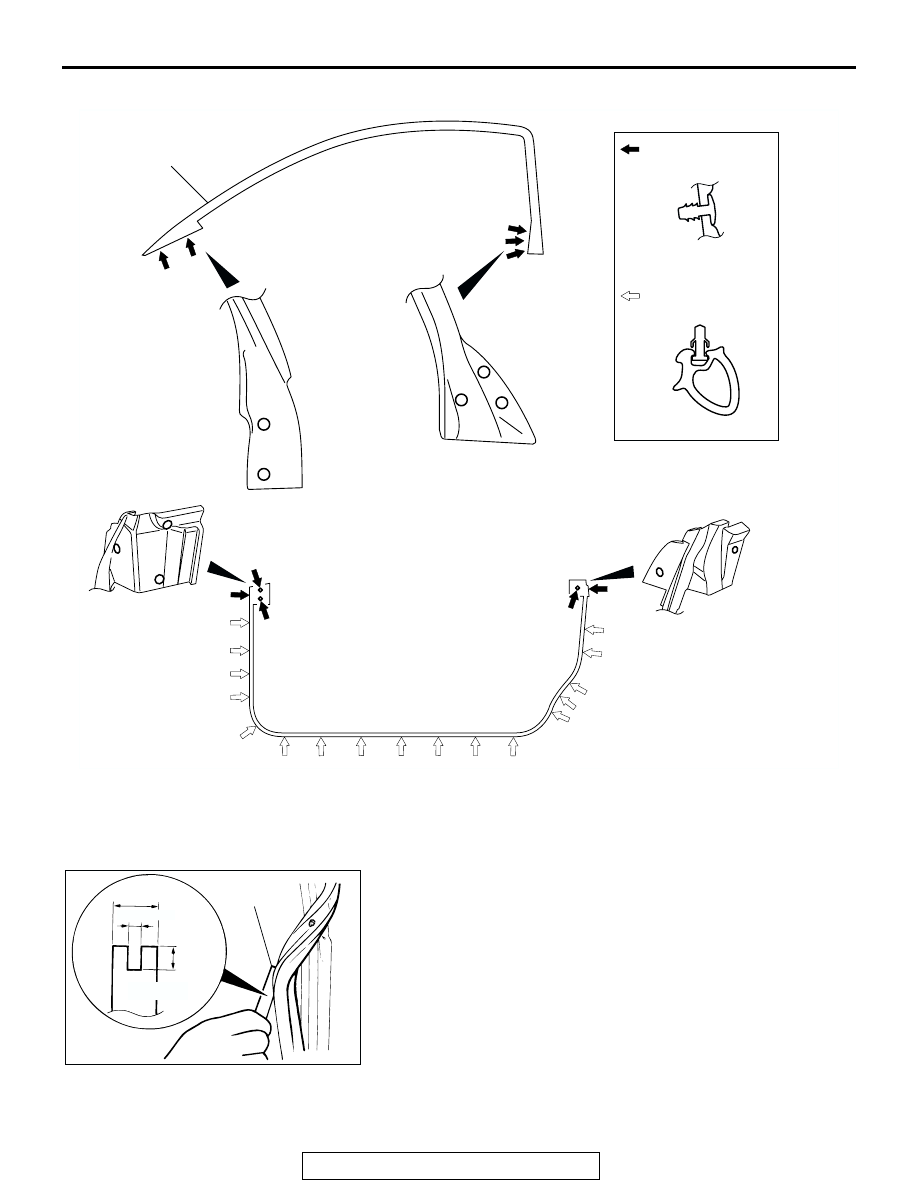

CLIP AND CLAW POSITIONS

REMOVAL SERVICE POINT

.

<<A>> DOOR OUTER OPENING WEATHERSTRIP
REMOVAL
Make a tool as shown and remove the door opening weather-
strip.

AC002008

: SECTIONAL VIEW

  OF CLIP POSITION

: SECTIONAL VIEW

  OF CLIP POSITION

AC

<ECLIPSE>

ACX00555

15 mm (0.6 in)

8 mm
(0.3 in)

AB

4 mm (0.2 in)

THICKNESS:
1 mm (0.04 in)

FABRICATED TOOL

LIFTGATE

TSB Revision

BODY

42-68

INSTALLATION SERVICE POINT

.

>>A<< DOOR OUTER OPENING WEATHERSTRIP INSTAL-
LATION
The clip color identifies the left and right weatherstrips.

LIFTGATE

LIFTGATE DIAGNOSIS

INTRODUCTION TO LIFTGATE DIAGNOSIS

M1424002500113

Difficult locking and unlocking and uneven clearance,
and generation of wind noise from the liftgate may be
improper adjustment of the liftgate.

LIFTGATE DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1424002600110

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
liftgate fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1424002700139

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Difficult Locking and Unlocking

DIAGNOSIS

STEP 1. Check the release cable routing
condition.

Q: Is the release cable routing condition good?

YES :

Go to Step 3.

NO :

Repair it, then go to Step 2.

STEP 2. Check the engagement of the liftgate
latch and liftgate striker.

Q: Are the liftgate latch and liftgate striker engaged

correctly?
YES :

Adjust it. Refer to

P.42-70

.

NO :

 Then go to Step 3.

STEP 3. Check symptoms.

Q: Does the liftgate lock operate easily?

YES :

This diagnosis is complete.

NO :

Return to Step 1.

APPLICABLE SIDE

IDENTIFICATION COLOR

Left door

Natural (White)

Right door

Orange

SYMPTOMS

INSPECTION
PROCEDURE

REFERENCE PAGE

Difficult locking and unlocking

1

P.42-68



Uneven body clearance

2

P.42-69
