DOOR

TSB Revision

BODY

42-53

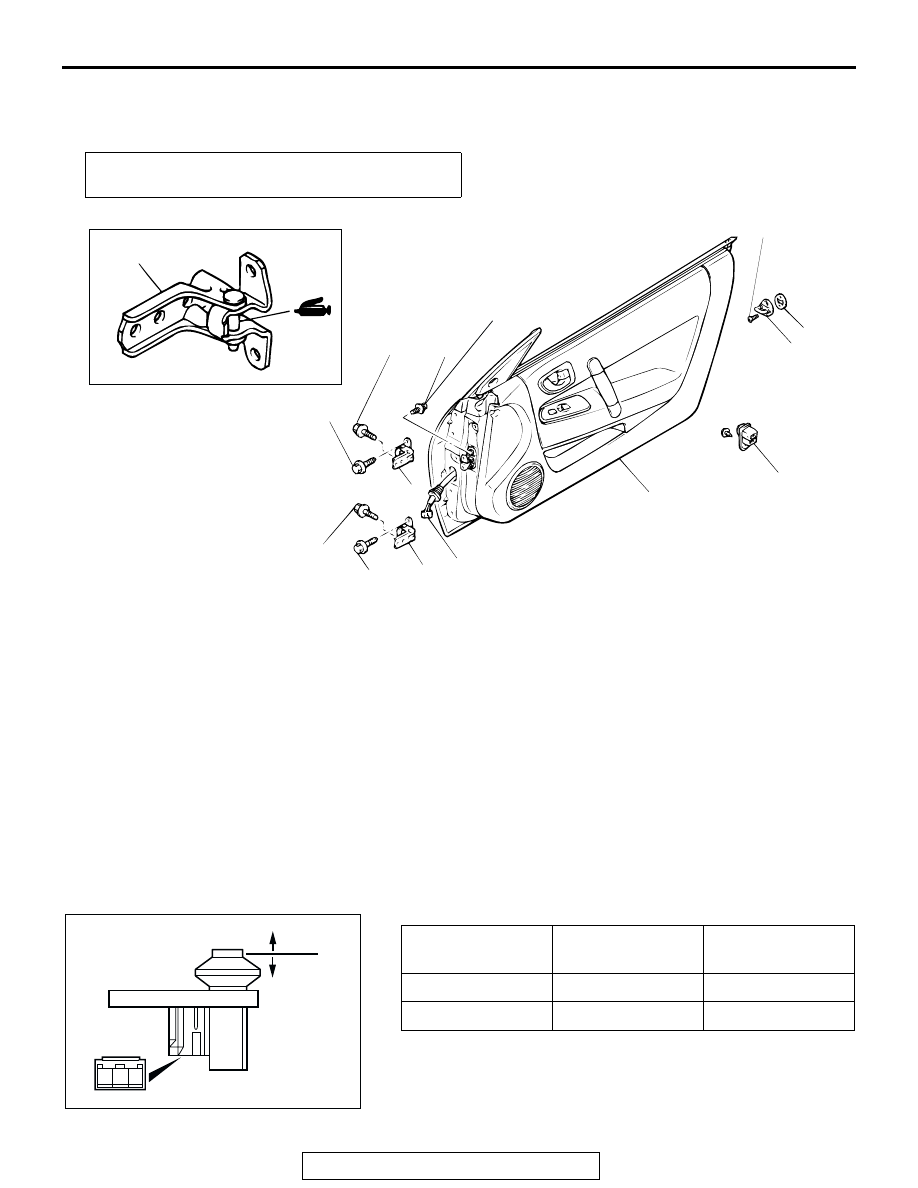

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

M1423002200067

Required Special Tool

• MB990900 or MB991164: Door Adjusting Wrench

INSPECTION

M1421007600257

DOOR SWITCH CHECK

Post-installation Operation
• Door Fit Adjustment (Refer to

P.42-46

.)

AC000480

7, 8

5

7

4

8

6

1

2

3

26 ± 4 N·m

20 ± 4 ft-lb

21 ± 4 N·m

16 ± 2 ft-lb

26 ± 4 N·m

20 ± 4 ft-lb

21 ± 4 N·m

16 ± 2 ft-lb

5.0 ± 1.0 N·m

44 ± 9 in-lb

20 ± 4 N·m

15 ± 3 ft-lb

AB

DOOR SWITCH REMOVAL STEPS
1. DOOR SWITCH
STRIKER REMOVAL STEPS
2. STRIKER
3. STRIKER SHIM
DOOR ASSEMBLY REMOVAL STEPS
• SCUFF PLATE AND COWL SIDE

TRIM (REFER TO GROUP 52A

P.52A-8

.)

4. HARNESS CONNECTOR

5. DOOR CHECK CONNECTING

BOLT

6. DOOR ASSEMBLY
7. DOOR UPPER HINGE
8. DOOR LOWER HINGE

DOOR ASSEMBLY REMOVAL STEPS

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Released (ON)

1

− 2

Less than 2 ohm

Depressed (OFF)

1

− 2

Open circuit

1 2 3

ACX01865AB

ON

OFF

DOOR

TSB Revision

BODY

42-54

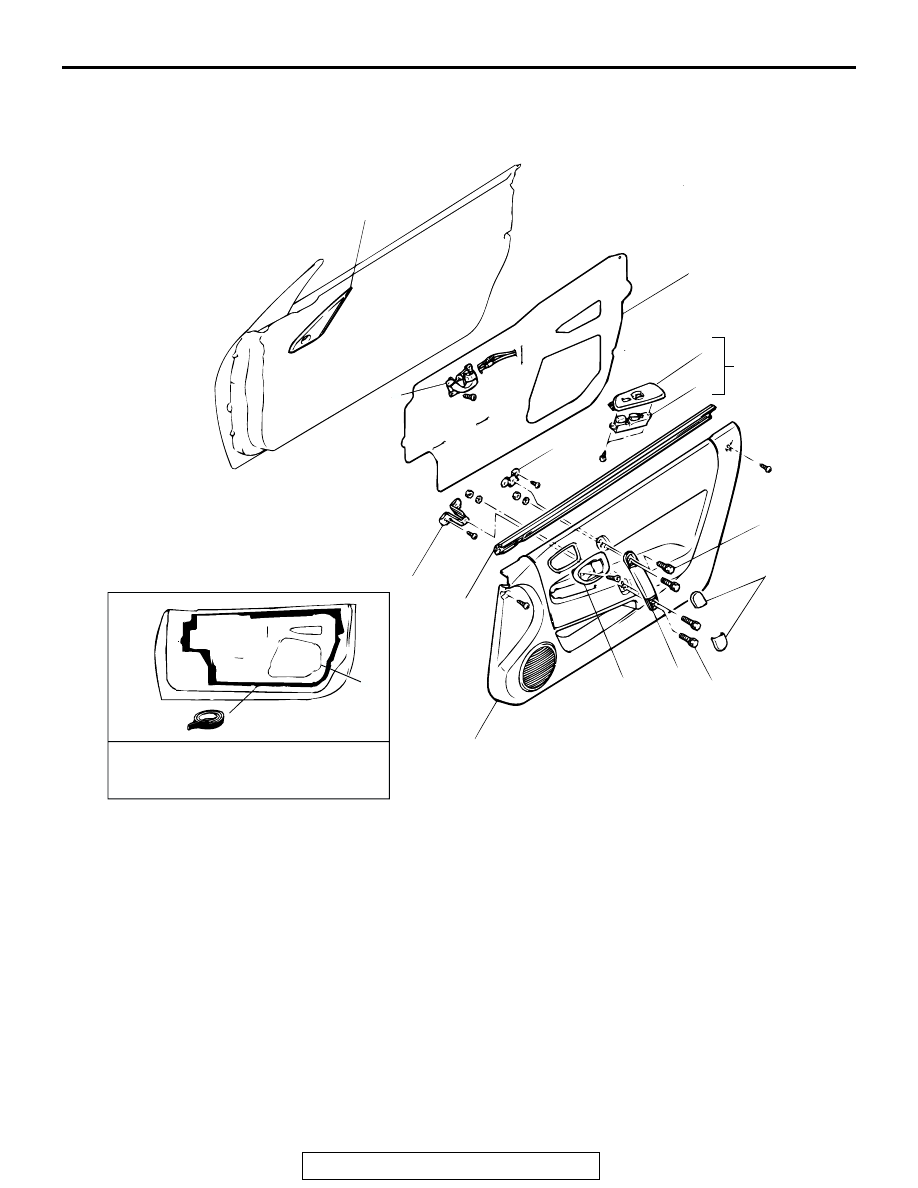

DOOR TRIM AND WATERPROOF FILM

REMOVAL AND INSTALLATION

M1423004300242

AC000482

6

11

13

5

4

11

10

8

7

3

9

2

2

1

12

SEALANT: 3M™ AAD PART NO. 8625
OR EQUIVALENT

AB

13

REMOVAL STEPS
1. DOOR GRIP COVER
2. BOLT
3. DOOR INSIDE HANDLE COVER
4. POWER WINDOW SWITCH AND

POWER WINDOW SWITCH PANEL
ASSEMBLY

5. POWER WINDOW SWITCH PANEL
6. POWER WINDOW SWITCH

7. INNER DELTA COVER OR

TWEETER COVER

8. DOOR TRIM
9. DOOR BELT LINE MOLDING

ASSEMBLY

10. DOOR GRIP
11. DOOR GRIP BRACKET
12. DOOR INSIDE HANDLE
13. WATERPROOF FILM

REMOVAL STEPS (Continued)

DOOR

TSB Revision

BODY

42-55

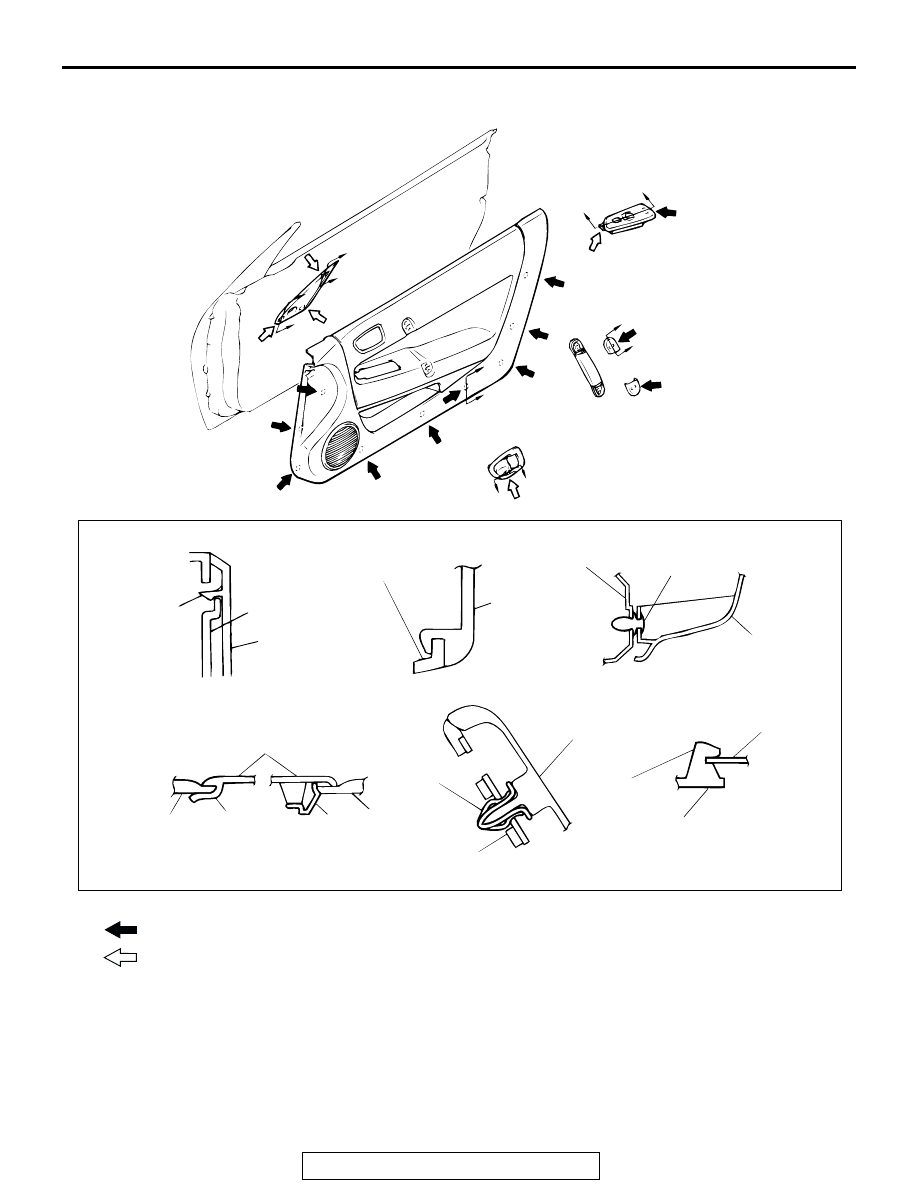

CLIP AND CLAW POSITIONS

AC000483

A

A

B

B

C

C

D

D

E

E

F

F

SECTION A – A

CLAW

DELTA COVER

BASE

DELTA COVER,

INNER

SECTION B – B

DELTA COVER

BASE

DELTA COVER,

INNER

SECTION C – C

DOOR PANEL

CLIP

DOOR TRIM

SECTION D – D

POWER WINDOW

SWITCH PANEL

DOOR TRIM

CLAW

CLIP DOOR TRIM

SECTION E – E

CLIP

DOOR GRIP

DOOR GRIP COVER

SECTION F – F

DOOR INSIDE

HANDLE

CLAW

INSIDE HANDLE

COVER

NOTE

: CLIP POSITIONS

: CLAW POSITIONS

AB

DOOR

TSB Revision

BODY

42-56

INSPECTION

M1421007600042

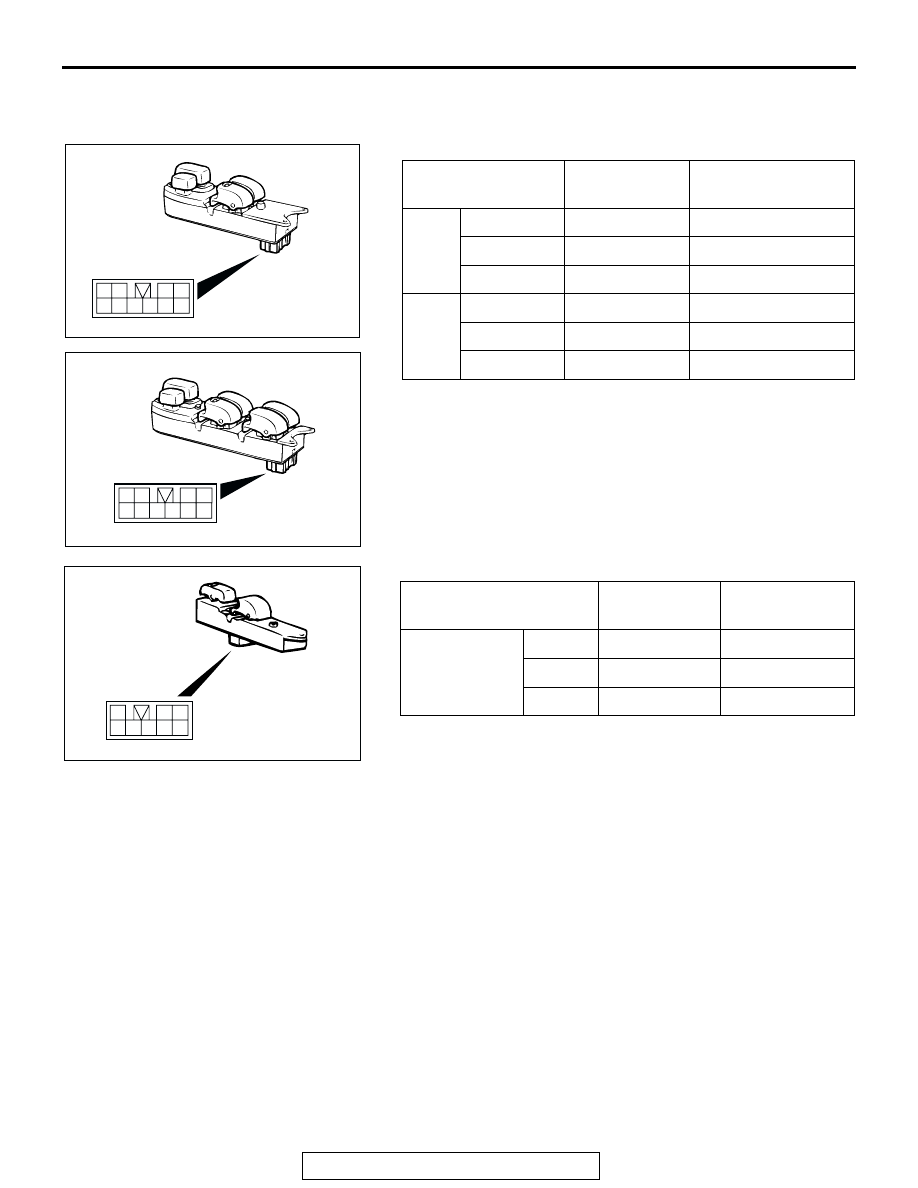

POWER WINDOW SWITCH CHECK

POWER WINDOW MAIN SWITCH CHECK

NOTE: *:Lock switch to UNLOCK position.

POWER WINDOW SUB SWITCH CHECK

SWITCH POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

LH

UP

1

− 6, 5 − 9

Less than 2 ohm

OFF

1

− 5 − 9

Less than 2 ohm

DOWN

5

− 6, 1 − 9

Less than 2 ohm

RH

UP

6

− 7, 8 − 9*

Less than 2 ohm

OFF

7

− 8 − 9*

Less than 2 ohm

DOWN

6

− 8, 7 − 9*

Less than 2 ohm

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Sub switch

UP

6

− 7, 4 − 5

Less than 2 ohm

OFF

4

− 5, 6 − 8

Less than 2 ohm

DOWN

4

− 7, 6 − 8

Less than 2 ohm

AC000463

1 2

3 4

5 6 7 8 9 10

AB

<ECLIPSE>

AC003390

1 2

3 4

5 6 7 8 9 10

<ECLIPSE SPYDER>

AB

AC000464

1

2 3

4 5 6 7 8
