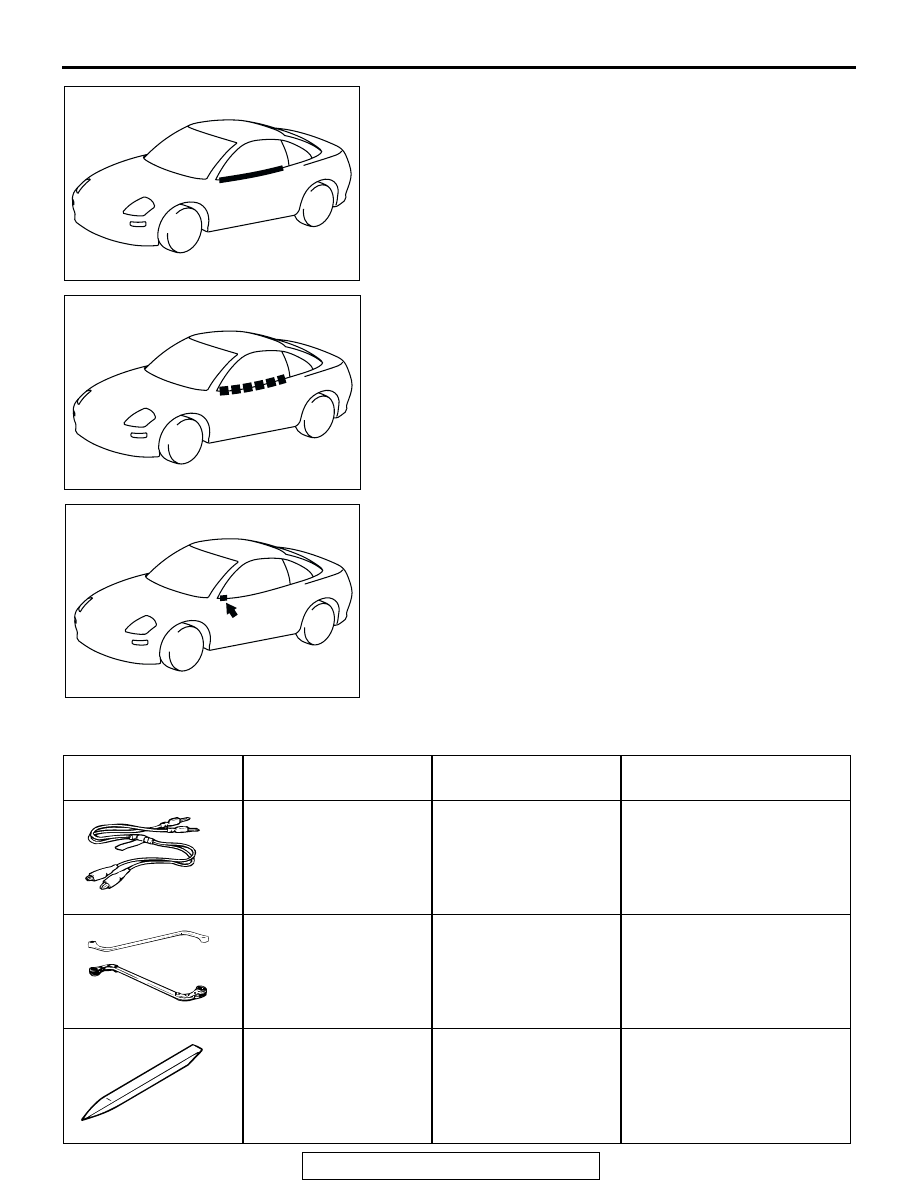

4. When such a place is found, cover it again and repeat the

procedure to check if there are any other noise source.

5. If no others are found, the last remaining tape is the only

source.

6. Cut the remaining piece of tape into smaller pieces, attach it

again as it was before, and then remove the pieces one by
one to narrow down the source.

7. Check that wind noise occurs when the last remaining tape

is removed, and that noise does not occur when it is
re-attached.

8. When the source(s) of the wind noise is finally located,

attach butyl tape, body sealer or similar material to obstruct
this source as much as possible.

SPECIAL TOOLS

M1423000600359

AC000467

AC000468

AC000469

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991529 Diagnostic
trouble code check
harness

MB991529

ETACS-ECU input signal or
checking (when using a
voltmeter)

MB990900 or
MB991164 Door
adjusting wrench

MB990900-01

Adjustment of door fit

MB990784 Ornament
remover

General service tool

Removal of trim, etc.

MB991529

MB990900

MB990784

DOOR

TSB Revision

BODY

42-46

ON-VEHICLE SERVICE

DOOR FIT ADJUSTMENT

M1423000900059

CAUTION

• Attach protection tape to the fender and door edges

where the hinge is installed.

• Do not rotate special tool MB991164 with a torque of

over 98 N

⋅m (72 ft-lb)

1. Use special tool MB990900 or MB991164 to loosen the

hinge mounting bolts on the body side, and then adjust the
clearance around the door so that it is uniform on all sides.

2. When there is a stepped section in the door and body, use

special tool MB990900 or MB991164 to loosen the hinge
mounting bolts on the door side, and ten adjust the door fit.

3. If the door opening and closing are stiff, adjust the linking of

the striker and the door latch using the shim, while moving
the striker up and down, or left and right.

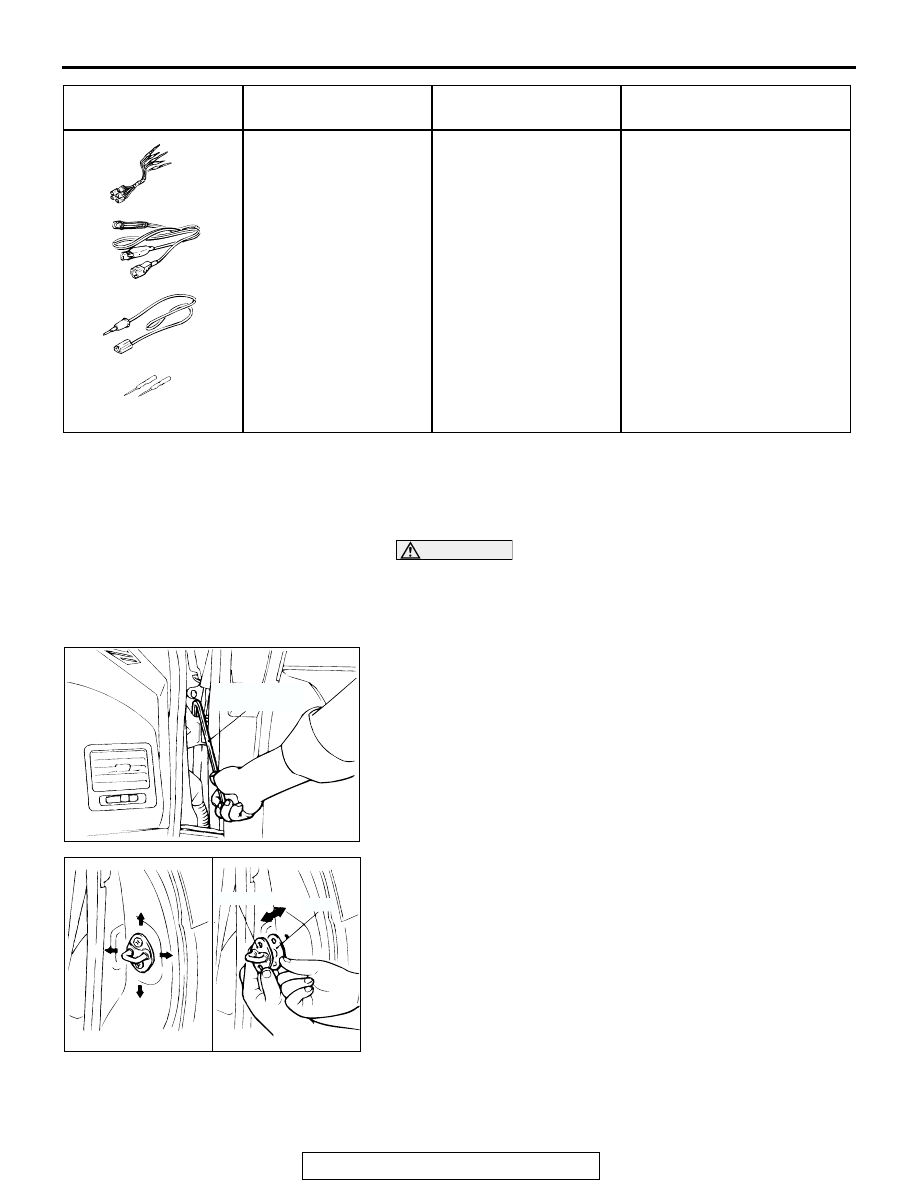

MB991223 Harness set

• A: MB991219 Test

harness

• B: MB991220 LED

harness

• C: MB991221 LED

harness adapter

• D: MB991222 Probe

MB991223

Measurement of terminal
voltage

• A: Connector pin contact

pressure inspection

• B: Power circuit inspection

• C: Power circuit inspection

• D: Commercial tester

connection

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991223

ACX00495

MB990900 OR
MB991164

AB

ACX00497AB

STRIKER

SHIM

DOOR

TSB Revision

BODY

42-47

DOOR WINDOW GLASS ADJUSTMENT

M1423001000350

1. Remove the door trim and waterproof film. (Refer to

P.42-54

.)

2. Remove the drip line weatherstrip. <ECLIPSE> (Refer to

P.42-66

.)

3. Remove the topstack rail weatherstrip. <ECLIPSE

SPYDER> (Refer to

P.42-143

.)

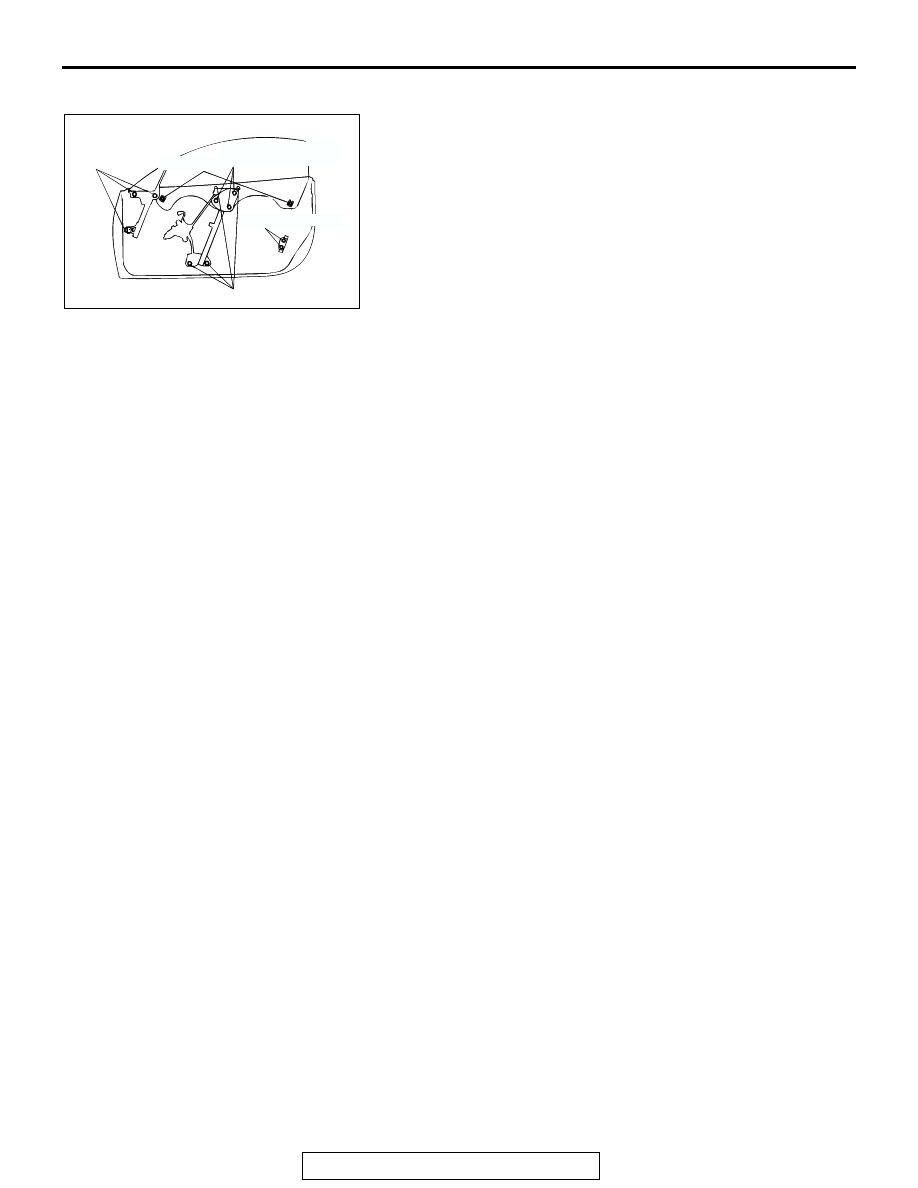

4. Loosen the bolts and nuts of the following parts.

• Delta sash assembly

• Power window regulator assembly

• Glass carrier plate

• Up-stop

• Rear lower sash

5. Tighten the power window regulator assembly upper bolts

and the glass carrier plate mounting bolts so that the
clearances between the weatherstrip holder and the window
glass as well as between the door panel and the window
glass meet the respective standard values. (Sections A

− A,

B

− B, C − C, D − D, E − E, F − F.)

AC000470

DELTA SASH

ASSEMBLY

UP-STOP

GLASS CARRIER

PLATE

REAR LOWER SASH

POWER WINDOW REGULATOR ASSEMBLY

AB

DOOR

TSB Revision

BODY

42-48

CAUTION

The right and left adjusting bolts should turned by the
same number of threads.
6. Turn the lower adjusting bolts (right and left) of the power

window regulator assembly until the clearances between the
weatherstrip and the window glass meet the respective
standard values. (Sections G

− G, H − H, I − I, J − J.)

AC003391

A

A

B

B

C

C

D

D

E

E

F

F

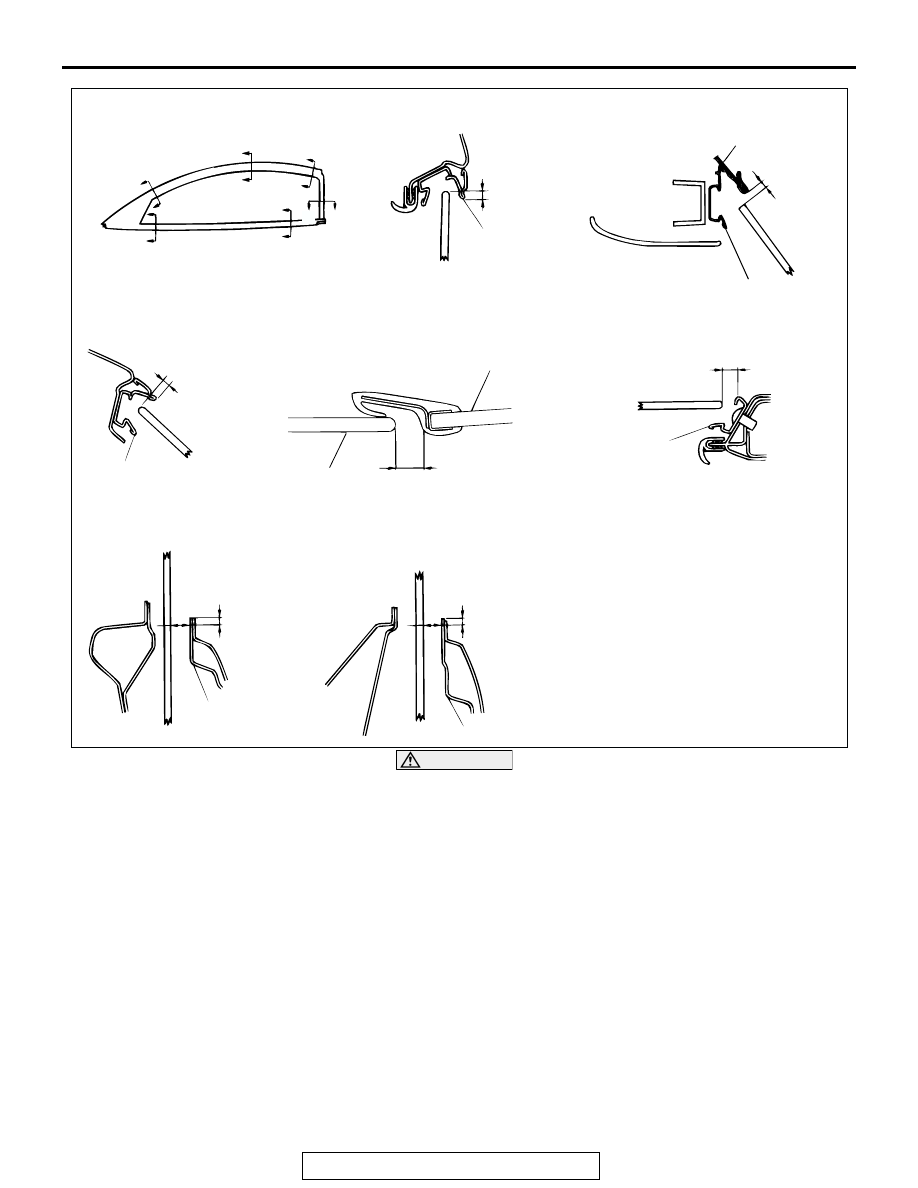

SECTION A – A

<ECLIPSE>

SECTION B – B

<ECLIPSE SPYDER>

SECTION C – C

<ECLIPSE>

<ECLIPSE SPYDER>

SECTION D – D

<ECLIPSE>

SECTION E – E

SECTION F – F

<ECLIPSE>

2.9 ± 1.0 mm

(0.11 ± 0.44 in)

WEATHERSTRIP

HOLDER

TOP COVER ASSEMBLY

WEATHERSTRIP HOLDER

5 mm

(0.20 in)

2.7 ± 1.0 mm

(0.11 ± 0.44in)

WEATHERSTRIP

HOLDER

QUARTER WINDOW

GLASS

FRONT DOOR

GLASS

8.7 mm

(0.34 in)

10.7 ± 1.0 mm

(0.42 ± 0.04 in)

WEATHERSTRIP

HOLDER

12.6 mm

(0.50 in)

5 mm

(0.20 in)

DOOR PANEL

12.6 mm

(0.50 in)

5 mm

(0.20 in)

DOOR PANEL
