CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-59

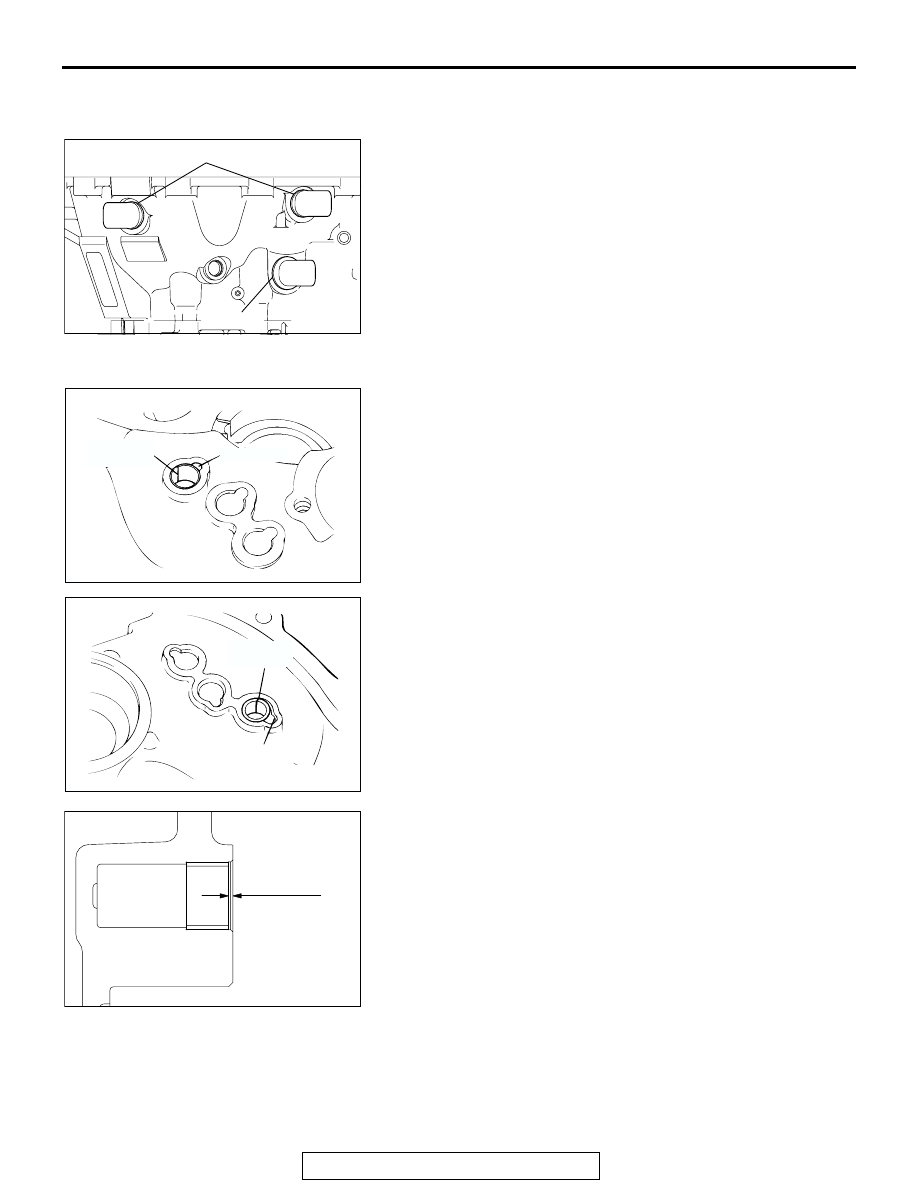

ASSEMBLY SERVICE POINTS

.

>>A<< COVER-B/COVER-A INSTALLATION
Install the covers directed as shown in the illustration.

.

>>B<< BUSHING INSTALLATION
1. Press fit the bushing so the seam is away from the air vent.

2. Be sure the bushing is fully seated as shown. It must be 1

mm (0.04 inch) below the housing surface.

.

AKX00935

COVER-A

COVER-B

AB

AKX00862

<F5M42>

SEAM OF
BUSHING

AIR VENT

AB

AKX00906

<F5M51>

AIR VENT

SEAM OF
BUSHING

AB

AKX00875

1 mm (0.04 in)

AB

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-60

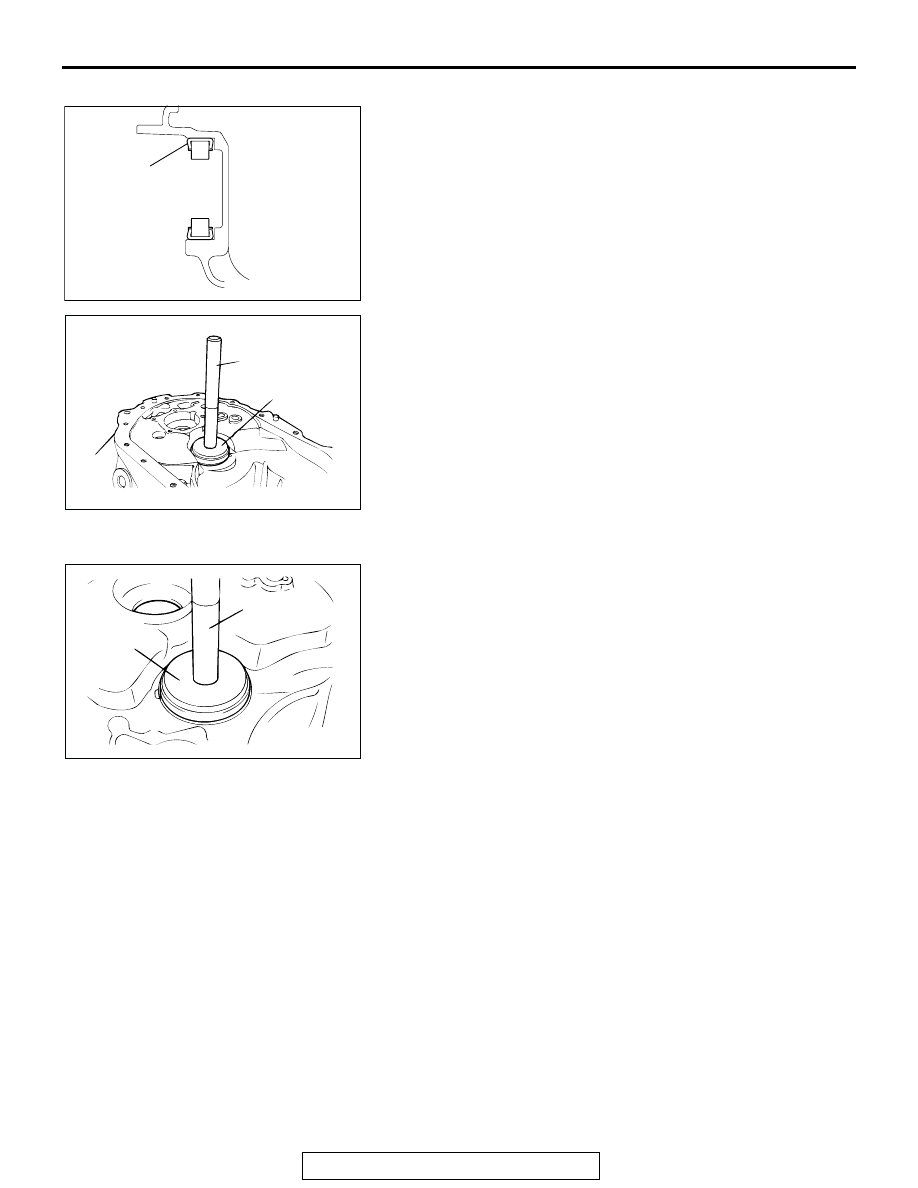

>>C<< OUTER RACE INSTALLATION
1. Check the installation direction of the outer race.

2. Using special tools MB990938 and MB990934, press fit the

outer race into the clutch housing.

.

>>D<< OUTER RACE INSTALLATION
Using special tools MB990938 and MB990935, press fit the
outer race into the clutch housing.

.

AKX00863

MODEL NUMBER
STAMPED SIDE

AB

AKX00864

MB990938

MB990934

AB

AKX00907

MB990938

MB990935

AB

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-61

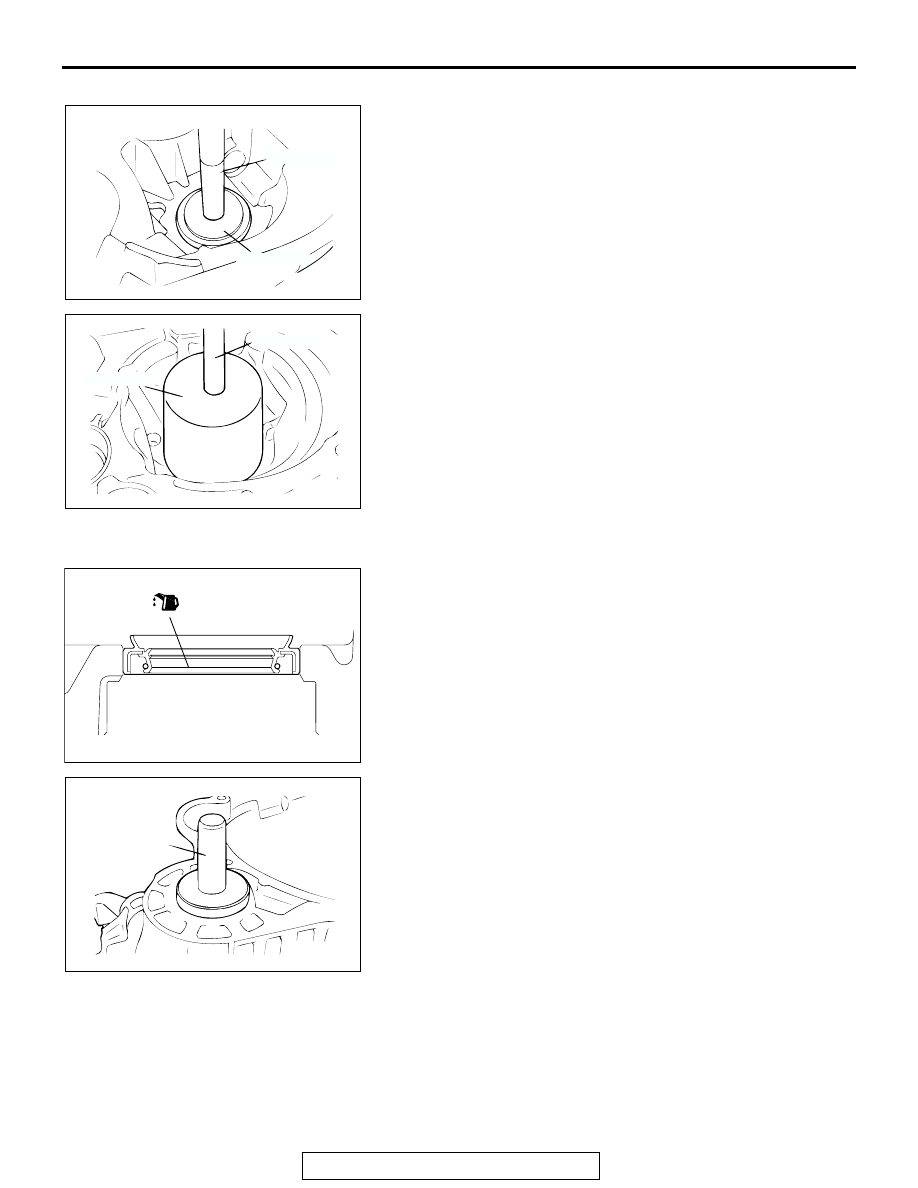

>>E<< OUTER RACE INSTALLATION
1. Check the installation direction of the outer race.
2. Using special tools MB990938, MB990935 <F5M42> and

MB991445 <F5M51>, press fit the outer race into the clutch
housing.

.

>>F<<OIL SEAL INSTALLATION
1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W

conforming to API classification GL-4) to the oil seal lip.

2. Using special tool MD998325 <F5M42> or MD998800

<F5M51>, press fit the oil seal into the clutch housing.

.

AKX00865

<F5M42>

MB990935

MB990938

AB

AKX00908

<F5M51>

MB991445

MB990938

AB

AKX00866

AKX00867

MD998325
<F5M42>
OR
MD998800
<F5M51>

AB

CLUTCH HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-62

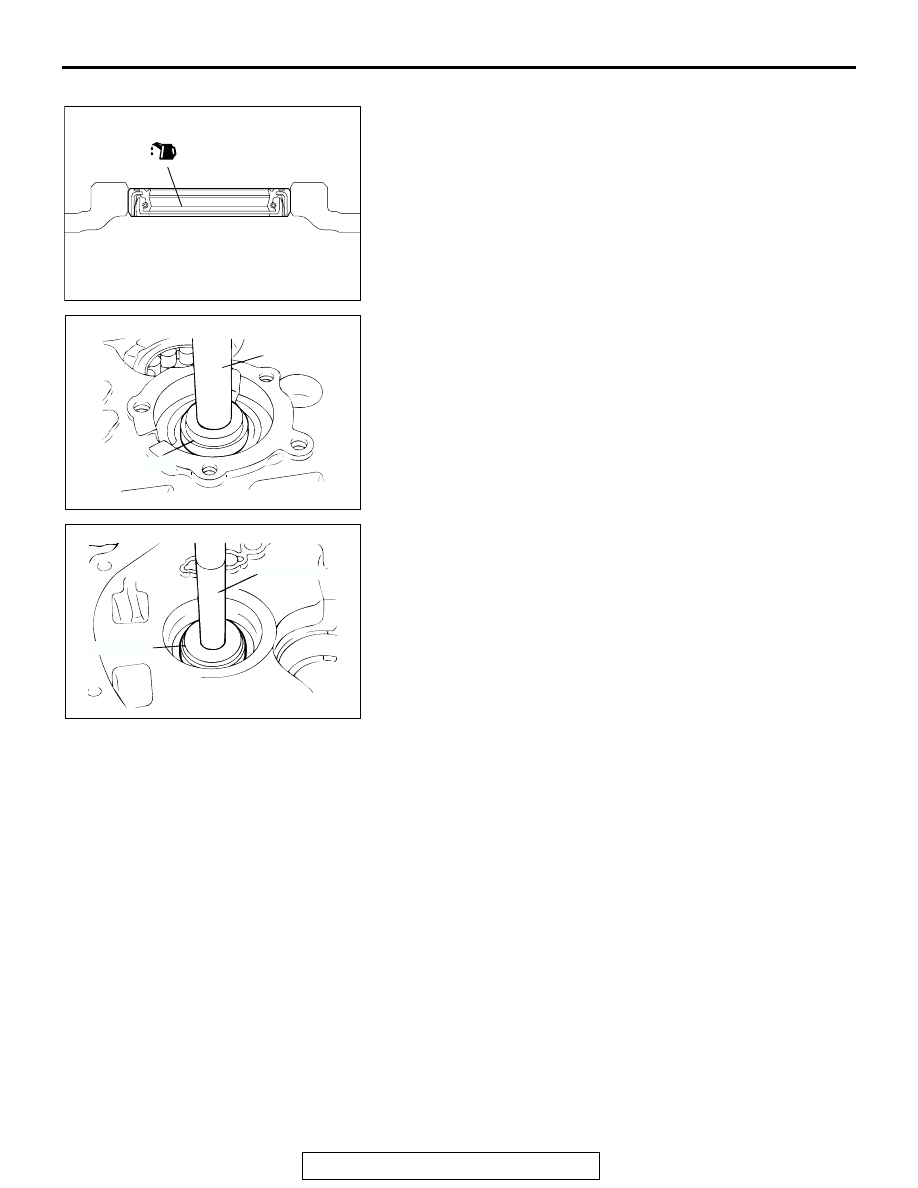

>>G<< OIL SEAL INSTALLATION
1. Apply transmission oil (Hypoid gear oil SAE 75W-90 or

75W-85W conforming to API classification GL-4) to the oil
seal lip.

2. Using special tools MB990938, MB990926 <F5M42> and

MB990928 <F5M51>, press fit the oil seal into the clutch
housing.

AKX00868

AKX00869

<F5M42>

MB990938

MB990926

AB

AKX00909

<F5M51>

MB990928

MB990938

AB
