Mitsubishi Eclipse. Manual - part 938





SELECT LEVER

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-51

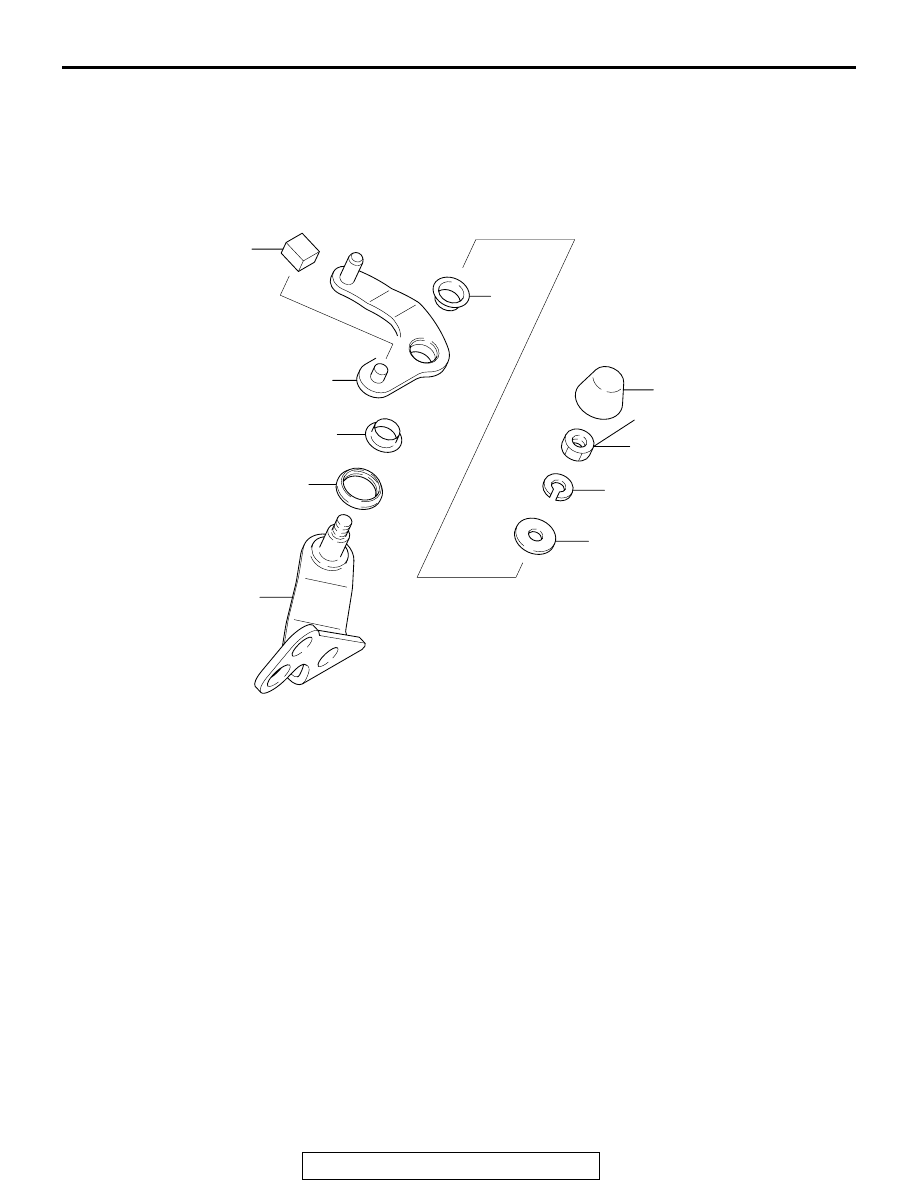

SELECT LEVER

DISASSEMBLY AND ASSEMBLY

M1222012800029

AKX00801

6

5

7

1

12 ±1 N·m
104 ± 9 in-lb

8

2

9

3

4

10

AB

DISASSEMBLY STEPS

1.

DUST COVER

2.

NUT

3.

SPRING WASHER

4.

WASHER

>>A<<

5.

SELECT LEVER BUSHING

6.

SELECT LEVER SHOE

7.

SELECT LEVER

>>A<<

8.

SELECT LEVER BUSHING

>>A<<

9.

DUST COVER

10. SELECT LEVER SHAFT

DISASSEMBLY STEPS

SELECT LEVER

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-52

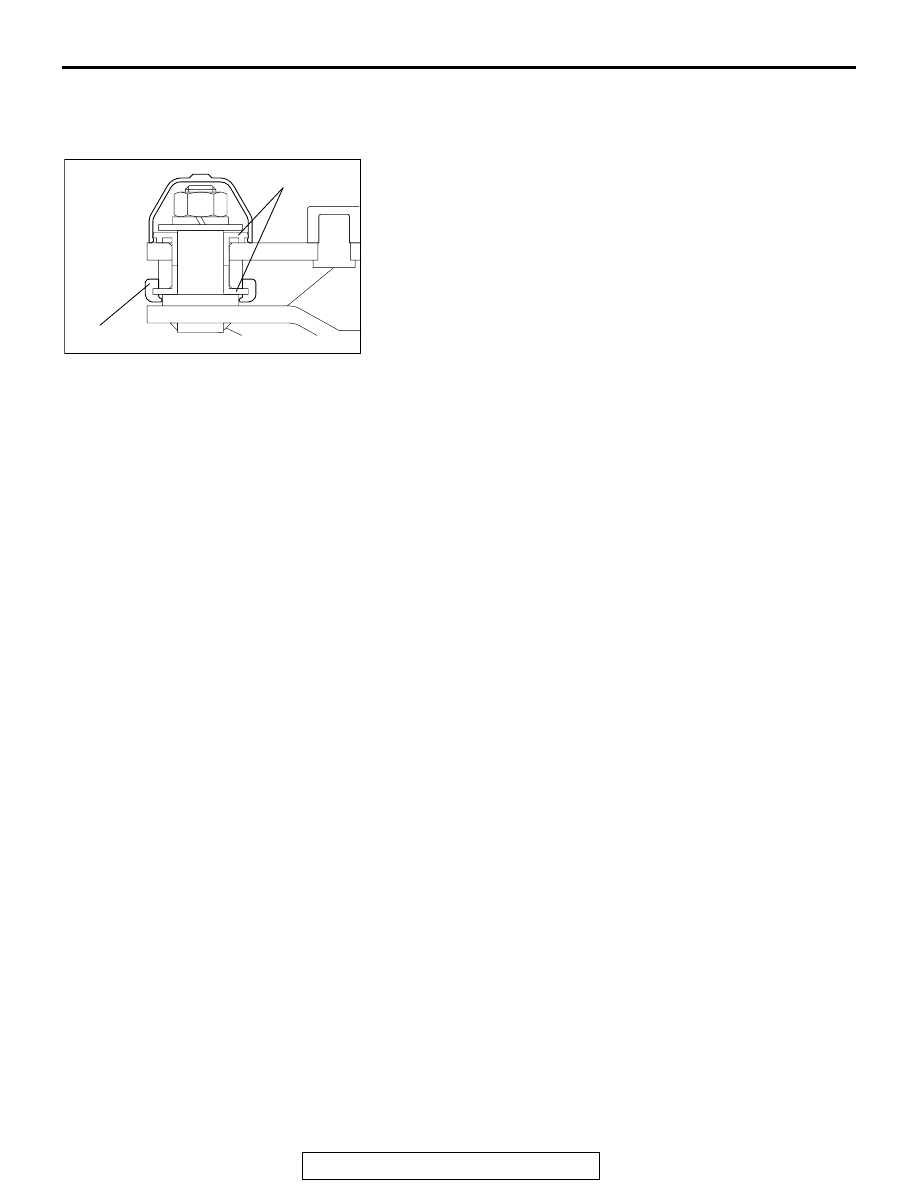

ASSEMBLY SERVICE POINT

.

>>A<< DUST COVER AND SELECT LEVER BUSHING
INSTALLATION
Use the figure to make sure the dust cover and select lever
bushing installation direction is correct, and the distinguished
parts are correctly assembled.

AKX00939

SELECT LEVER
BUSHING

DUST COVER

AB

CONTROL HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-53

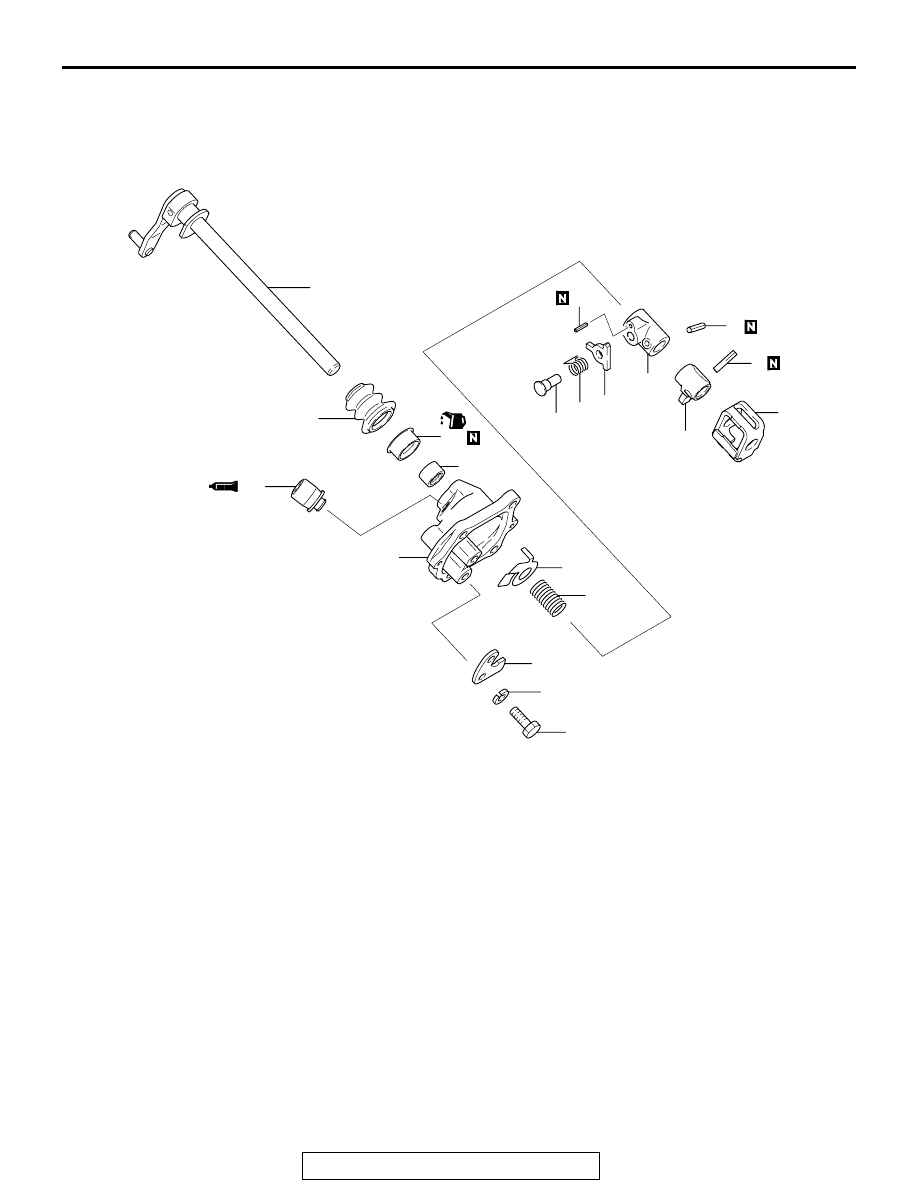

CONTROL HOUSING

DISASSEMBLY AND ASSEMBLY

M1222013100023

AKX00800

12

7

8

1

9

6

5

4

2

3

14

15

16

13

19

11

10

18

17

25 ± 3 N·m
19 ± 2 ft-lb

AB

DISASSEMBLY STEPS

<<A>>

>>F<<

1.

LOCK PIN

2.

INTERLOCK PLATE

3.

CONTROL FINGER

4.

PIN

5.

RETURN SPRING

6.

STOPPER PLATE

>>E<<

7.

SPRING PIN

>>D<<

8.

SPRING PIN

9.

STOPPER BODY

10. NEUTRAL RETURN SPRING

11. SPACER
12. CONTROL SHAFT

>>C<<

13. AIR BREATHER
14. CONTROL SHAFT BOOT

>>B<<

15. OIL SEAL

>>A<<

16. NEEDLE BEARING
17. SPRING WASHER
18. STOPPER BRACKET
19. CONTROL HOUSING

DISASSEMBLY STEPS

CONTROL HOUSING

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-54

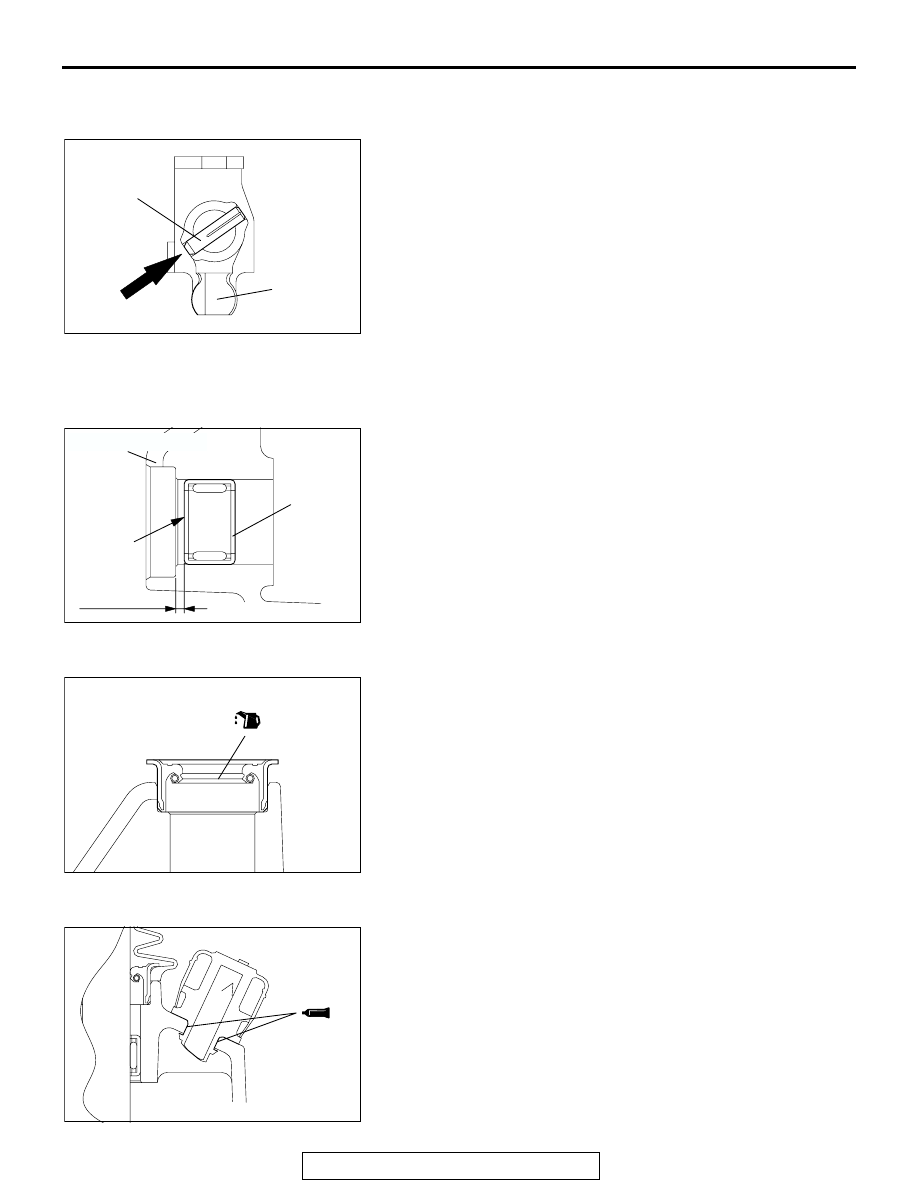

DISASSEMBLY SERVICE POINT

.

<<A>> LOCK PIN REMOVAL
Drive the lock pin out of position from the direction shown.

ASSEMBLY SERVICE POINTS

.

>>A<< NEEDLE BEARING INSTALLATION
Press fit the needle bearing up the illustrated dimension, while
making sure that the model number stamped side is oriented
toward the control housing side.

.

>>B<< OIL SEAL INSTALLATION
Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W con-
forming to API classification GL-4) to the oil seal lip area.

.

>>C<< AIR BREATHER INSTALLATION
1. Apply sealant (3M

 AAD Part Number 8001 or equivalent)

to the inserting portion of air breather.

AKX00856

LOCK PIN

CONTROL FINGER

AB

AKX00857

NEEDLE
BEARING

MODEL
NUMBER
STAMPED
SIDE

2 mm (0.08 in)

AB

CONTROL HOUSING

AKX00921

AKX00858
