Mitsubishi Eclipse. Manual - part 941





TRANSAXLE CASE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-63

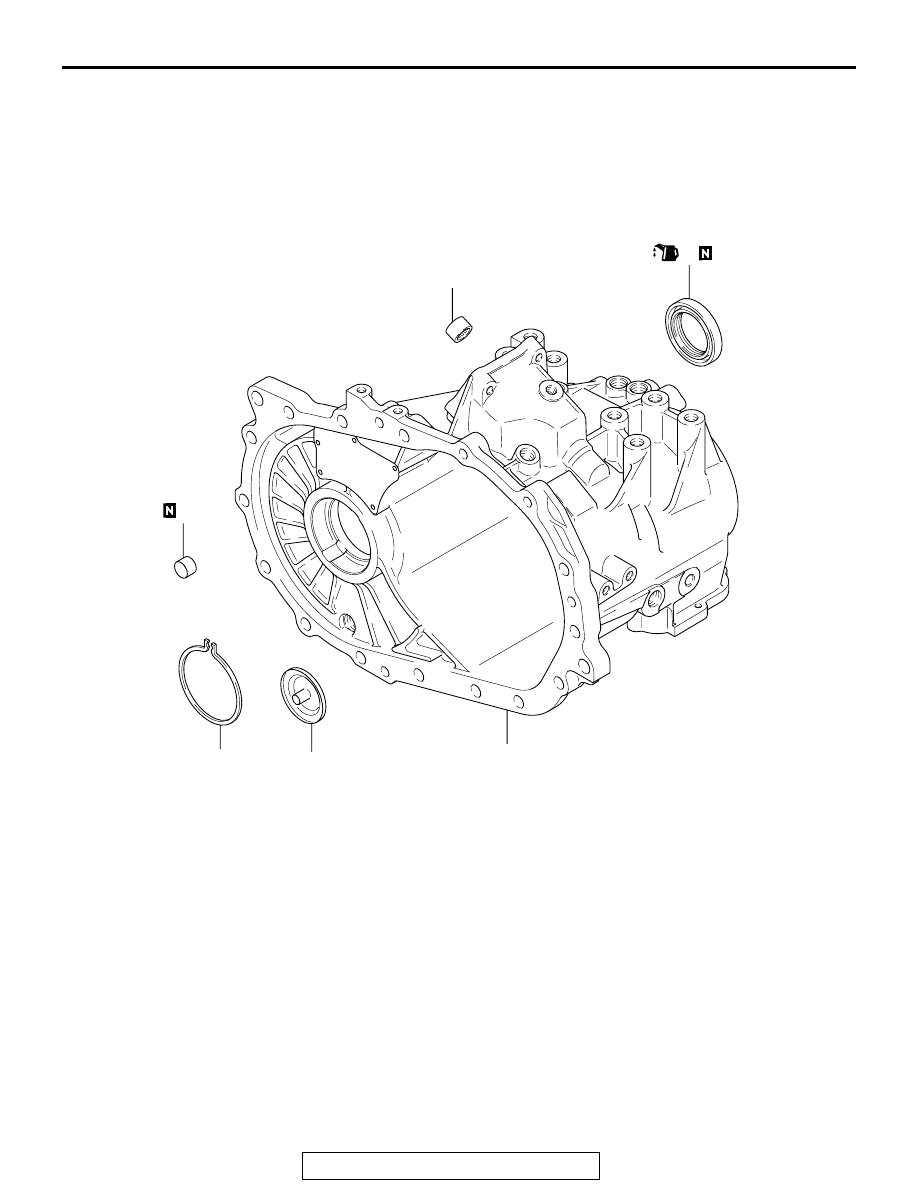

TRANSAXLE CASE

DISASSEMBLY AND ASSEMBLY

M1222013400024

<F5M42>

NOTE:

*

:Refer to the needle bearing and bushing installa-

tion procedures only when replacing the transaxle case.

Required Special Tools:

• MD998325: Differential Oil Seal Installer

<F5M42>

• MD998800: Differential Oil Seal Installer

<F5M51>

AKX00806

1

2

5

6

4

3

AB

DISASSEMBLY STEPS

>>C<<

1.

OIL SEAL

>>B<<

2.

NEEDLE BEARING

*

3.

OIL GUIDE

4.

SNAP RING

>>A<<

5.

BUSHING

*

6.

TRANSAXLE

DISASSEMBLY STEPS

TRANSAXLE CASE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-64

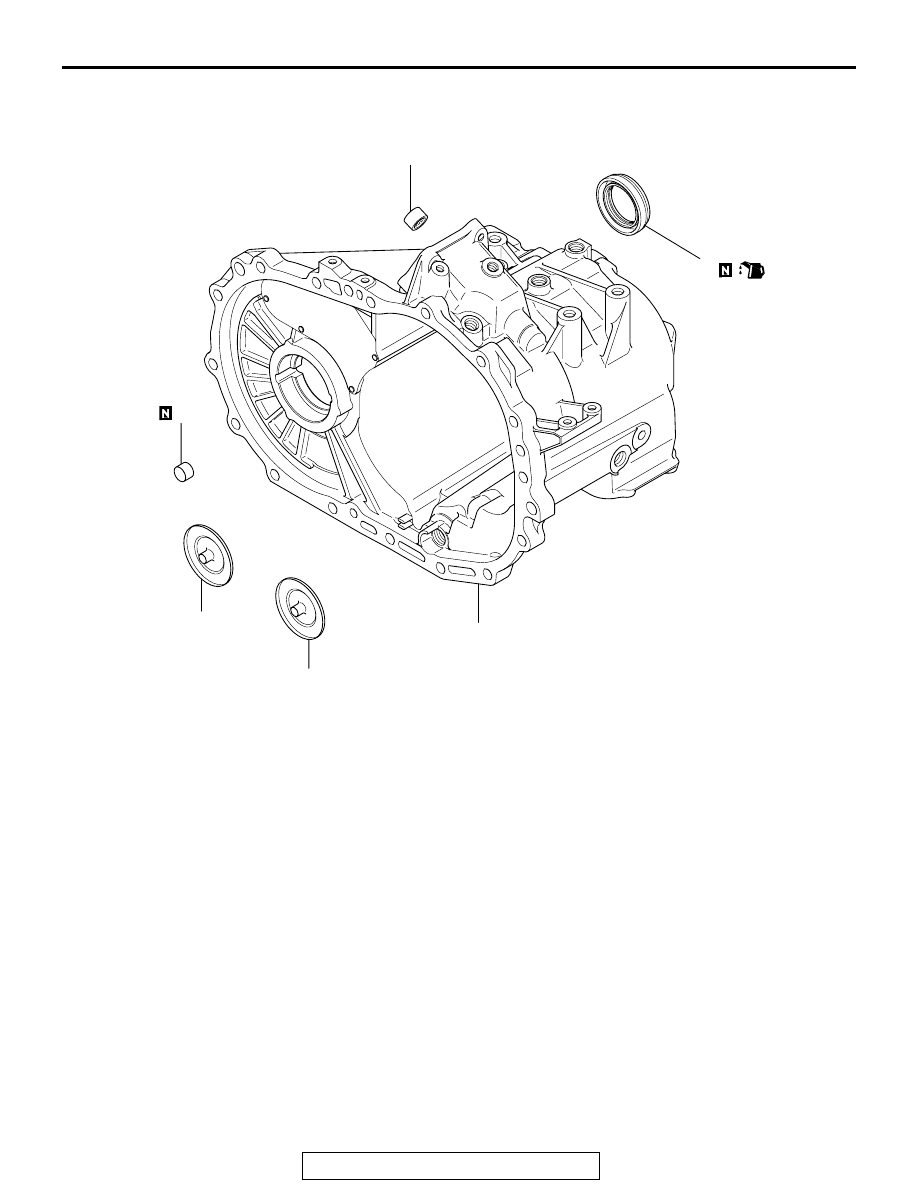

 <F5M51>

NOTE:

*

:Refer to the needle bearing and bushing installa-

tion procedures only when replacing the transaxle case.

AKX00948

2*

1

5*

4

6

3

AB

DISASSEMBLY STEPS

>>C<<

1. OIL SEAL

>>B<<

2. NEEDLE BEARING

*

3 OIL GUIDE
4. OIL GUIDE

>>A<<

5. BUSHING

*

6. TRANSAXLE

DISASSEMBLY STEPS (Continued)

TRANSAXLE CASE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-65

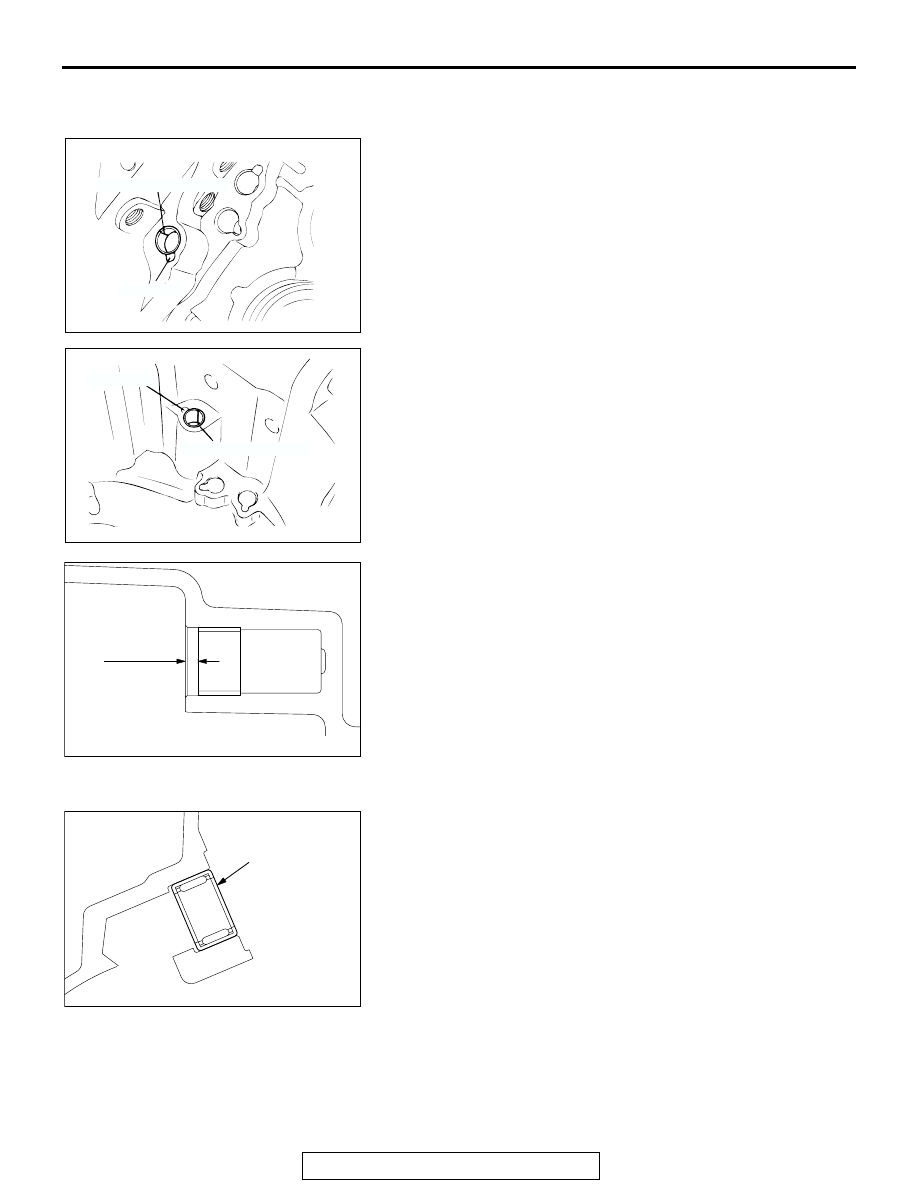

ASSEMBLY SERVICE POINTS

.

>>A<< BUSHING INSTALLATION
1. Press fit the bushing so the seam is away from the air vent.

2. Be sure the bushing is fully seated as shown. It must be 3

mm (0.12 inch) below the housing surface.

.

>>B<< NEEDLE BEARING INSTALLATION
1. Check the installation direction of the needle bearing.
2. Press fit the needle bearing until it is flush with the case.

.

AKX00876

<F5M42>

SEAM OF BUSHING

AIR VENT

AB

AKX00910

<F5M51>

AIR VENT

SEAM OF BUSHING

AB

AKX00924

3 mm (0.12 in)

AB

AKX00871

MODEL NUMBER
STAMPED SIDE

AB

TRANSAXLE CASE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-66

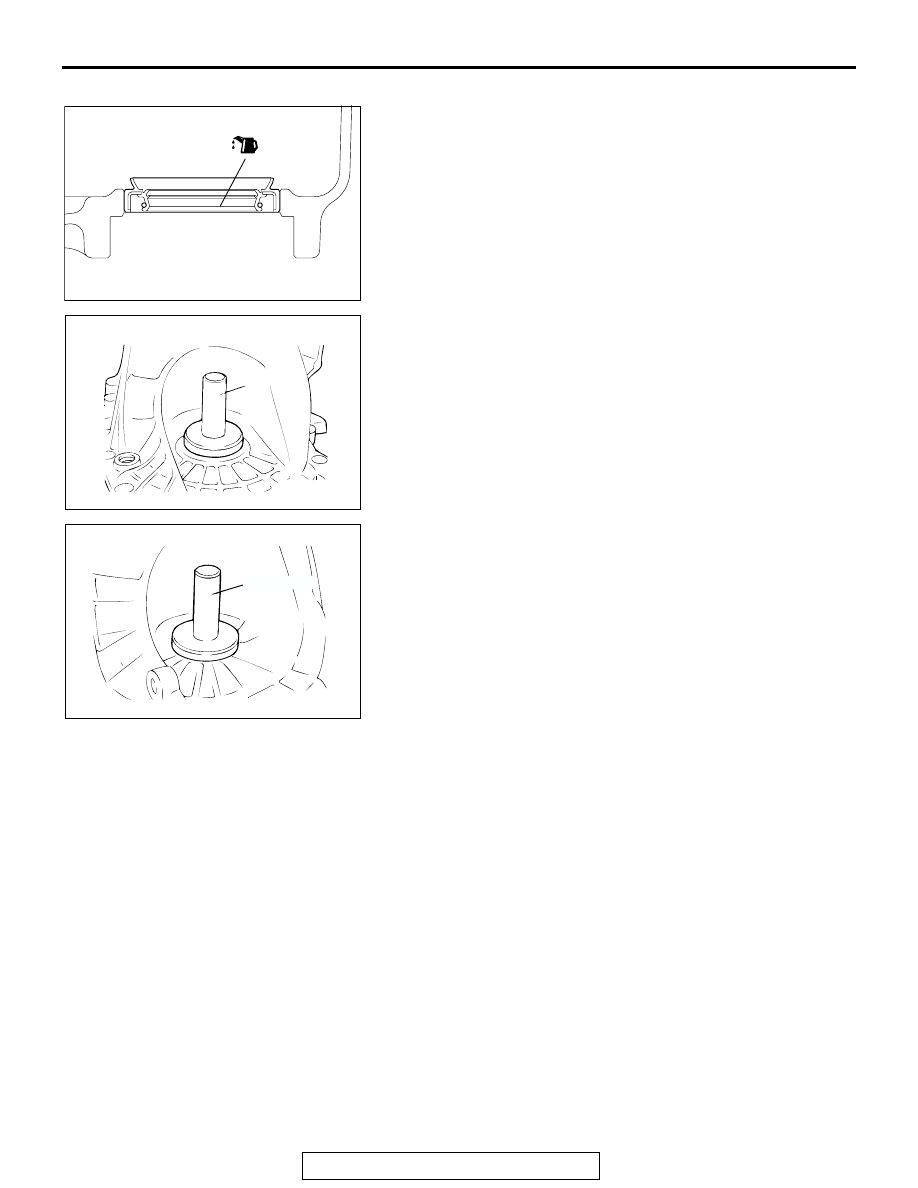

>>C<<OIL SEAL INSTALLATION
1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W

conforming to API classification GL-4).

2. Using special tool MD998325 <F5M42> or MD998800

<F5M51>, press fit the oil seal into the transaxle case.

AKX00870

AKX00872

<F5M42>

MD998325

AB

AKX00911

<F5M51>

MD998800

AB
