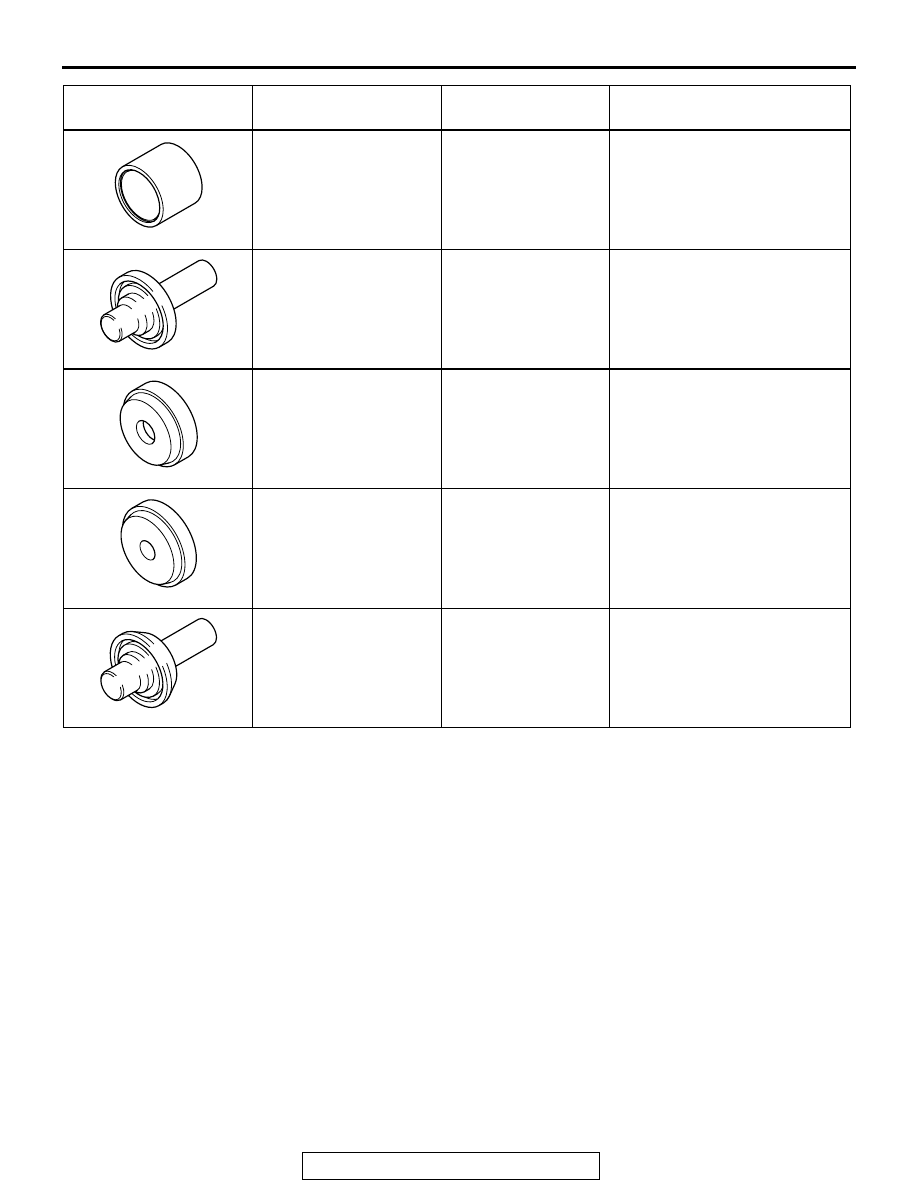

SPECIAL TOOLS

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-7

MB991445
Bushing remover and
installer base

MB991445

Installation of differential case
taper roller bearing outer race
<F5M51>

MD998800
Oil seal installer

GENERAL SERVICE
TOOL

Installation of differential oil seal
<F5M51>

MB990926
Installer adapter

MB990926-01 OR
GENERAL SERVICE
TOOL

Installation of clutch housing
input shaft oil seal <F5M42>

MB990928
Installer adapter

MB990928-01

Installation of input shaft oil seal
<F5M51>

MD998325
Differential oil seal
installer

MD998325-01

Installation of differential oil seal
<F5M42>

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

TRANSAXLE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-8

TRANSAXLE

DISASSEMBLY AND ASSEMBLY

M1222001000160

 <F5M42>

Required Special Tools:

• MB990927: Installer Adapter <F5M42>

• MB990935: Installer Adapter

• MB990938: Handle

AKX00940

32 ± 2 N·m
24 ± 1 ft-lb

4 ± 1 N·m
35 ± 9 in-lb

69 ± 10 N·m
51 ± 7 ft-lb

4

3

8

6

9

7

5

2

1

AB

69 ± 10 N·m
51 ± 7 ft-lb

19 ± 3 N·m
14 ± 2 ft-lb

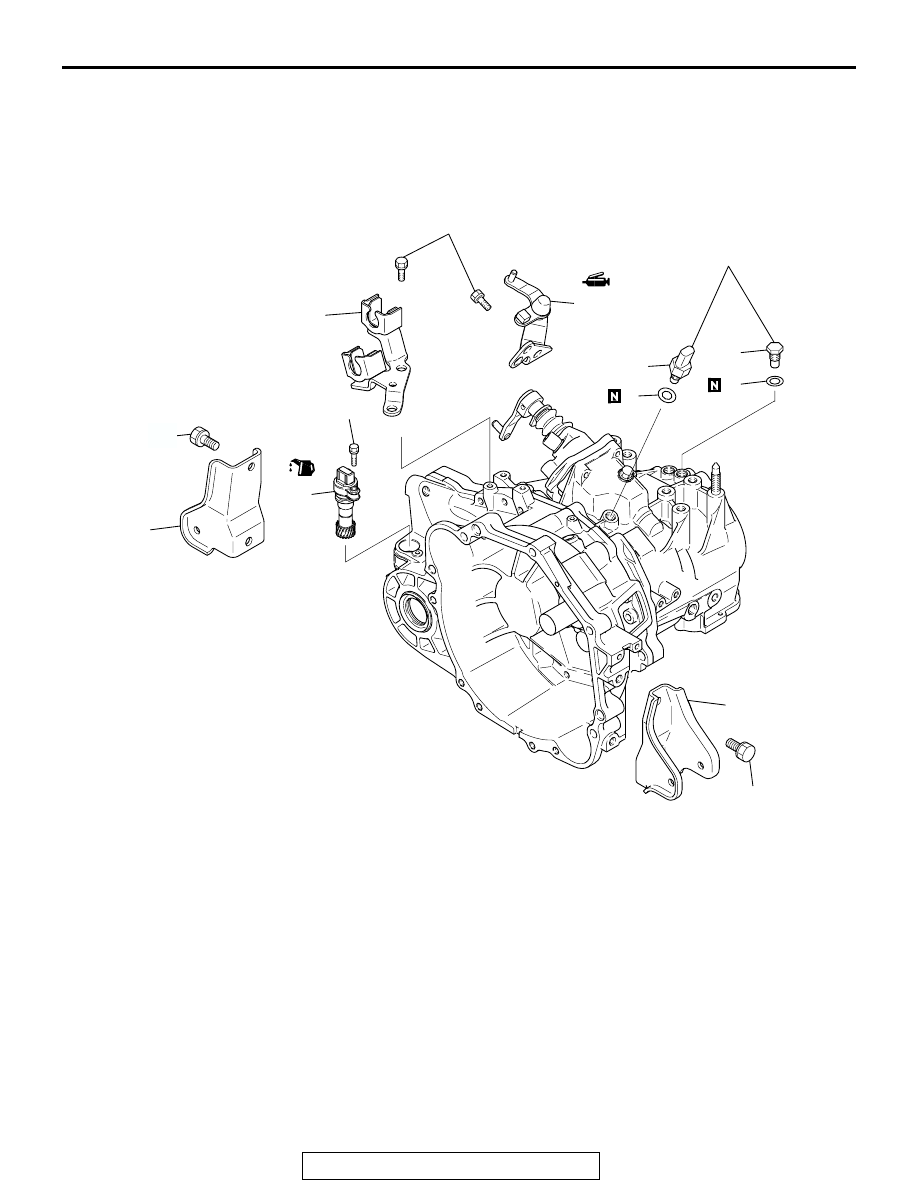

DISASSEMBLY STEPS

1.

ROLL STOPPER BRACKET,
FRONT

2.

ROLL STOPPER BRACKET,
REAR

3.

SHIFT CABLE BRACKET

>>M<<

4.

SELECT LEVER

>>L<<

5.

SPEEDOMETER GEAR

6.

BACKUP LIGHT SWITCH

7.

GASKET

8.

POPPET SPRING

9.

GASKET

DISASSEMBLY STEPS

TRANSAXLE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-9

AKX00805

APPLY GEAR OIL
TO ALL MOVING
PARTS BEFORE
INSTALLATION.

19 ± 3 N·m
14 ± 2 ft-lb

30 ± 3 N·m
22 ± 2 ft-lb

44 ± 5 N·m
33 ± 4 ft-lb

48 ± 6 N·m
35 ± 4 ft-lb

7 ± 1 N·m
61 ± 9 in-lb

12

13

10

11

18

19

21

20

15

16

17

22

23

14

AB

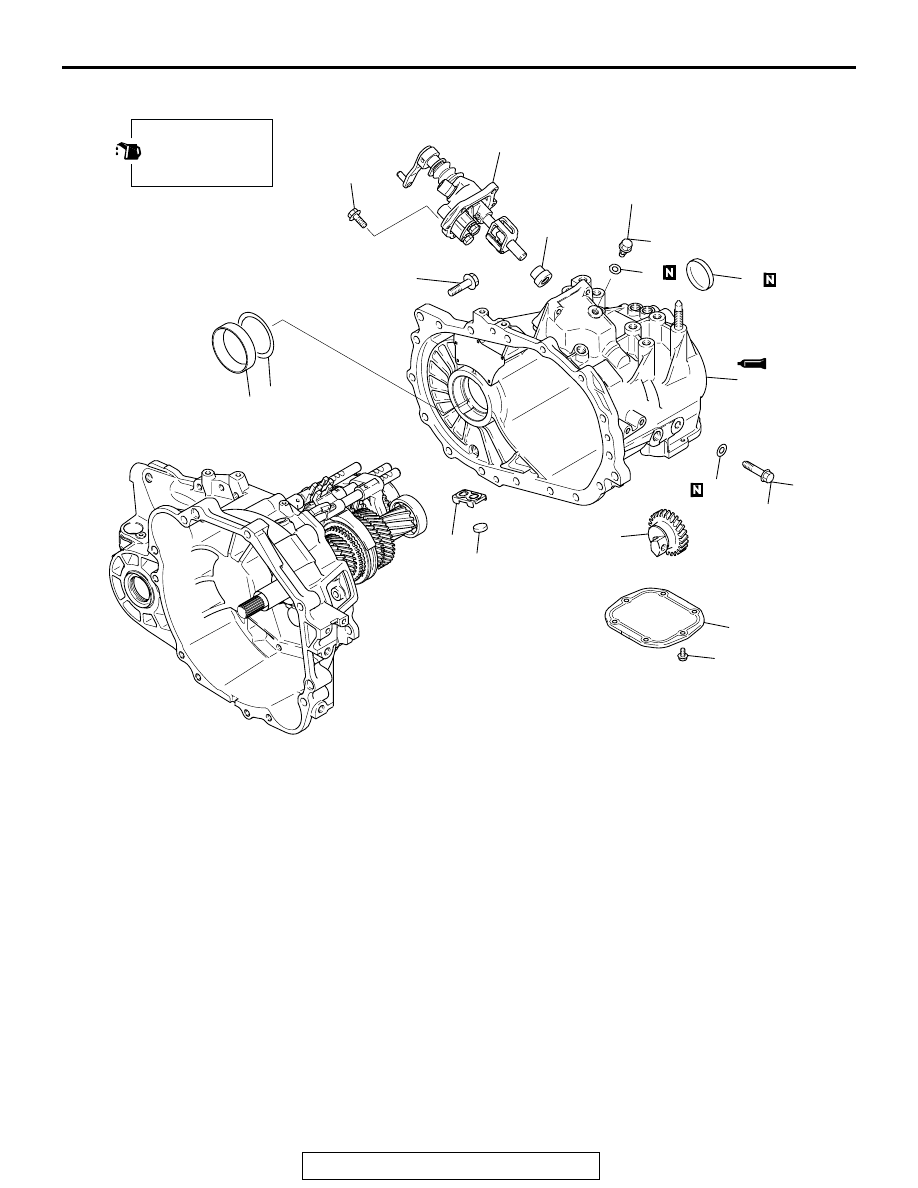

DISASSEMBLY STEPS

10. INTERLOCK PLATE BOLT
11. GASKET

>>K<<

12. CONTROL HOUSING
13. NEUTRAL RETURN SPRING

>>J<<

14. UNDER COVER
15. REVERSE IDLER GEAR SHAFT

BOLT

16. GASKET

17. REVERSE IDLER GEAR

ASSEMBLY

<<A>>

>>I<<

18. SEALING CAP

<<B>>

>>G<<

19. TRANSAXLE CASE

>>F<<

20. OUTER RACE

>>F<<

21. SPACER
22. MAGNET HOLDER
23. MAGNET

DISASSEMBLY STEPS

TRANSAXLE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-10

AKX00918

APPLY GEAR OIL
TO ALL MOVING
PARTS BEFORE
INSTALLATION.

25

27

28

24

26

36

30

32

31

29

37

34

35

19 ± 3 N·m
14 ± 2 ft-lb

33

AB

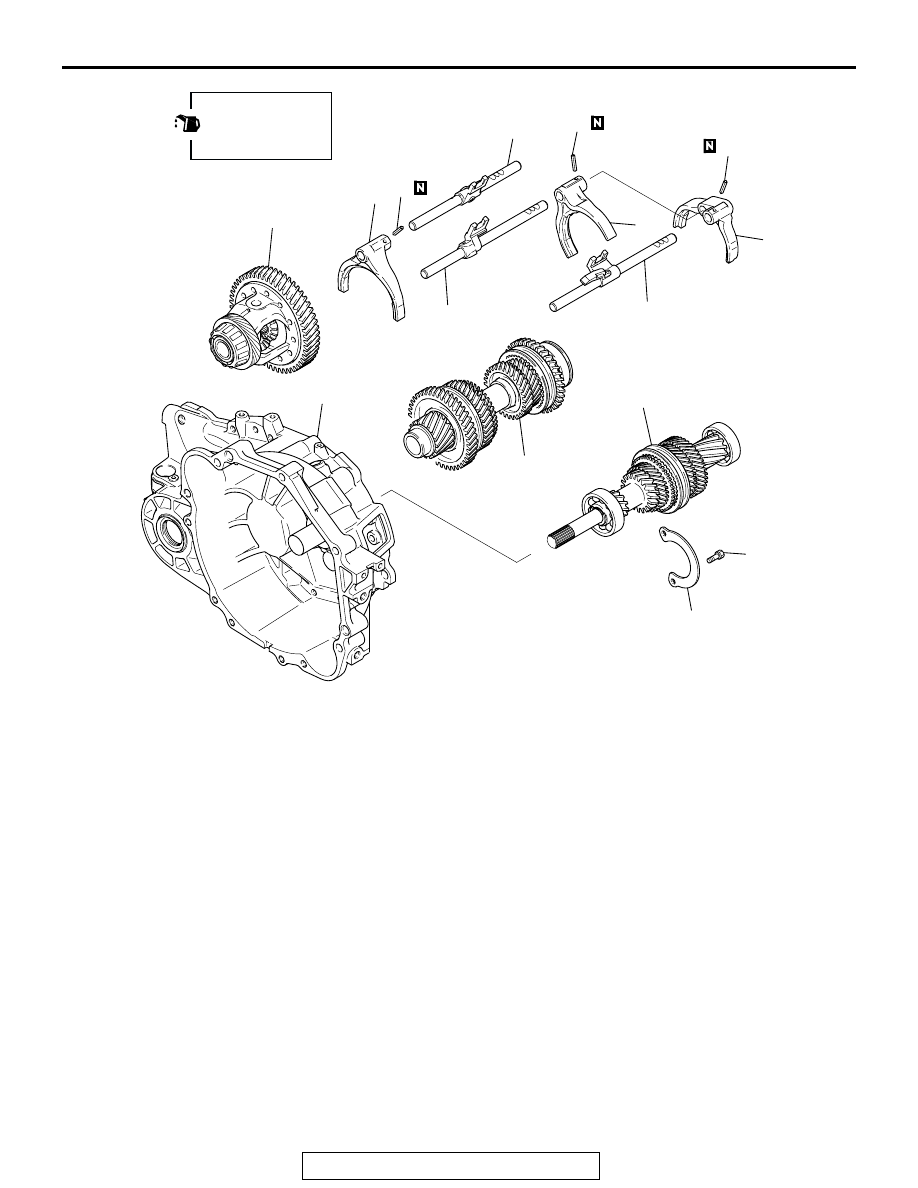

DISASSEMBLY STEPS

>>E<<

24. SPRING PIN
25. 1ST-2ND SPEED SHIFT RAIL
26. 1ST-2ND SPEED SHIFT FORK

>>E<<

27. SPRING PIN

>>E<<

28. SPRING PIN

<<D>>

>>C<<

29. 3RD-4TH SPEED SHIFT RAIL

<<D>>

>>C<<

30. 3RD-4TH SPEED SHIFT FORK

<<D>>

>>C<<

31. 5TH SPEED-REVERSE SHIFT

RAIL

<<D>>

>>C<<

32. 5TH SPEED-REVERSE SHIFT

FORK

33. FRONT BEARING RETAINER

<<F>>

>>A<<

34. INPUT SHAFT

<<F>>

>>A<<

35. OUTPUT SHAFT
36. DIFFERENTIAL
37. CLUTCH HOUSING

DISASSEMBLY STEPS
