TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-23

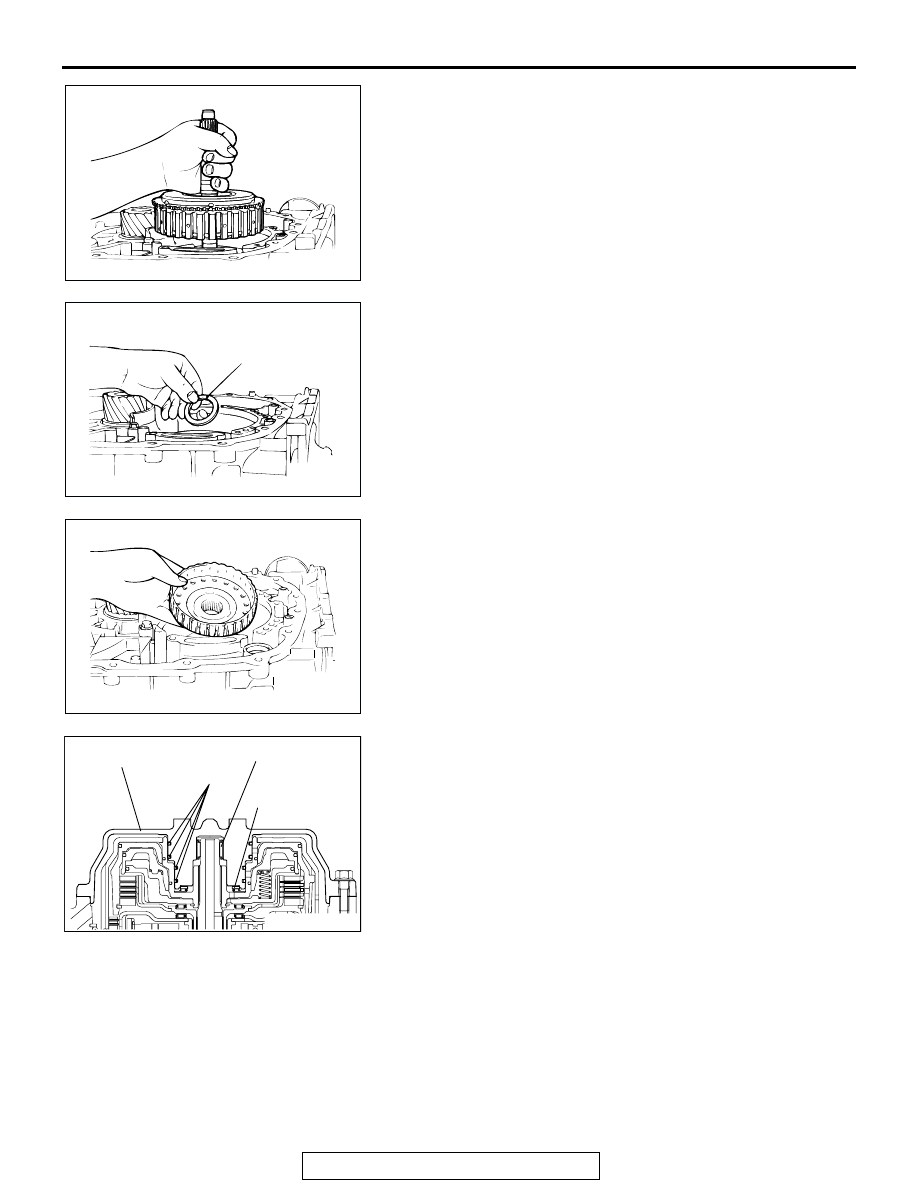

30.Holding the input shaft, remove the underdrive clutch and

input shaft.

31.Remove thrust bearing number 2.

32.Remove the underdrive clutch hub.

33.Remove the rear cover and input shaft rear bearing.
34.Remove thrust race number 8.
35.Remove the seal rings (four pieces).

AKX01030

AKX01031

THRUST BEARING
NUMBER 2

AB

AKX01032

AKX01139

THRUST RACE
NUMBER 8

INPUT SHAFT
REAR BEARING

SEAL
RINGS

REAR COVER

AB

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-24

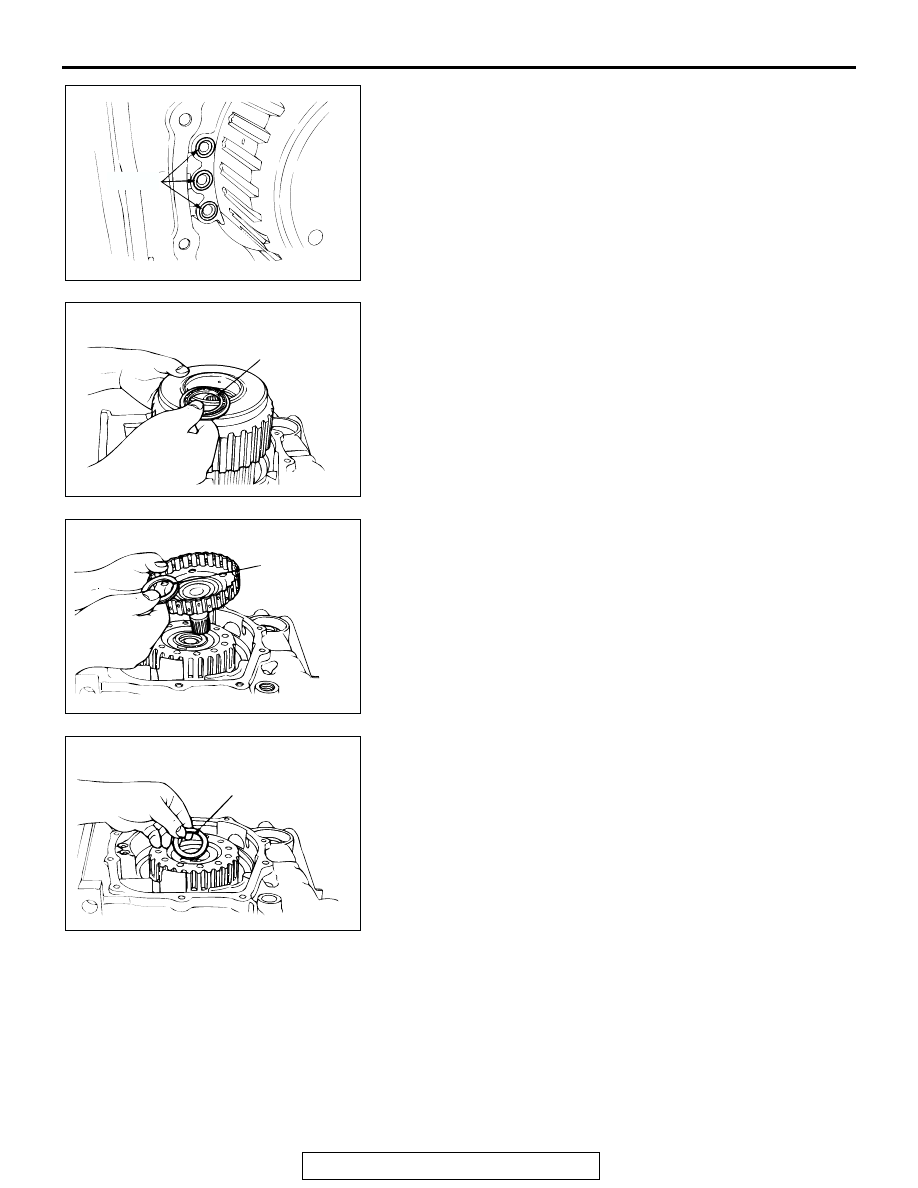

36.Remove the O-rings (three pieces).

37.Remove the reverse and overdrive clutch and thrust bearing

number 7.

38.Remove overdrive clutch hub and thrust bearing number 6.

39.Remove thrust bearing number 5.

AKX01010AB

O-RINGS

AKX01011

THRUST BEARING
NUMBER 7

AB

AKX01012

THRUST BEARING
NUMBER 6

AB

AKX01013

THRUST BEARING
NUMBER 5

AB

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-25

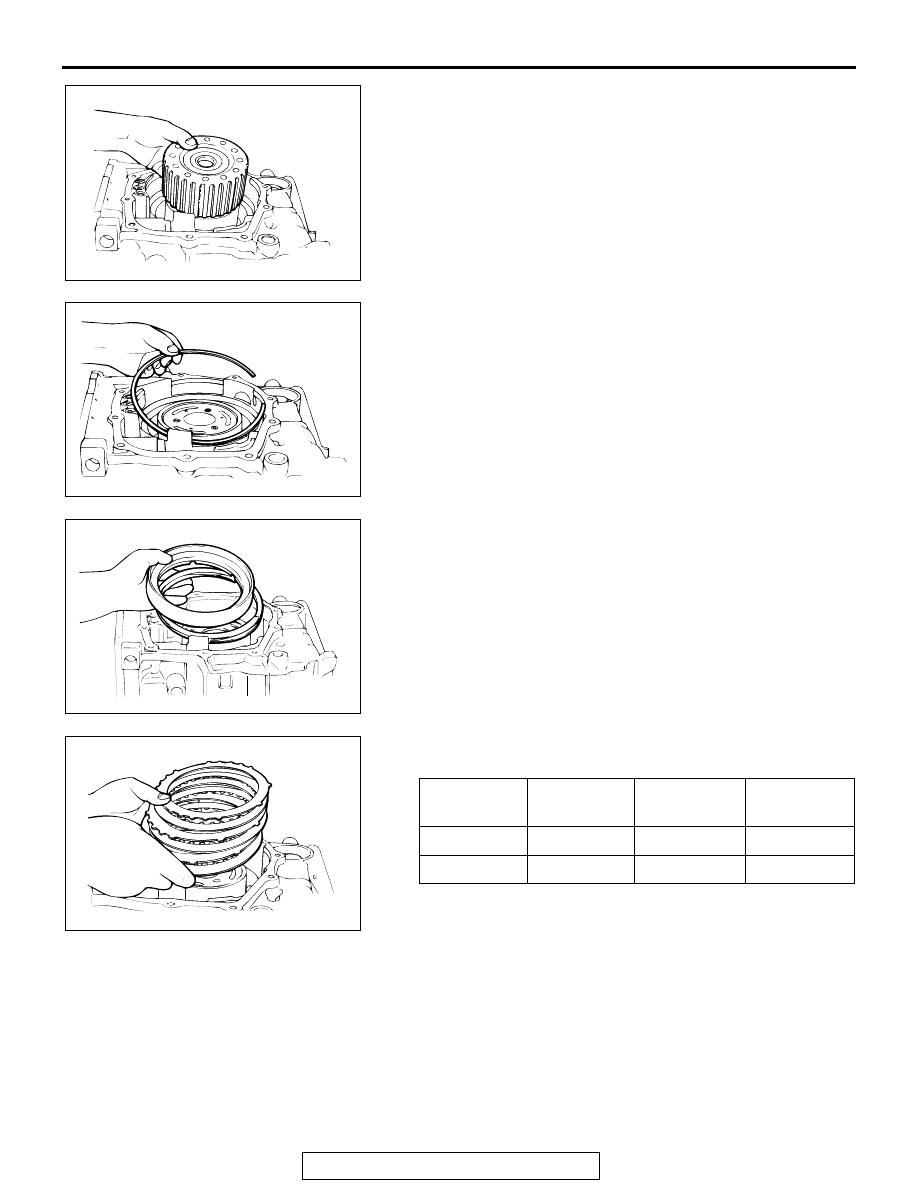

40.Remove the planetary reverse sun gear.

41.Remove the snap ring.

42.Remove the second brake piston and the return spring.

43.Remove the pressure plate, brake discs and brake plate.
Number of brake discs and plates:

AKX01014

AKX01015

AKX01016

A/T MODEL BRAKE

DISC

BRAKE
PLATE

PRESSURE
PLATE

F4A42

3

2

1

F4A51

4

3

1

AKX01017

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-26

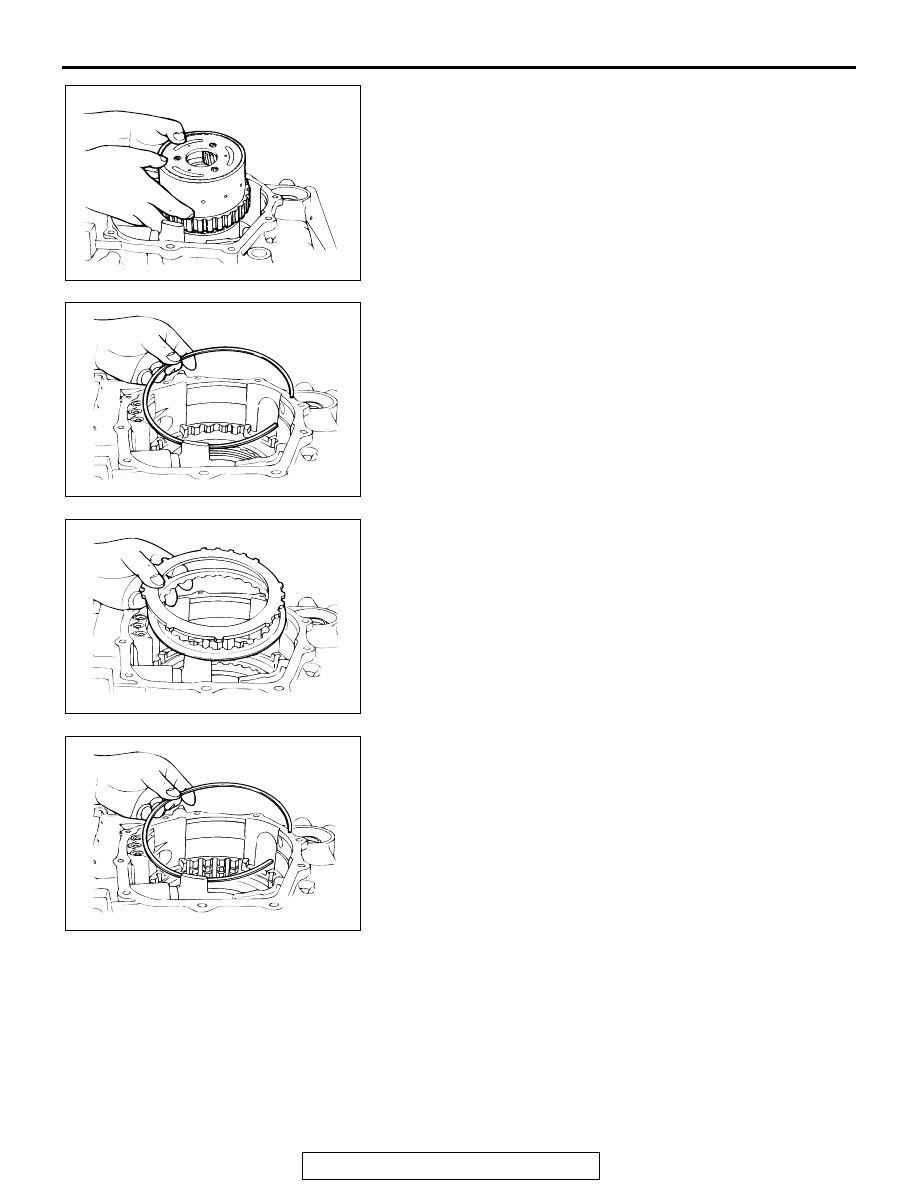

44.Remove the planetary carrier assembly.

45.Remove the snap ring.

46.Remove the reaction plate and the brake disc.

47.Remove the snap ring.

AKX01018

AKX01019

AKX01020

AKX01021
