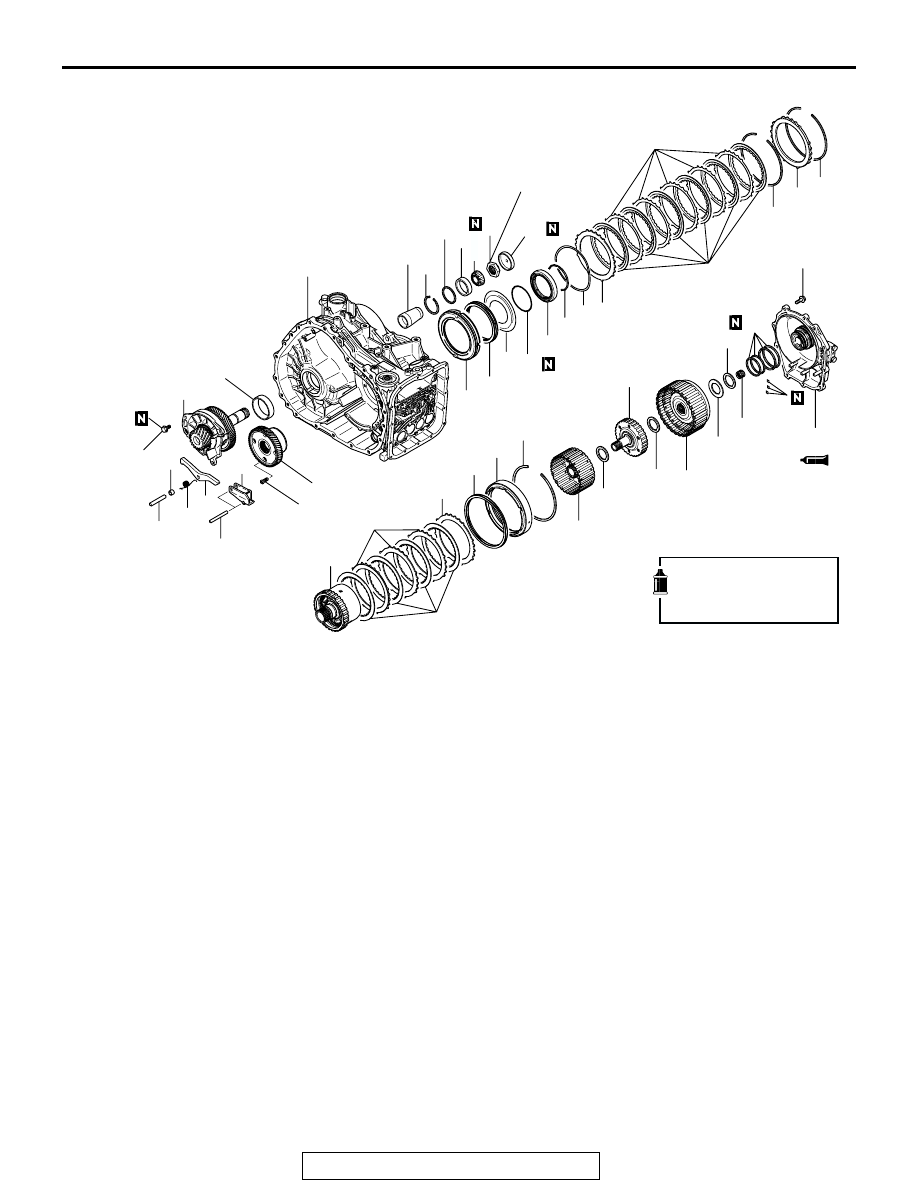

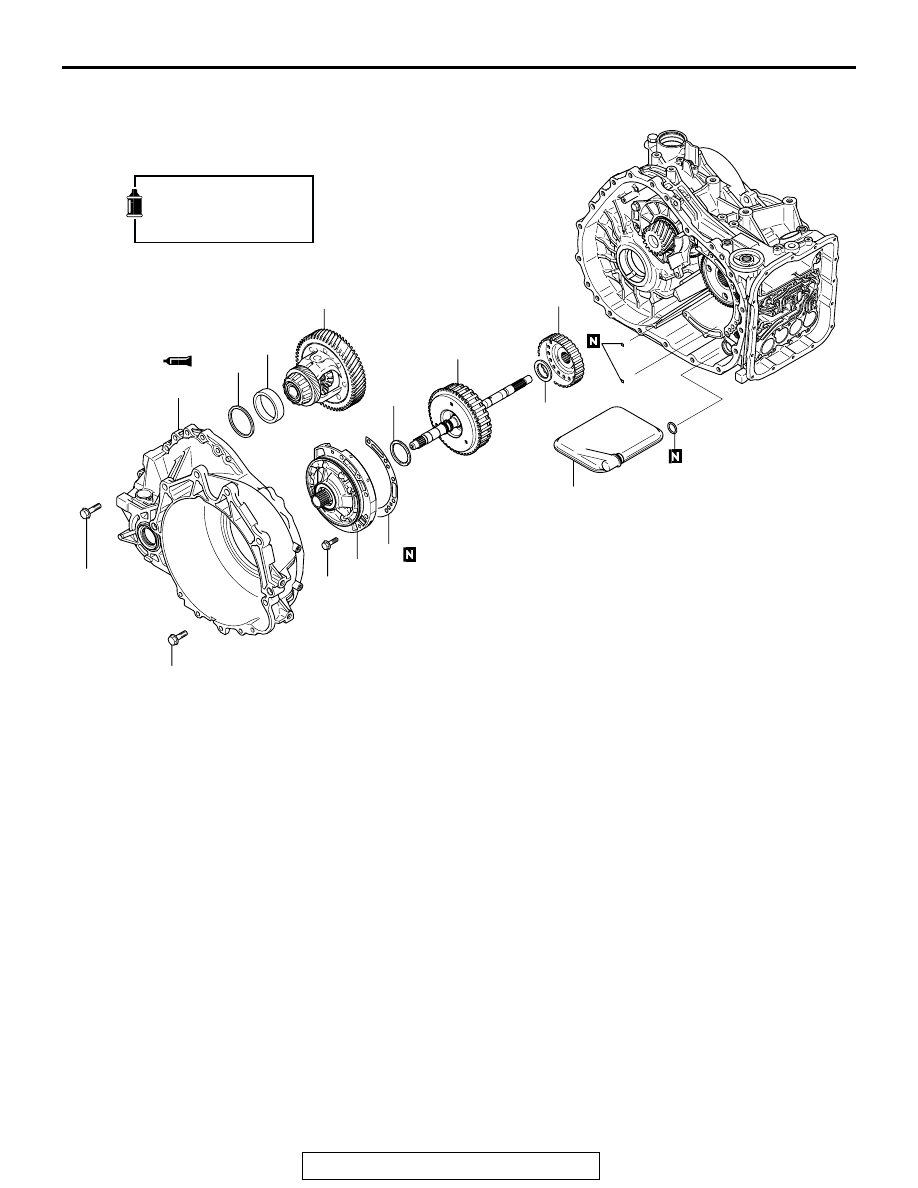

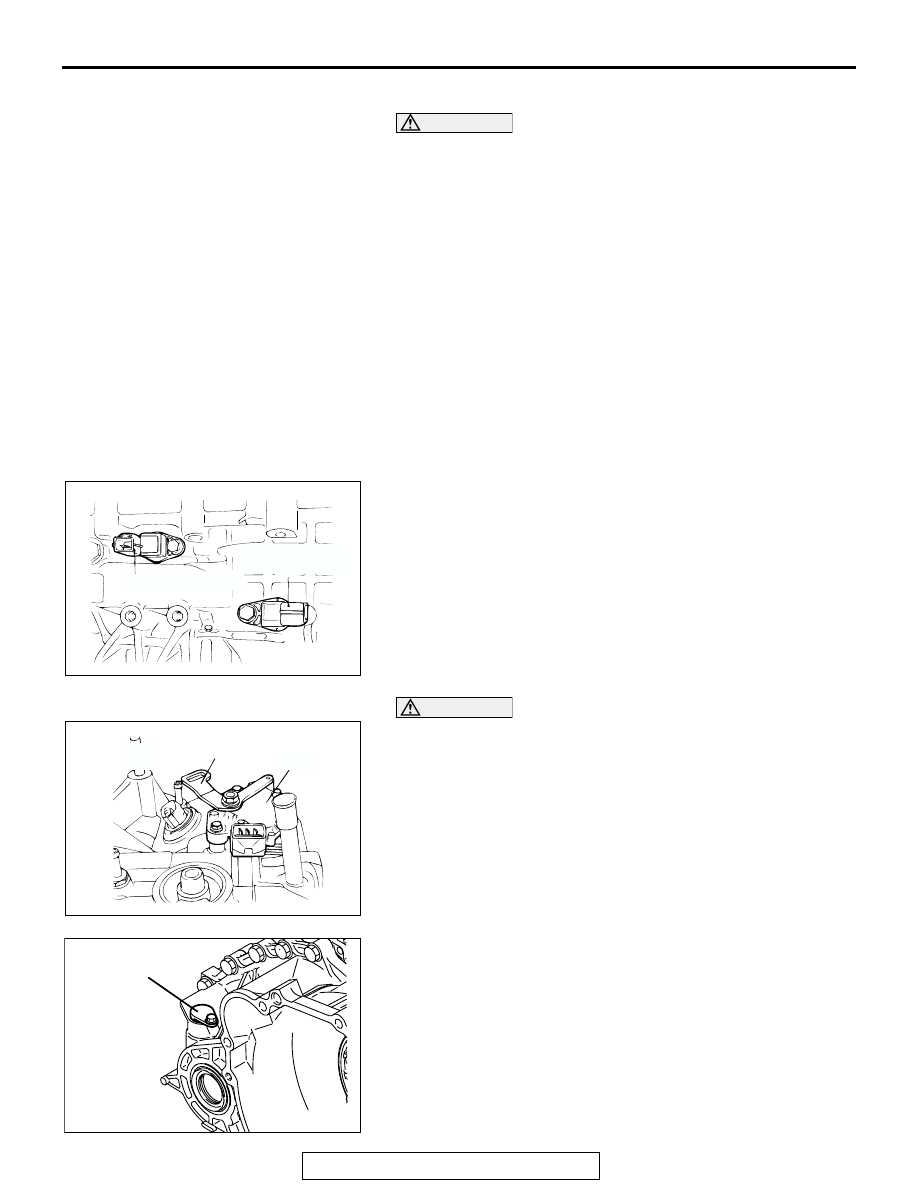

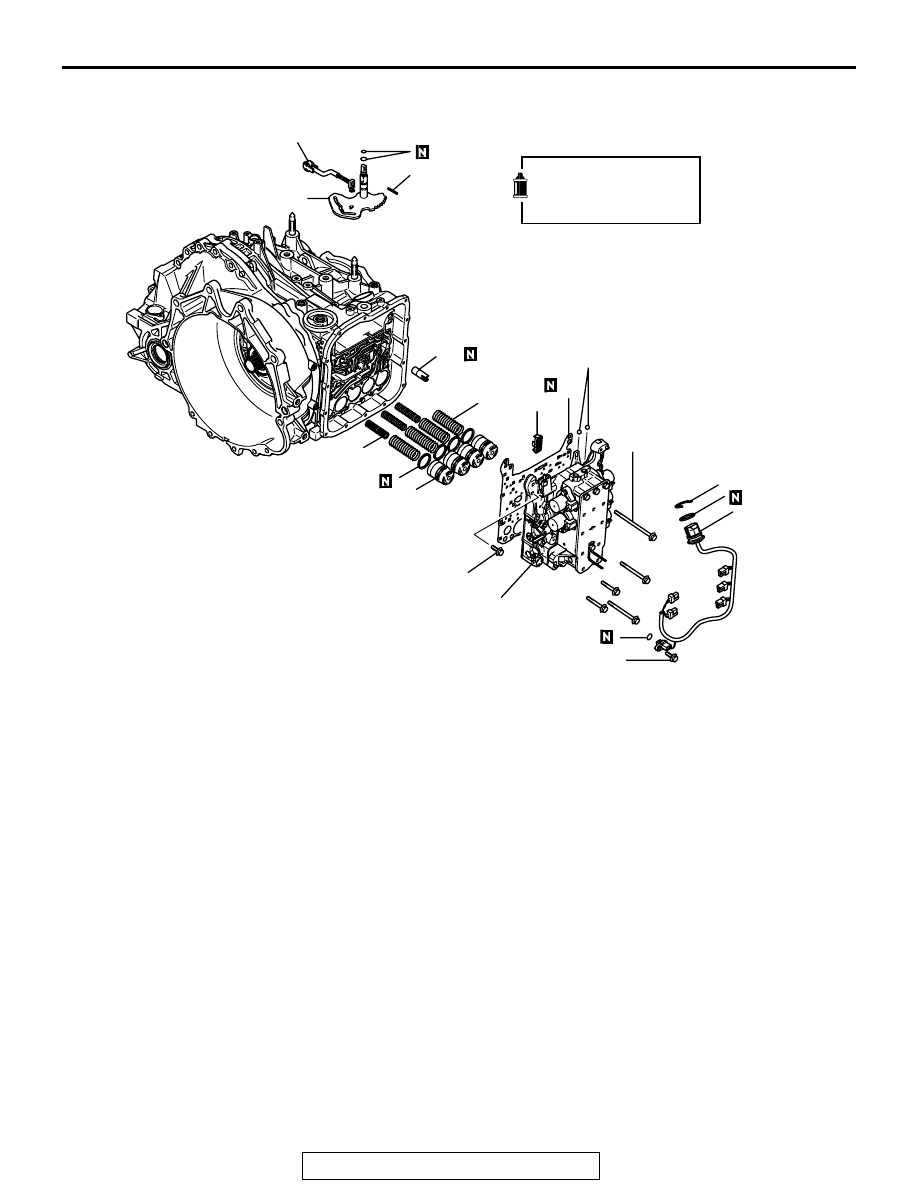

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-15

AK100021

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

11 ± 1 N·m
95 ± 9 in-lb

18. VALVE BODY
19. STEEL BALL
20. GASKET
21. SNAP RING
22. SOLENOID VALVE HARNESS
23. STRAINER
24. SECOND BRAKE RETAINER OIL SEAL

25. ACCUMULATOR PISTON
26. ACCUMULATOR SPRING
27. ACCUMULATOR SPRING
28. MANUAL CONTROL LEVER SHAFT

ROLLER

29. MANUAL CONTROL LEVER SHAFT
30. PARKING PAWL ROD

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-16

AKX01134

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

48 ± 6 N·m
35 ± 4 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

31. TORQUE CONVERTER HOUSING
32. DIFFERENTIAL
33. OIL FILTER
34. OIL PUMP
35. GASKET
36. THRUST WASHER NO.1

37. UNDERDRIVE CLUTCH AND INPUT

SHAFT

38. THRUST BEARING NO.2
39. UNDERDRIVE CLUTCH HUB
40. OUTER RACE
41. SPACER

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-17

AKX01135

167 ± 10 N·m
123 ± 7 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

7574

54 ± 5 N·m
40 ± 4 ft-lb

48 47

34 ± 2 N·m
25 ± 1 ft-lb

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

42. REAR COVER
43. THRUST RACE NO.8
44. SEAL RING
45. INPUT SHAFT REAR BEARING
46. THRUST BEARING NO.7
47. REVERSE AND OVERDRIVE CLUTCH
48. THRUST BEARING NO.6
49. OVERDRIVE CLUTCH HUB
50. THRUST BEARING NO.5
51. PLANETARY REVERSE SUN GEAR
52. SNAP RING
53. SECOND BRAKE PISTON
54. RETURN SPRING
55. PRESSURE PLATE
56. SECOND BRAKE DISCS
57. SECOND BRAKE PLATES
58. PLANETARY CARRIER ASSEMBLY
59. SNAP RING
60. REACTION PLATE
61. SNAP RING
62. LOW-REVERSE BRAKE DISCS
63. LOW-REVERSE BRAKE PLATES
64. PRESSURE PLATE
65. WAVE SPRING

66. PARKING PAWL SHAFT
67. SPACER
68. PARKING PAWL SPRING
69. PARKING ROLLER SUPPORT SHAFT
70. PARKING PAWL
71. PARKING ROLLER SUPPORT
72. SNAP RING
73. ONE-WAY CLUTCH INNER RACE
74. O-RING
75. SPRING RETAINER
76. RETURN SPRING
77. LOW-REVERSE BRAKE PISTON
78. TRANSFER DRIVE GEAR
79. CAP
80. JAM NUT
81. OUTPUT SHAFT
82. TAPER ROLLER BEARING
83. COLLAR
84. OUTER RACE
85. SPACER
86. SNAP RING
87. OUTER RACE
88. TRANSAXLE CASE

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-18

DISASSEMBLY

CAUTION

• Because the automatic transaxle is manufactured from

high-precision parts, care must be taken not to scratch
or damage these parts during disassembly and assem-
bly.

• Work or rubber mat and keep it clean at all times.
• Do not wear any cloth gloves and do not use any shop

towels during disassembly. Use only nylon cloth, paper
towels or any other lint-free material.

• Parts which have been disassembled should all be

cleaned. Metal parts can be cleaned with normal deter-
gent, but they should be dried completely using com-
pressed air.

• Clutch discs, plastic thrust plates and rubber parts

should be cleaned with automatic transmission fluid
(ATF).

• If the transaxle body has been damaged, disassemble

and clean the cooler system.

1. Remove the torque converter.
2. Remove each bracket.
3. Remove the dipstick.
4. Remove the eye bolt gauge, gaskets and the oil cooler feed

tube.

5. Remove the air breather
6. Remove the input shaft speed sensor and output shaft

speed sensor.

CAUTION

The manual control lever tightening nut must be removed
before removing the valve body. If the valve body is
removed before the nut, the park/neutral position switch
will be damaged.
7. Loosen the manual control lever tightening nut, and then

remove the manual control lever, and the park/neutral
position switch.

8. Remove the Sealing cap and o-rig.

AKX01087AB

OUTPUT SHAFT
SPEED SENSOR

INPUT SHAFT SPEED
SENSOR

AKX01100AB

PARK/NEUTRAL
POSITION
SWITCH

MANUAL CONTROL
LEVER

AK100022

SEALING CAP
