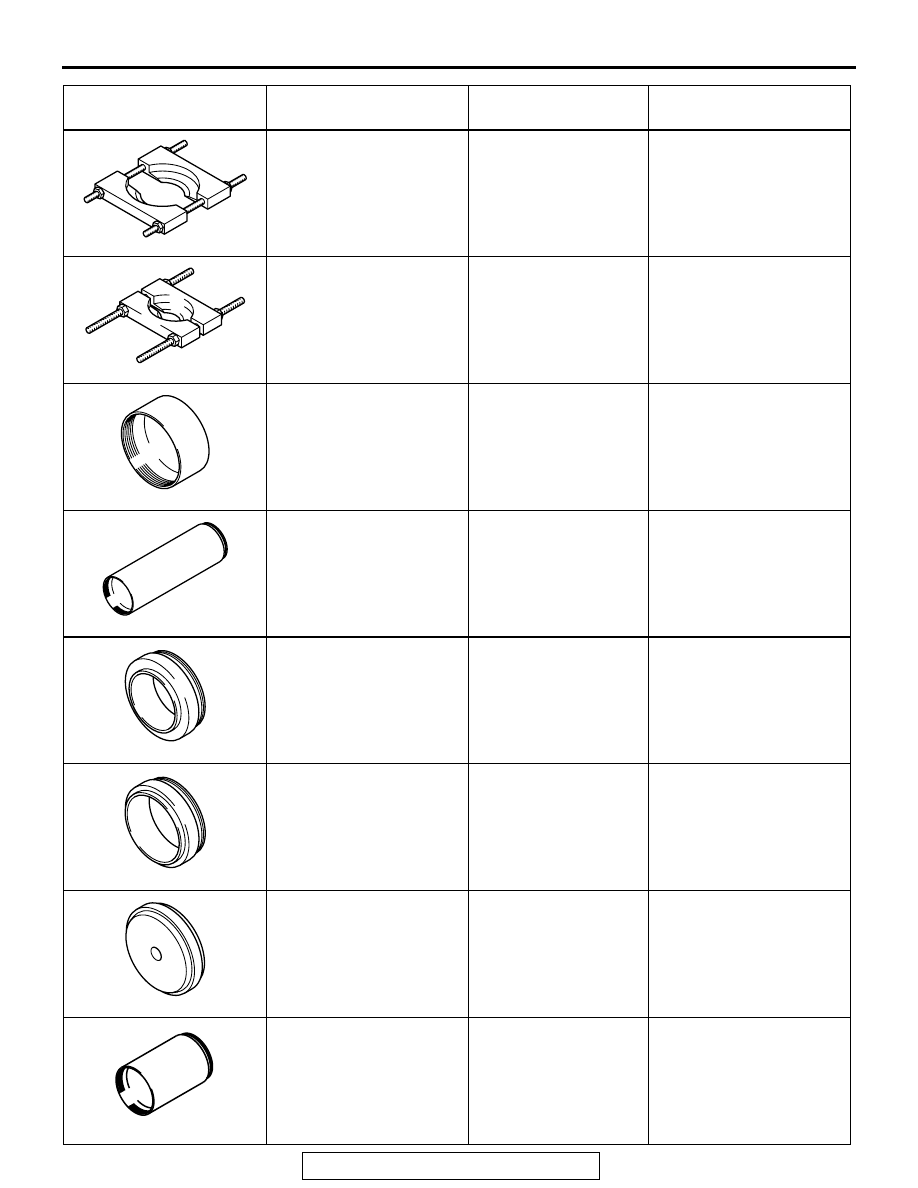

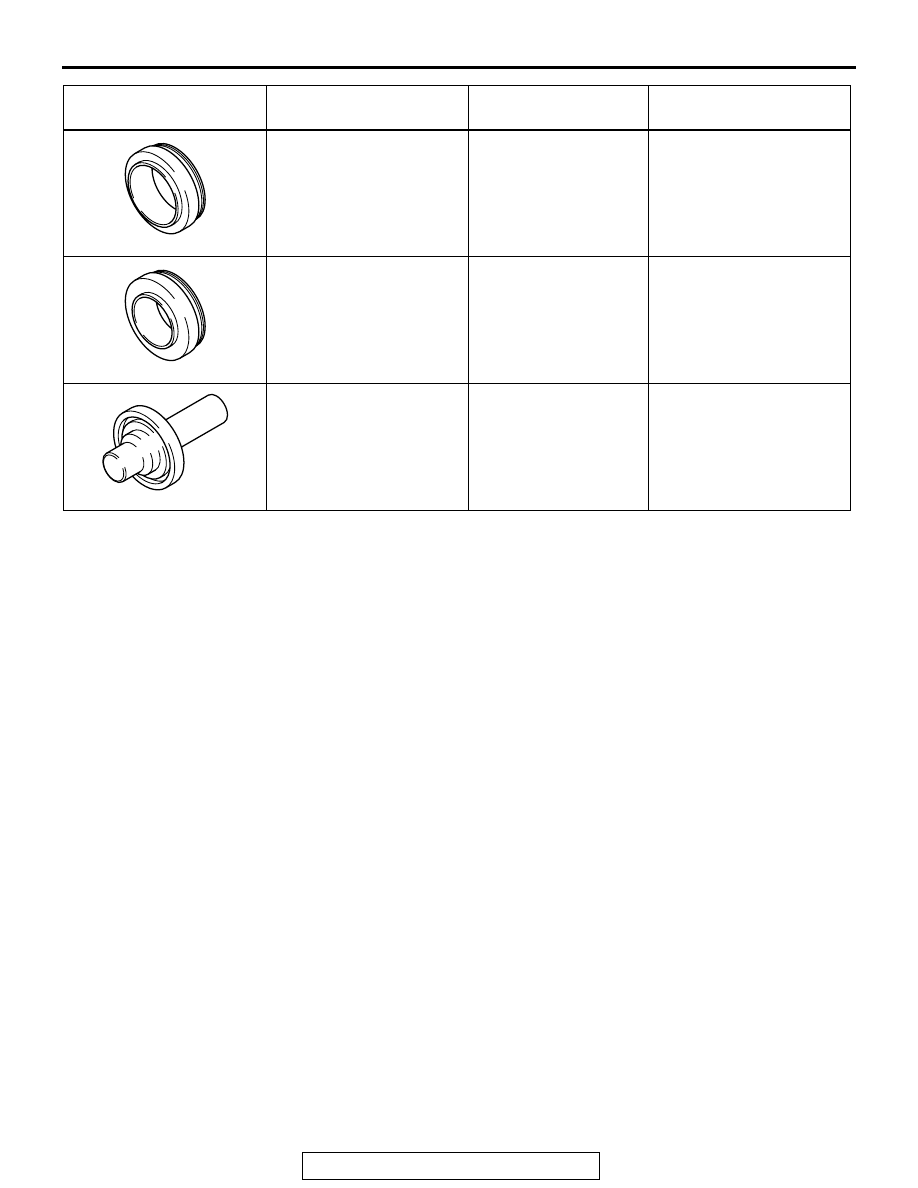

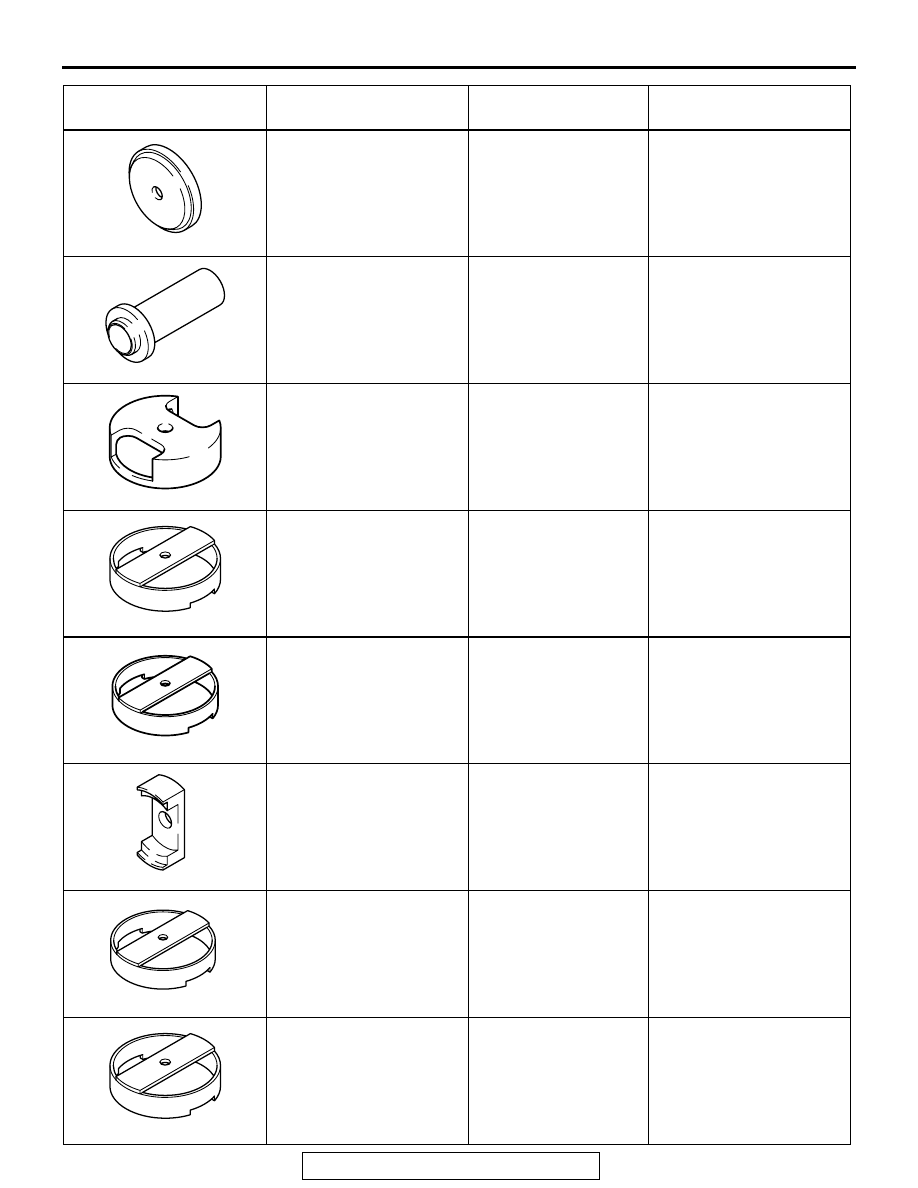

SPECCIAL TOOLS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-7

MB990936
Installer adapter

MB990936-01 or
General service tool

Installation of output shaft
taper roller bearing outer
race <F4A42> and
differential taper roller
bearing outer race
<F4A51>

MD998334
Oil seal installer

MD998334-01

Installation of oil pump oil
seal

MD998907
Spring compressor

MD998907-01

Removal and installation
of underdrive clutch snap
ring

MB991628
Spring compressor

MB991628-01

Measurement of
underdrive clutch and
overdrive clutch end play
<F4A42>

MB991629
Spring compressor

−

Measurement of
underdrive clutch and
overdrive clutch end play
<F4A51>

MD999590
Spring compressor

MIT305039

Removal and installation
of overdrive clutch snap
ring

MB991790
Spring compressor

−

Measurement of reverse
clutch end play <F4A42>

MB991789
Spring compressor

−

Measurement of reverse
clutch end play <F4A51>

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

SPECCIAL TOOLS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-8

MD998917
Bearing remover

General service tool or
MD998348-01

Removal of output shaft
taper roller bearing and
transfer driven
gear<F4A42>

MD998801
Bearing remover

MD998348-01

Removal of each bearing
output shaft taper roller
bearing (differential ball
bearing)

MD998812
Installer cap

General service tool

Use with installer and
installer adapter

MD998814
Installer

− 200

MIT304180

Use with installer cap and
installer adapter

MD998823
Installer adapter (48)

General service tool

Installation of output shaft
taper roller bearing
<F4A42> and transfer
driven gear <F4A42>

MD998827
Installer adapter (56)

General service tool

Installation of output shaft
taper roller bearing
<F4A51>

MB990937
Installer adapter

MB990937 or General
service tool

Installation of output shaft
taper roller bearing
<F4A51>

MD998813
Installer

− 100

General service tool

Use with installer cap and
installer adapter

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

SPECCIAL TOOLS

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-9

MD998824
Installer adapter (50)

General service tool

Installation of transfer
driven gear <F4A51>,
differential taper roller
bearing <F4A51>

MD998820
Installer adapter (42)

MIT215013

Installation of differential
taper roller bearing

MD998800
Oil seal installer

General service tool

Installation of  driveshaft
oil seal

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

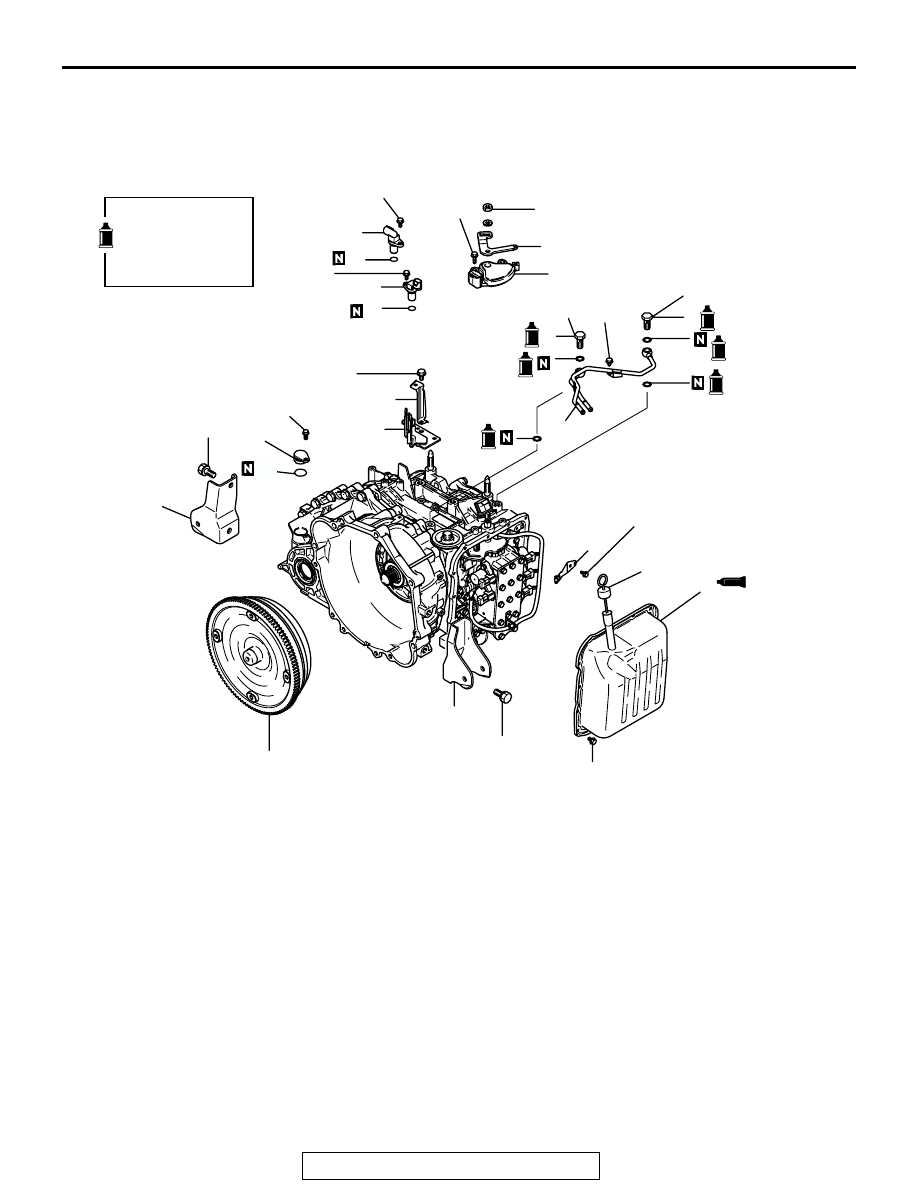

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-10

TRANSAXLE

DISASSEMBLY AND ASSEMBLY

M1233001000175

<F4A42>

Required Special Tools:

• MB990607: Torque Wrench Socket

• MB990930: Installer Adapter

• MB990931: Installer Adapter

• MB990935: Installer Adapter <F4A42>

• MB990936: Installer Adapter <F4A42>

• MB990938: Handle

• MB991625: Special Socket (41)

• MB991631: Clearance Dummy Plate <F4A42>

• MB991632: Clearance Dummy Plate <F4A51>

• MD998333: Oil Pump Remover

• MD998338: Spring Compressor <F4A51>

• MD998350: Bearing Installer

AK100018

APPLY AUTOMATIC
TRANSMISSION
FLUID TO ALL
MOVING PARTS
BEFORE
INSTALLATION.

11

12

13

10

8

6

6

11 ± 1 N·m
95 ± 9 in-lb

22 ± 3 N·m
16 ± 52 ft-lb

11 ± 1 N·m
95 ± 9 in-lb

11 ± 1 N·m
95 ± 9 in-lb

24 ± 3 N·m
18 ± 2 ft-lb

11 ± 1 N·m
95 ± 9 in-lb

24 ± 3 N·m
18 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

5 ± 1 N·m
43 ± 9 in-lb

3

4

14

69 ± 10 N·m
51 ± 7 ft-lb

69 ± 10 N·m
51 ± 7 ft-lb

2

2

1

6 ± 1 N·m
52 ± 9 in-lb

17

5

16

7

AD

9

11 ± 1 N·m
95 ± 9 in-lb

15

1.

TORQUE CONVERTER

2.

ROLL STOPPER BRACKET

3.

HARNESS BRACKET

4.

CONTROL CABLE SUPPORT BRACKET

5.

OIL DIPSTICK

6.

EYE BOLT

7.

OIL COOLER FEED TUBE

8.

INPUT SHAFT SPEED SENSOR

9.

O-RING

10. OUTPUT SHAFT SPEED SENSOR
11. O-RING
12. MANUAL CONTROL LEVER
13. PARK/NEUTRAL POSITION SWITCH
14. SEALING CAP
15. O-RING
16. VALVE BODY COVER
17. MANUAL CONTROL SHAFT DETENT
