AUTOMATIC TRANSAXLE OVERHAUL

23B-11

• MD998412: Guide

• MD998903: Spring Compressor <F4A42>

• MD998913: Dial Gauge Extension

• MD998924: Spring Compressor Retainer

AK100019

APPLY AUTOMATIC
TRANSMISSION
FLUID TO ALL
MOVING PARTS
BEFORE
INSTALLATION.

30

29

28

24

27

26

23

2019

11 ± 1 N·m
95 ± 9 in-lb

11 ± 1 N·m
95 ± 9 in-lb

21

22

18

25

AC

11 ± 1 N·m
95 ± 9 in-lb

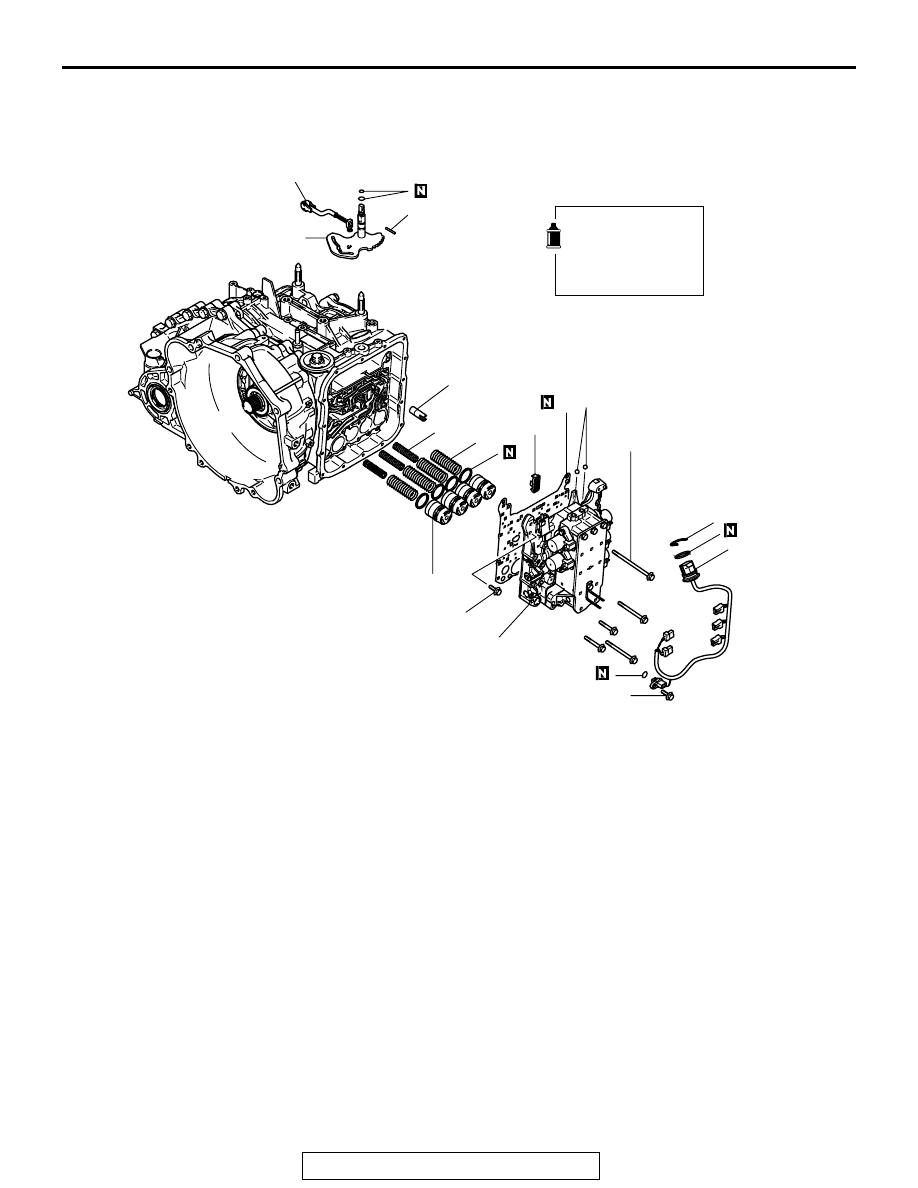

18. VALVE BODY
19. STEEL BALL
20. GASKET
21. SNAP RING
22. SOLENOID VALVE HARNESS
23. STRAINER
24. SECOND BRAKE RETAINER OIL SEAL

25. ACCUMULATOR PISTON
26. ACCUMULATOR SPRING
27. ACCUMULATOR SPRING
28. MANUAL CONTROL LEVER SHAFT

ROLLER

29. MANUAL CONTROL LEVER SHAFT
30. PARKING PAWL ROD

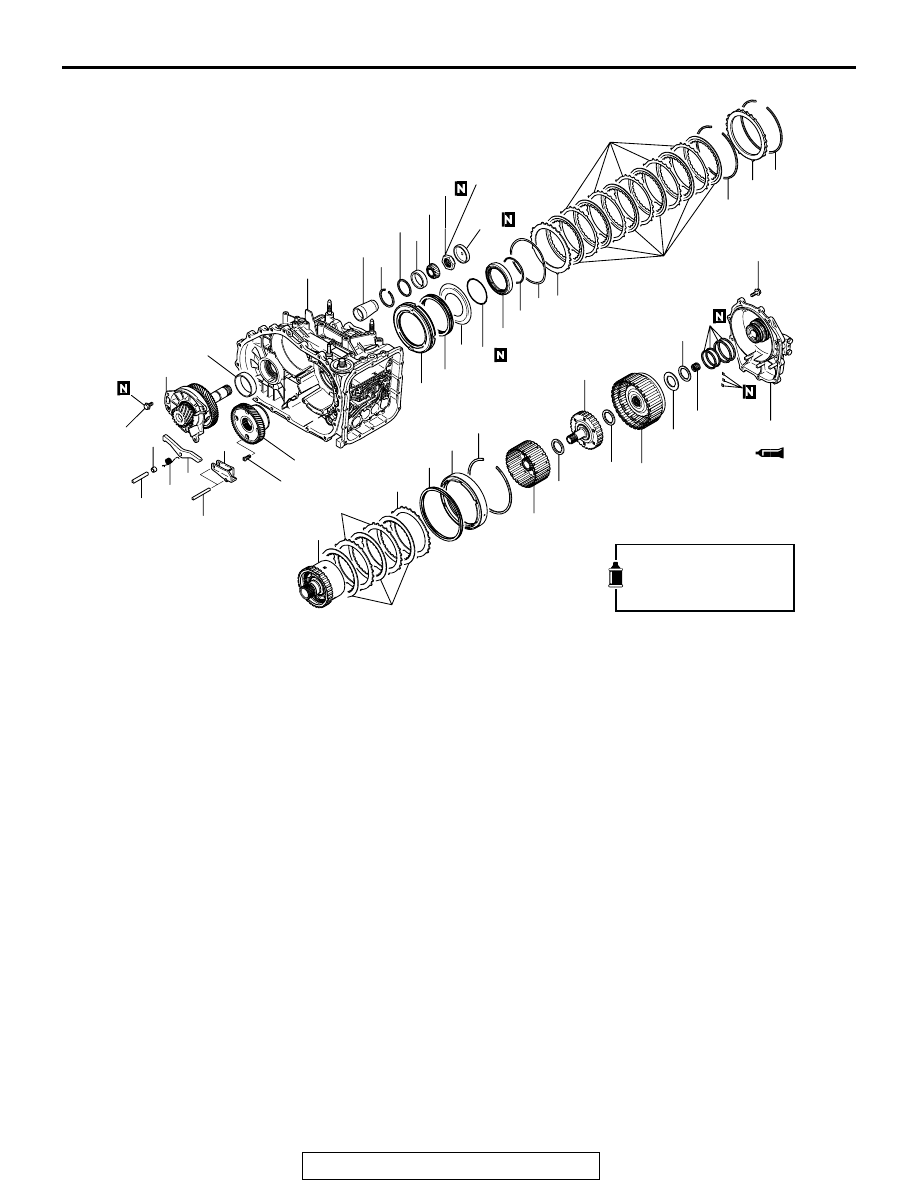

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-12

AKX01114

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

39

32

37

40

41

36

38

31

33

35

34

48 ± 6 N·m
35 ± 4 ft-lb

48 ± 6 N·m
35 ± 4 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

AB

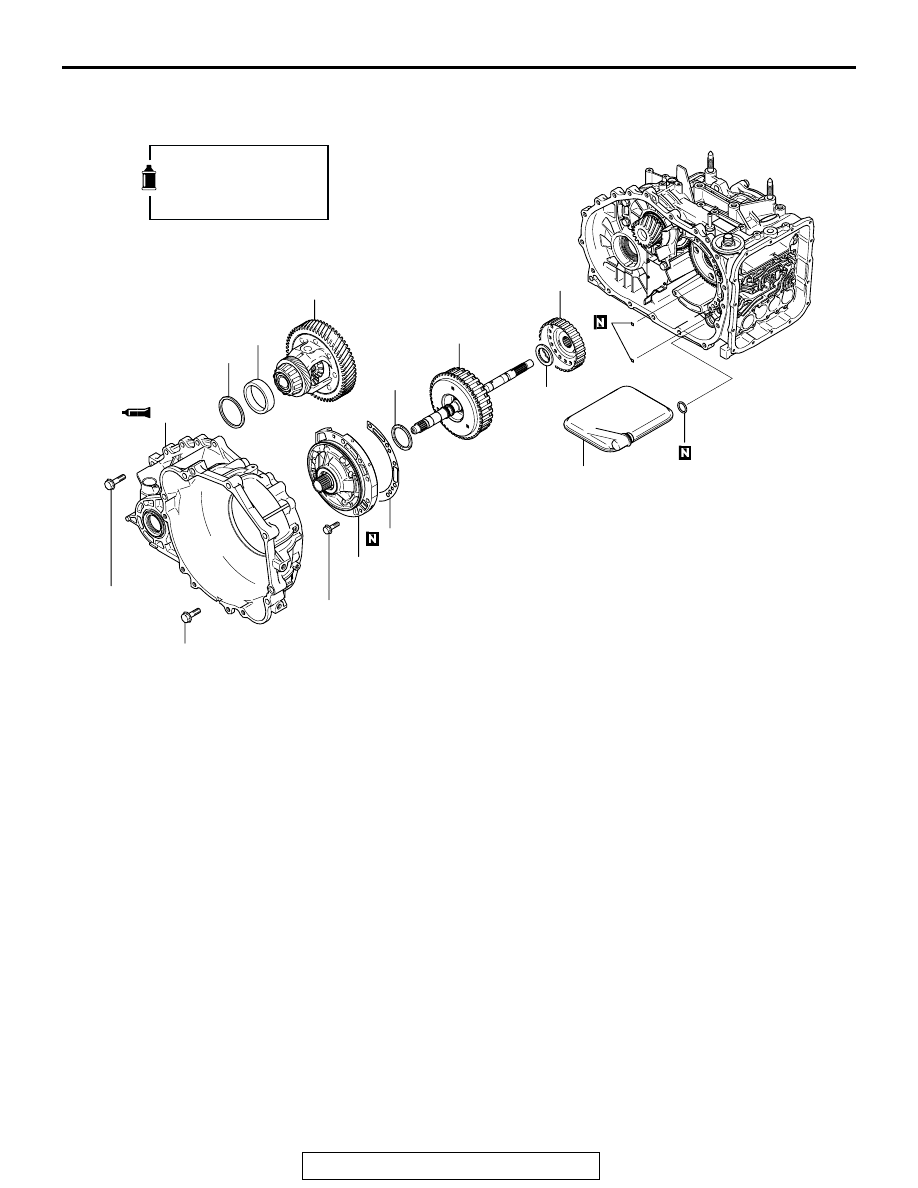

31. TORQUE CONVERTER HOUSING
32. DIFFERENTIAL
33. OIL FILTER
34. OIL PUMP
35. GASKET
36. THRUST WASHER NO.1

37. UNDERDRIVE CLUTCH AND INPUT SHAFT
38. THRUST BEARING NO.2
39. UNDERDRIVE CLUTCH HUB
40. OUTER RACE
41. SPACER

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-13

AKX01115

61

63

167 ± 10 N·m
123 ± 7 ft-lb

59

60

82

80

79

85

84

83

86

88

62

64

65

72

73

74

75

76

77

78

34 ± 2 N·m
25 ± 1 ft-lb

71

69

70

68

66

23 ± 3 N·m
17 ± 2 ft-lb

67

81

87

23 ± 3 N·m
17 ± 2 ft-lb

42

43

45

46

47

48

50

51

52

53

54

55

57

58

56

49

44

AB

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

42. REAR COVER
43. THRUST RACE NO.8
44. SEAL RING
45. INPUT SHAFT REAR BEARING
46. THRUST BEARING NO.7
47. REVERSE AND OVERDRIVE CLUTCH
48. THRUST BEARING NO.6
49. OVERDRIVE CLUTCH HUB
50. THRUST BEARING NO.5
51. PLANETARY REVERSE SUN GEAR
52. SNAP RING
53. SECOND BRAKE PISTON
54. RETURN SPRING
55. PRESSURE PLATE
56. SECOND BRAKE DISCS
57. SECOND BRAKE PLATES
58. PLANETARY CARRIER ASSEMBLY
59. SNAP RING
60. REACTION PLATE
61. SNAP RING
62. LOW-REVERSE BRAKE DISCS
63. LOW-REVERSE BRAKE PLATES
64. PRESSURE PLATE
65. WAVE SPRING

66. PARKING PAWL SHAFT
67. SPACER
68. PARKING PAWL SPRING
69. PARKING ROLLER SUPPORT SHAFT
70. PARKING PAWL
71. PARKING ROLLER SUPPORT
72. SNAP RING
73. ONE-WAY CLUTCH INNER RACE
74. O-RING
75. SPRING RETAINER
76. RETURN SPRING
77. LOW-REVERSE BRAKE PISTON
78. TRANSFER DRIVE GEAR
79. CAP
80. JAM NUT
81. OUTPUT SHAFT
82. TAPER ROLLER BEARING
83. COLLAR
84. OUTER RACE
85. SPACER
86. SNAP RING
87. OUTER RACE
88. TRANSAXLE CASE

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-14

 <F4A51>

AK100020

11 ± 1 N·m
95 ± 9 in-lb

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

11 ± 1 N·m
95 ± 9 in-lb

22 ± 3 N·m
16 ± 2 ft-lb

11

12

24 ± 3 N·m
18 ± 2 ft-lb

24 ± 3 N·m
18 ± 2 ft-lb

11 ± 1 N·m
95 ± 9 in-lb

11 ± 1 N·m
95 ± 9 in-lb

11 ± 1 N·m
95 ± 9 in-lb

13

10

6

6

8

7

9

3

69 ± 10 N·m
51 ± 7 ft-lb

69 ± 10 N·m
51 ± 7 ft-lb

4

14

15

17

2

5

6 ± 1 N·m
52 ± 9 in-lb

16

2

1

23 ± 3 N·m
17 ± 2 ft-lb

5 ± 1 N·m
43 ± 9 in-lb

AC

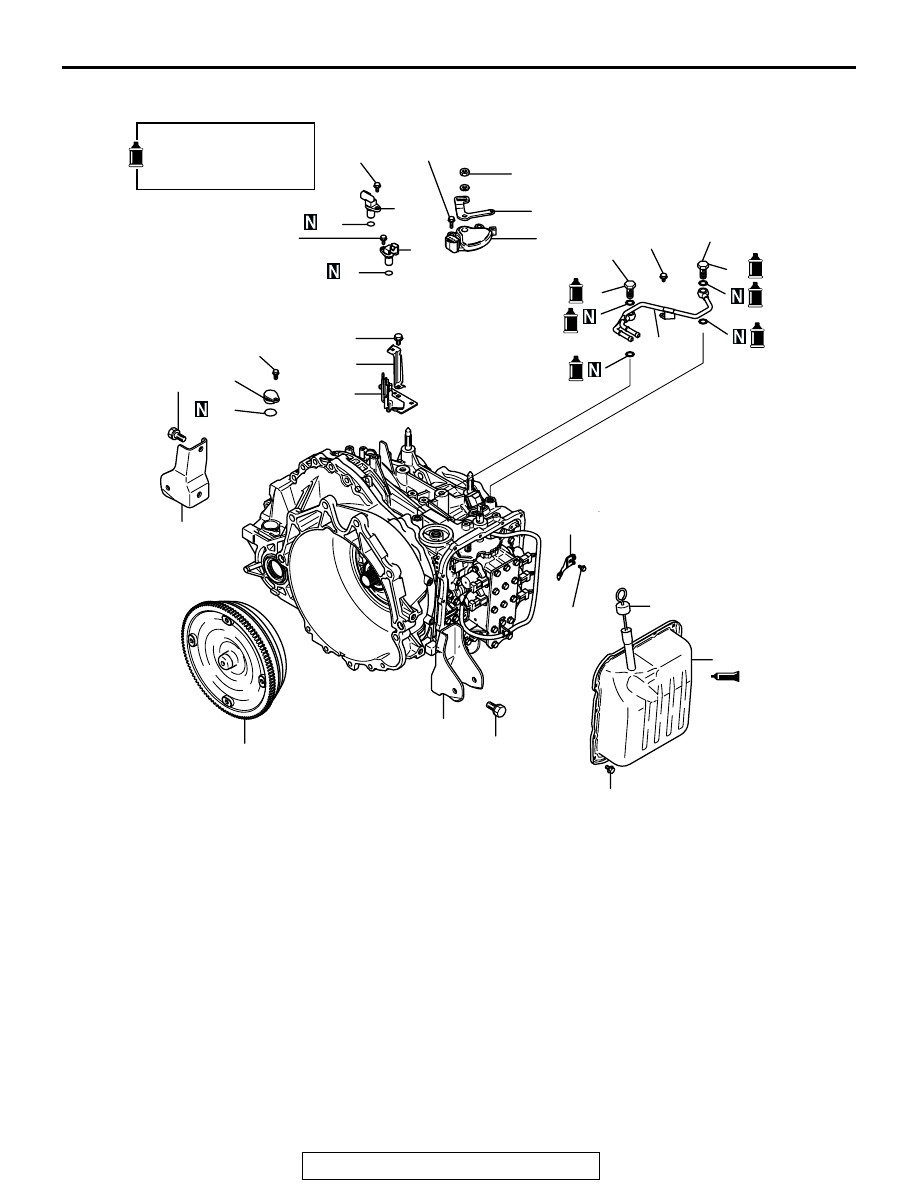

1.

TORQUE CONVERTER

2.

ROLL STOPPER BRACKET

3.

HARNESS BRACKET

4.

CONTROL CABLE SUPPORT BRACKET

5.

OIL DIPSTICK

6.

EYE BOLT

7.

OIL COOLER FEED TUBE

8.

INPUT SHAFT SPEED SENSOR

9.

O-RING

10. OUTPUT SHAFT SPEED SENSOR
11. O-RING
12. MANUAL CONTROL LEVER
13. PARK/NEUTRAL POSITION SWITCH
14. SEALING CAP
15. O-RING
16. VALVE BODY COVER
17. MANUAL CONTROL SHAFT DETENT
