Mitsubishi Eclipse. Manual - part 909





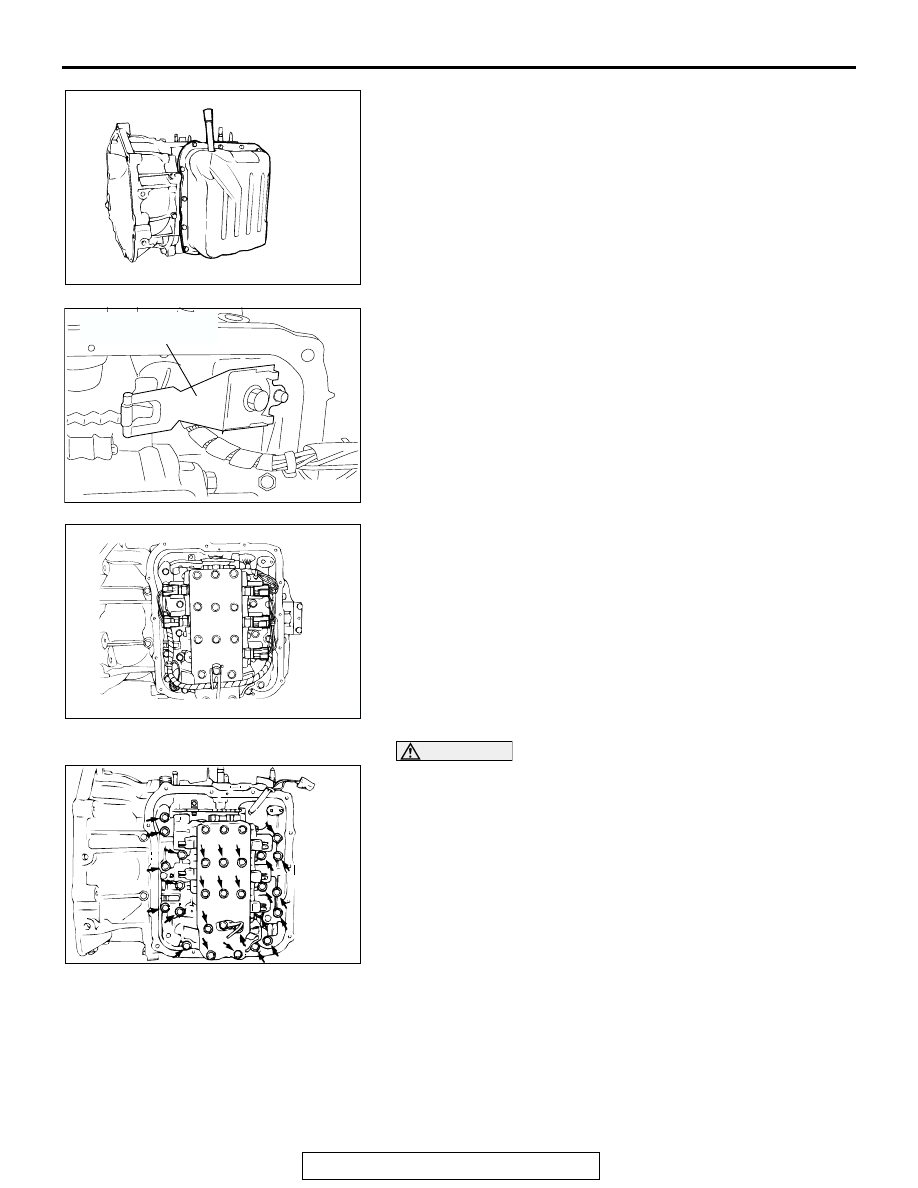

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-19

9. Remove the valve body cover.

10.Remove the manual control shaft detent.

11.Disconnect the solenoid valve harness from the valve body

by undoing the fluid temperature sensor and all the
connectors.

CAUTION

Make sure that the manual control lever and the park/neu-
tral position switch are removed. See step 8.
12.Remove the valve body mounting bolts (27 pieces).

AKX01003

AKX01103AB

MANUAL CONTROL
SHAFT DETENT

AKX01004

AK100023

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-20

CAUTION

Do not lose the two steel balls.
13.Remove the valve body, gasket, and the two steel balls.

14.Remove the snap ring from the connector. Push the

connector into the transaxle case and remove the solenoid
valve harness.

15.Remove the strainer and the second brake retainer oil seal.

16.Remove each accumulator piston and spring.

AKX01005

STEEL BALL

AH

AKX00961AB

SNAP RING

AKX01007AB

SECOND BRAKE
RETAINER OIL SEAL

STRAINER

NUMBER

NAME

1

For low-reverse brake

2

For underdrive clutch

3

For second brake

4

For overdrive clutch

AKX01008

4

3

2

AB

1

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-21

17.Remove the manual control lever shaft roller.
18.Remove the manual control lever shaft and the parking pawl

rod.

19.Remove the torque converter housing mounting bolts (18

bolts), and then remove the torque converter housing.

20.Remove the differential bearing outer race and spacer from

the torque converter housing.

21.Remove the O-rings (two pieces).

22.Remove the differential.
23.Remove the differential bearing outer race from the

transaxle case.

AK202245

PARKING
PAWL ROD

MANUAL CONTROL
LEVER SHAFT
ROLLER

MANUAL CONTROL
LEVER SHAFT

AB

AKX01104

AKX01024AB

O-RINGS

AKX01025

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-22

24.Remove the oil filter.

25.Remove the oil pump mounting bolts (six bolts).
26.Install special tool MD998333 in hole "A."

27.Turn special tools MD998333 to remove the oil pump.
28.Remove the oil pump gasket.

29.Remove thrust washer number 1.

AKX01026

AKX01027

A

AB

A

AKX01028

MD998333

AB

AKX01029

THRUST WASHER
NUMBER 1

AB
