TRANSAXLE CONTROL

TSB Revision

AUTOMATIC TRANSAXLE

23A-417

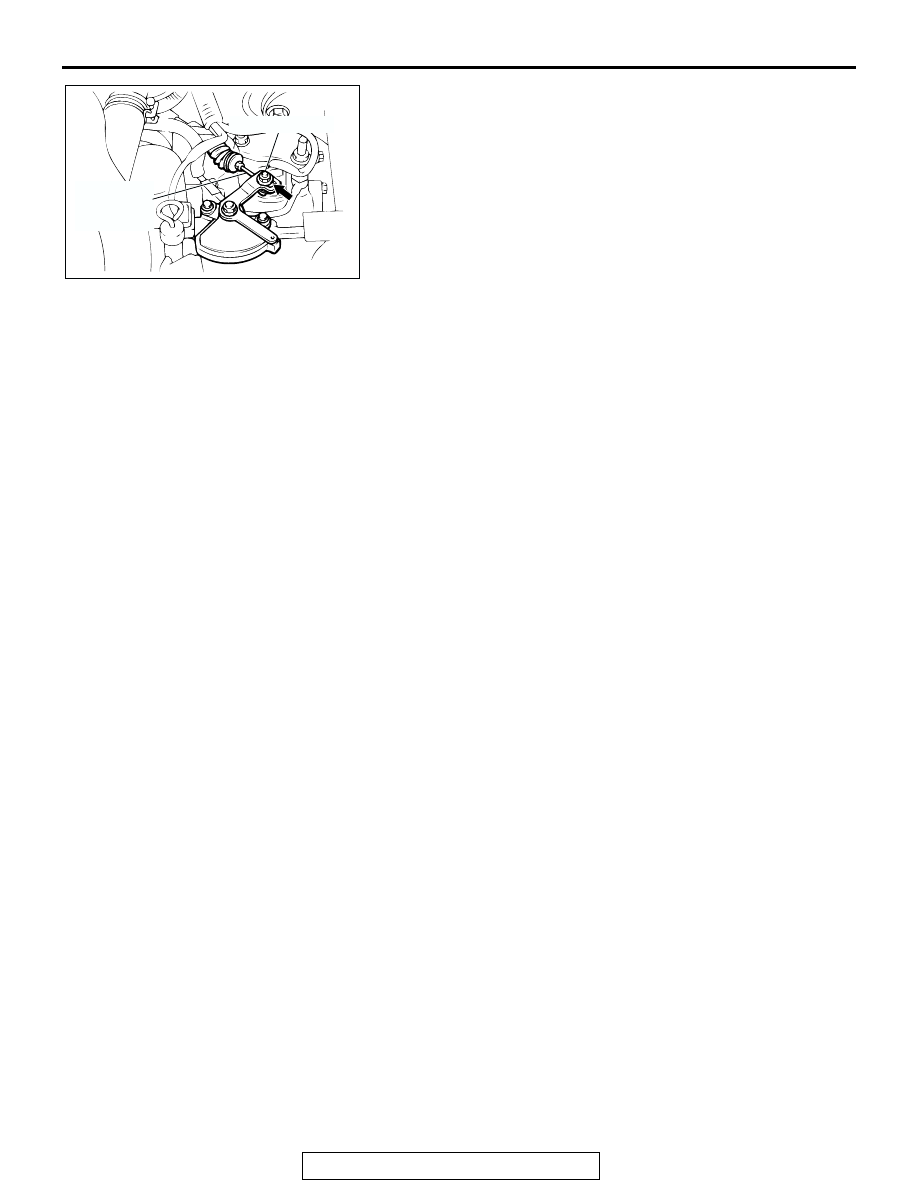

3. Place the cable stud into the manual control lever slot and

install the nut loosely. Gently push the transaxle control
cable in the direction of the arrow until the cable is taut.
Tighten the nut to the specified torque.

Tightening torque: 12

± 2 N⋅m (102 ± 22 in-lb)

INSPECTION

M1231006700117

Check the cable assembly for function and for damage.

AC001632AD

TRANSAXLE
CONTROL
CABLE

ADJUSTING NUT

TRANSAXLE CONTROL

TSB Revision

AUTOMATIC TRANSAXLE

23A-418

DISASSEMBLY AND ASSEMBLY

M1231006800181

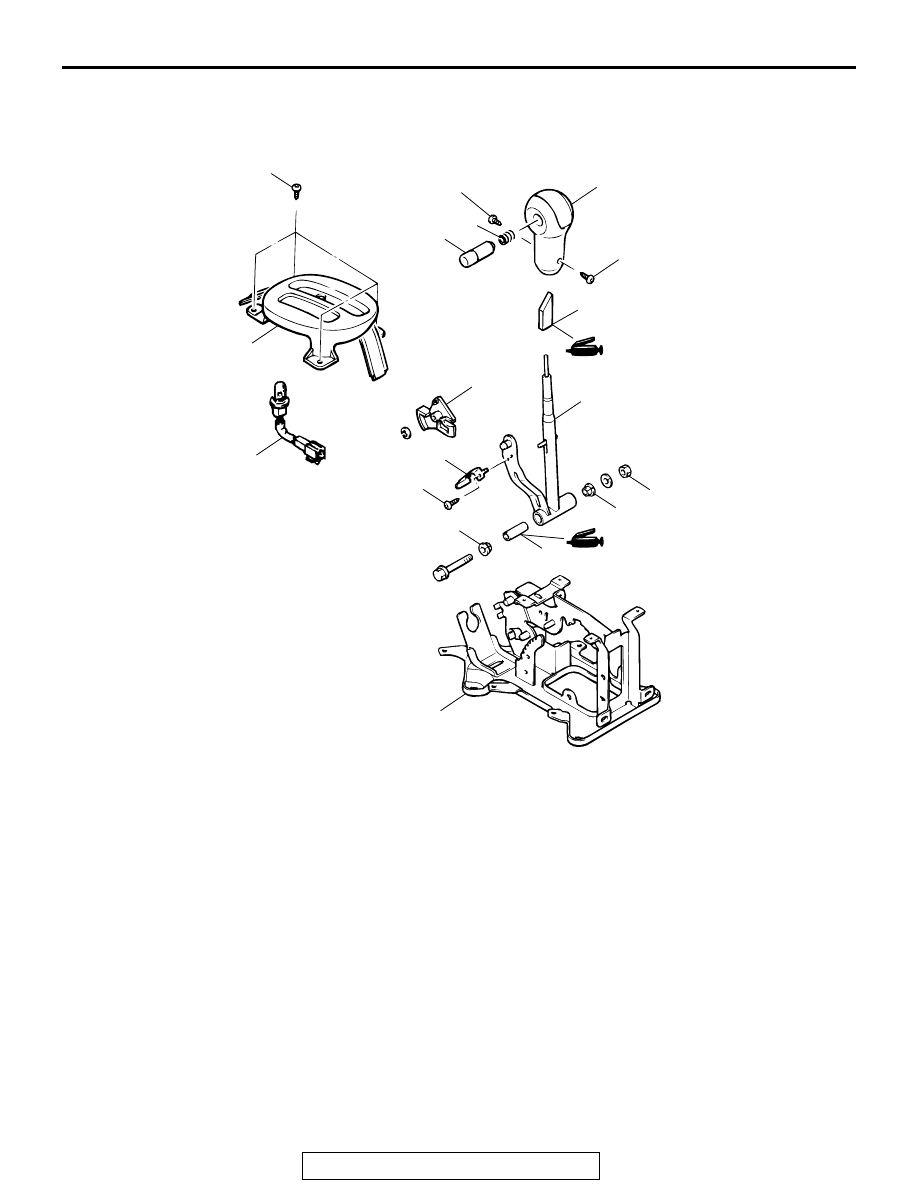

<VEHICLES WITHOUT SPORT MODE>

AC001633AB

7

7

12 ± 2 N·m
102 ± 22 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

10

11

1.8 ± 0.2 N·m
16 ± 2 in-lb

8

3

9

5

4

1.5 ± 0.5 N·m
14 ± 4 in-lb

1

2

1.8 ± 0.2 N·m
16 ± 2 in-lb

6

12

REMOVAL STEPS

1.

PUSH BUTTON

2.

SPRING

3.

SHIFT KNOB

4.

INDICATOR PANEL ASSEMBLY

5.

LOCK CAM

6.

SLEEVE

7.

BUSHING

8.

PIPE

9.

LEVER ASSEMBLY

10. DETENTE SPRING
11. POSITION INDICATOR LAMP

ASSEMBLY

12. BASE BRACKET

REMOVAL STEPS (Continued)

TRANSAXLE CONTROL

TSB Revision

AUTOMATIC TRANSAXLE

23A-419

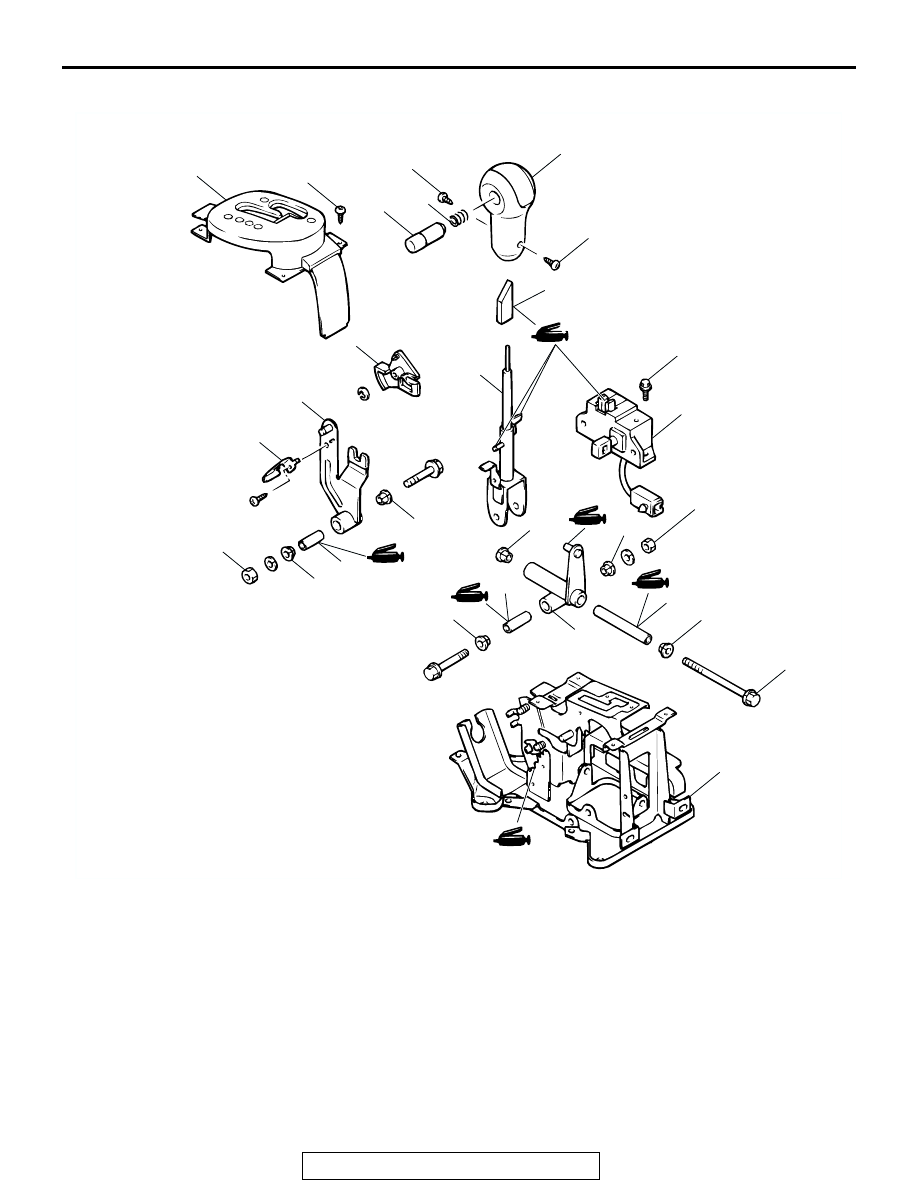

<VEHICLES WITH SPORT MODE>

AC001634AB

12 ± 2 N·m
102 ± 22 in-lb

18

4

1.5 ± 0.5 N·m
14 ± 4 in-lb

1

2

1.8 ± 0.2 N·m
16 ± 2 in-lb

1.8 ± 0.2 N·m
16 ± 2 in-lb

17

5.0 ± 1.0 N·m
44 ± 9 in-lb

5

12 ± 2 N·m
102 ± 22 in-lb

8

7

11

6

7

12

11

13

16

14

15

14

12 ± 2 N·m
102 ± 22 in-lb

9

3

10

REMOVAL STEPS

1.

PUSH BUTTON

2.

SPRING

3.

SHIFT KNOB

4.

INDICATOR PANEL ASSEMBLY

5.

SHIFT SWITCH

6.

SELECT LEVER

7.

BUSHING

8.

PIPE

9.

LEVER ASSEMBLY

10. SLEEVE
11. BUSHING
12. PIPE
13. CABLE ARM
14. BUSHING
15. PIPE
16. DETENTE SPRING
17. LOCK CAM
18. BASE BRACKET

REMOVAL STEPS (Continued)

TRANSAXLE CONTROL

TSB Revision

AUTOMATIC TRANSAXLE

23A-420

INSPECTION

M1231006900111

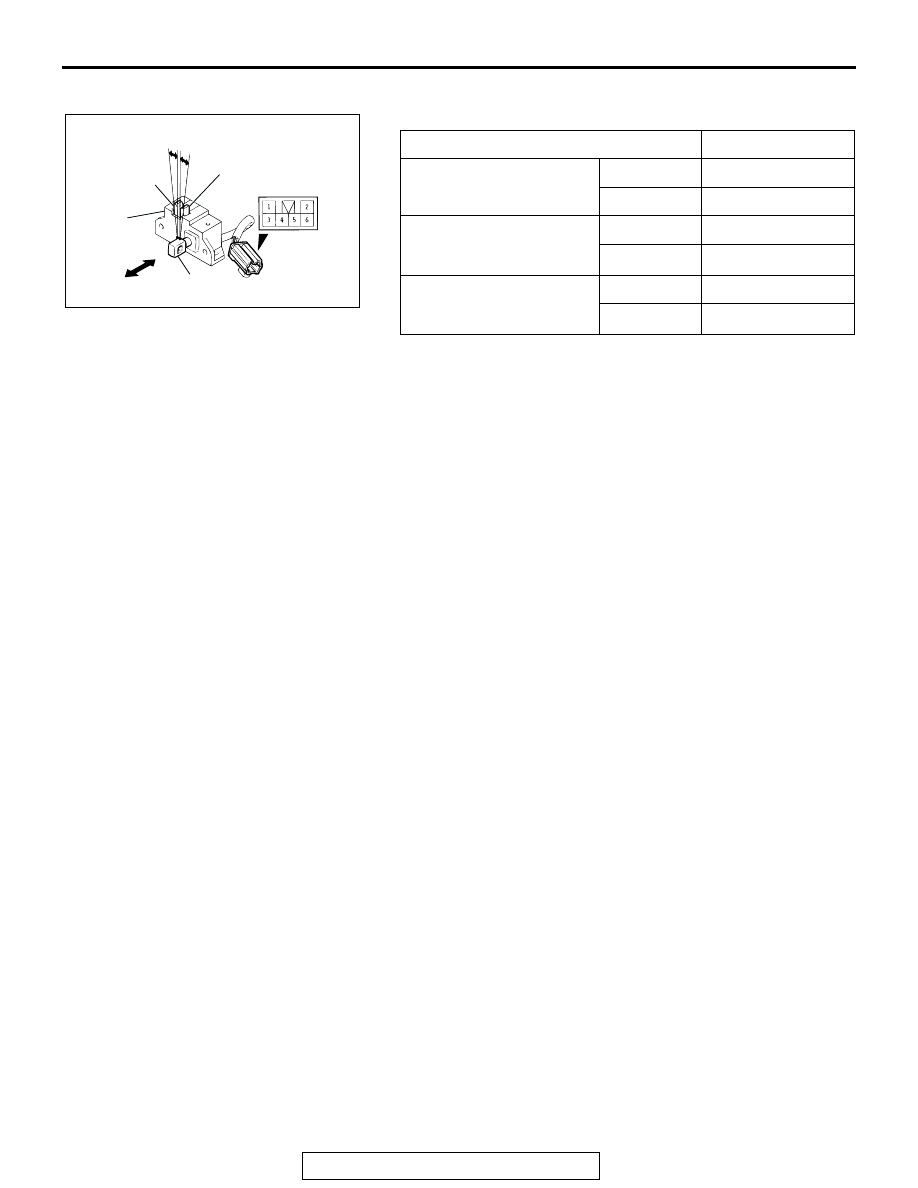

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK

SWITCH POSITION

TERMINAL NO.

Select switch

ON

1

− 5

OFF

1

− 2

Shift switch (up shift)

ON

3

− 6

OFF

−

Shift switch (down shift)

ON

4

− 6

OFF

−

AC001635AB

SELECT
SWITCH

SHIFT SWITCH
(DOWNSHIFT)

SHIFT
SWITCH
ASSEMBLY

ON

OFF

OFF

ON

ON

SHIFT SWITCH
(UPSHIFT)
