ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-409

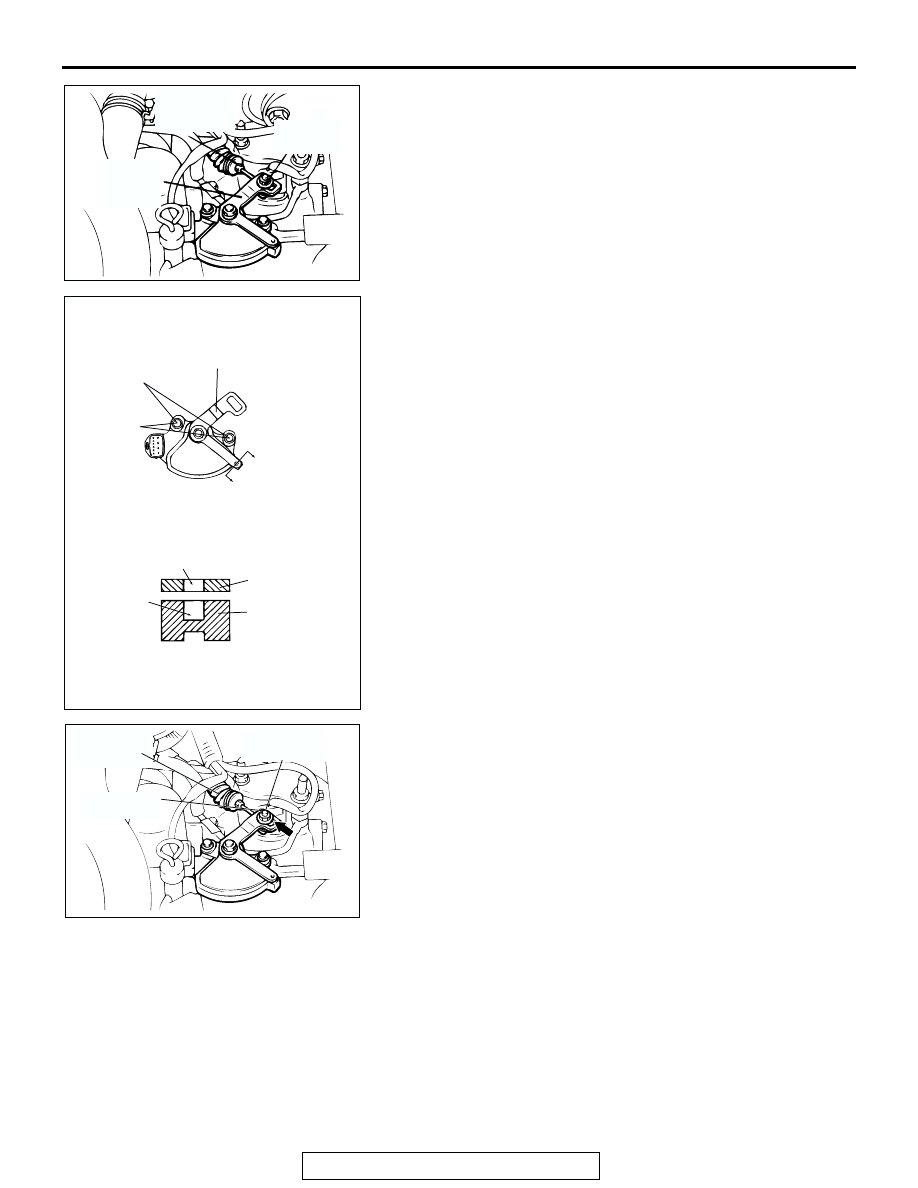

2. Loosen the control cable to the manual control lever

coupling nut to free the cable and lever.

3. Set the manual control lever to the neutral position.

4. Loosen the transmission range switch body mounting bolts

and turn the transmission range switch body so the hole in
the end of the manual control lever and the hole (section A

−

A in the figure on the left) in the flange of the transmission
range switch body flange are aligned.
NOTE: The transmission range switch body can be aligned
by inserting a 5-mm diameter steel bar into the end hole of
the manual control lever and the flange hole of the transmis-
sion range switch body.

5. Tighten the transmission range switch body mounting bolts

to the specified torque. Be careful at this time that the switch
body does not move.

Tightening torque: 11

± 1 N⋅m (96 ± 8 in-lb)

6. Gently push the transaxle control cable in the direction of the

arrow, until the cable is taut. Tighten the adjusting nut.

Tightening torque: 12

± 2 N⋅m (102 ± 22 in-lb)

7. Check that the selector lever is in the "N" position.
8. Check that each position of the manual control lever

matches each position of the selector lever using scan tool
MB991958.

AUTOMATIC TRANSAXLE CONTROL
COMPONENT CHECK

CRANKSHAFT POSITION SENSOR CHECK

M1231009000322

Refer to GROUP 13A <2.4L Engine>, Diagnosis

P.13A-910

Refer to GROUP 13B <3.0L Engine>, Diagnosis

P.13B-1086

AC001892

MANUAL
CONTROL
LEVER

TRANSAXLE
CONTROL
CABLE

ADJUSTING
NUT

AC005866AD

11 ± 1 N·m
96 ± 8 in-lb

SECTION A - A

MOUNTING
BOLTS

MANUAL
CONTROL LEVER

HOLE IN END

HOLE IN
FLANGE

MANUAL
CONTROL
LEVER

TRANSMISSION
RANGE SWITCH
BODY

AC001632

TRANSAXLE
CONTROL
CABLE

ADJUSTING
NUT

12 ± 2 N·m
102 ± 22 in-lb

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-410

TP SENSOR CHECK

M1231003900264

Refer to GROUP 13A <2.4L Engine>, On-vehicle Service

P.13A-936

Refer to GROUP 13B <3.0L Engine>, On-vehicle Service

P.13B-1109

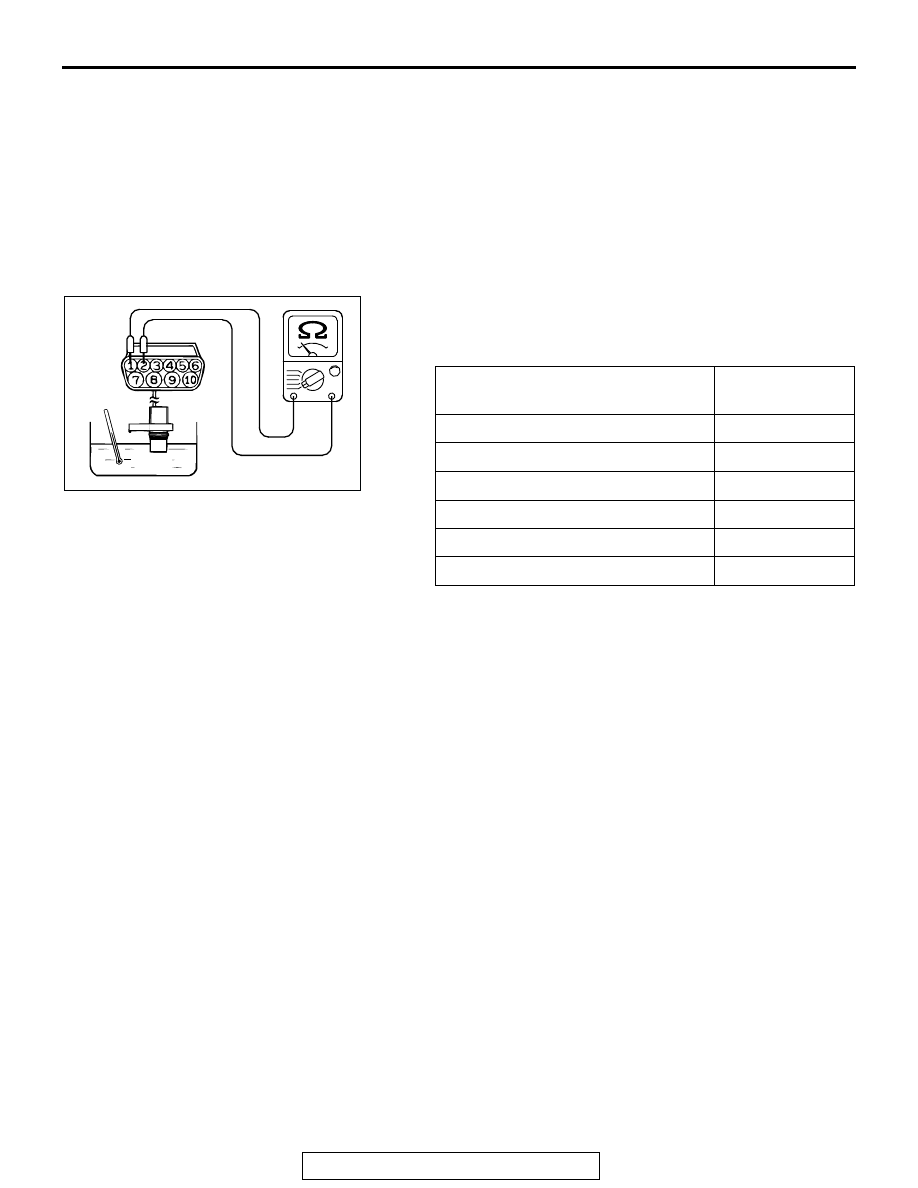

TRANSMISSION FLUID TEMPERATURE SENSOR
CHECK

M1231021800036

1. Remove the transmission fluid temperature sensor.
2. Measure the resistance between terminals 1 and 2 of the

transmission fluid temperature sensor connector.

Standard value:

3. If the transmission fluid temperature sensor resistance is

outside the specified range and the "N" range indicator light
is flashing, replace the transmission fluid temperature
sensor.
NOTE: The "N" range indicator light on the combination
meter flashes when the temperature reaches approximately
125

C (257

F) or greater, and then stops flashing when the

temperature drops below approximately 115

C (238

F).

TRANSMISSION RANGE SWITCH CHECK

M1231021600076

Refer to

P.23A-408

STOPLIGHT SWITCH CHECK

M1231009100170

Refer to GROUP 35A, On-vehicle Service

P.35A-18

PRESSURE SWITCH CHECK

M1231004700199

Refer to GROUP 55, On-vehicle Service

P.55-24

SELECT SWITCH CHECK

M1231012700064

Refer to

P.23A-420

SHIFT SWITCH (UP) CHECK

M1231012800050

Refer to

P.23A-420

TRANSMISSION FLUID
TEMPERATURE

RESISTANCE

°C (32°F)

16.7

− 20.5 kΩ

°C (68°F)

7.3

− 8.9 kΩ

°C (104°F)

3.4

− 4.2 kΩ

°C (140°F)

1.9

− 2.2 kΩ

°C (176°F)

1.0

− 1.2 kΩ

100

°C (212°F)

0.57

− 0.69 kΩ

AC100601AB

ATF

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-411

SHIFT SWITCH (DOWN) CHECK

M1231012900057

Refer to

P.23A-420

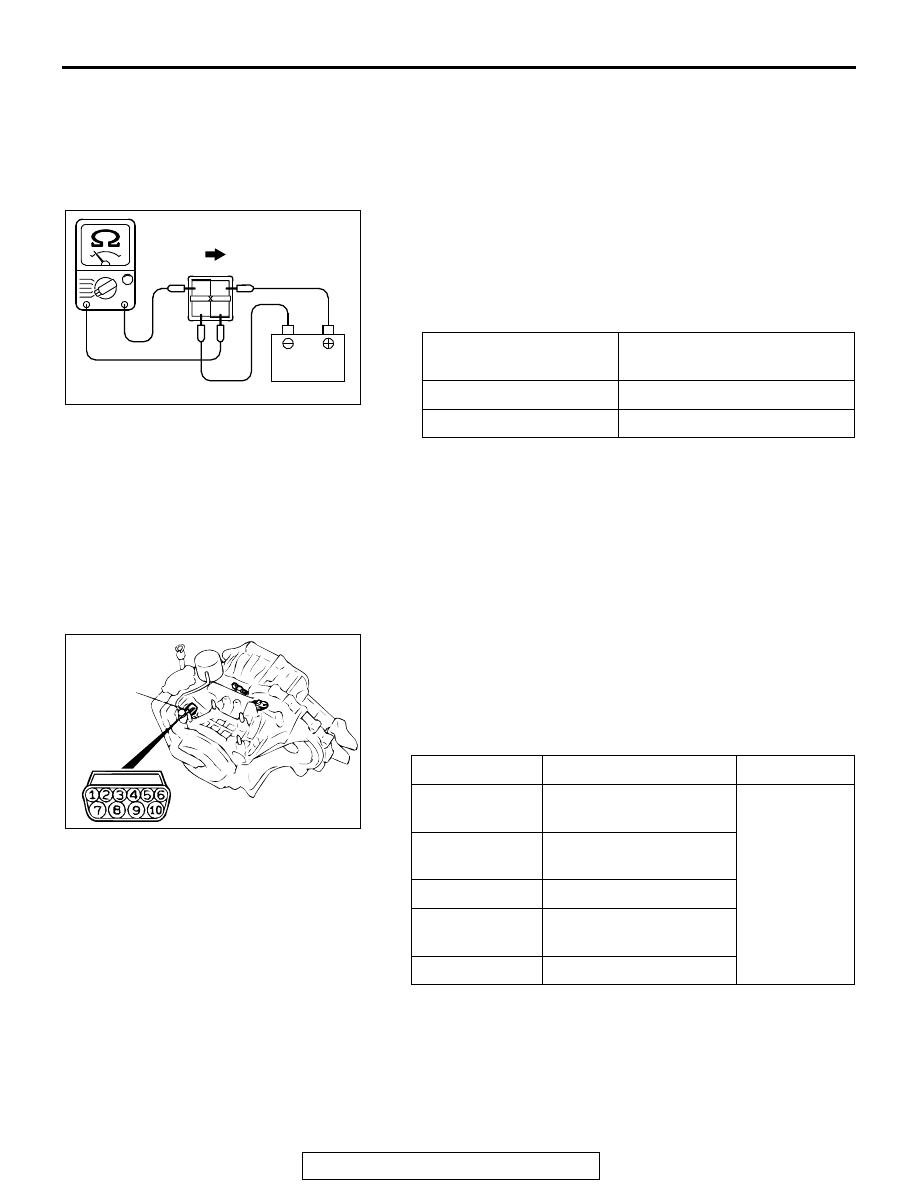

A/T CONTROL RELAY CHECK

M1231009300118

1. Remove the A/T control relay.
2. Use jumper wires to connect the A/T control relay terminal 2

to the positive battery terminal and terminal 3 to the negative
battery terminal.

3. Check the continuity between terminal 1 and terminal 4 of

the A/T control relay when the jumper wires are connected
to and disconnected from the battery.

4. If there is any problem with the A/T control relay, replace it.

SOLENOID VALVE CHECK

M1231009400234

1. Use scan tool MB991958 (MUT-III sub assembly) to

measure the transmission fluid temperature. The desired
transmission fluid temperature setting for performing the
solenoid valve check is 20

°C (68°F).

2. Remove the A/T control solenoid valve assembly connector.
3. Measure the resistance between the solenoid valve

terminals.

4. The measured resistance of the solenoid valve when the

transmission fluid temperature is 20

°C (68°F) should match

the specified resistance on the chart below.

Specified resistance:

5. If the solenoid valve resistance is within the specified range,

check the power supply and the ground circuits.

6. If the solenoid valve resistance is not within the specified

range, drain the transmission fluid and remove the valve
body cover.

JUMPER WIRE

CONTINUITY BETWEEN
TERMINALS NO.1 AND NO.4

Connected

Less than 2 ohm

Disconnected

Open circuit

AC100115

1 2
3 4

FRONT OF VEHICLE

TERMINAL NO. NAME

RESISTANCE

No.7 - No.10

Torque converter clutch
solenoid valve

2.7

− 3.4 Ω [at

°C (68°F)]

No.6 - No.10

Low-reverse solenoid
valve

No.4 - No.9

Second solenoid valve

No.3 - No.9

Underdrive solenoid
valve

No.5 - No.9

Overdrive solenoid valve

AC006158

A/T CONTROL
SOLENOID VALVE
ASSEMBLY

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-412

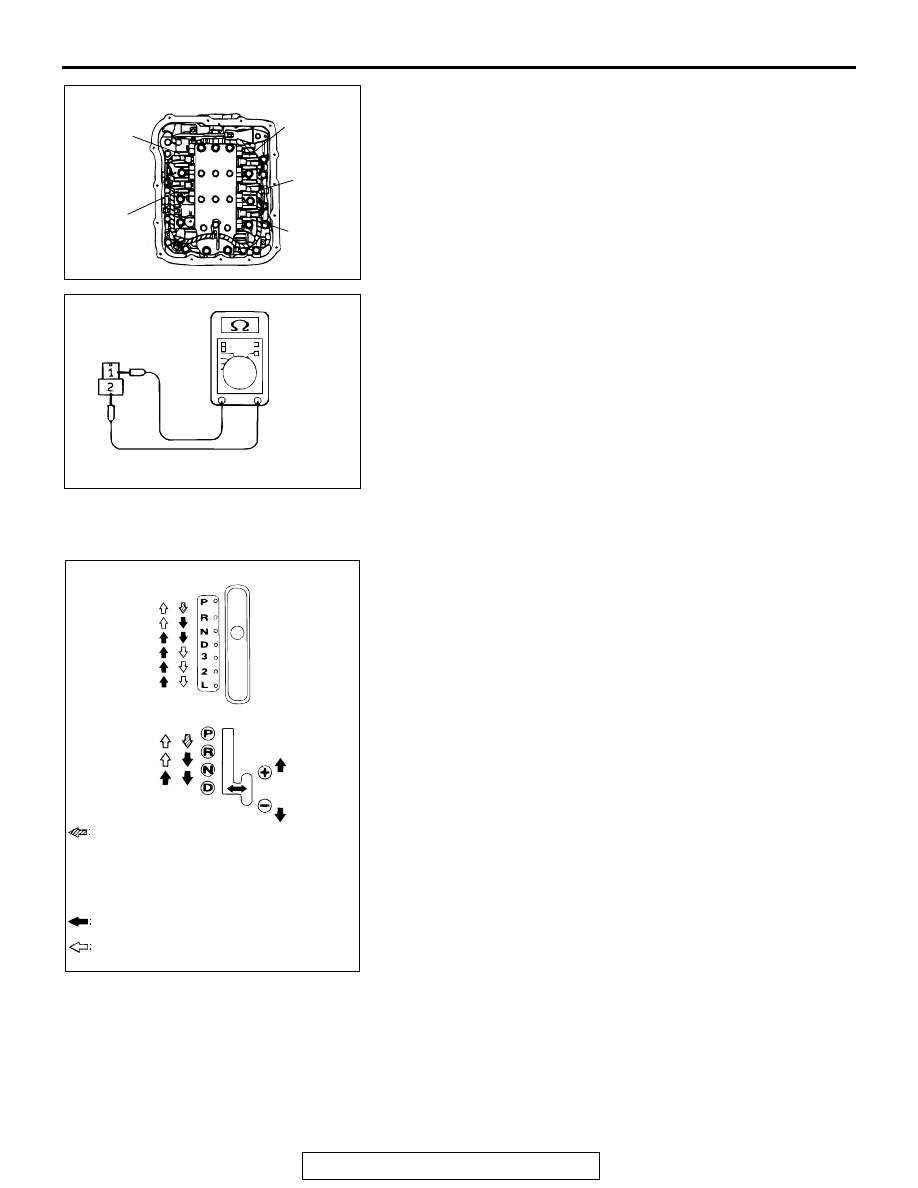

7. Disconnect the connector of any solenoid valves that are not

within the specified range.

8. Measure the resistance between terminals 1 and 2 of any

solenoid valve that was not within the specified range.

Specified resistance: 2.7

− 3.4 Ω [at 20°C (68°F)]

9. If the resistance is not within the specified range, replace the

solenoid valve.

10.If the resistance is within the specified range, check the

wiring harness between the affected A/T control solenoid
valve assembly and the solenoid valve. If a problem is not
found in the above steps, check the solenoid valve O-rings
and replace them if necessary.

SELECTOR LEVER OPERATION CHECK

M1231001300396

1. Apply the parking brake, and check that the selector lever

moves smoothly and accurately to each position.

2. Check that the engine starts when the selector lever is in the

"N" or "P" position, and that it does not start when the
selector lever is in any other position.

3. Start the engine, release the parking brake, and check that

the vehicle moves forward when the selector lever is moved
from the "N" position to the "D," "3," "2" or "L" position or 1st
or 2nd gear in sport mode, and that the vehicle reverses
when the selector lever is moved to the "R" position.

4. Stop the engine.
5. Turn the ignition switch to the "ON" position, and check that

the backup lamp illuminates when the selector lever is
shifted from the "P" to the "R" position.
NOTE: The A/T mis-operation prevention mechanism pre-
vents movement of the selector lever from the "P" position if
the ignition switch is in a position other than "LOCK" (OFF)
and the brake pedal is not depressed.

AC002219AD

LOW-
REVERSE
SOLENOID
VALVE

OVERDRIVE
SOLENOID
VALVE

TORQUE
CONVERTER
CLUTCH
SOLENOID

SECOND
SOLENOID
VALVE

UNDERDRIVE
SOLENOID
VALVE

AC002289

AC001629

THE SELECTOR LEVER MOVES WHEN THE
BRAKE PEDAL IS DEPRESSED AND THE
BUTTON IS PUSHED IN WITH THE IGNITION
KEY IN ANY POSITION OTHER THAN THE
"LOCK" (OFF) POSITION.

THE SELECTOR LEVER MOVES WITHOUT
PUSHING THE BUTTON.

THE SELECTOR LEVER MOVES WHEN THE
BUTTON IS PUSHED.
