AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-189

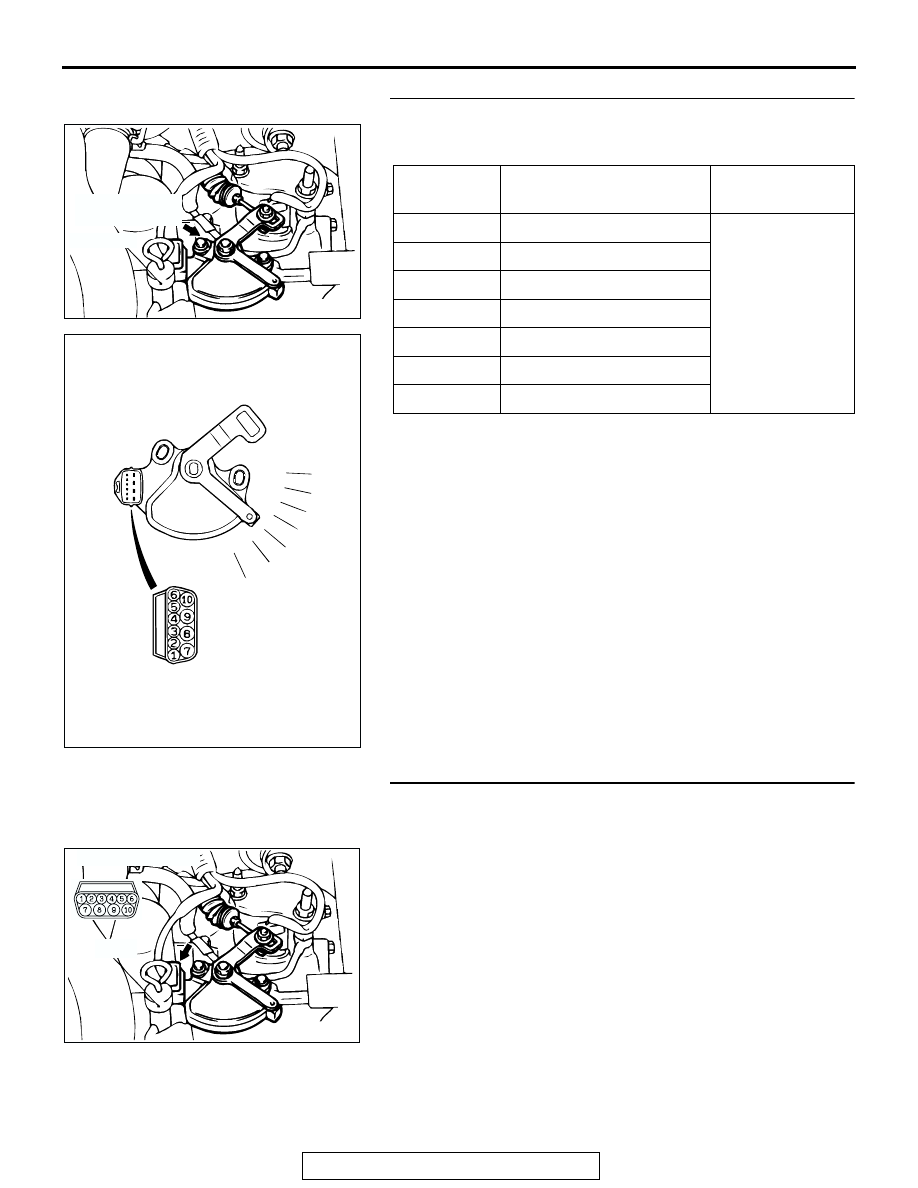

STEP 46. Check the transmission range switch.
Measure the resistance between the terminals for each selec-
tor position as indicated in the table below.

NOTE: For vehicles with sport mode, four positions (P, R, N, D)
are used.
Q: Is the measured resistance less than 2 ohms for each

selector position?
YES : Go to Step 47.
NO :  Replace the transmission range switch. Refer to

GROUP 23B, Transaxle

P.23B-10

.

STEP 47. Check transmission range switch connector B-41
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 48.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

SELECTOR
POSITION

TERMINAL CONNECTION
OF TESTER

SPECIFIED
CONDITION

P

3

− 8, 9 − 10

Less than 2 ohms.

R

7

− 8

N

4

− 8, 9 − 10

D

1

− 8

3

5

− 8

2

2

− 8

L

6

− 8

AC004672

DIPSTICK

TRANSMISSION
RANGE SWITCH

AK

AC005865

P

R

N

D

3

2

L

AB

AC001844

CONNECTOR: B-41

DIPSTICK

AK

B-41

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-190

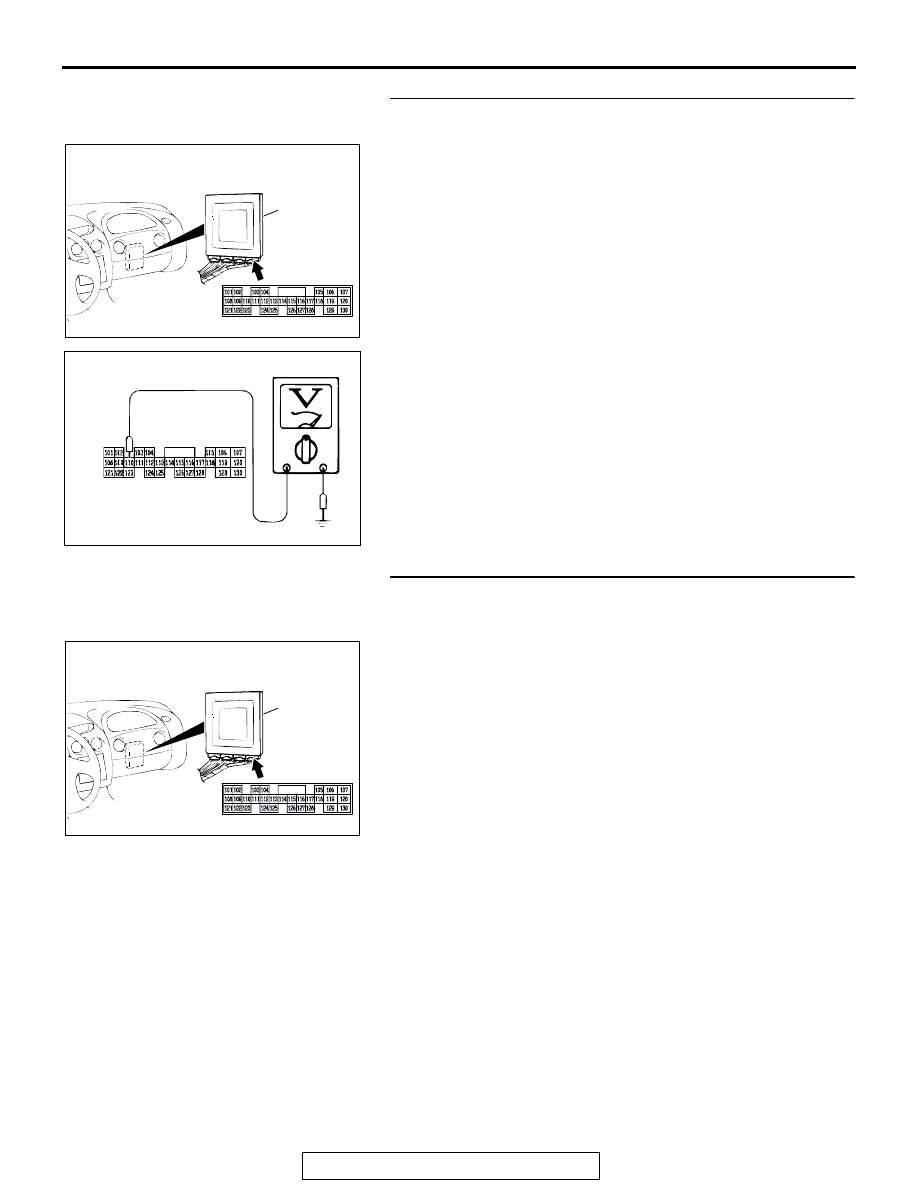

STEP 48. Measure the transmission range switch output
voltage at PCM connector C-61 by backprobing.
(1) Do not disconnect connector C-61.
(2) Turn the ignition switch to the "ON" position.
(3) Move the selector lever to the "L" position.

(4) Measure the voltage between terminal 110 and ground by

backprobing.

• The voltage should measure battery positive voltage.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the voltage measure battery positive voltage?

YES : Go to Step 13.
NO :  Go to Step 49.

STEP 49. Check PCM connector C-61 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 50.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-61

PCM

BH

C-61

AC001946AM

C-61 HARNESS
CONNECTOR:
HARNESS SIDE

AC001657

CONNECTOR: C-61

PCM

BH

C-61

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-191

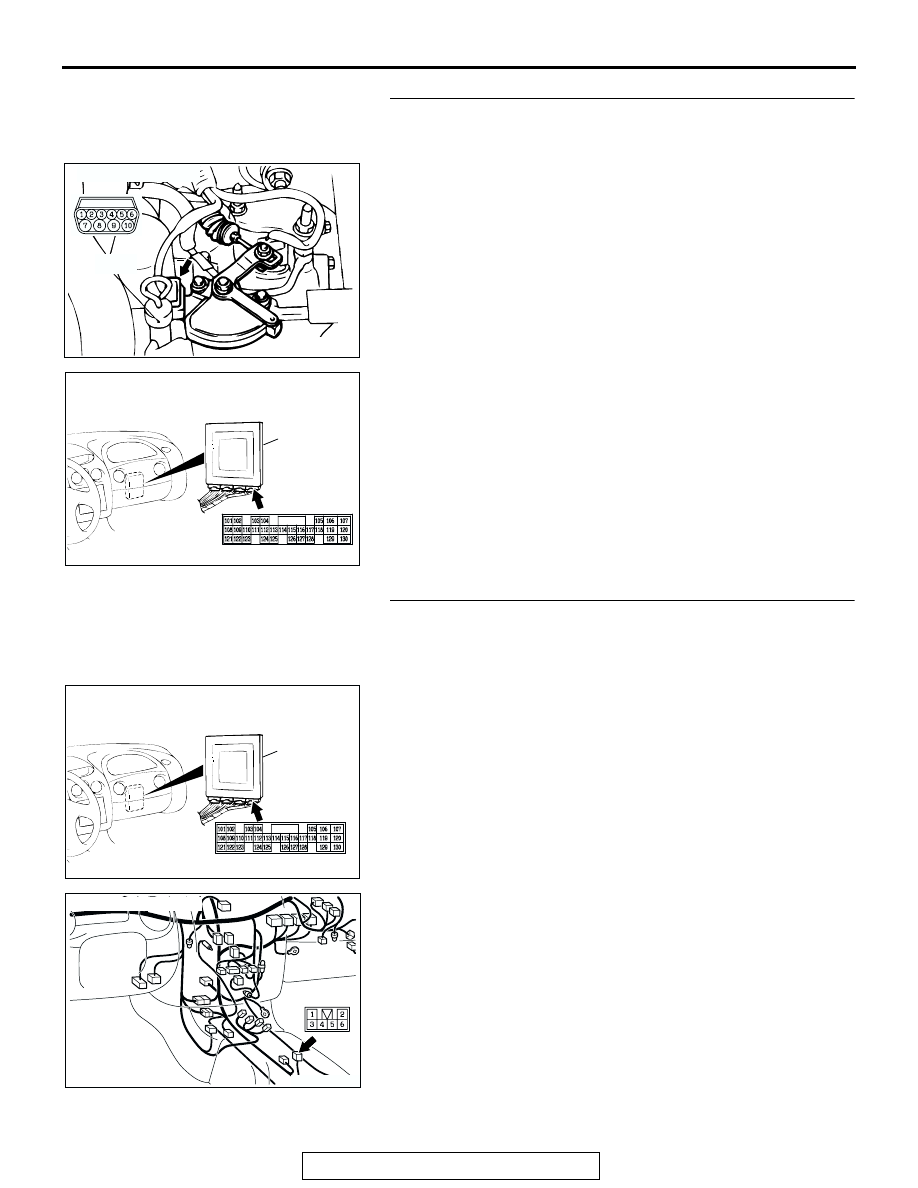

STEP 50. Check harness for open circuit or short circuit to
ground between transmission range switch connector
B-41 terminal 6 and PCM connector C-61 terminal 110.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

STEP 51. Check PCM connector C-61 <2.4L Engine> or
C-63 <3.0L Engine> and shift switch assembly connector
C-65 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 52.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001844

CONNECTOR: B-41

DIPSTICK

AK

B-41

AC001657

CONNECTOR: C-61

PCM

BH

C-61

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

AC001741

CONNECTOR: C-65

AS

C-65

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-192

STEP 52. Check harness for short circuit to ground
between shift switch assembly connector C-65 terminal 5
and PCM connector C-61 <2.4L Engine> or C-63 <3.0L
Engine> terminal 109.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

DTC 28 (P0705): Transmission Range Switch System (Short Circuit)

.

Transmission Range Switch System Circuit
Refer to

P.23A-155

.

.

CIRCUIT OPERATION
Refer to

P.23A-155

.

.

DESCRIPTIONS OF MONITOR METHODS
If two types or more of signals are input from trans-
mission range switch for more than 30 seconds,
PCM judges that transmission range switch has a
failure.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

AC001741

CONNECTOR: C-65

AS

C-65

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>
