AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-193

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS (Entry Conditions and
Malfunction Thresholds)

Check Conditions, Judgement Criteria

• Transmission range switch: multiple signal. (30

seconds)

.

OBD-II DRIVE CYCLE PATTERN
Start the engine, keep the vehicle stopped in "P," "R,"
"N," "D," "3," "2" and "L" ranges respectively for more
than one minute, and turn OFF the ignition switch.
Then restart the engine, and stop the vehicle in "P,"
"R," "N," "D," "3," "2" and "L" ranges respectively for
more than one minute.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the transmission range switch

• Malfunction of the ignition switch

• Damaged harness or connector

• Malfunction of the PCM

DIAGNOSIS

Required Special Tool:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

AC205064

START

Is there no
input signal?

Yes

No

Continuous failure
for 30 secs.

Yes

Yes

Yes

No

No

No

Continuous failure
for 30 secs.

Is there more than
one input signal?

Malfunction

Good

Malfunction

END

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-194

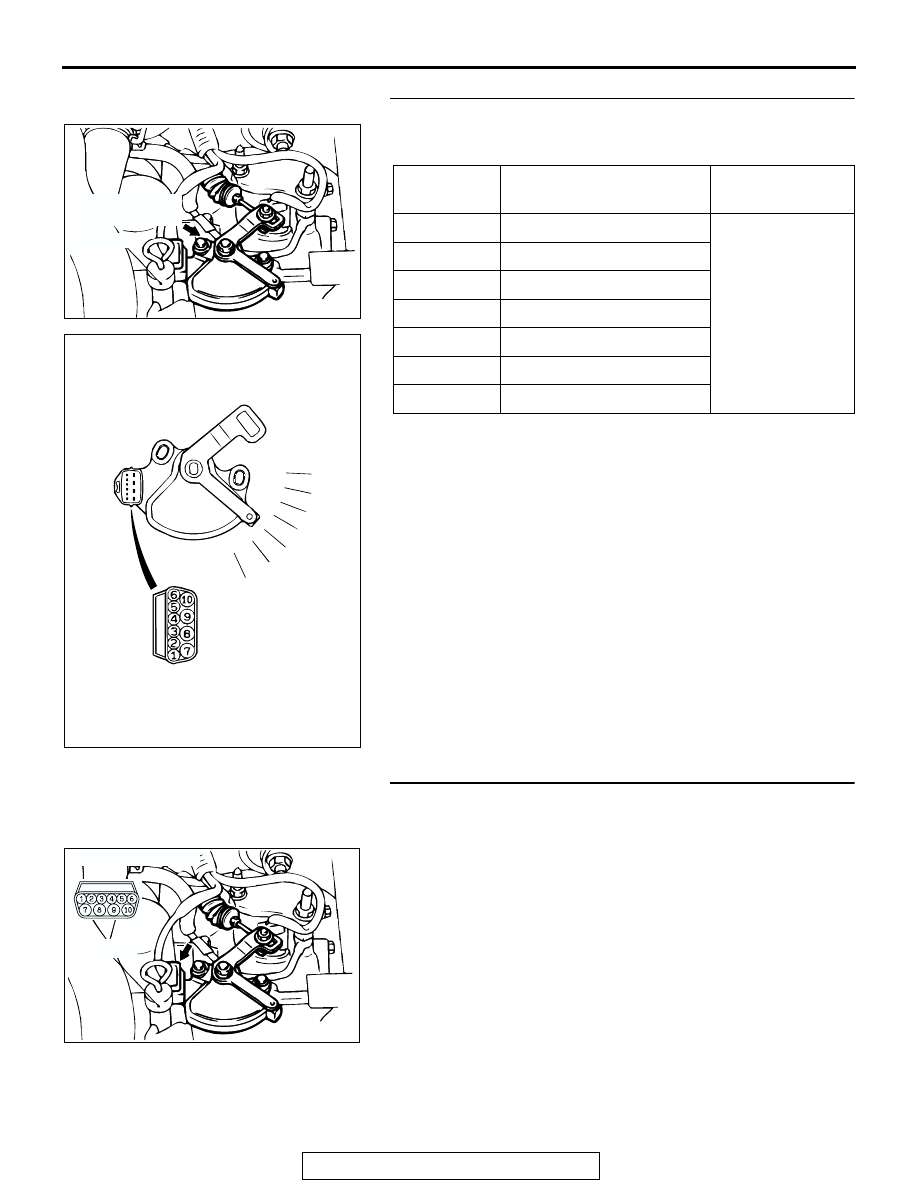

STEP 1. Check the transmission range switch.
Measure the resistance between the terminals for each selec-
tor position as indicated in the table below.

NOTE: For vehicles with sport mode, four positions (P, R, N, D)
are used.
Q: Is the measured resistance less than 2 ohms for each

selector position?
YES :
Go to Step 2.
NO :  Replace the transmission range switch. Refer to

GROUP 23B, Transaxle

P.23B-10

.

STEP 2. Check transmission range switch connector B-41
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 3.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

SELECTOR
POSITION

TERMINAL CONNECTION
OF TESTER

SPECIFIED
CONDITION

P

− 8, 9 − 10

Less than 2 ohms.

R

− 8

N

− 8, 9 − 10

D

− 8

3

− 8

2

− 8

L

− 8

AC004672

DIPSTICK

TRANSMISSION
RANGE SWITCH

AK

AC005865

P

R

N

D

3

2

L

AB

AC001844

CONNECTOR: B-41

DIPSTICK

AK

B-41

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-195

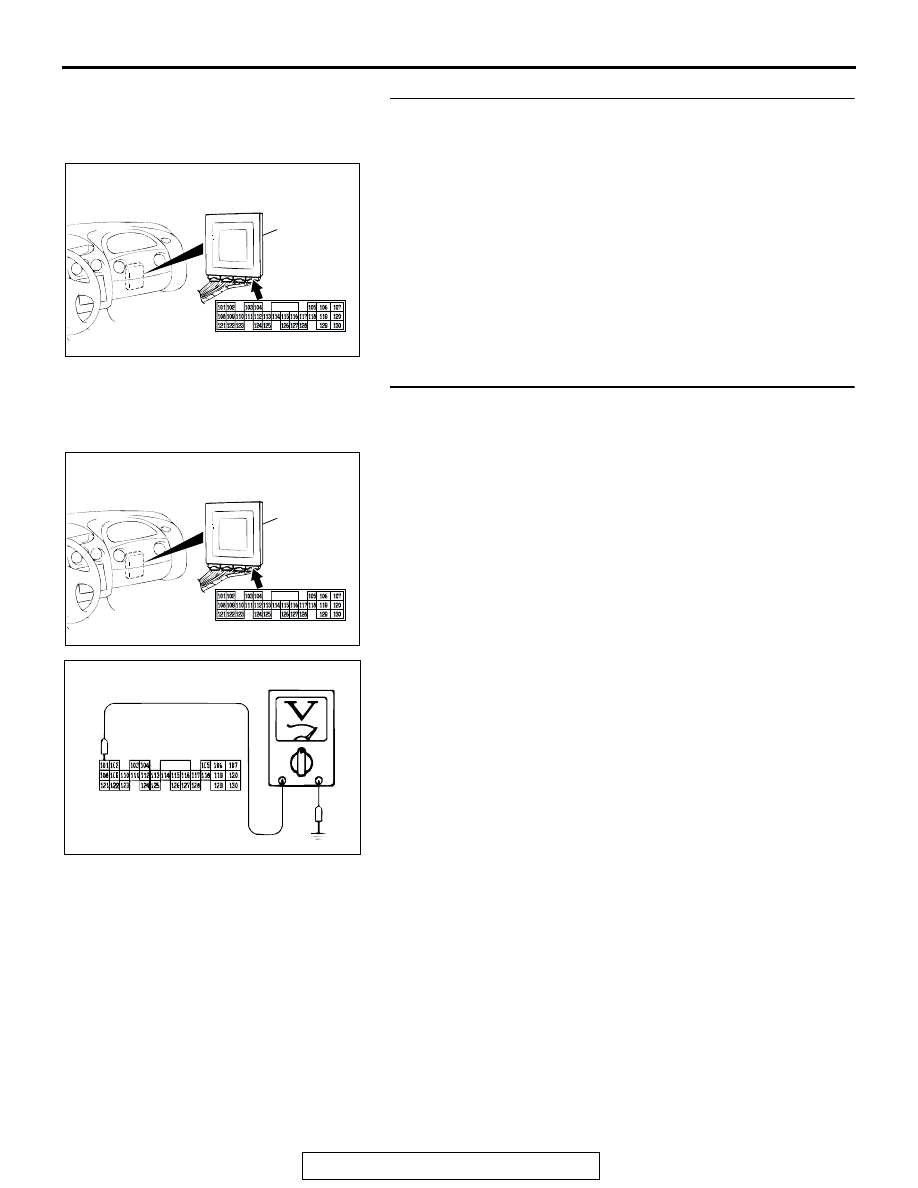

STEP 3. Check PCM connector C-61 <2.4L Engine> or C-63
<3.0L Engine> for loose, corroded or damaged terminals,
or terminals pushed back in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 4.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 4. Measure the transmission range switch output
voltage at PCM connector C-61 <2.4L Engine> or C-63
<3.0L Engine> by backprobing. ("P" position)
(1) Do not disconnect connector C-61 <2.4L Engine> or C-63

<3.0L Engine>.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 101 and ground by

backprobing.

• When selector lever position is "P," voltage should mea-

sure battery positive voltage.

• When selector lever position is "R," voltage should mea-

sure 0.5 volt or less.

• When selector lever position is "N," voltage should mea-

sure 0.5 volt or less.

• When selector lever position is "D," voltage should mea-

sure 0.5 volt or less.

• When selector lever position is "3," voltage should mea-

sure 0.5 volt or less. <Vehicles without sport mode>

• When selector lever position is "2," voltage should mea-

sure 0.5 volt or less. <Vehicles without sport mode>

• When selector lever position is "L," voltage should mea-

sure 0.5 volt or less. <Vehicles without sport mode>

• When selector lever position is sport mode, voltage

should measure 0.5 volt or less. <Vehicles with sport
mode>

Q: Is the measured voltage within the specified range?

YES : Go to Step 8.
NO :  Turn the ignition switch to the "LOCK" (OFF) position.

Then go to Step 5.

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

AC001903AO

C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

HARNESS CONNECTOR:
HARNESS SIDE

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-196

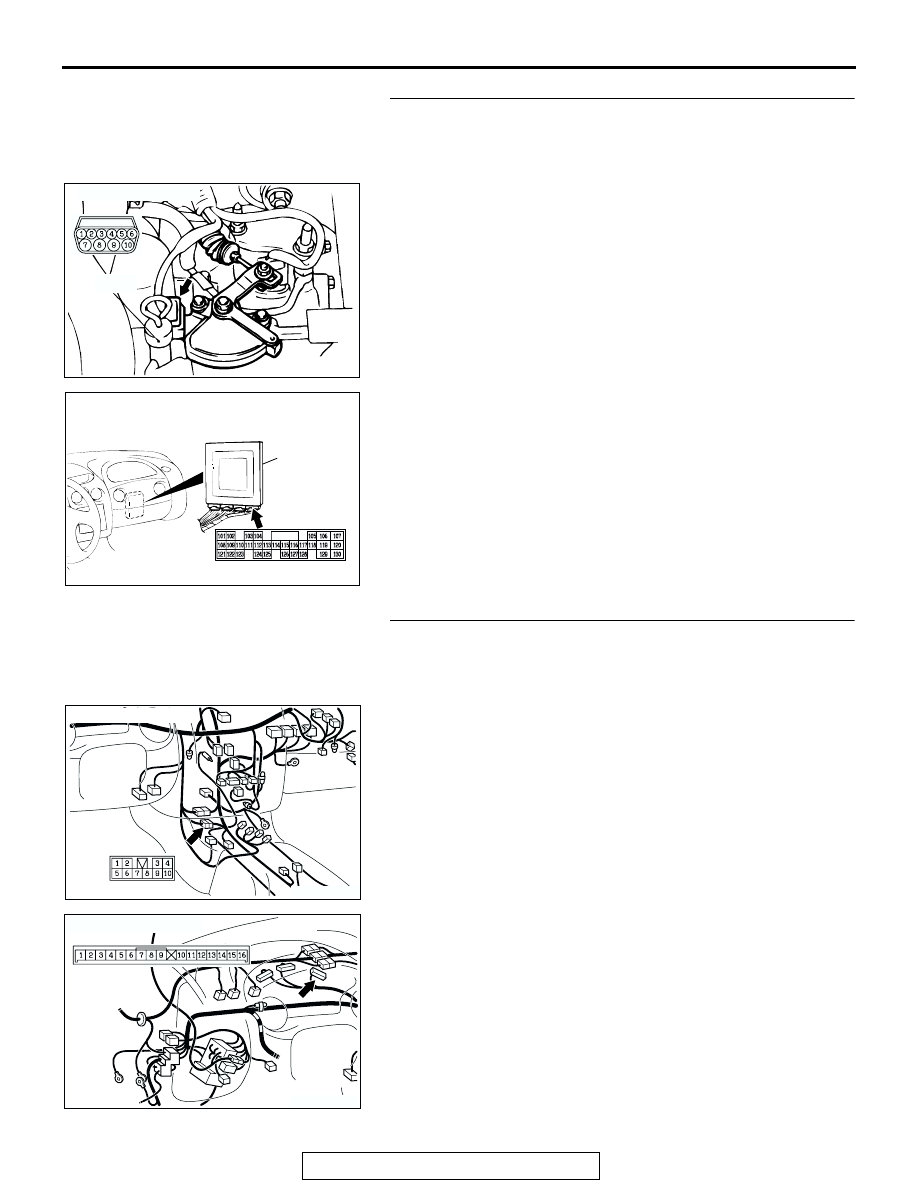

STEP 5. Check harness for open circuit or short circuit to
ground between transmission range switch connector
B-41 terminal 3 and PCM connector C-61 <2.4L Engine> or
C-63 <3.0L Engine> terminal 101.
Q: Is the harness wire in good condition?

YES <Vehicles without sport mode> : Go to Step 27.
YES <Vehicles with sport mode> : Go to Step 6.
NO :  Repair or replace the harness wire.

STEP 6. Check intermediate connector C-27 and
combination meter connector C-43 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector. <Vehicles with sport mode>
Q: Are the connectors and terminals in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001844

CONNECTOR: B-41

DIPSTICK

AK

B-41

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

AC001741

CONNECTOR: C-27

AR

C-27

AC001729AW

CONNECTOR: C-43

C-43
