AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-181

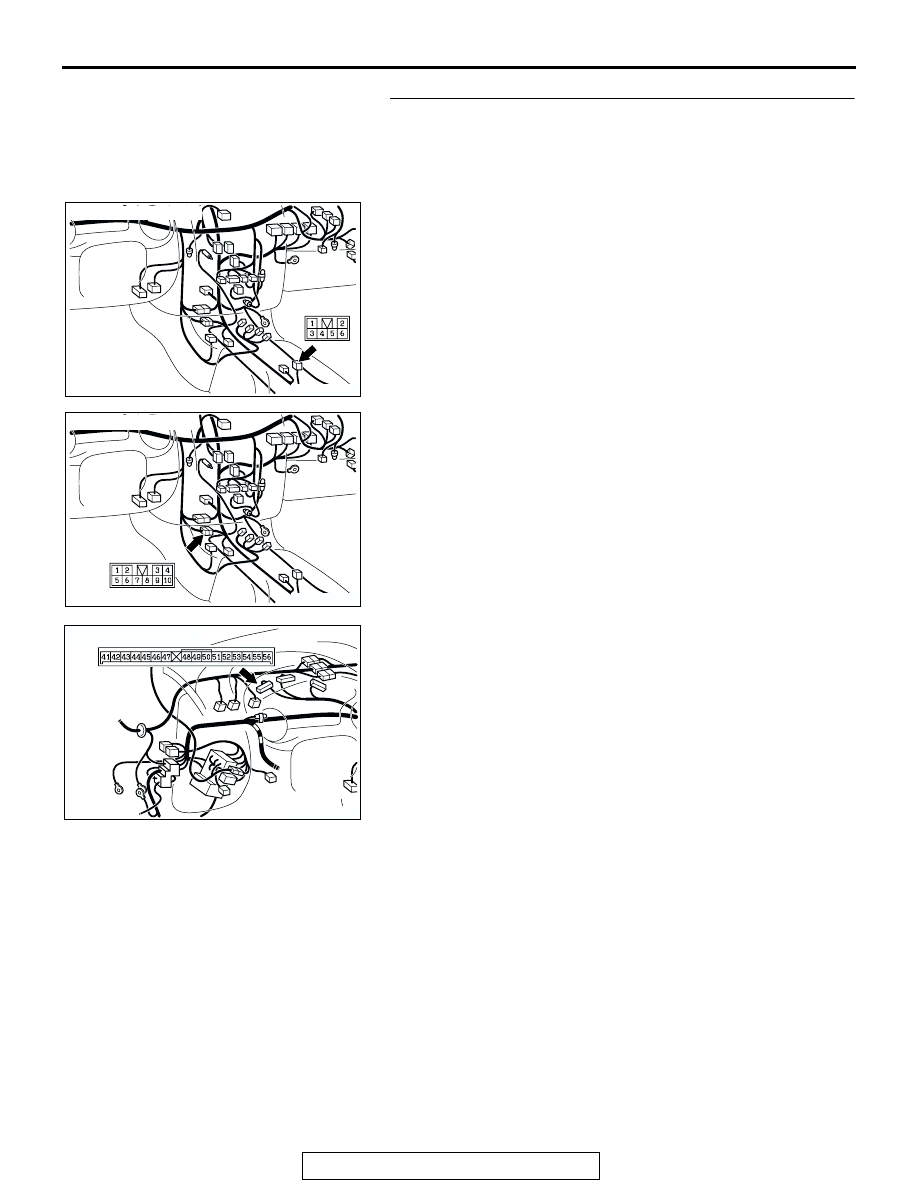

STEP 33. Check shift switch assembly connector C-65,
intermediate connector C-27 and combination meter
connector C-41 for loose, corroded or damaged terminals,
or terminals pushed back in the connector. <Vehicles with
sport mode>
Q: Are the connectors and terminals in good condition?

YES : Go to Step 34.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001741

CONNECTOR: C-65

AS

C-65

AC001741

CONNECTOR: C-27

AR

C-27

AC001729AX

CONNECTOR: C-41

C-41

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-182

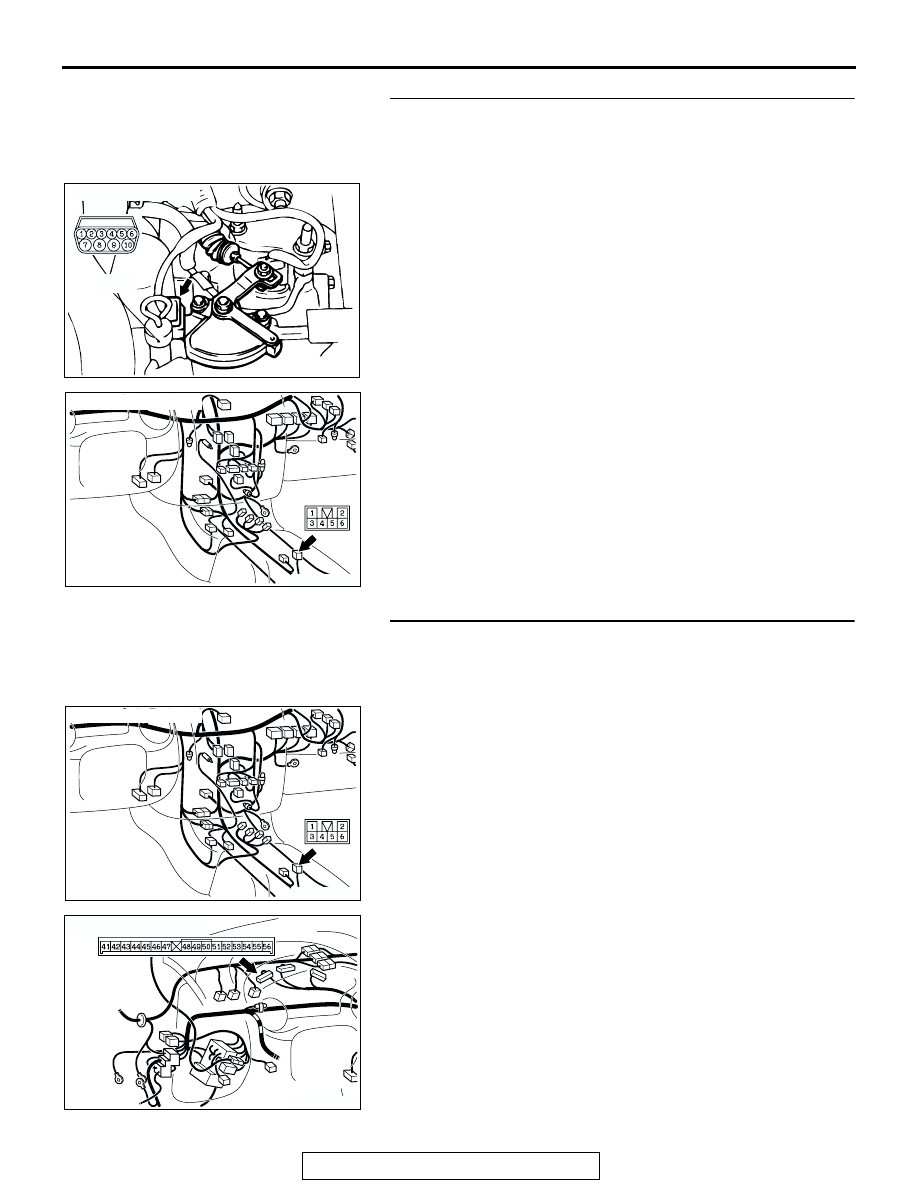

STEP 34. Check harness for short circuit to ground
between transmission range switch connector B-41
terminal 1 and shift switch assembly connector C-65
terminal 1. <Vehicles with sport mode>
Q: Is the harness wire in good condition?

YES : Go to Step 35.
NO :  Repair or replace the harness wire.

STEP 35. Check harness for short circuit to ground
between shift switch assembly connector C-65 terminal 2
and combination meter connector C-41 terminal 50.
<Vehicles with sport mode>
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

AC001844

CONNECTOR: B-41

DIPSTICK

AK

B-41

AC001741

CONNECTOR: C-65

AS

C-65

AC001741

CONNECTOR: C-65

AS

C-65

AC001729AX

CONNECTOR: C-41

C-41

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-183

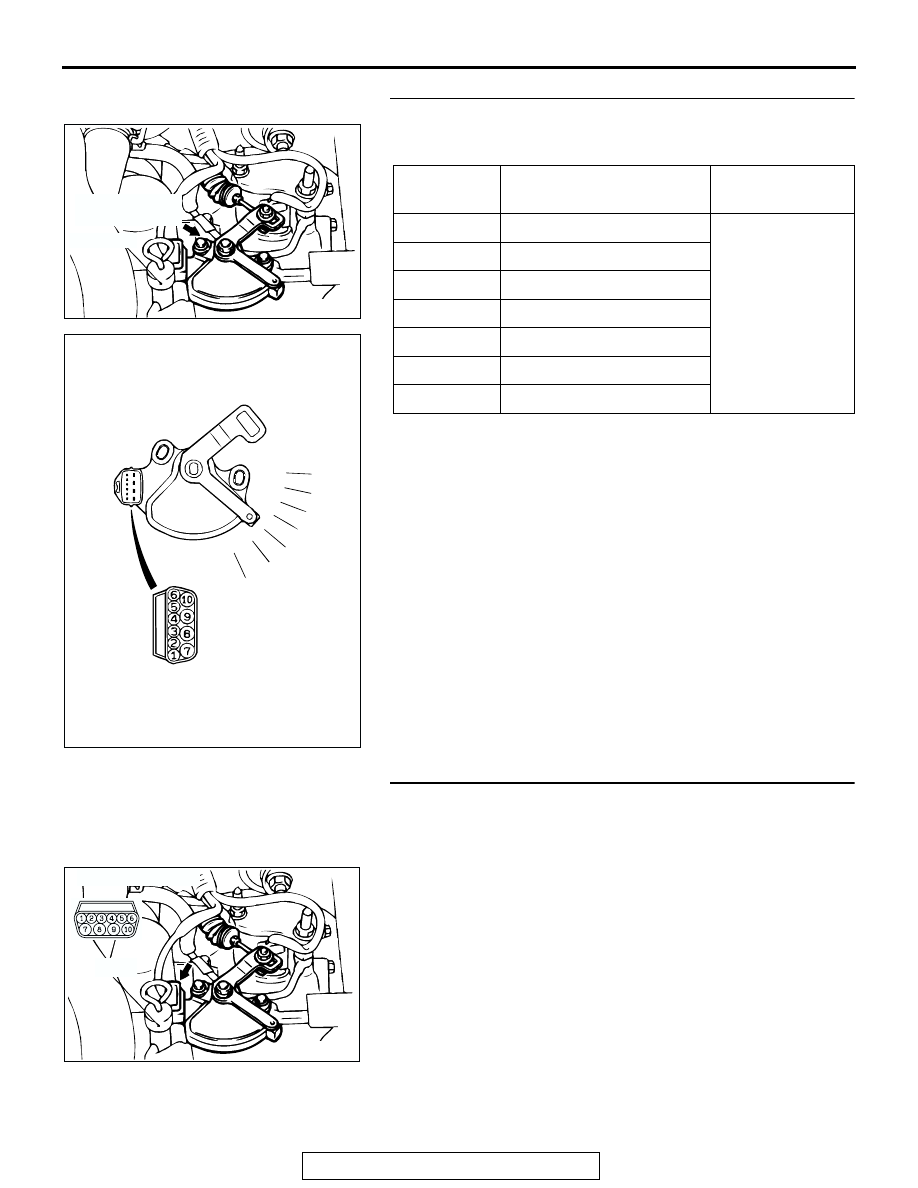

STEP 36. Check the transmission range switch.
Measure the resistance between the terminals for each selec-
tor position as indicated in the table below.

NOTE: For vehicles with sport mode, four positions (P, R, N, D)
are used.
Q: Is the measured resistance less than 2 ohms for each

selector position?
YES :
Go to Step 37.
NO :  Replace the transmission range switch. Refer to

GROUP 23B, Transaxle

P.23B-10

.

STEP 37. Check transmission range switch connector B-41
for loose, corroded or damaged terminals, or terminals
pushed back in the connector. <Vehicles without sport
mode>
Q: Are the connector and terminals in good condition?

YES : Go to Step 38.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

SELECTOR
POSITION

TERMINAL CONNECTION
OF TESTER

SPECIFIED
CONDITION

P

− 8, 9 − 10

Less than 2 ohms.

R

− 8

N

− 8, 9 − 10

D

− 8

3

− 8

2

− 8

L

− 8

AC004672

DIPSTICK

TRANSMISSION
RANGE SWITCH

AK

AC005865

P

R

N

D

3

2

L

AB

AC001844

CONNECTOR: B-41

DIPSTICK

AK

B-41

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-184

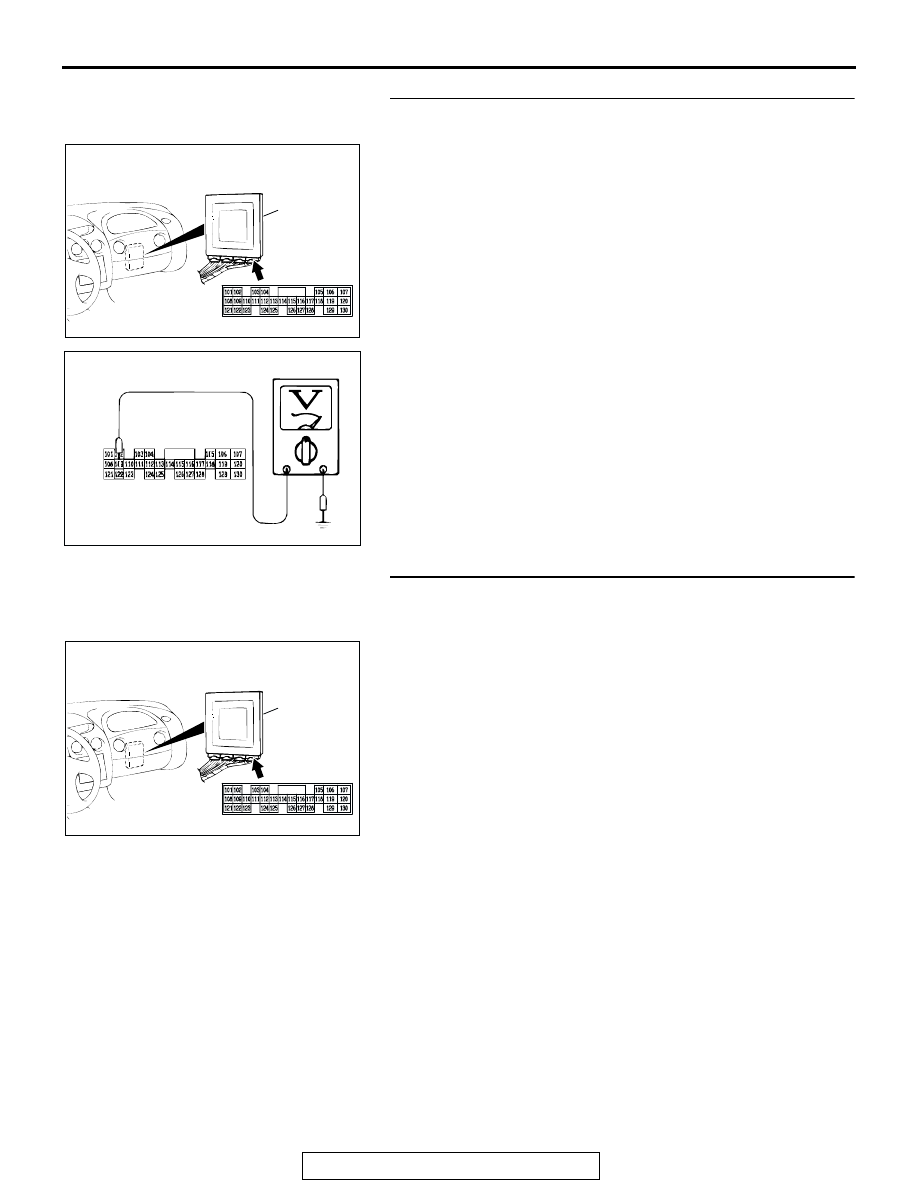

STEP 38. Measure the transmission range switch output
voltage at PCM connector C-61 by backprobing.
(1) Do not disconnect connector C-61.
(2) Turn the ignition switch to the "ON" position.
(3) Move the selector lever to the "3" position.

(4) Measure the voltage between terminal 109 and ground by

backprobing.

• The voltage should measure battery positive voltage.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the voltage measure battery positive voltage?

YES : Go to Step 13.
NO :  Go to Step 39.

STEP 39. Check PCM connector C-61 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 40.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-61

PCM

BH

C-61

AC001907AM

C-61 HARNESS
CONNECTOR:
HARNESS SIDE

AC001657

CONNECTOR: C-61

PCM

BH

C-61
