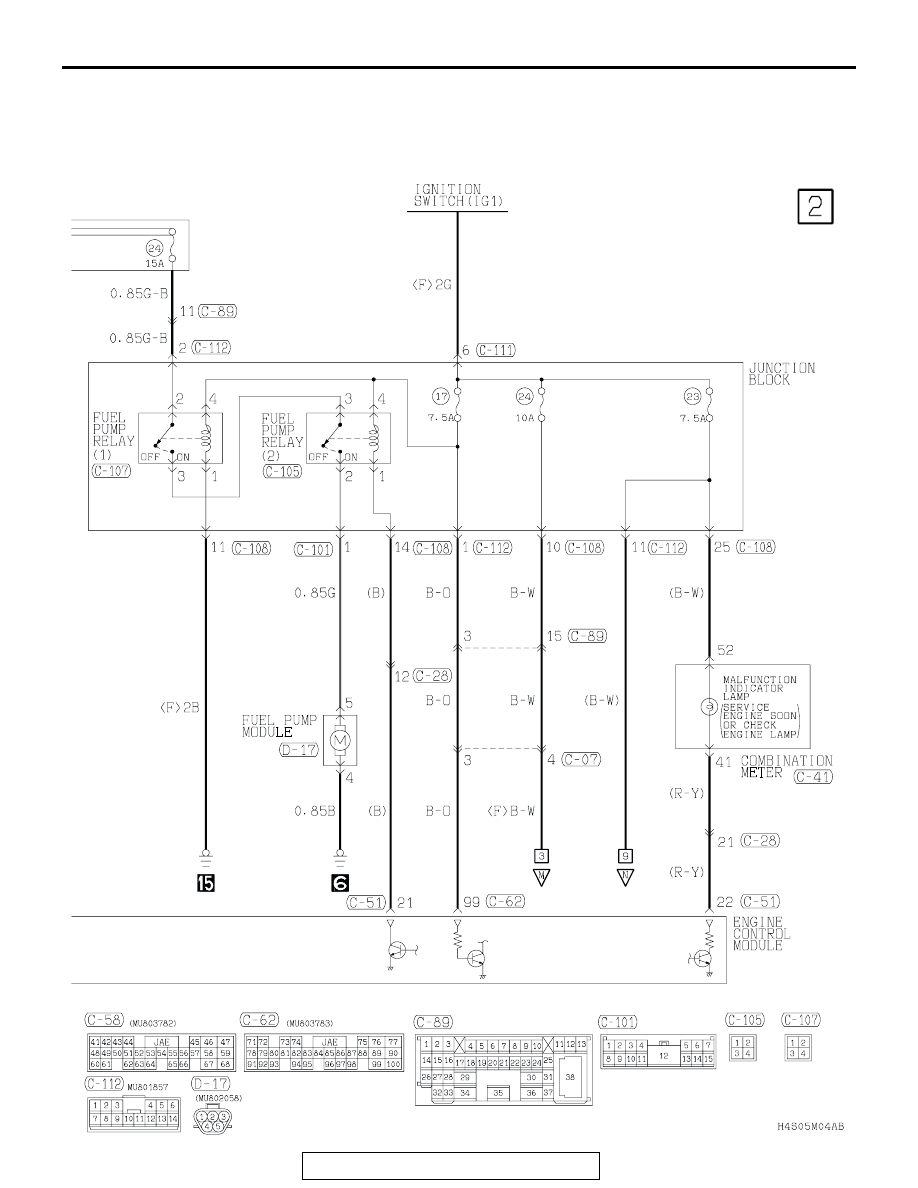

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-77

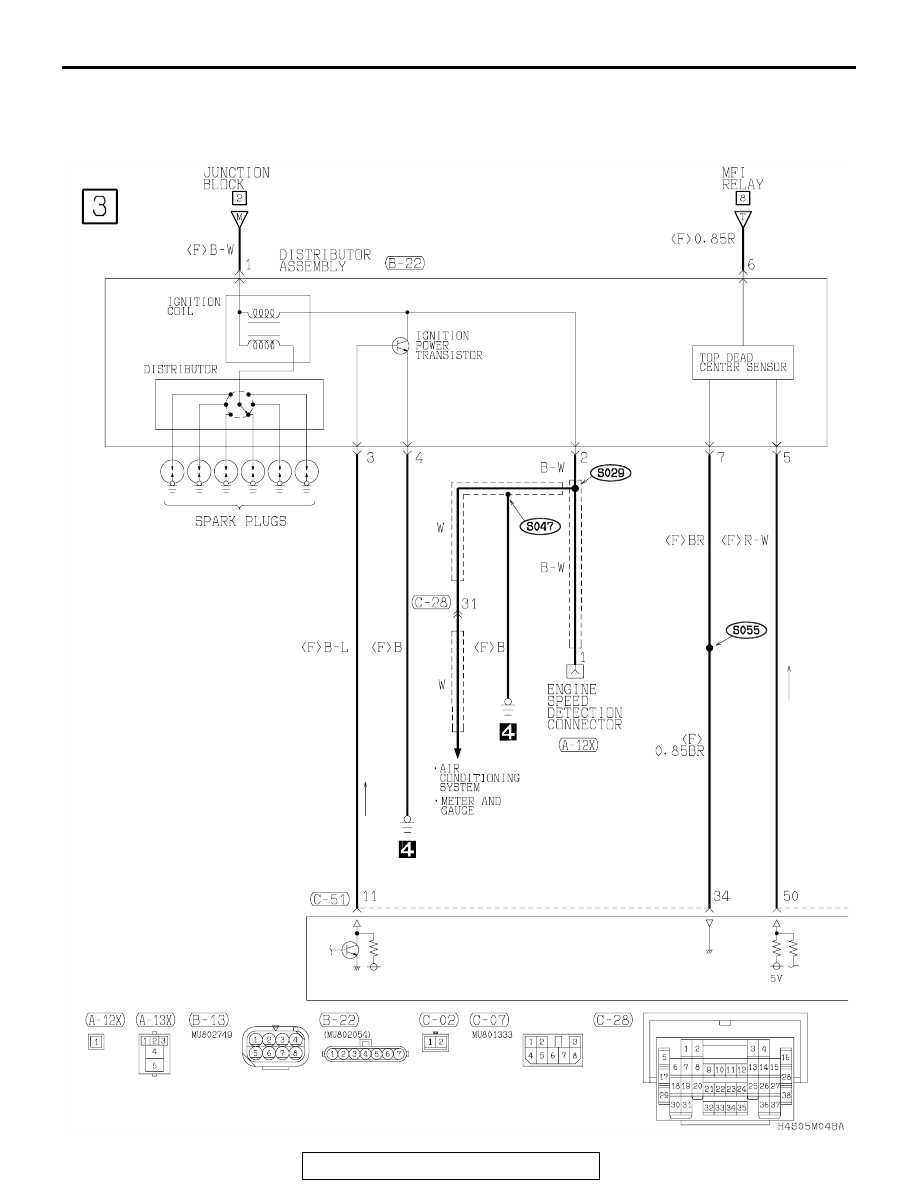

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-78

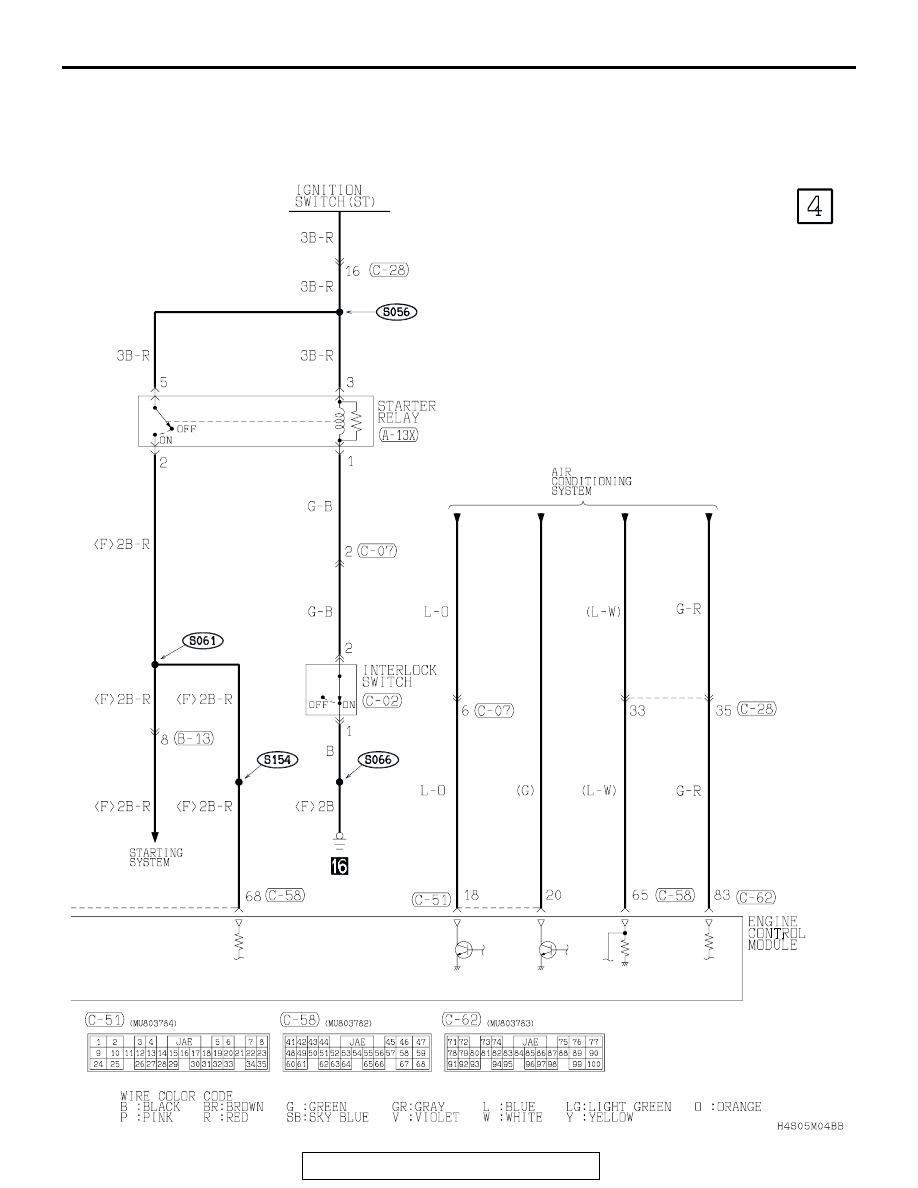

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTINUED)

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-79

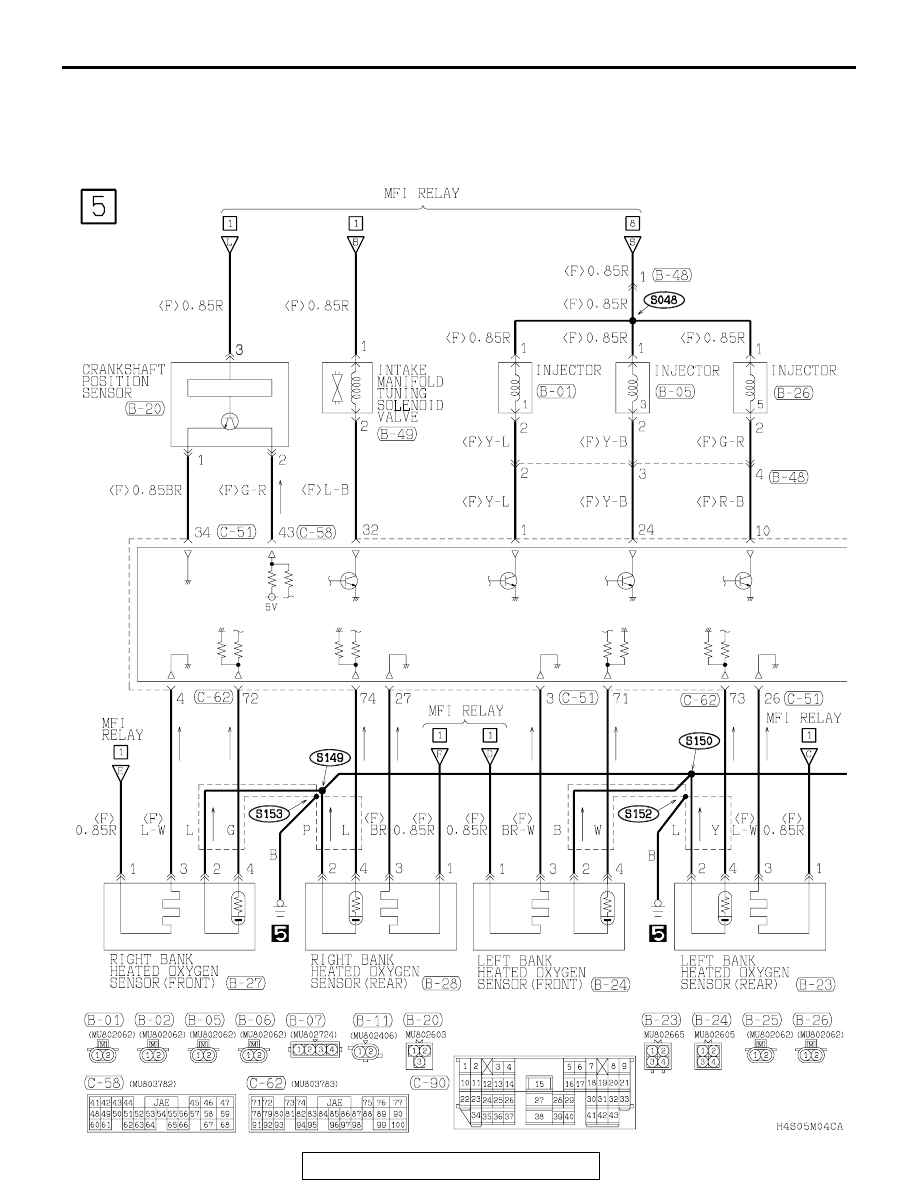

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-80

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTINUED)
