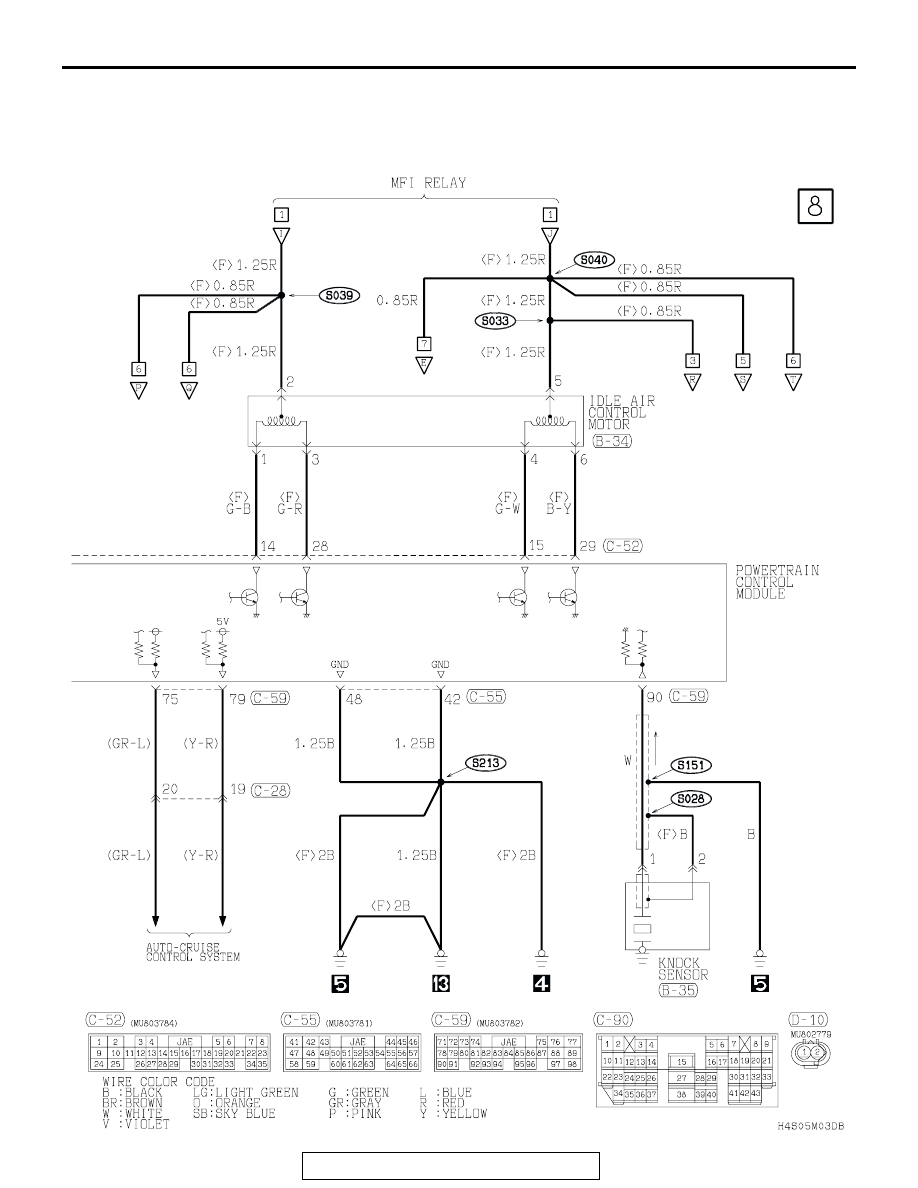

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-73

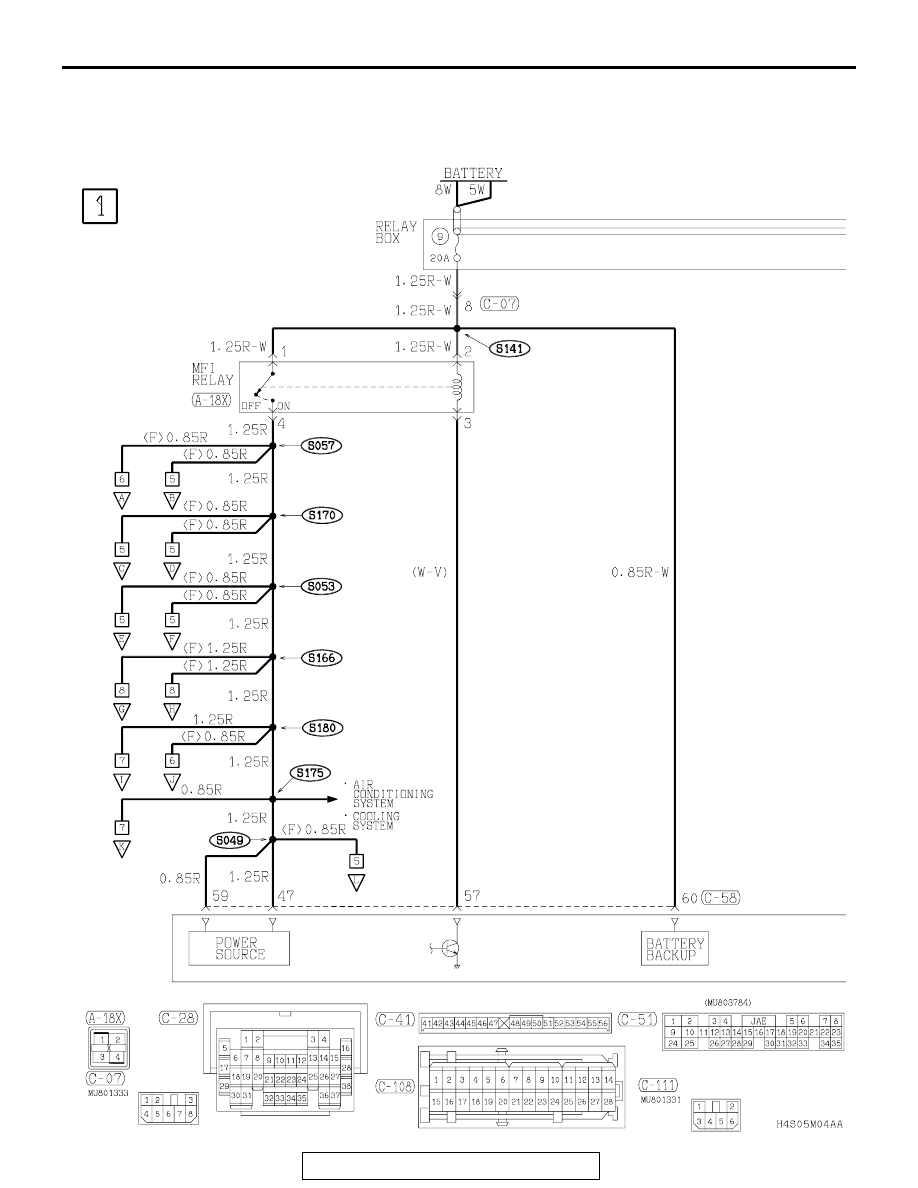

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-74

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTIN-
UED)

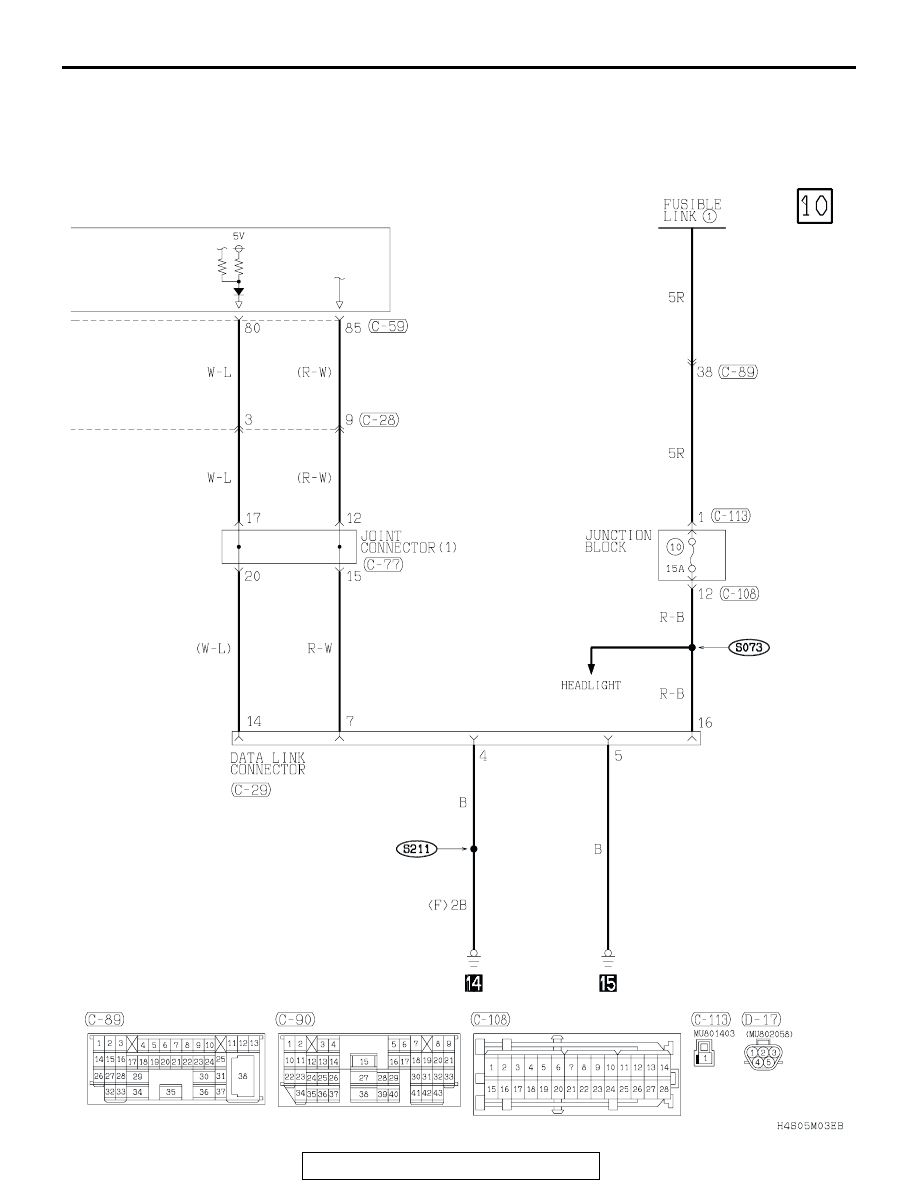

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-75

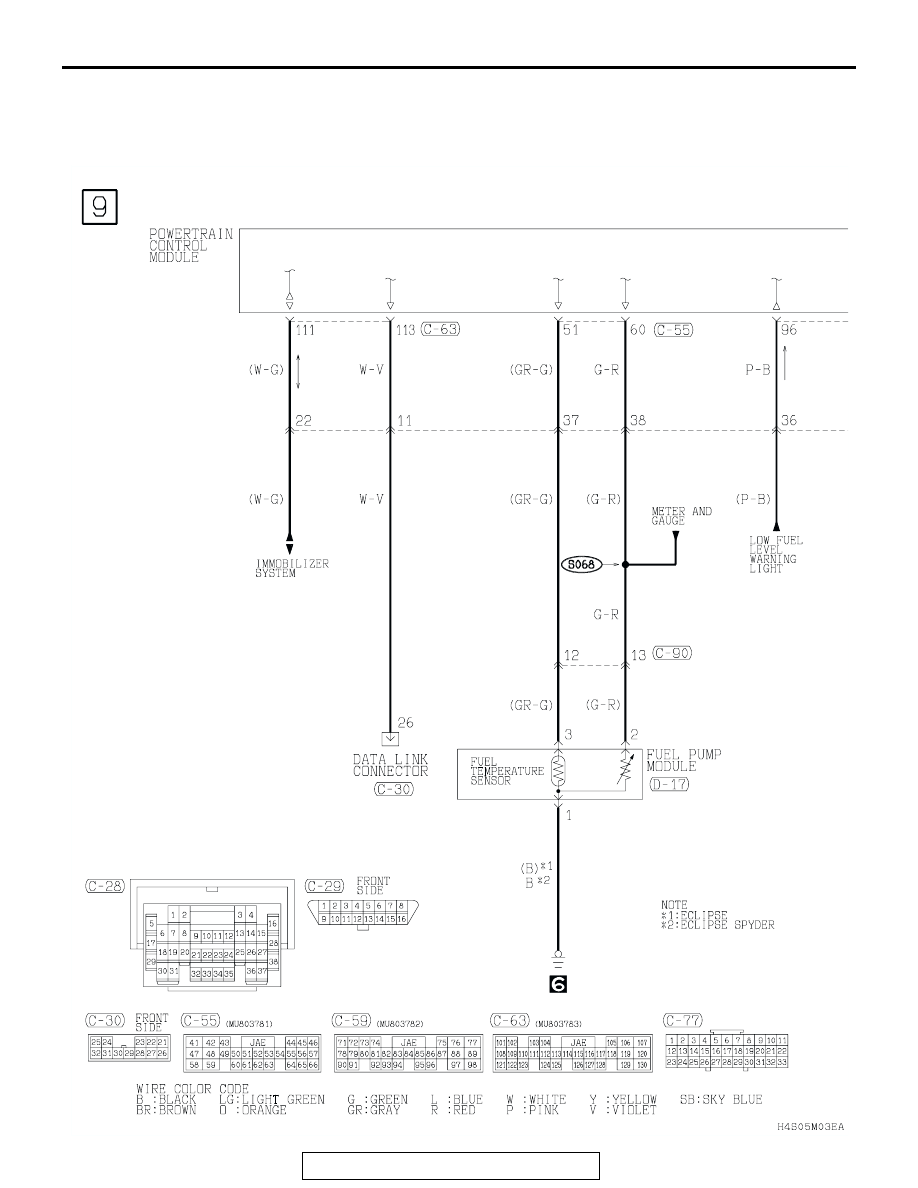

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-76

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD

TUNING (IMT) SYSTEM)>

M1901000801331
