MFI SYSTEM <3.0L ENGINE-M/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-65

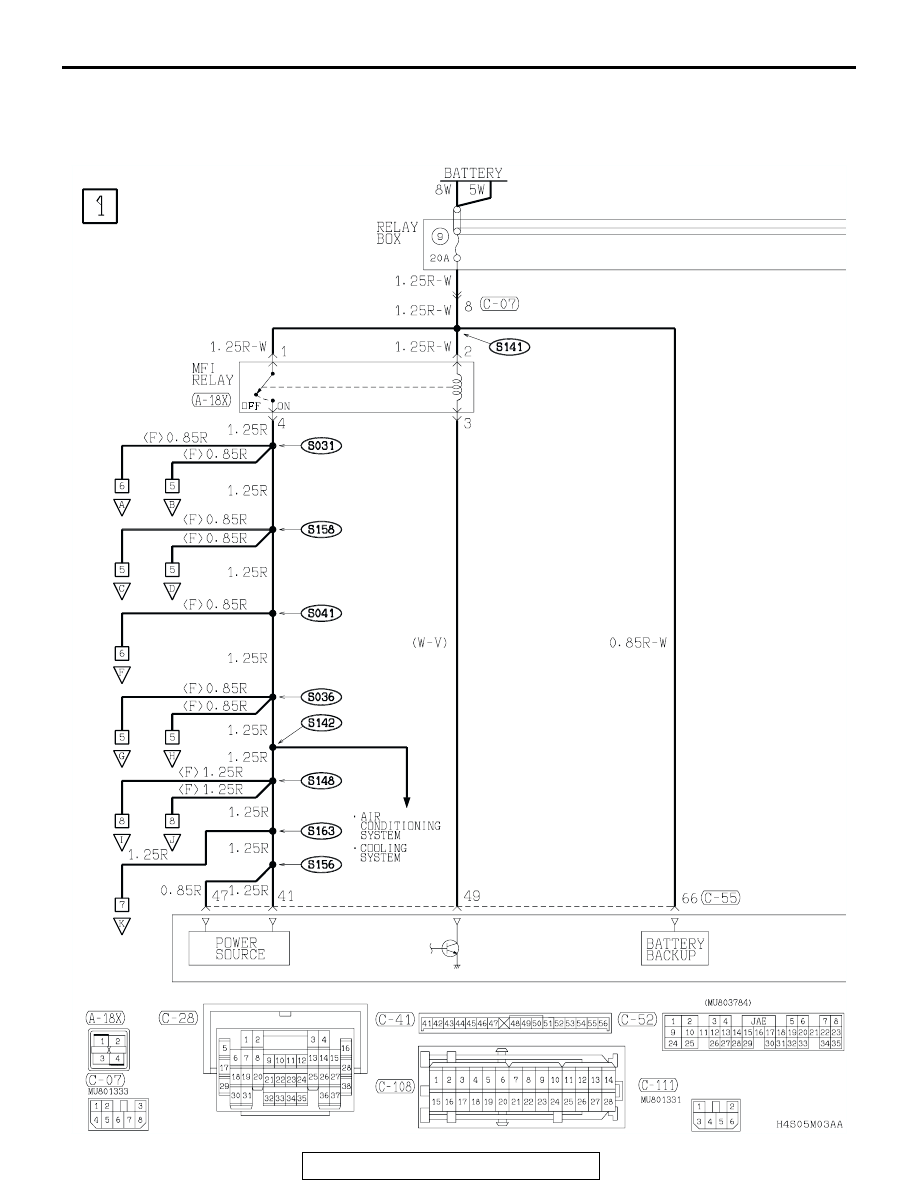

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-66

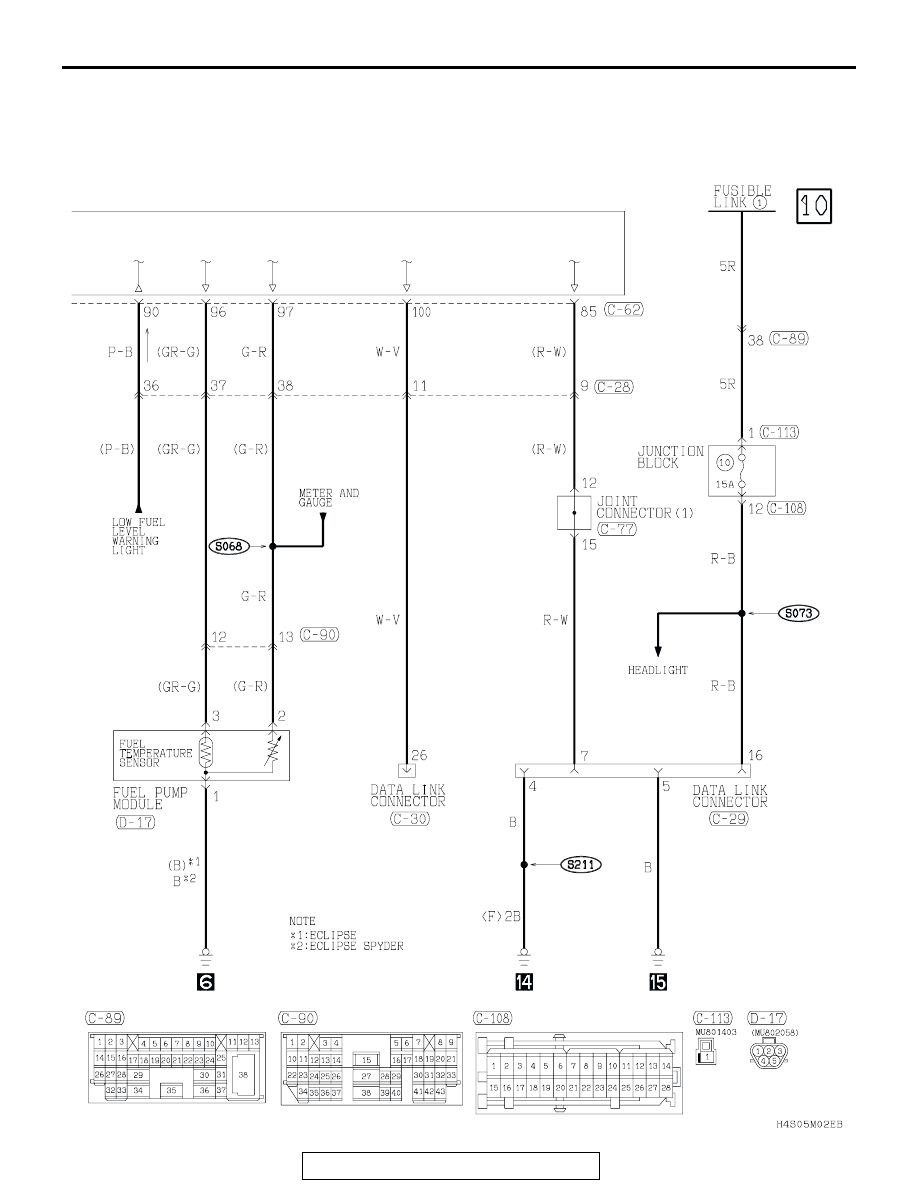

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE

MANIFOLD TUNING (IMT) SYSTEM)>

M1901000801320

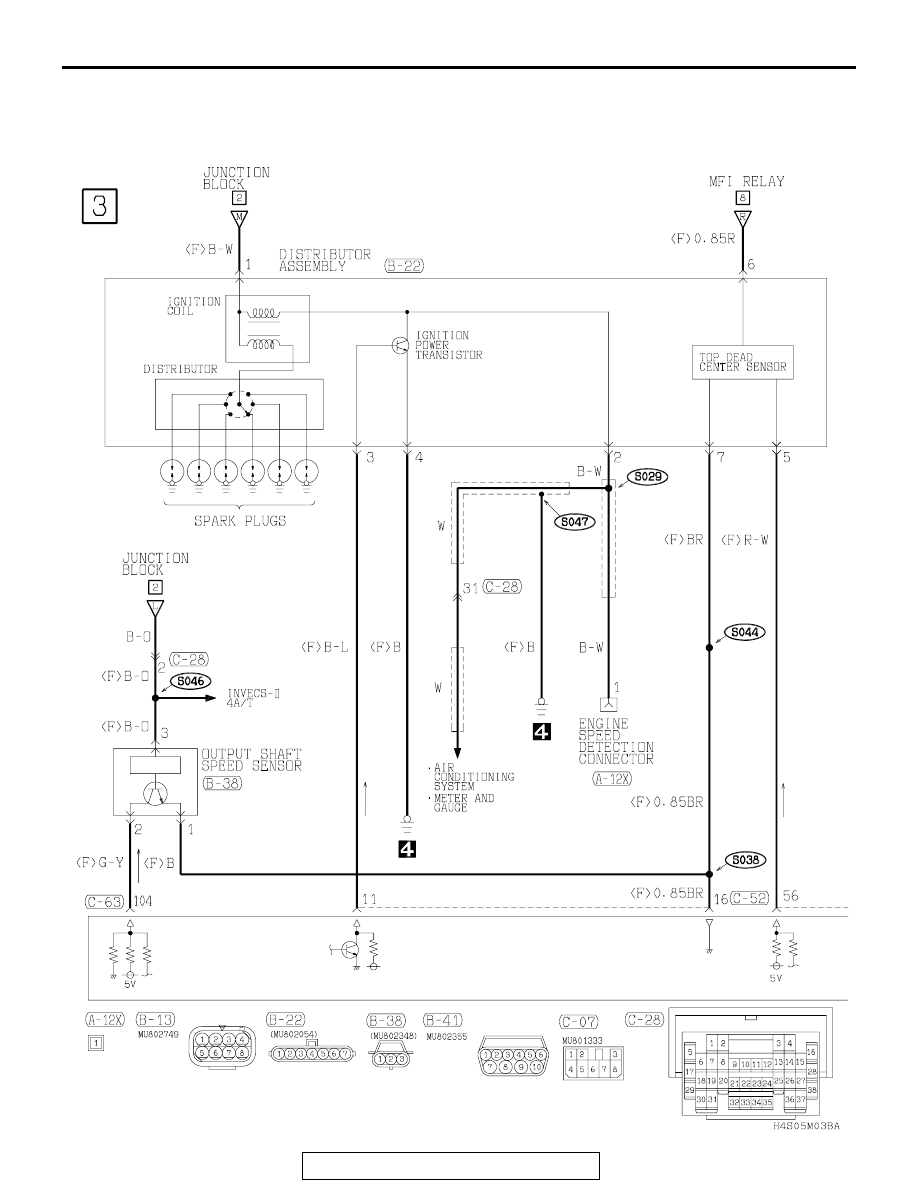

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-67

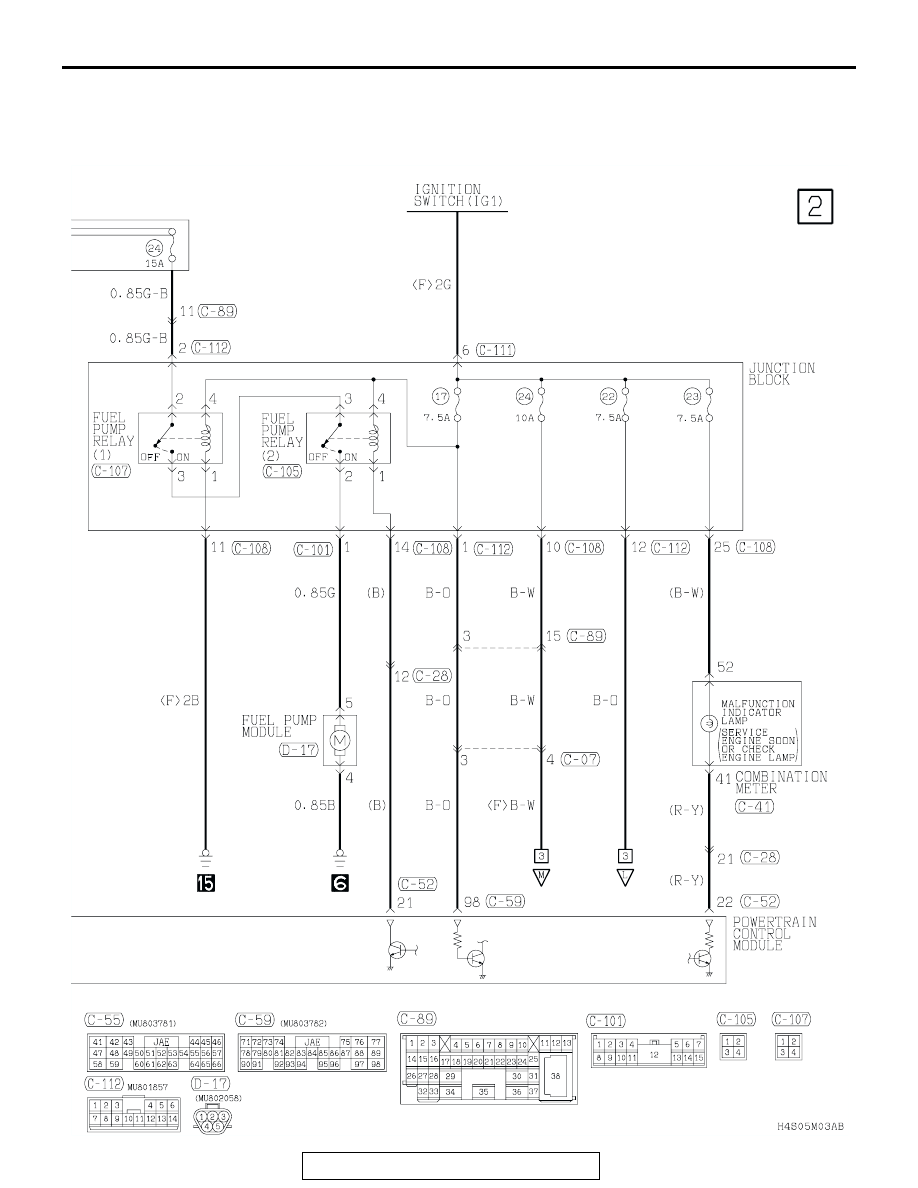

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-68

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTIN-
UED)
