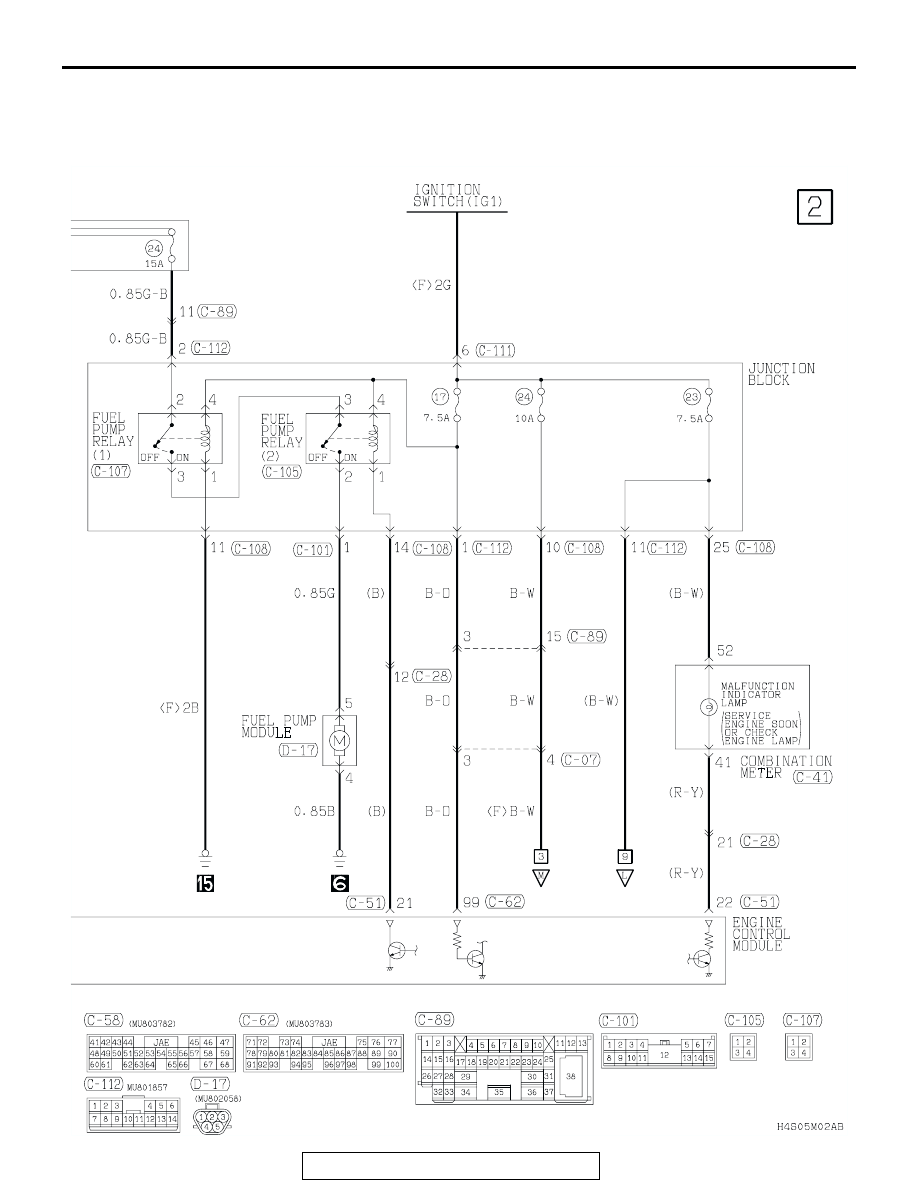

MFI SYSTEM <3.0L ENGINE-M/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-57

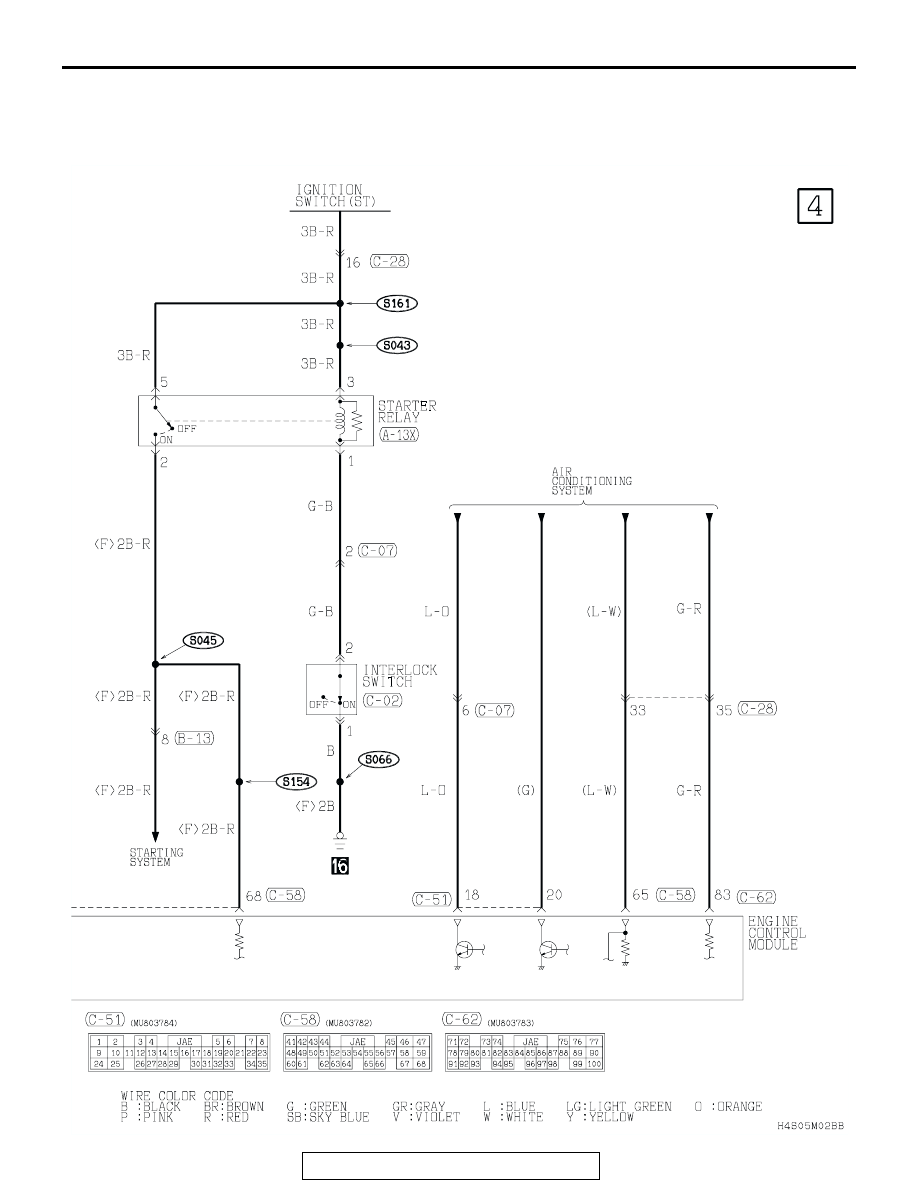

MFI SYSTEM <3.0L ENGINE-M/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-58

MFI SYSTEM <3.0L ENGINE-M/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTIN-
UED)

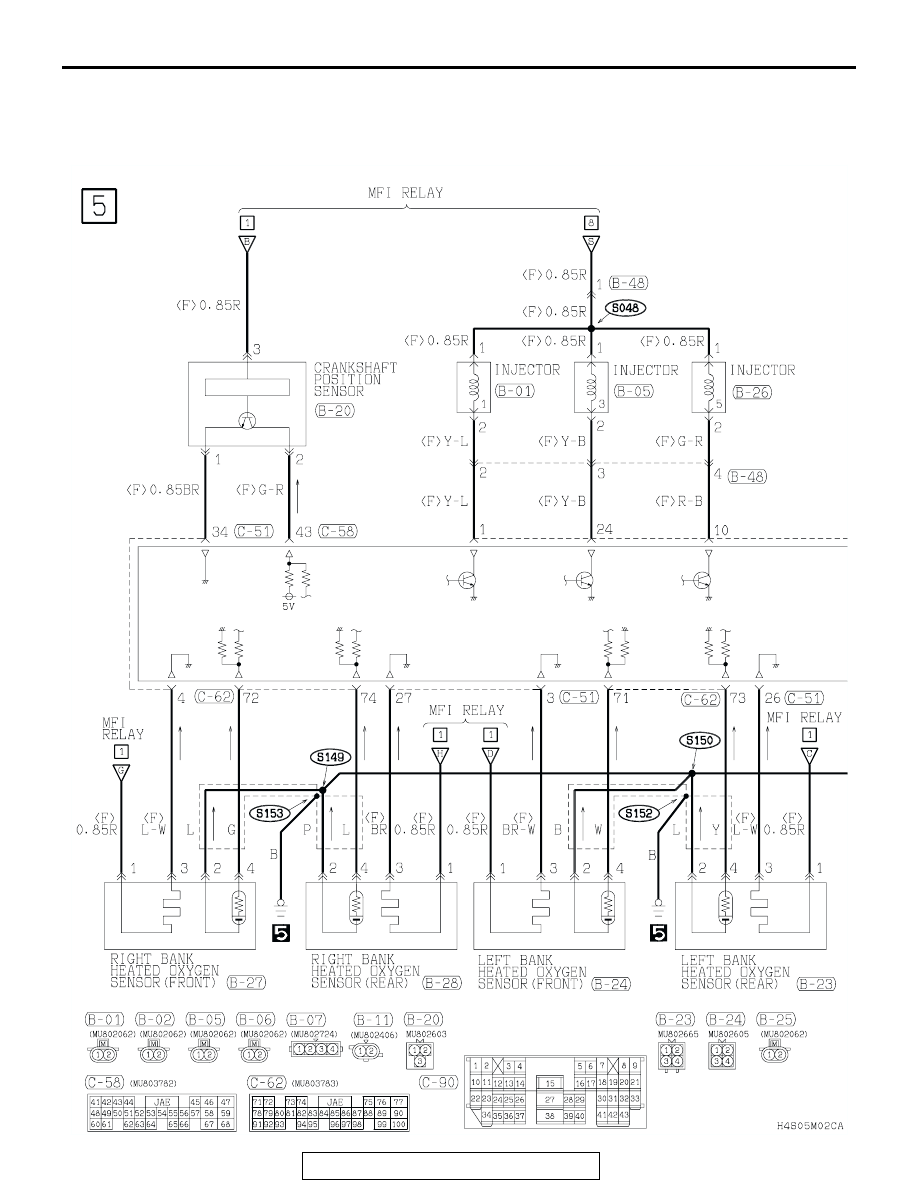

MFI SYSTEM <3.0L ENGINE-M/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-59

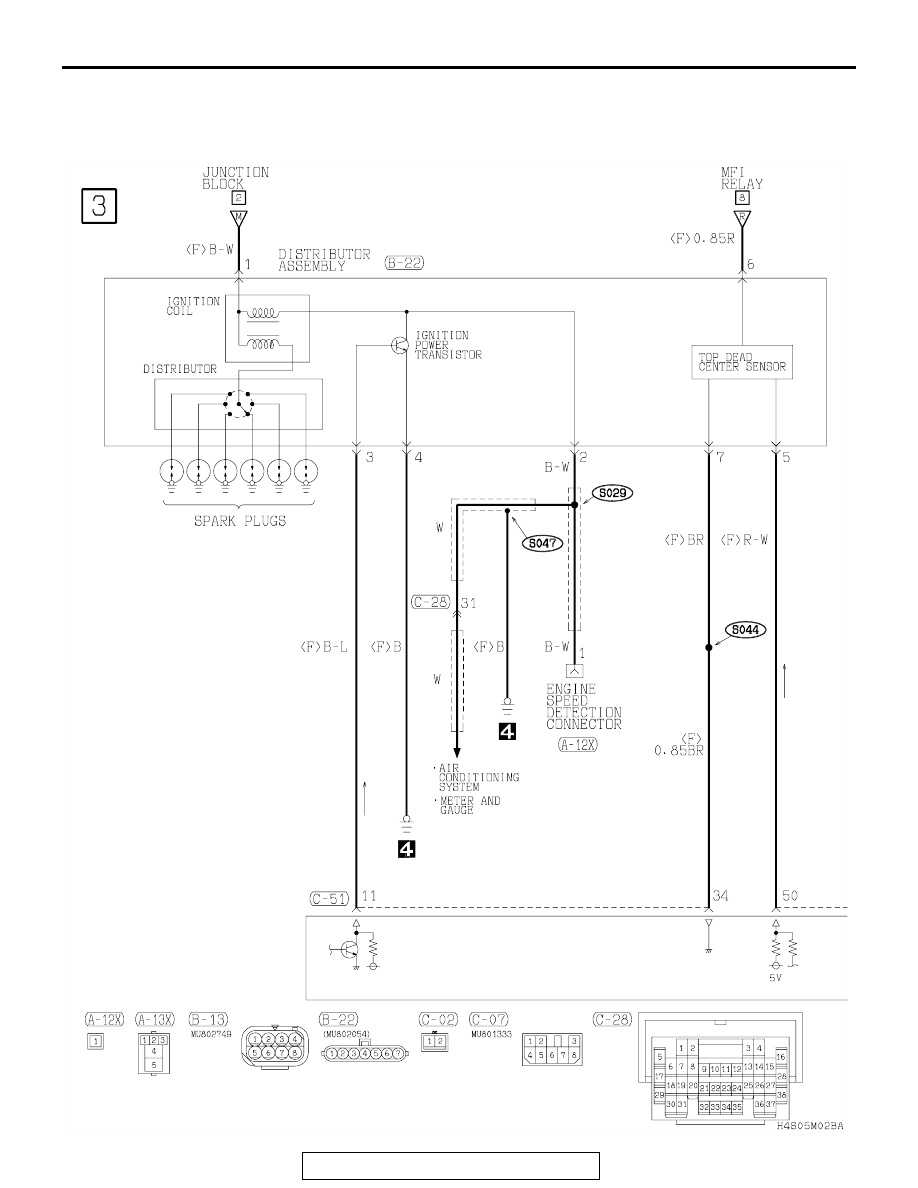

MFI SYSTEM <3.0L ENGINE-M/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-60

MFI SYSTEM <3.0L ENGINE-M/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTIN-
UED)
