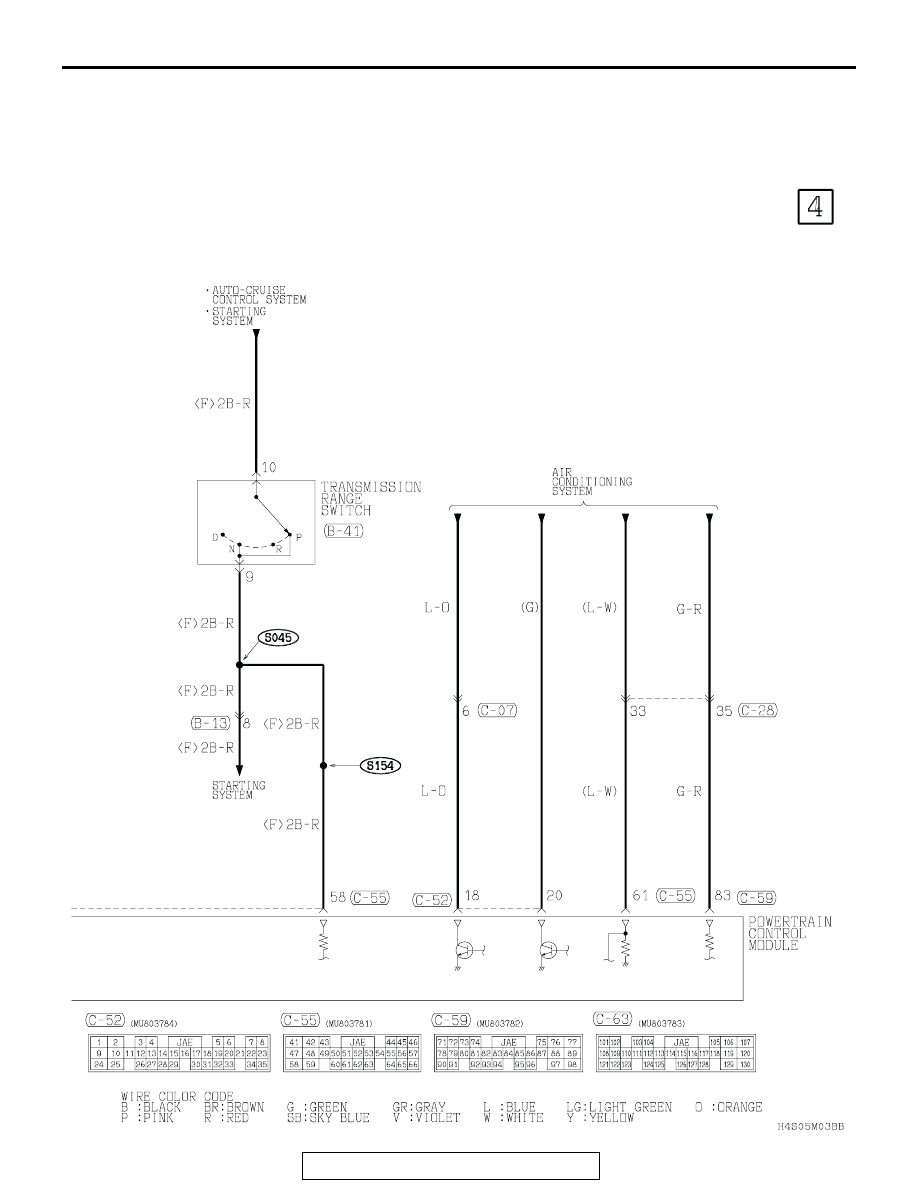

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-69

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-70

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTIN-
UED)

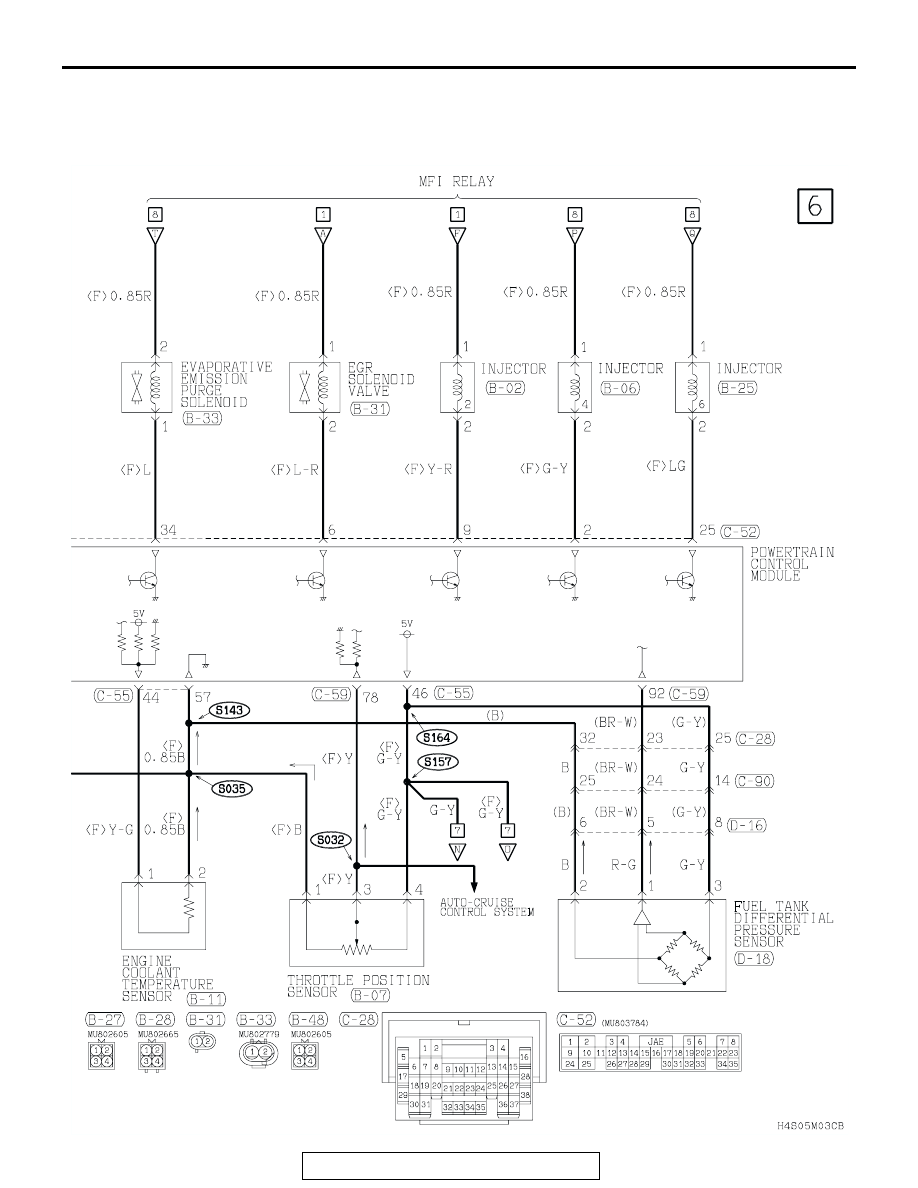

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-71

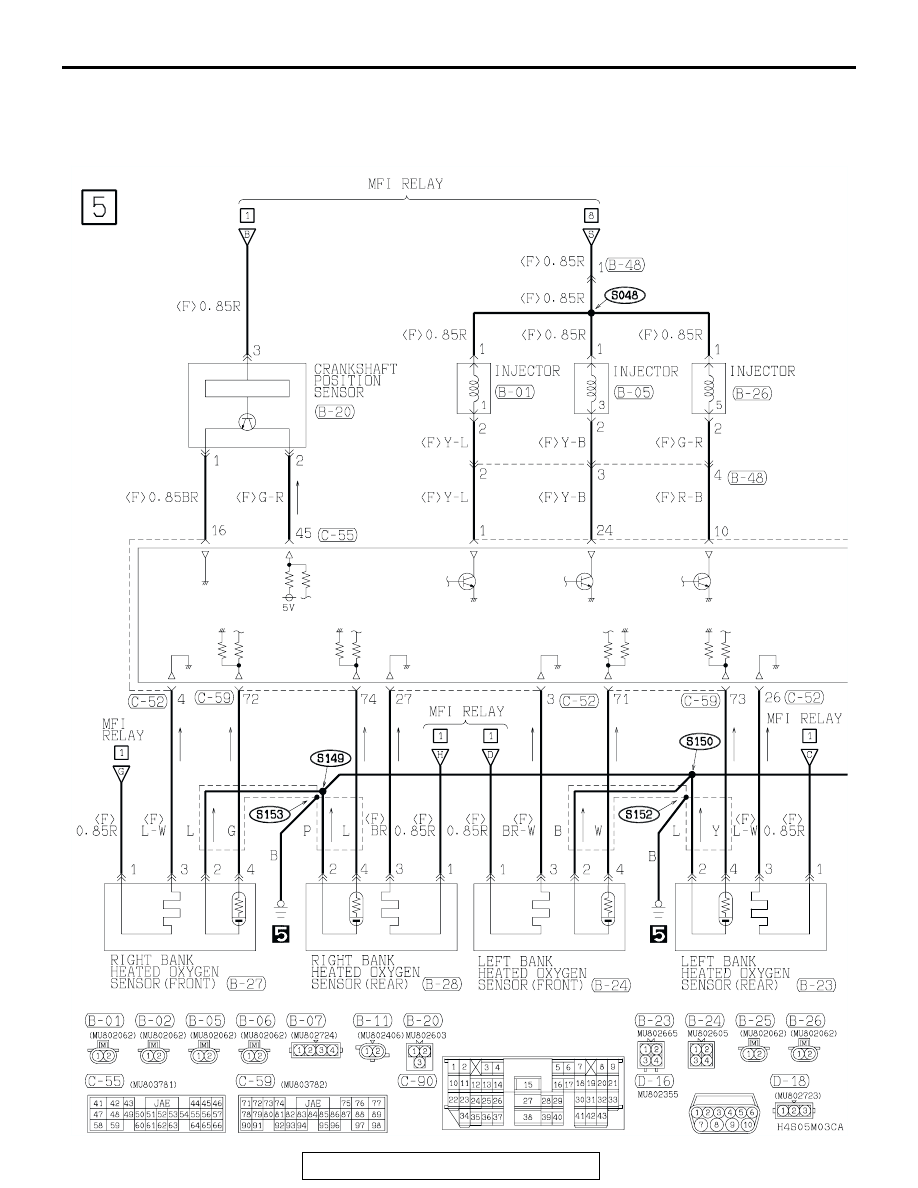

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-72

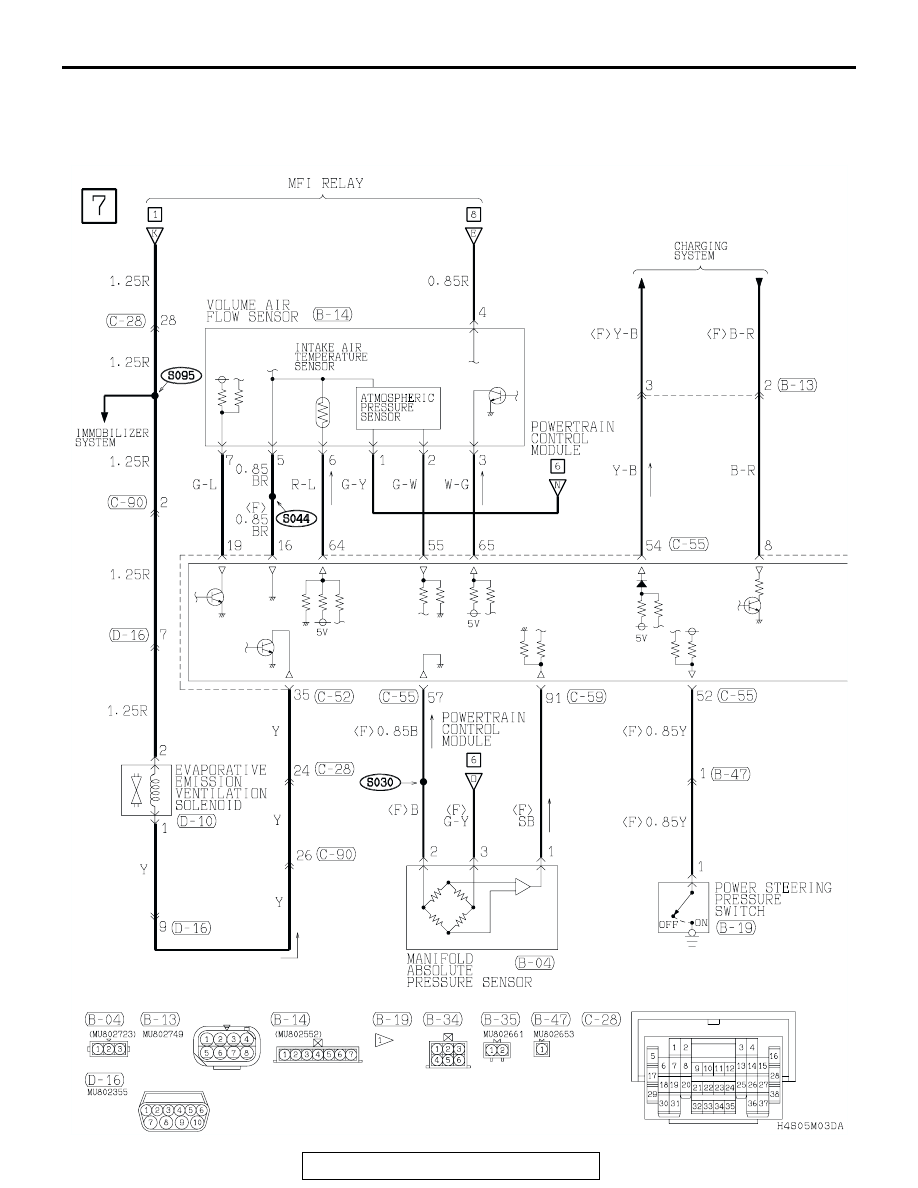

MFI SYSTEM <3.0L ENGINE-A/T (WITHOUT INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTIN-
UED)
