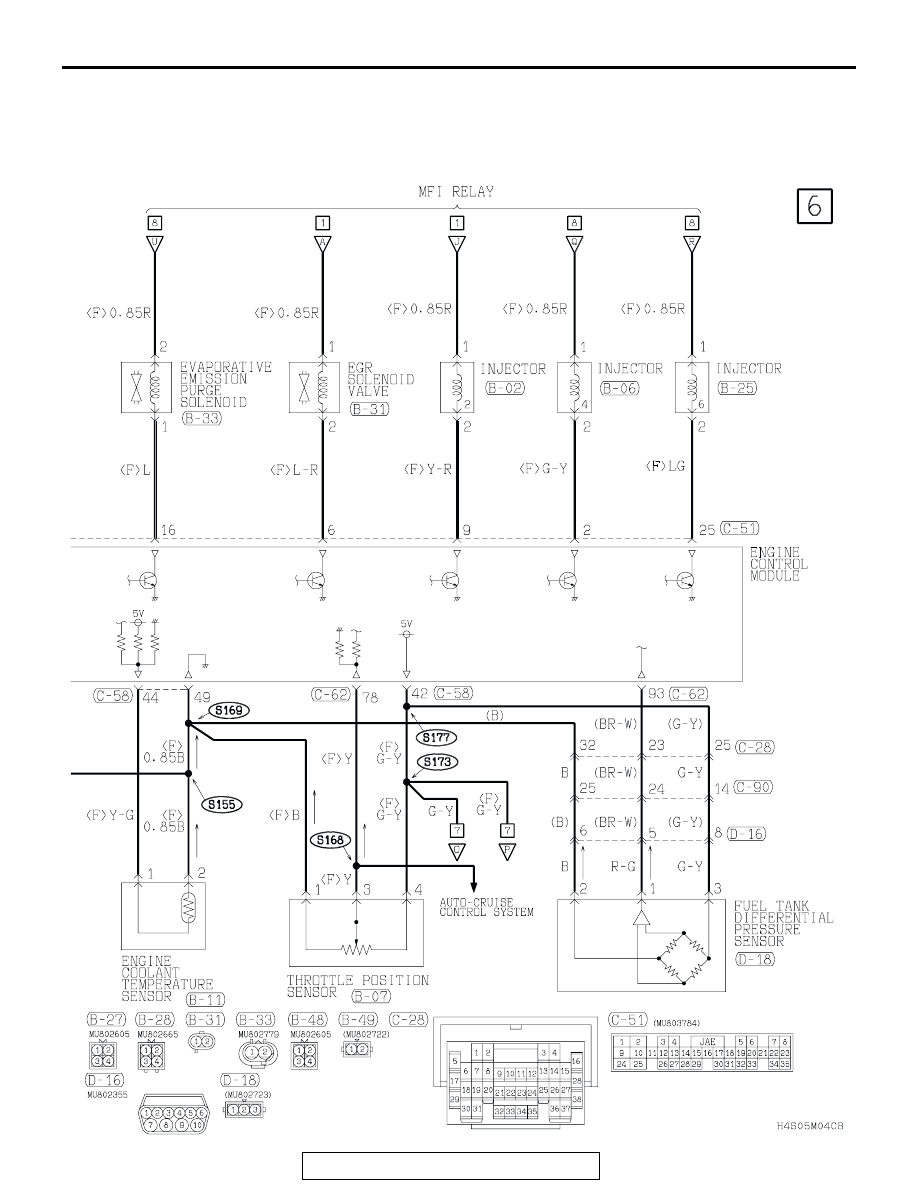

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-81

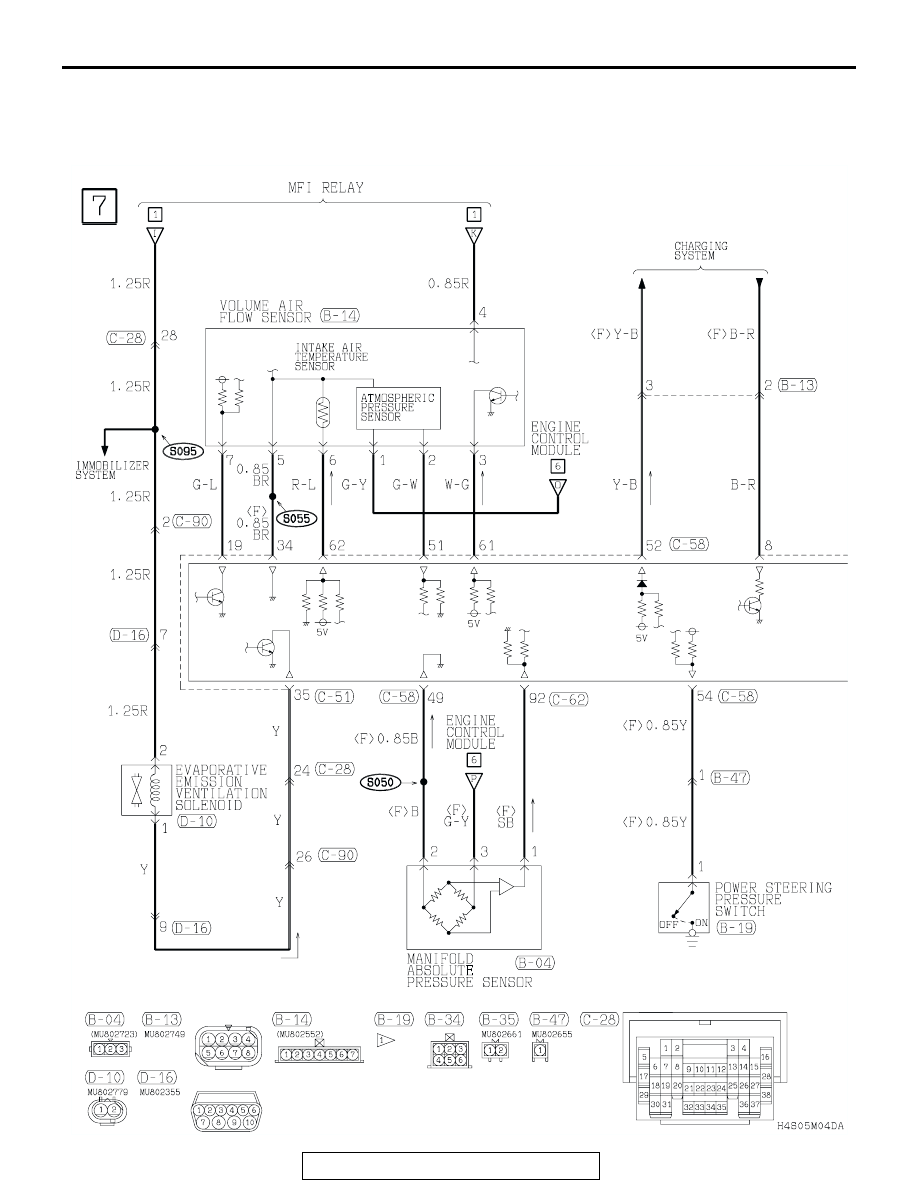

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-82

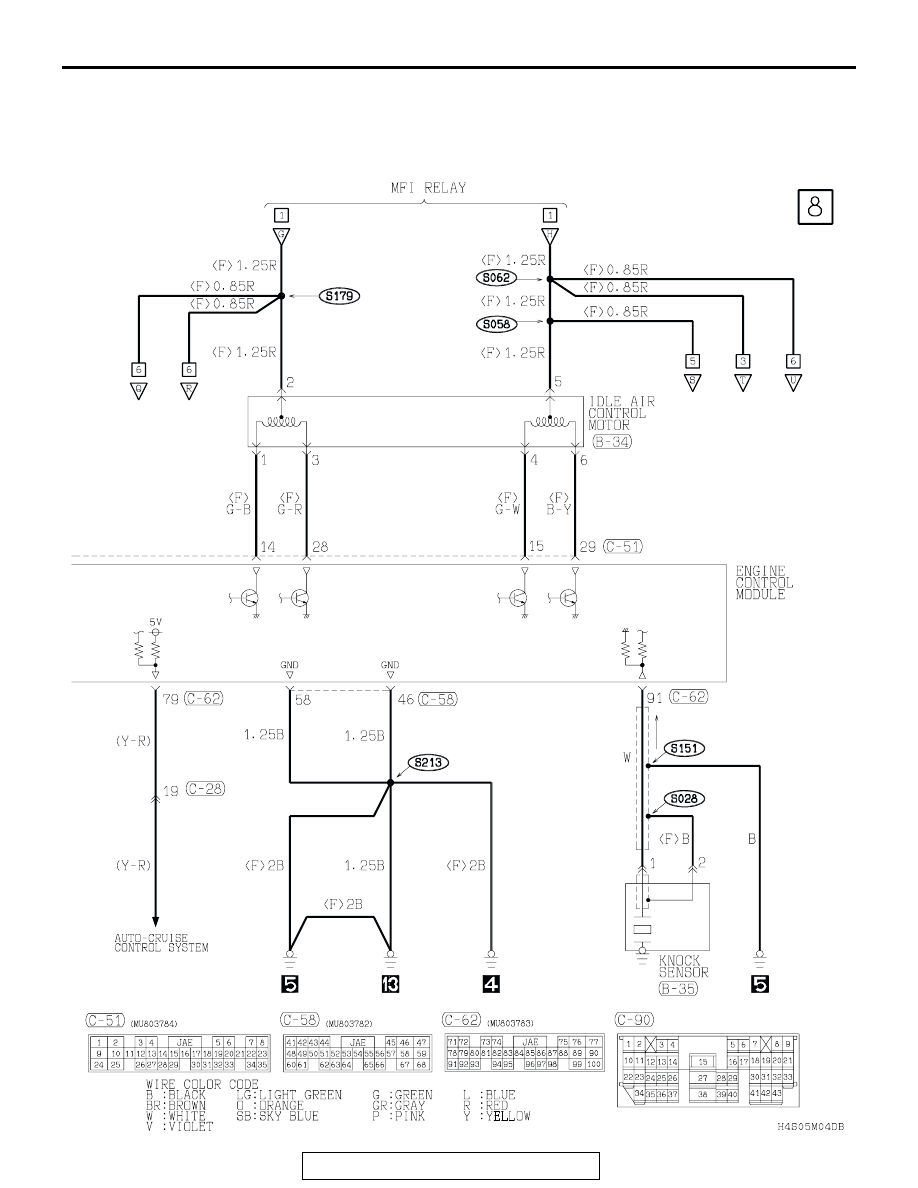

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTINUED)

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-83

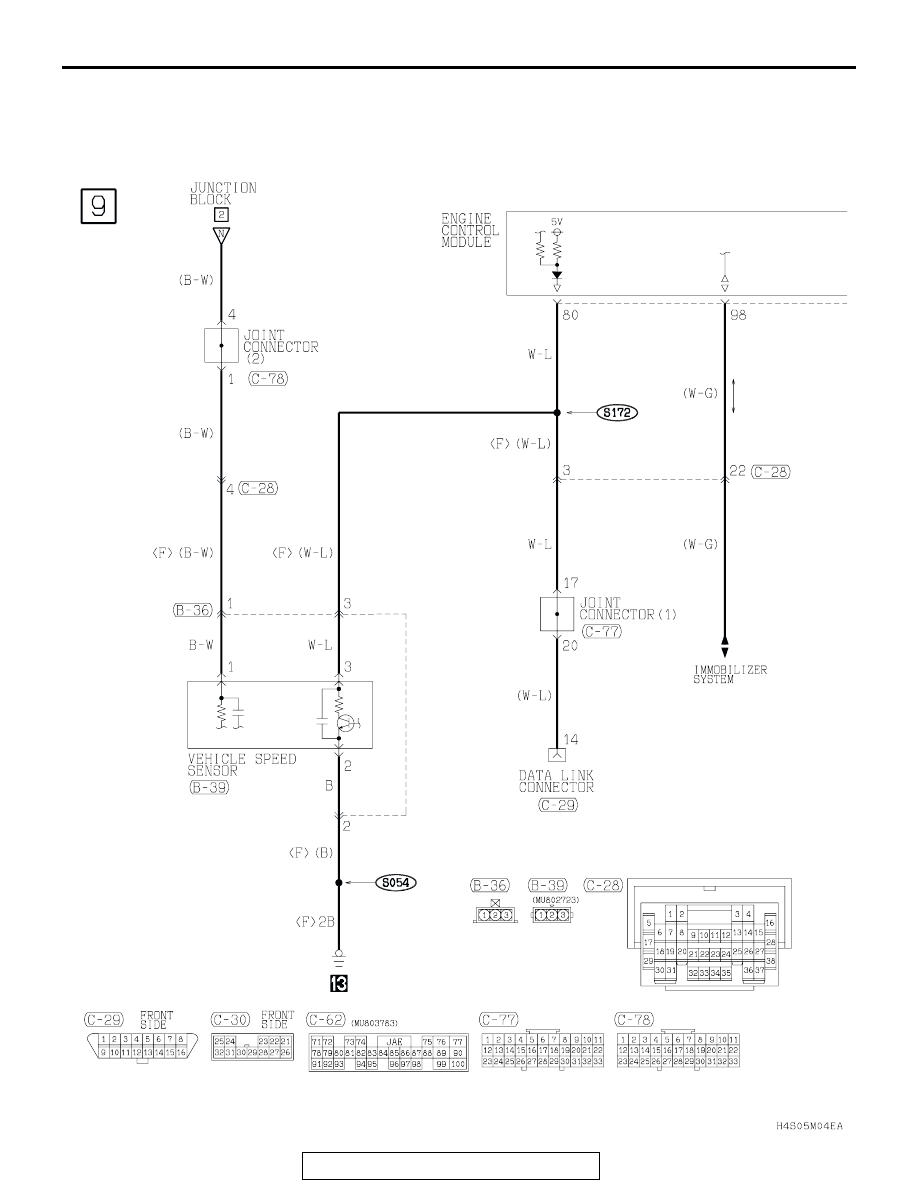

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-84

MFI SYSTEM <3.0L ENGINE-M/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTINUED)
