WINDSHIELD WIPER AND WASHER

EXTERIOR

51-34

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-89

.

REMOVAL SERVICE POINTS

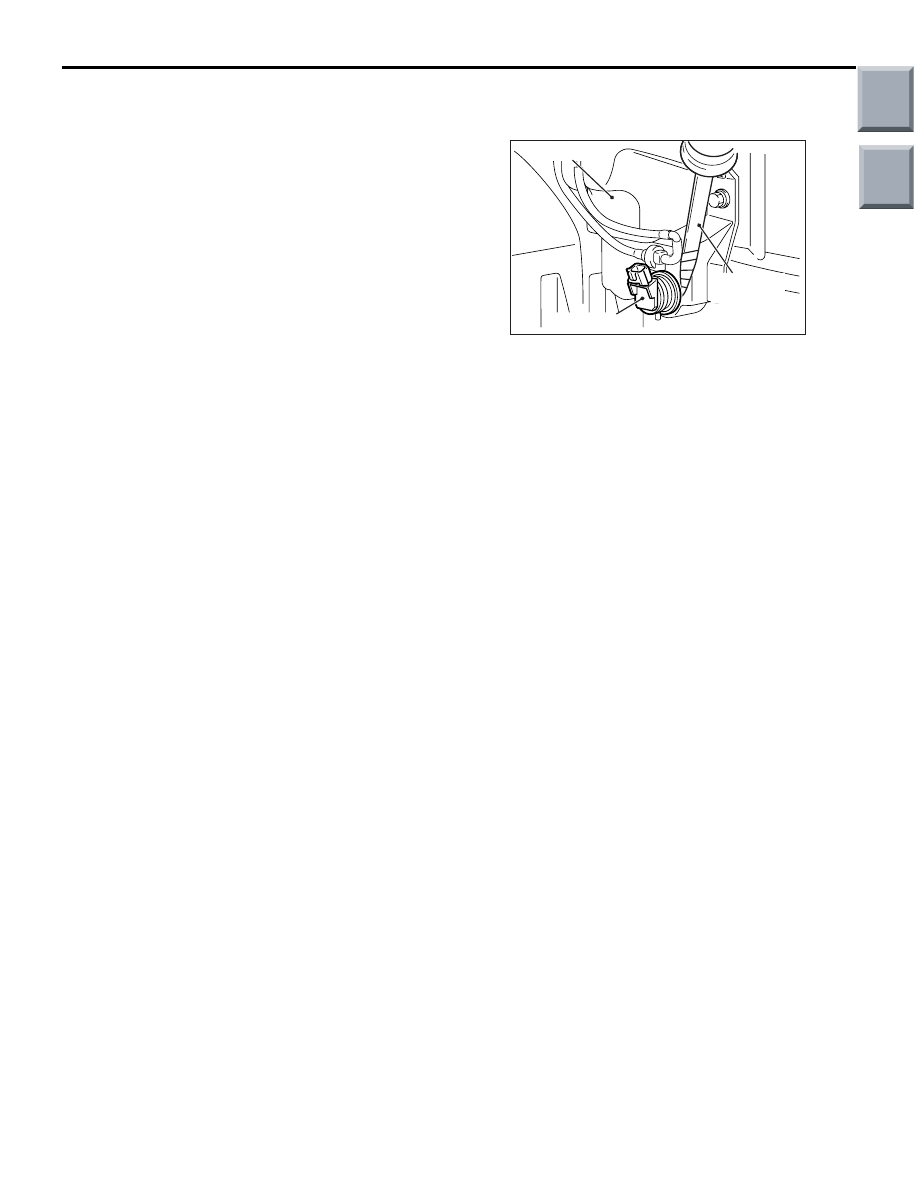

<<A>>WASHER MOTOR REMOVAL

AC402414AB

Washer motor

Washer tank

Flat-tipped
screwdriver

Insert a flat-tipped screwdriver wrapped with protec-
tive tape between the washer tank and the lower
outer side of the washer motor. Pry out the washer
motor.

Main

Index

Group

TOC

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-35

INSPECTION

M1511019101281

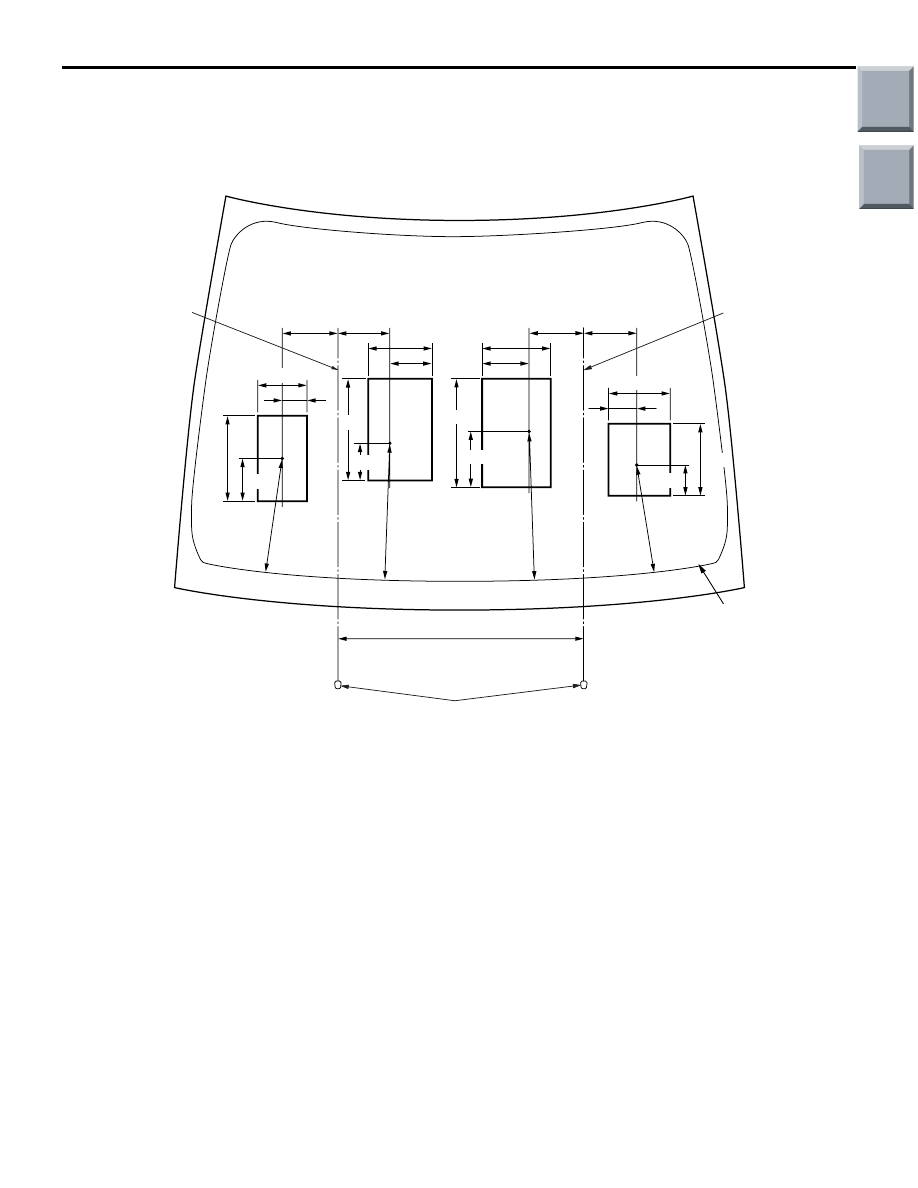

WINDSHIELD WASHER FLUID EJECTION
CHECK

AC402352

AB

335

600

367

131

160

175

129

145

105

100

140

70

265

283

70

215

110

125

255

95

270

140

75

180

155

Windshield

washer nozzle

perpendicular

Windshield

washer nozzle

perpendicular

<Right>

<Left>

Unit: mm

Ceramic line terminal

Windshield washer nozzle

Move the nozzle to adjust the position so that the
spray is in the area shown in the illustration.

Main

Index

Group

TOC

REAR WIPER AND WASHER

EXTERIOR

51-36

REAR WIPER AND WASHER

TROUBLESHOOTING

M1511020000401

The rear wiper washer is controlled by the Smart
Wiring System (SWS). For troubleshooting, refer to
GROUP 54B, Troubleshooting

P.54B-35

 or GROUP

54C, Troubleshooting

P.54C-29

.

ON-VEHICLE SERVICE

M1511000801033

OPERATION CHECK OF REVERSE
GEAR-LINKED OPERATION OF THE
REAR WIPER

1. When the selector lever is moved to the "R" posi-

tion with the rear wiper switch at the "INT" posi-
tion, the wiper should operate twice or three
times at low speed after approximately one sec-
ond.

2. If not, carry out the troubleshooting. (Refer to

GROUP 54B, Troubleshooting

P.54B-35

 or

GROUP54C, Troubleshooting

P.54C-29

).

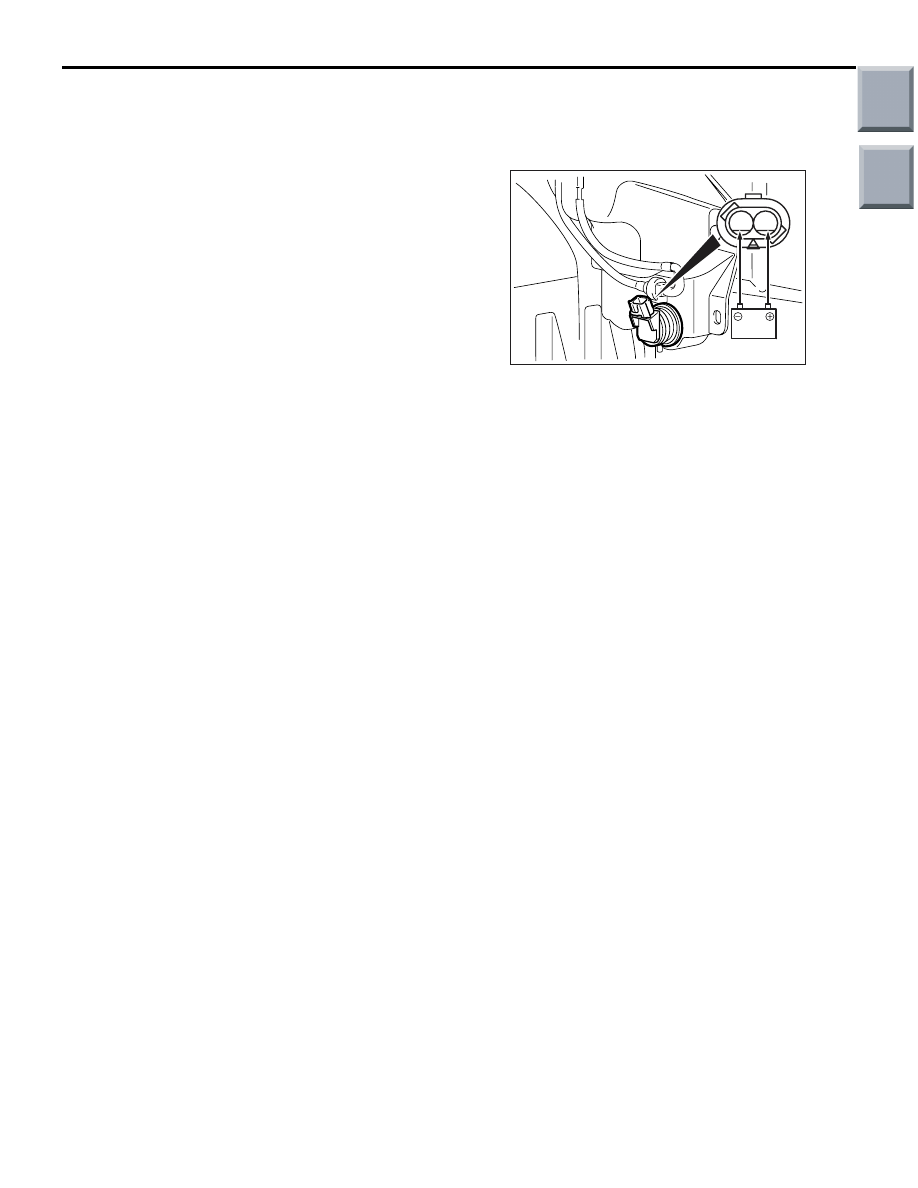

WASHER MOTOR INSPECTION (REAR
WASHER)

2 1

AC405555

1. Check the washer fluid level of washer tank

located at front right corner, and refill fluid if
necessary.

2. Remove the front part of splash shield (RH).
3. Disconnect the washer motor connector.
4. Connect the battery to the washer motor

connector as shown. Check that the washer motor
delivers washer strongly.

Main

Index

Group

TOC

REAR WIPER AND WASHER

EXTERIOR

51-37

REAR WIPER AND WASHER

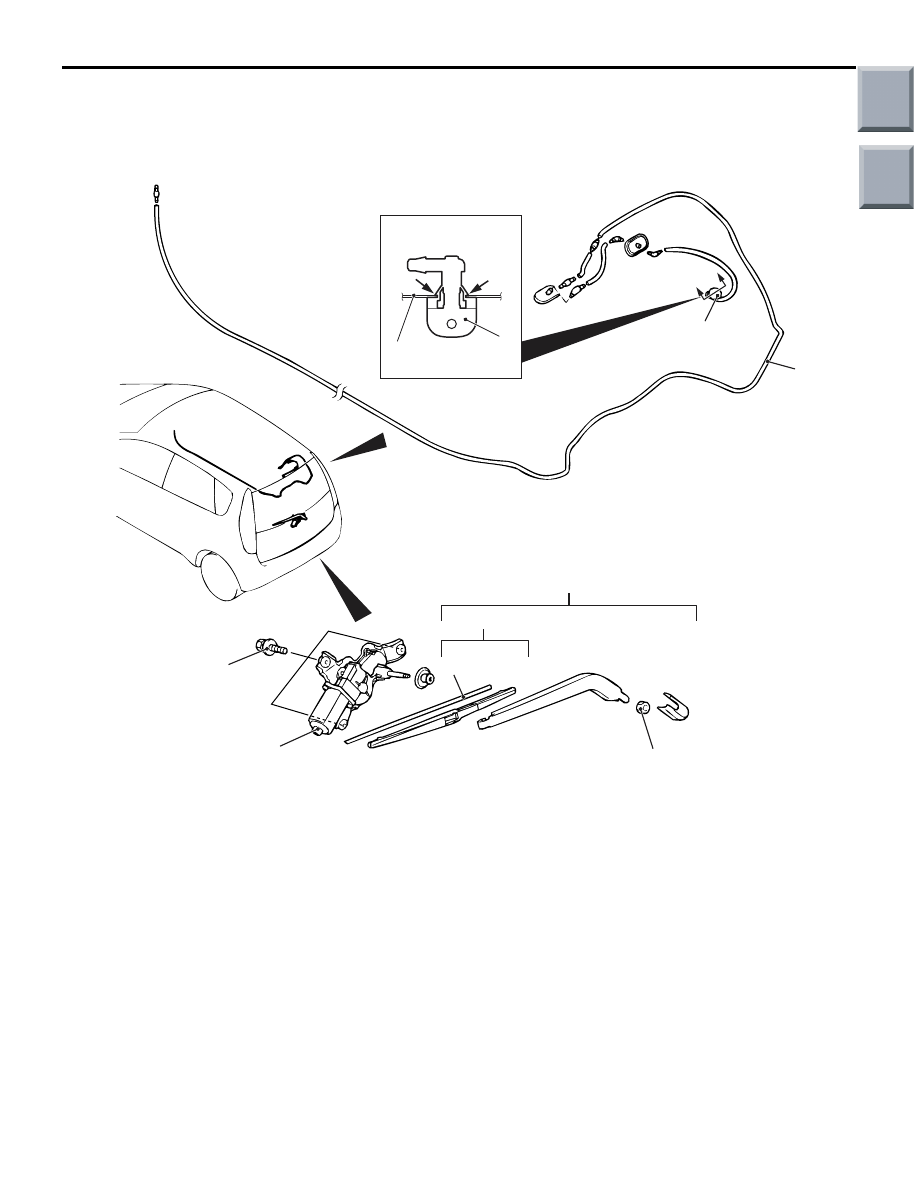

REMOVAL AND INSTALLATION

M1511008500505

AC510260

4

AB

3

2

1

6

5

5.4 ± 1.4 N·m

7.4 ± 1.4 N·m

A

A

1

Claw

Tailgate outer
panel

Claw

Section A – A

Washer tank assembly removal
•

Washer tank (Refer to

P.51-33

).

•

Washer motor (Refer to

P.51-33

).

Rear washer nozzle removal steps
•

Tailgate spoiler (Refer to

P.51-27

).

•

High-mounted stop lamp assembly
(Refer to GROUP 54A, High-mounted
stop lamp

P.54A-83

).

1. Rear washer nozzle assembly
Rear wiper blade removal steps
2. Rear wiper blade assembly

>>

A

<< 3. Rear wiper blade

Rear wiper motor removal steps

>>

B

<< 4. Rear wiper arm blade assembly

•

Tailgate trim (Refer to GROUP 52A,
Tailgate trim

P.52A-15

).

5. Rear wiper motor assembly
Rear washer hose removal steps
•

Cowl side trim, front scuff plate, rear
scuff plate, quarter trim (Refer to
GROUP 52A, Interior trim

P.52A-11

).

•

Tailgate trim (Refer to GROUP 52A,
Tailgate trim

P.52A-15

).

6. Rear washer hose

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-89

.
