Mitsubishi Colt Ralliart. Manual - part 591

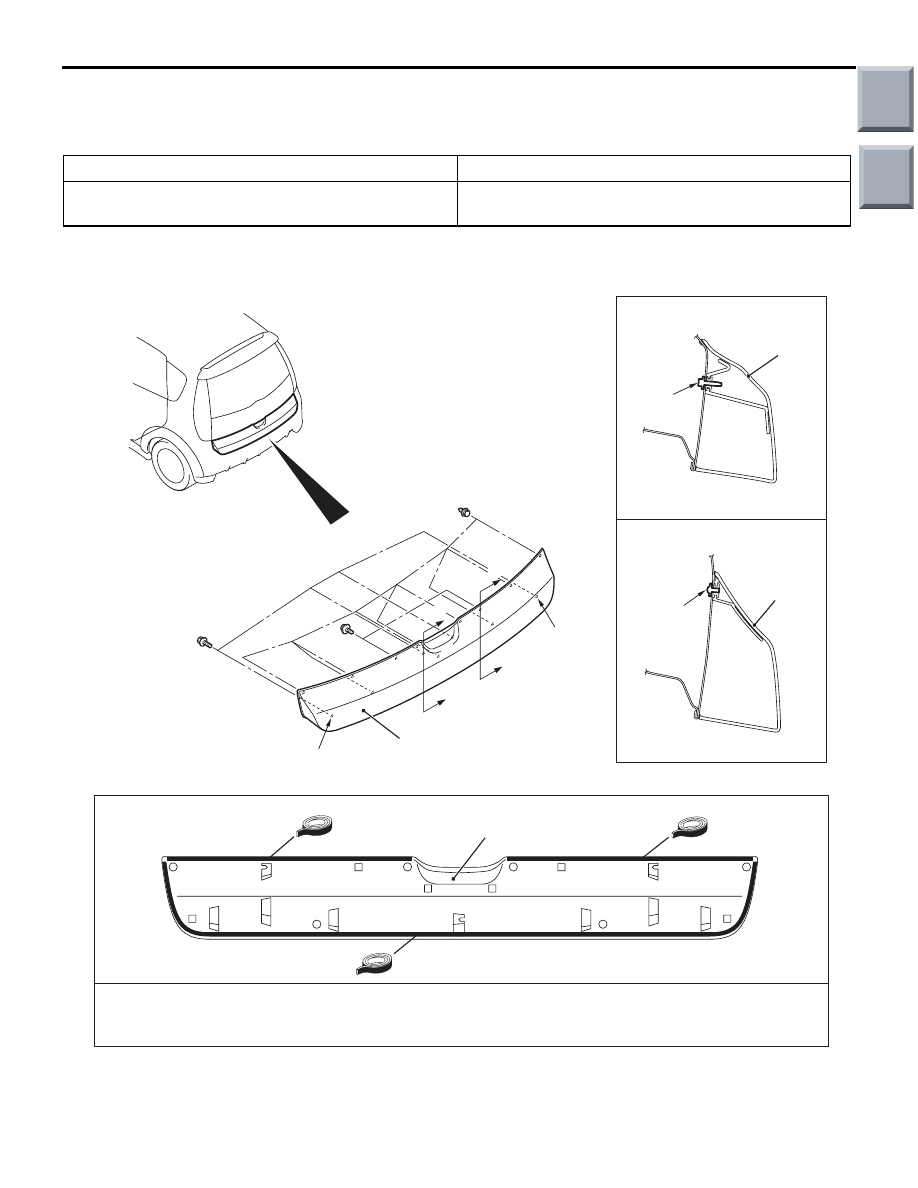

GARNISHES <RALLIART Version-R>

EXTERIOR

51-26

GARNISHES <RALLIART  Version-R>

ADHESIVE

M1511000501504

Application

Specified adhesive

Tailgate garnish

Double-sided tape: Generic products
 1.2 mm thickness

REMOVAL AND INSTALLATION <RALLIART VERSION-R>

M1511004100334

AC511783

1

1

1

AB

A

B

*

*

A

B

Section A – A

Section B – B

Bolt

Screw

: Remove the bolts from the tailgate bumper installation holes.

*

AC511787AB

1

Double-sided tape affixed location

Double-sided tape: Generic products,  1.2 mm thickness

REMOVAL
1. Tailgate garnish

Main

Index

Group

TOC

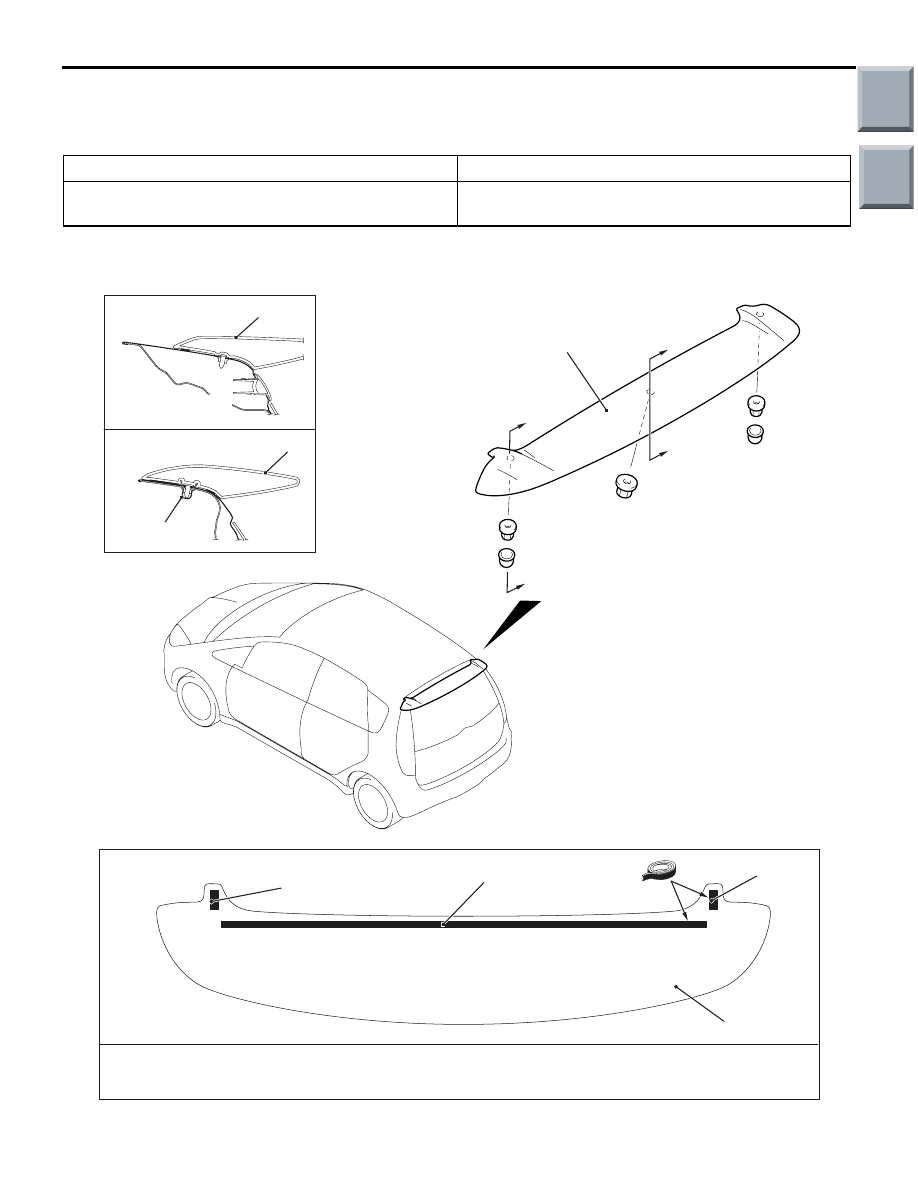

TAILGATE SPOILER

EXTERIOR

51-27

TAILGATE SPOILER

ADHESIVE

M1511000501388

Application

Specified adhesive

Tailgate spoiler

Double-sided tape: Generic products
10 mm width and 1.6 mm thickness

REMOVAL AND INSTALLATION

M1511019900273

AC403420

AC

1

1

A

B

A

A

1

1

B

B

A

Section A – A

Section B – B

Cap

Double-sided tape:
Generic products, 10 mm width and 1.6 mm thickness

Double-sided tape affixed location

Removal

1.

Tailgate spoiler assembly

Main

Index

Group

TOC

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-28

WINDSHIELD WIPER AND WASHER

SERVICE SPECIFICATION

M1511000300596

Item

Standard value

Stop position of the windshield wiper arm/blade assembly (Distance between
the edge of the wiper blade and the end of the deck garnish) mm

Driver’s side: 40

± 5

Passenger’s side: 25

± 5

TROUBLESHOOTING

M1511020000393

The windshield wiper and washer are controlled by
the Smart Wiring System (SWS). For troubleshoot-
ing, refer to GROUP 54B, Troubleshooting

P.54B-35



or GROUP 54C, Troubleshooting

P.54C-29

.

NOTE: Even when the ETACS-ECU has failed, the
windshield wiper can work at low speed as fail-safe
mode. (Normally, the windshield wiper operates
when the ignition switch is at the "ACC" position. But,
if it enters the fail-safe mode, the wiper can operate
only when the ignition switch is at the "ON" position).

ON-VEHICLE SERVICE

M1511000801022

WINDSHIELD INTERMITTENT WIPER
INSPECTION

1. Check the wipers operate in the intermittent

action when the windshield intermittent wiper
switch is at the intermittent operation.

2. Check that the intermittent wiper interval is

changed as the intermittent wiper knob is oper-
ated.

3. Turn the windshield intermittent wiper switch to

the intermittent operation position. Use the
M.U.T.-III to set a simulated vehicle speed with
the wiper knob held. The intermittent wiper inter-
val should be changed as the simulated vehicle
speed is changed.

4. If either of above is defective, carry out the trou-

bleshooting. For troubleshooting, refer to
GROUP 54B, Troubleshooting

P.54B-35

 or

GROUP 54C, Troubleshooting

P.54C-29

.

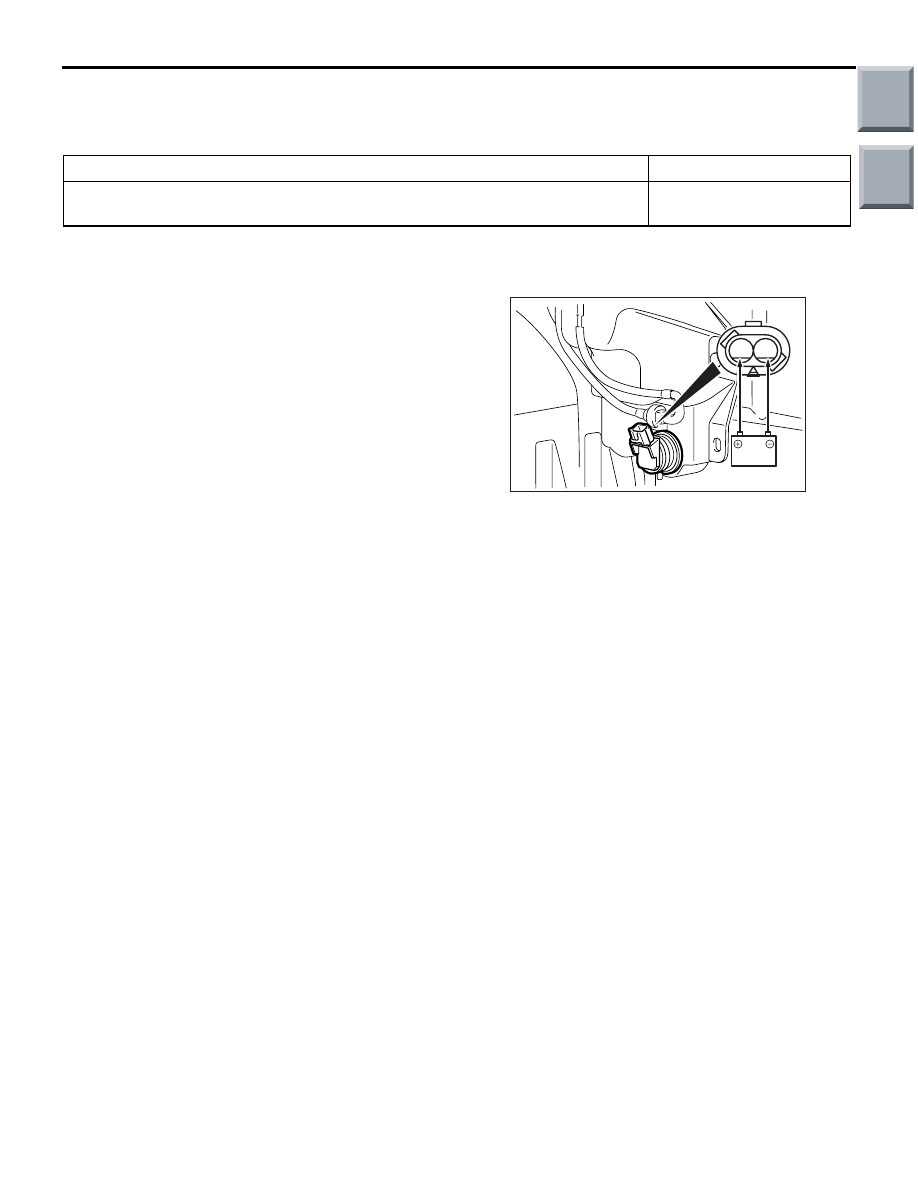

WASHER MOTOR INSPECTION (WIND-
SHIELD WASHER)

2 1

AC405556

1. Check the washer fluid level of washer tank

located at front right corner, and refill fluid if
necessary.

2. Remove the front part of splash shield (RH).
3. Disconnect the washer motor connector.
4. Connect the battery to the washer motor

connector as shown. Check that the washer motor
delivers washer strongly.

Main

Index

Group

TOC

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-29

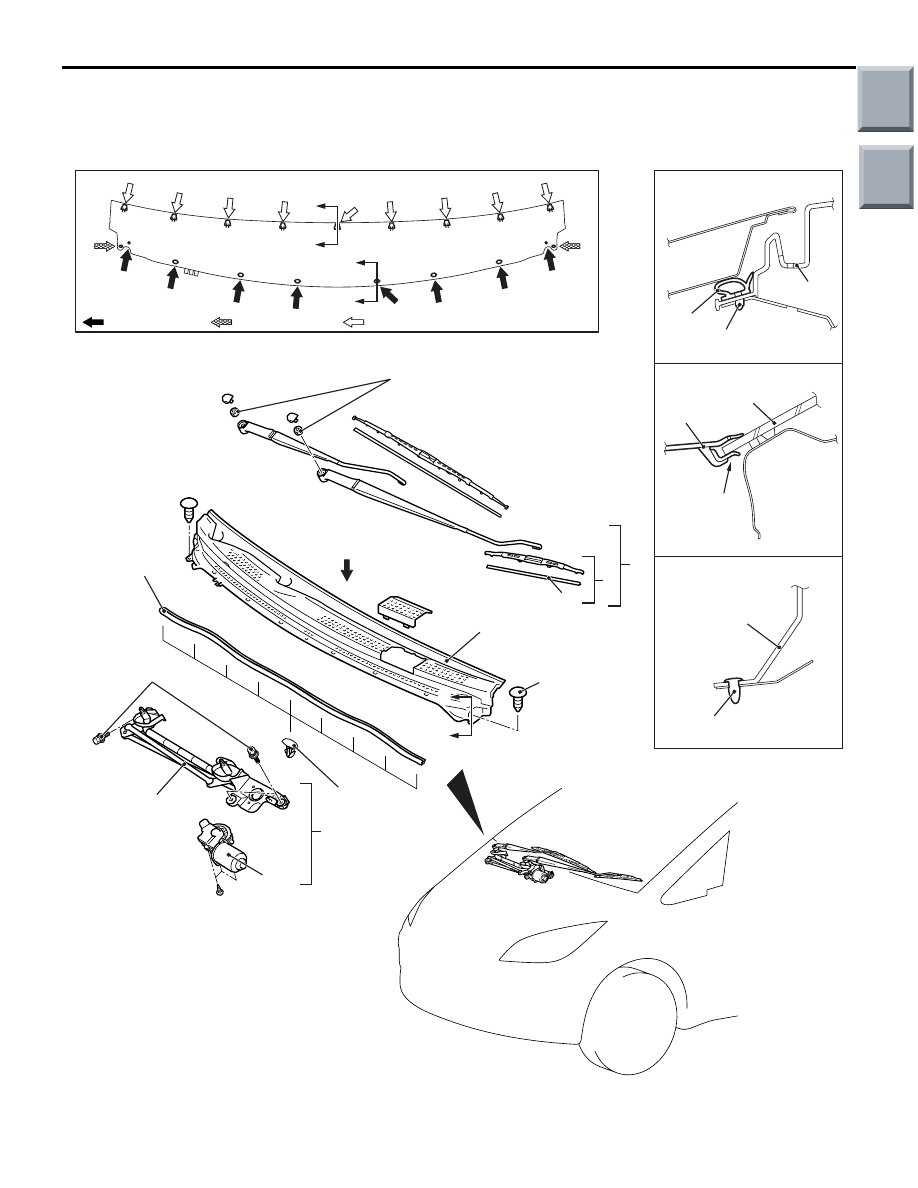

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

M1511007900577

AC313851

View A

Section B – B

Section C – C

Section D – D

5

Windshield

5

Clip a

5

Clip b

Clip b

Clip a

4

AC

2

1

3

28 ± 5 N·m

4

5

A

8

6

7

7.4 ± 1.5 N·m

D

D

Claw

C

C

B

B

Note

: Clip a positions

: Clip b positions

: Claw positions
