DOOR SASH TAPE

EXTERIOR

51-22

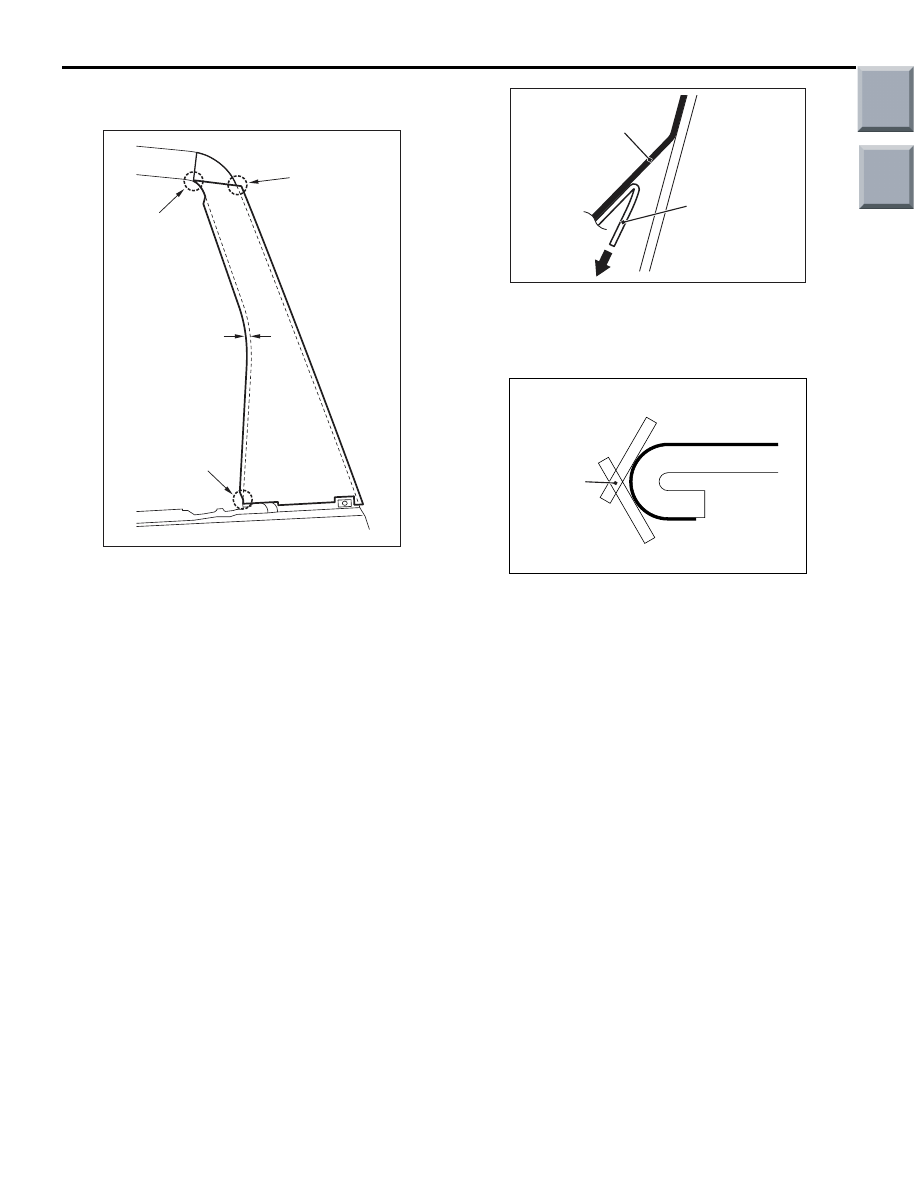

5. Apply the door sash tape outer (D) according to

the procedure below.

AC313593

AB

Locating
point

Locating
point

Locating point

2.5 mm

(1) Align the tape with the specified application

position.

(2) Position it with a magnet, and secure with a

clip temporarily.

(3) Peel off the backing paper in the upper area of

the tape upward the cut line, and apply the
tape temporarily.

AC313901

Door sash tape

AD

Backing paper

(4) While peeling off the remaining backing paper

downward, press the tape.

(5) Peel off the application tape upward in the

direction of 180 degrees.

AC303415

AB

MB990528

120˚

60˚

Hemming part

(6) Press the folded area of the tape at 3 positions

(60 degrees, 120 degrees, and holding),
rolling in toward the vehicle inside direction.

Main

Index

Group

TOC

SIDE AIR DAM

EXTERIOR

51-23

SIDE AIR DAM

ADHESIVE

M1511000501010

Application

Specified adhesive

Side air dam

Double-sided tape: Generic products
4 mm width and 0.8 mm thickness

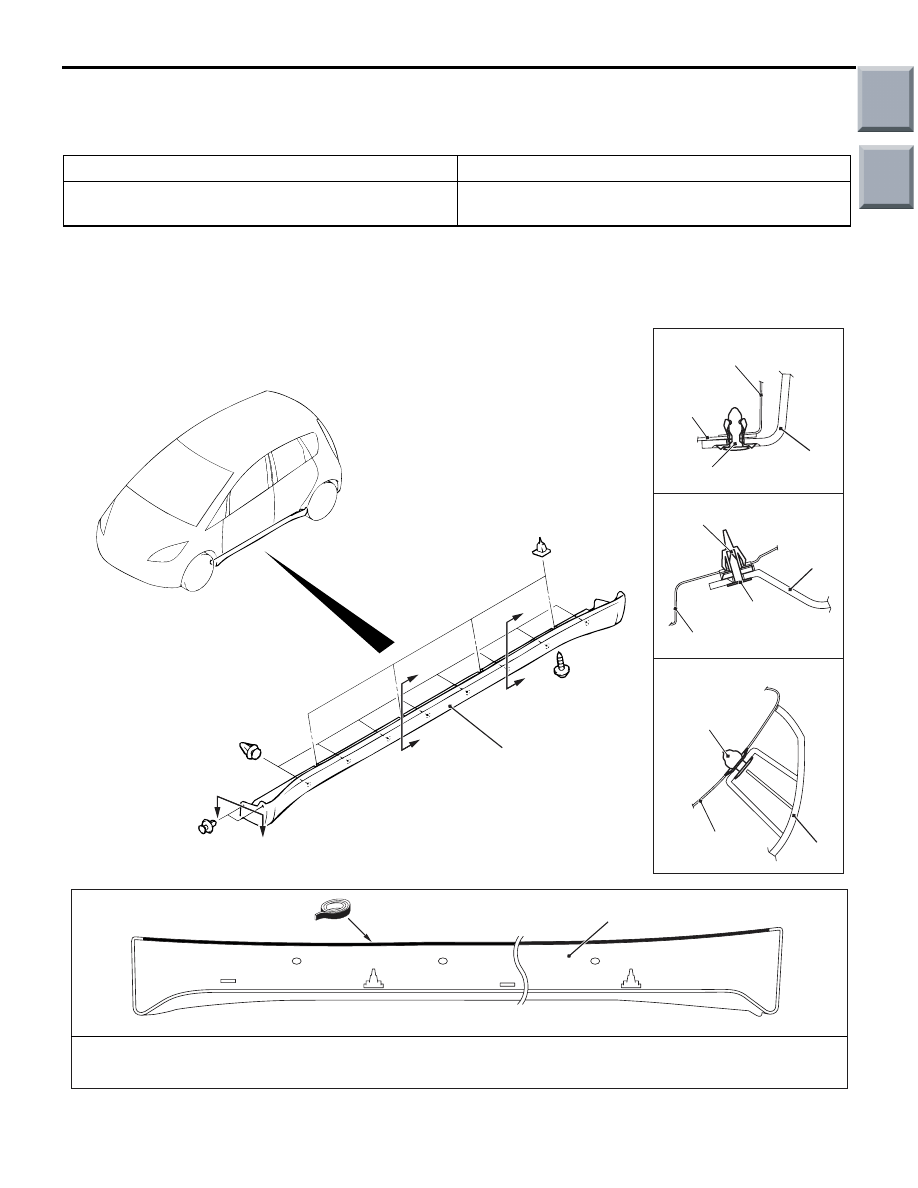

SIDE AIR DAM

REMOVAL AND INSTALLATION <EXCEPT RALLIART Version-R>

M1511005500432

AC405461

AC402879

1

AB

Double-sided tape affixed location

Double-sided tape: Generic products 4.0 mm width, 0.8 mm thickness

1

B

C

C

A

A

B

Clip

Clip

Side outer
panel

Section A – A

Section B – B

Section C – C

1

1

1

Side outer panel

Front fender

Splash
shield

Grommet

Screw

Removal

<<

A

>>

>>

A

<<

1.

Side air dam

Main

Index

Group

TOC

SIDE AIR DAM

EXTERIOR

51-24

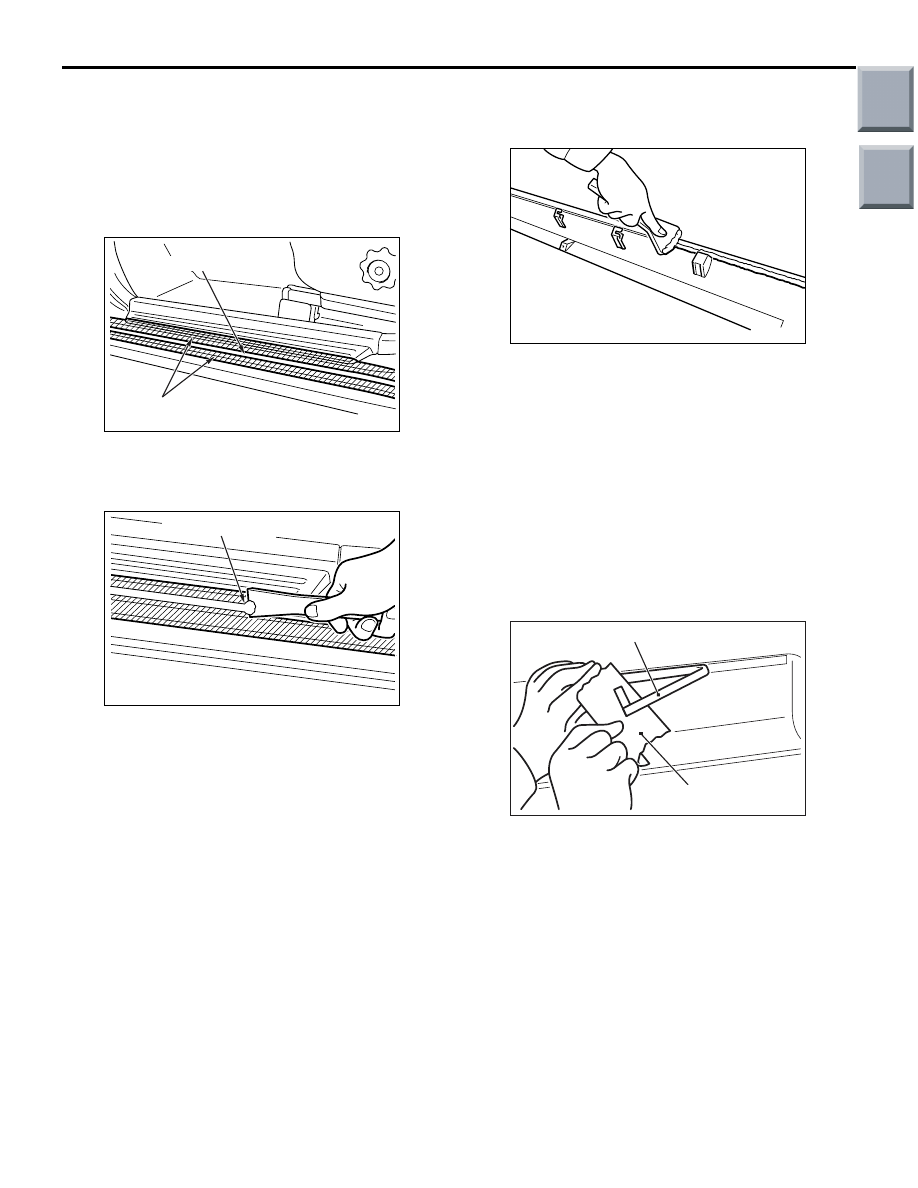

REMOVAL SERVICE POINT
<<A>> SIDE AIR DAM REMOVAL

Gently lift and remove the side air dam. If there is
any double-sided tape remaining on the side air dam,
remove according to the following instructions.
<Remove double-sided tape remaining on the body
surface>

AC200049

AB

Protection tape

Double-sided tape

1. Attach protection tape all the way along the edges

of the double-sided tape which is still adhering to
the body.

AC200050

AB

Double-sided tape

2. Scrape off the double-sided tape with a resin

spatula as much as possible.

3. Peel off the protection tape.
4. Wipe the body surface and clean it with a rag

moistened with isopropyl alcohol.

<Remove double-sided tape remaining on side air
dam and adhere double-sided tape (when re-using
side air dam)>

AC103187

1. Scrape off the double-sided tape on the side air

dam with a resin spatula as much as possible.

2. Wipe the side air dam surface and clean it with a

rag moistened with isopropyl alcohol.

3. Remove only a small portion of the residual

adhesive.

4. Adhere the double-sided tape as specified on the

side air dam (Refer to double-sided tape
adherence location ).

INSTALLATION SERVICE POINT
>>A<< SIDE AIR DAM INSTALLATION

AC103247

Backing paper

Adhesive tape

AC

1. Tear off the double-sided tape backing paper.

NOTE: If attach the adhesive tape to the edge of
the backing paper, it will be easy to tear off.

2. Install the side air dam.

NOTE: If the double-sided tape is difficult to affix
in cold temperature, etc., warm the bonding sur-
faces of the body and side air dam to about 40

−



60

°

C before affixing the tape.

3. Firmly press in the side air dam.

Main

Index

Group

TOC

SIDE AIR DAM

EXTERIOR

51-25

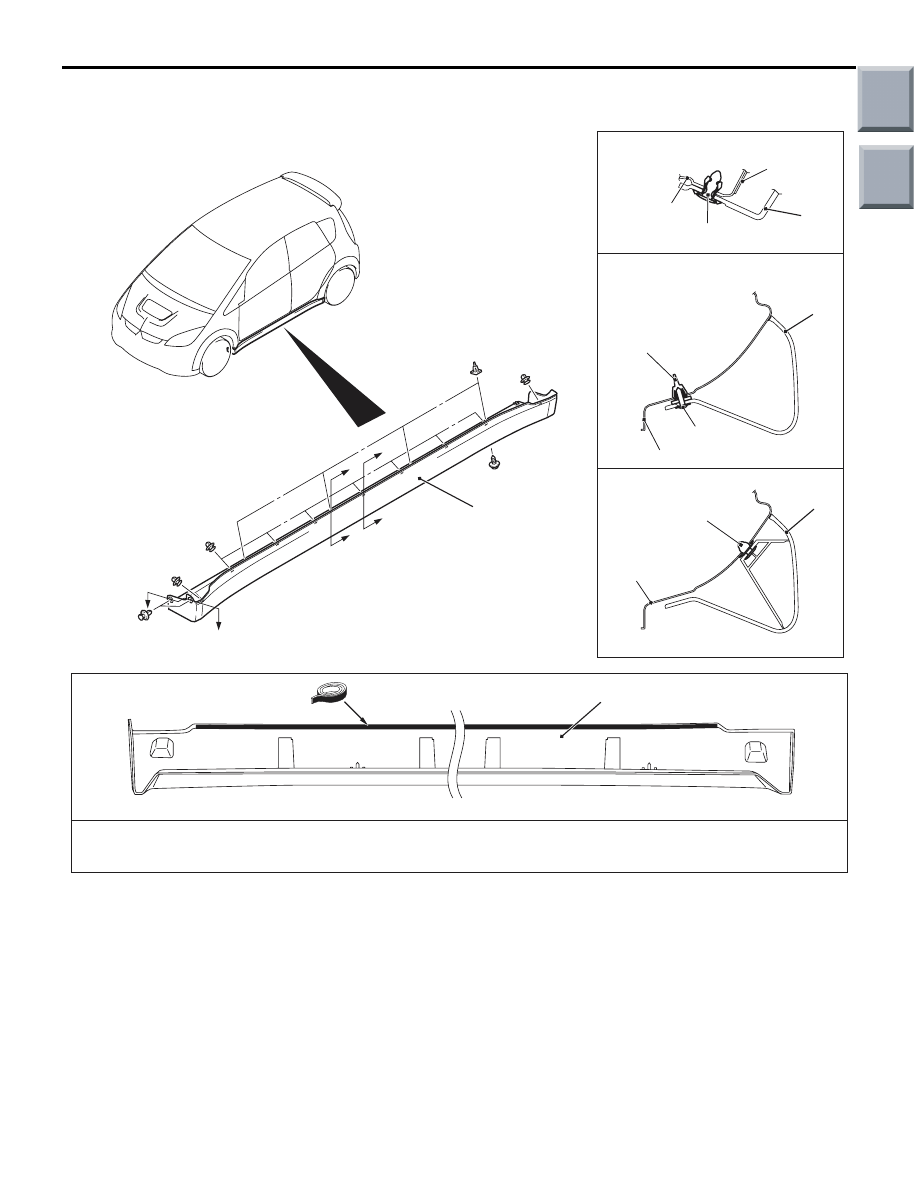

REMOVAL AND INSTALLATION <RALLIART Version-R>

M1511005500421

AC511790

Grommet

Screw

1

1

1

1

1

AB

B

C

C

A

A

B

Clip

Clip

Side outer
panel

Section A – A

Section B – B

Section C – C

Side outer panel

Front fender

Splash
shield

Double-sided tape affixed location

Double-sided tape: Generic products,  1.2 mm thickness

Removal

<<

A

>>

>>

A

<<

1.

Side air dam

NOTE: Refer to SIDE AIR DAM <Except RALLIART
Version-R> for the removal and installation service
points(

P.51-23

).
