DOOR SASH TAPE

EXTERIOR

51-18

REMOVAL SERVICE POINT
<<A>> DOOR SASH TAPES REMOVAL

CAUTION

Pay attention to keep from getting burned by hot
door panel or tapes.
1. Use a hair drier to warm the tape.
2. Peel the tip of the tape with your finger, and then

peel off the tape parallel to the application
surface.

INSTALLATION SERVICE POINT
>>A<< FRONT DOOR SASH OUTER
TAPES INSTALLATION

CAUTION

• The ambient temperature should be 20 to

°C. Ensure that the working area is clean.

Ideally, the tape application should be done at
ambient temperature of 25

°C.

• If ambient temperature is less than 15°C, heat

the tape and application surface to a tempera-
ture of 20 to 30

°C. If ambient temperature is

°C or higher, cool down them.

• The adhesive property of the tape is deterio-

rated at low temperature, so the tape may
come adrift easily. Meanwhile, it gets softened
at hot temperature.

• When beginning to apply the tape, pay partic-

ular attention. If the end of the tape cannot be
applied to the specified position with an accu-
racy of less than 1 mm, it may cause the poor
appearance or adhesion.

•

AC303428

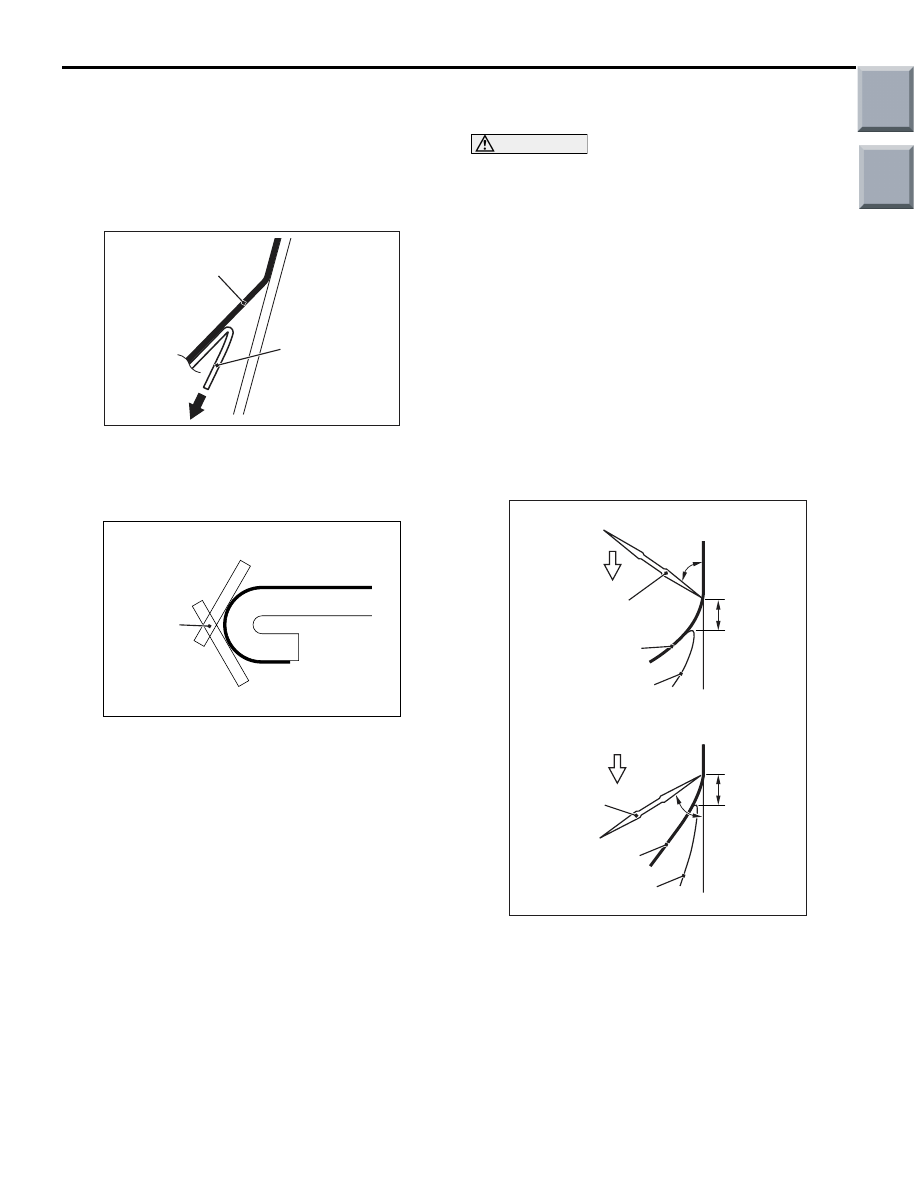

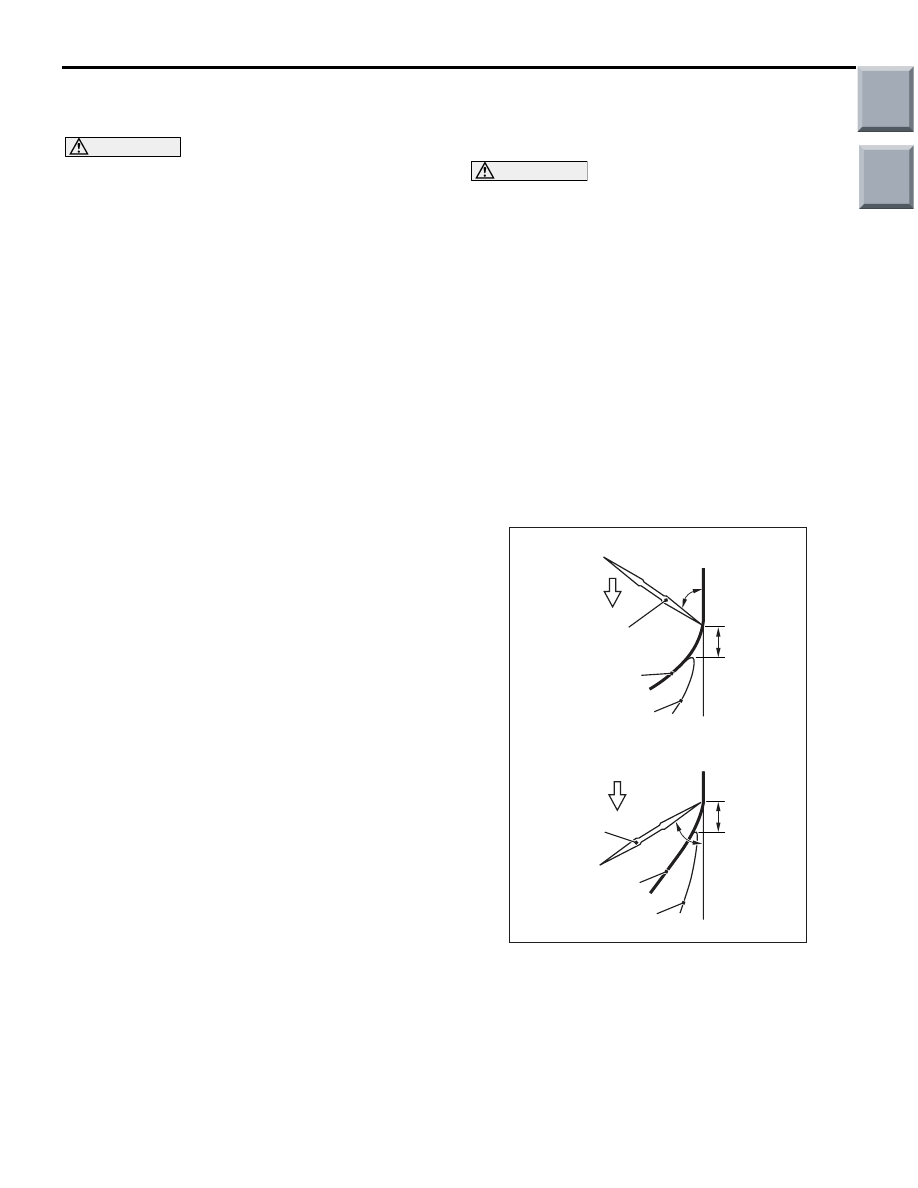

40 to 50˚

30 to 45˚

10 to 20 mm

MB990528

Door sash tape

Backing paper

3 to 7 cm/sec.

Main

Index

Group

TOC

DOOR SASH TAPE

EXTERIOR

51-19

Use the special tool Stripe tape spatula

(MB990528) to apply the tape with a steady
pace and pressure. If you do not apply the
tape with a steady pace or pressure, or abort
the application, a shallow groove (lateral
groove called as "Shock line") may be
present on the tape surface. Meanwhile, if you
apply it too quickly, air bubbles may be
formed under the tape.

1. Wrap a soft cloth (synthetic fibre) around the tip of

the special tool.

2. Use isopropyl alcohol to degrease the tape

application surface.

3. Wipe away dirt from the tape.
4. Apply the front door sash tape outer (A) according

to the procedure below.

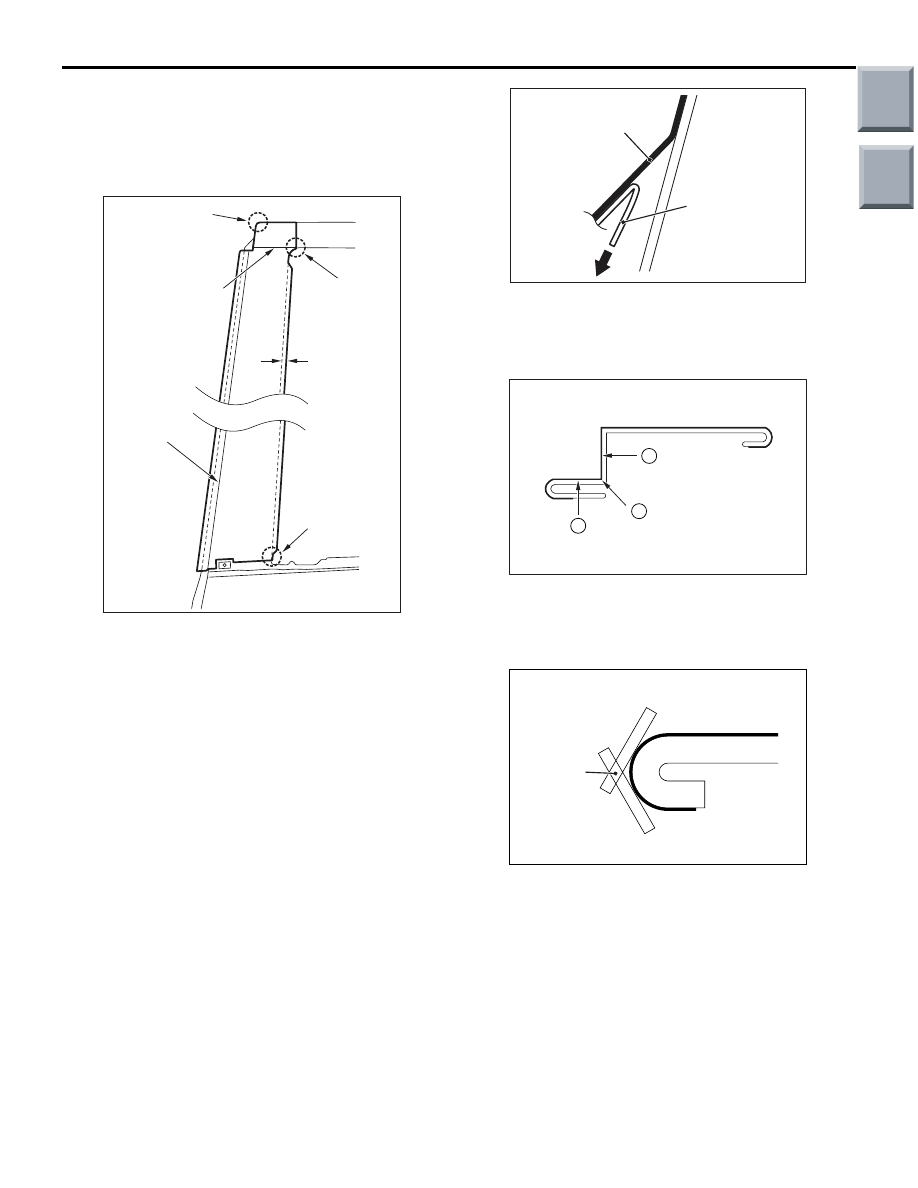

AC313819

Locating point

2.5 mm

Backing
paper
cut-line

Locating
point

(1) Align the tape with the specified application

position.

(2) Position it with a magnet, and secure with a

clip temporarily.

(3) Peel off the backing paper behind the cut line

in the vehicle rear side, and apply the tape
temporarily.

AC313901

Door sash tape

Backing paper

(4) While peeling off the remaining backing paper

from vehicle rear to front, press the tape.

(5) Peel off the application tape in the direction of

180 degree from the applied direction.

AC303415

MB990528

120˚

60˚

Hemming part

(6) Press the folded area of the tape at 3 positions

(60 degrees, 120 degrees, and holding),
rolling in toward the vehicle inside direction.

5. Apply the front door sash tape outer (B) according

to the procedure below.

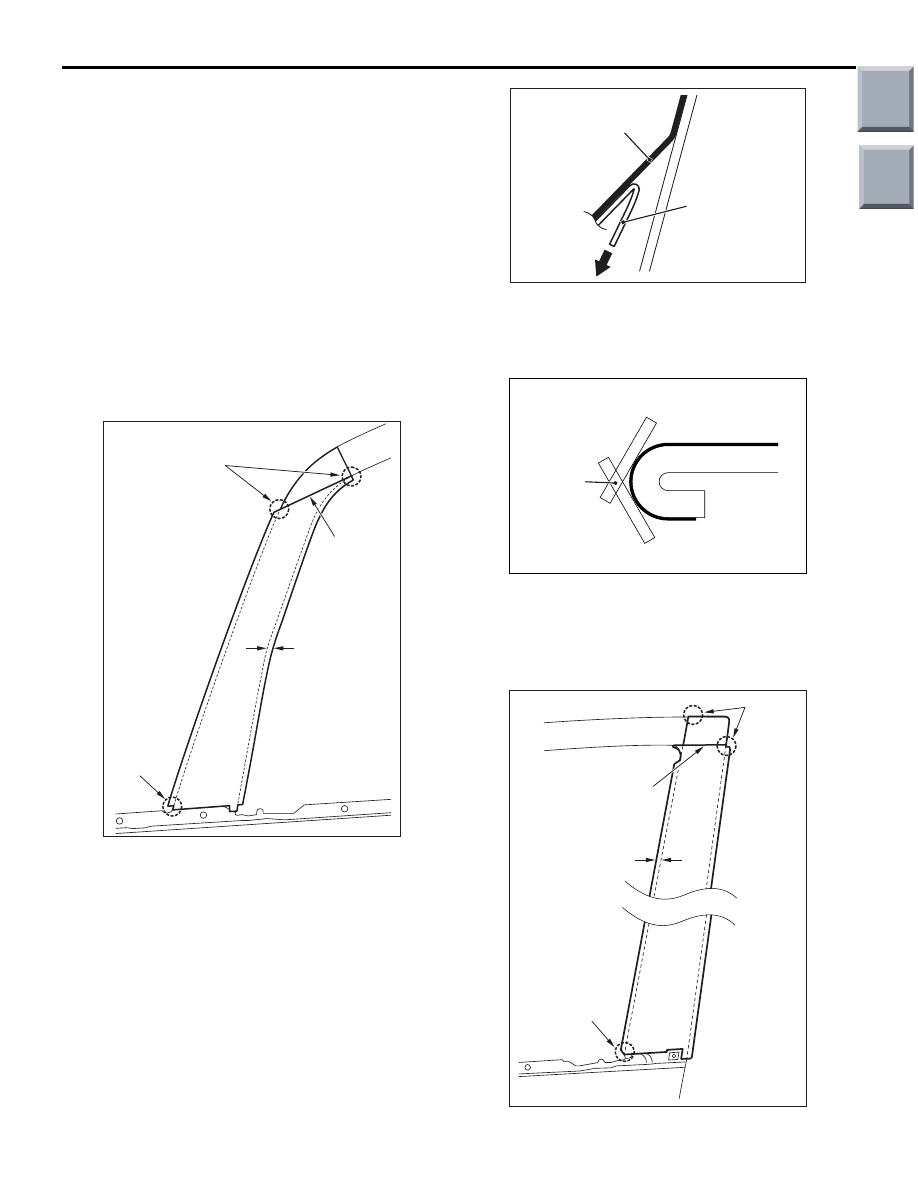

AC313566

Locating
point

Backing paper
cut-line

2.5 mm

Locating point

Main

Index

Group

TOC

DOOR SASH TAPE

EXTERIOR

51-20

(1) Align the tape with the specified application

position.

(2) Position it with a magnet, and secure with a

clip temporarily.

(3) Peel off the backing paper in the upper area of

the tape upward the cut line, and apply the
tape temporarily.

AC313901

Door sash tape

Backing paper

(4) While peeling off the remaining backing paper

downward, press the tape.

(5) Peel off the application tape upward in the

direction of 180 degrees.

AC303415

MB990528

120˚

60˚

Hemming part

(6) Press the folded area of the tape at 3 positions

(60 degrees, 120 degrees, and holding),
rolling in toward the vehicle inside direction.

>>B<< REAR DOOR SASH OUTER TAPES
INSTALLATION

CAUTION

• The ambient temperature should be 20 to

°C. Ensure that the working area is clean.

Ideally, the tape application should be done at
ambient temperature of 25

°C.

• If ambient temperature is less than 15°C, heat

the tape and application surface to a tempera-
ture of 20 to 30

°C. If ambient temperature is

°C or higher, cool down them.

• The adhesive property of the tape is deterio-

rated at low temperature, so the tape may
come adrift easily. Meanwhile, it gets softened
at hot temperature.

• When beginning to apply the tape, pay partic-

ular attention. If the end of the tape cannot be
applied to the specified position with an accu-
racy of less than 1 mm, it may cause the poor
appearance or adhesion.

•

AC303428

40 to 50˚

30 to 45˚

10 to 20 mm

MB990528

Door sash tape

Backing paper

3 to 7 cm/sec.

Use the special tool Stripe tape spatula with a

steady pace and pressure. If you do not apply
the tape with a steady pace or pressure, or
abort the application, a shallow groove (lat-
eral groove called as "Shock line") may be
present on the tape surface. Meanwhile, if you
apply it too quickly, air bubbles may be
formed under the tape.

1. Wrap a soft cloth (synthetic fibre) around the tip of

the special tool.

Main

Index

Group

TOC

DOOR SASH TAPE

EXTERIOR

51-21

2. Use isopropyl alcohol to degrease the tape

application surface.

3. Wipe away dirt from the tape.
4. Apply the door sash tape outer (C) according to

the procedure below.

AC313573

2.5 mm

Backing paper
cut-line

Locating point

Locating
point

(1) Align the tape with the specified application

position.

(2) Position it with a magnet, and secure with a

clip temporarily.

(3) Peel off the backing paper in the upper area of

the tape upward the cut line, and apply the
tape temporarily.

AC313901

Door sash tape

Backing paper

(4) While peeling off the remaining backing paper

from vehicle rear to front, press the tape.

(5) Peel off the application tape upward in the

direction of 180 degrees.

AC313587

Vertical surface

Corner

Horizontal surface

(6) Apply the tape to vertical surface (1), and peel

off the remaining backing paper. Then apply
the tape to corner (2) and horizontal surface
(3) in that order.

AC303415

MB990528

120˚

60˚

Hemming part

(7) Press the folded area of the tape at 3 positions

(60 degrees, 120 degrees, and holding),
rolling in toward the vehicle inside direction.
