MOULDINGS

EXTERIOR

51-14

MOULDINGS

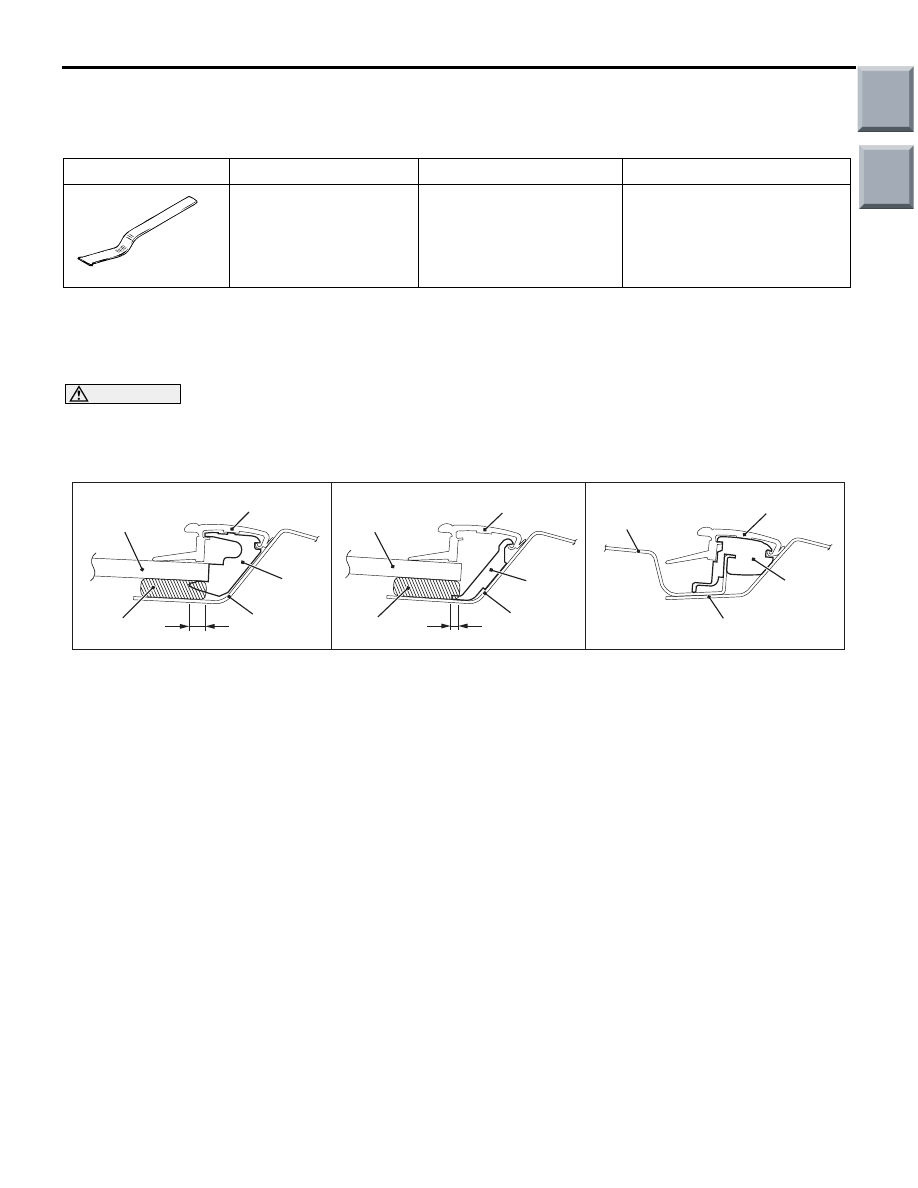

SPECIAL TOOL

M1511000601578

Tool

Number

Name

Application

MB990449

MB990449

Window moulding remover Removal of drip moulding

MOULDINGS

REMOVAL AND INSTALLATION

M1511004700336

CAUTION

Before the installation of the roof drip moulding, the windshield adhesive remains on the clip installa-
tion points shall be removed 3 to 5 mm from the edge of the glass. However, if the windshield adhe-
sive has not been cured yet, it is not necessary to remove it.

AC314040

1

1

Clip

Clip

Section A – A

Section B – B

Section C – C

Clip

1

Side outer
panel

Windshield

Roof panel

Windshield

Side outer panel

Side outer
panel

Adhesive

5 mm

Adhesive

3 mm

AB

Main

Index

Group

TOC

AC314046

1

C

C

A

A

AB

B

B

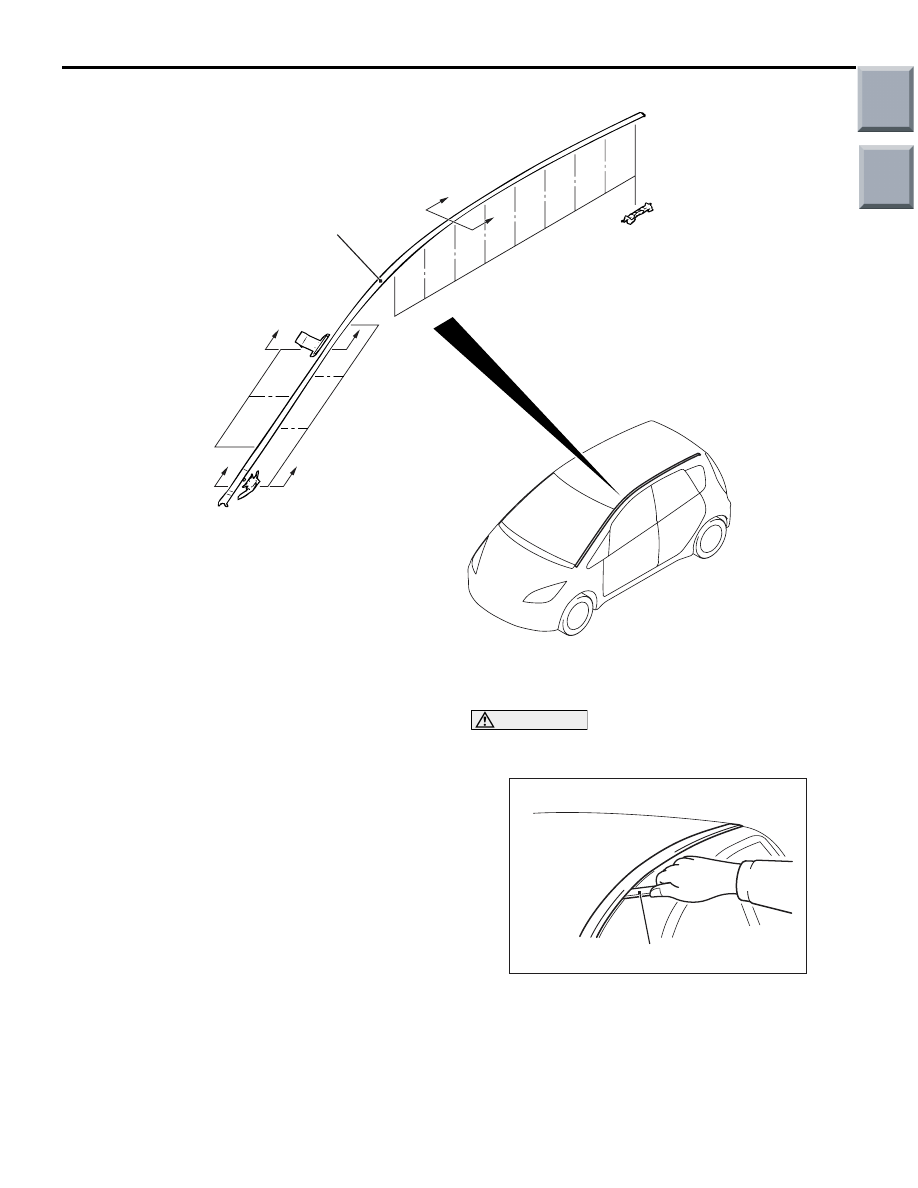

Roof drip moulding removal step


<<

A

>>

1.

Roof drip moulding

MOULDINGS

EXTERIOR

51-15

REMOVAL SERVICE POINT
<<A>> ROOF DRIP MOULDING REMOVAL

CAUTION

If the moulding has become warped, it should not
be reused.

AC313298AB

MB990449

Use special tool window moulding remover
(MB990449) to pry out the moulding.

Main

Index

Group

TOC

DOOR SASH TAPE

EXTERIOR

51-16

DOOR SASH TAPE

SPECIAL TOOL

M1511000601589

Tool

Number

Name

Application

MB990528

MB990528

Stripe tape spatula Door sash tape

Main

Index

Group

TOC

DOOR SASH TAPE

EXTERIOR

51-17

DOOR SASH TAPE

REMOVAL AND INSTALLATION

M1511024100110

Pre-removal and Post-installation Operation
• Door Beltline Weather Strip Inner Removal and Installa-

tion (Refer to GROUP 42, Window Glass Runchannel and

Door Opening Weatherstrip

P.42-48

).

• Door Opening Weather Strip Outer Removal and Installa-

tion (Refer to GROUP 42, Window Glass Runchannel and

Door Opening Weatherstrip

P.42-48

).

• Door Window Glass Runchannel Removal and Installation

(Refer to GROUP 42, Window Glass Runchannel and

Door Opening Weatherstrip

P.42-48

).

• Door Beltline Moulding Removal and Installation (Refer to

GROUP 42, Window Glass Runchannel and Door Open-

ing Weatherstrip

P.42-48

).

AC313544

1

2

3

4

N

N

N

N

AB

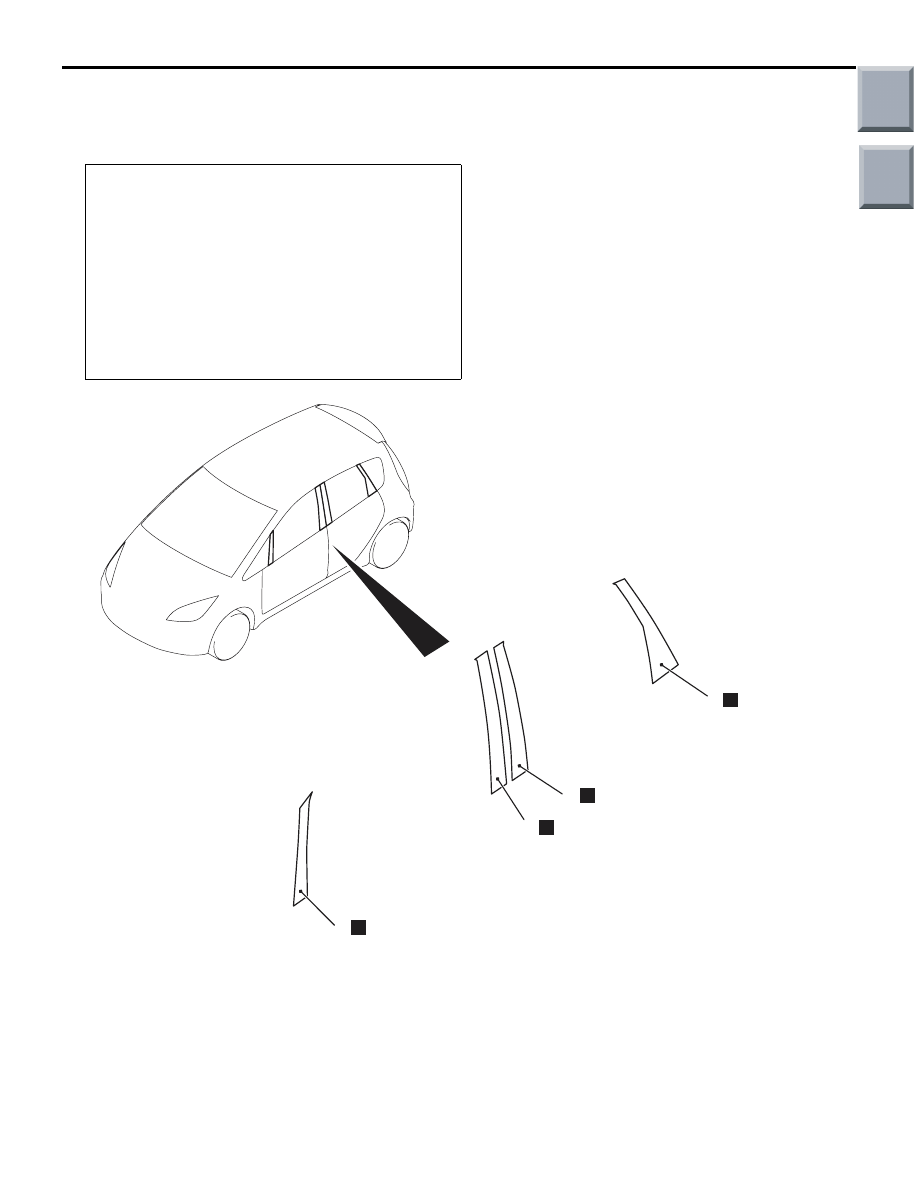

Front door sash outer tape
removal steps

<<

A

>>

>>

A

<<

1.

Door sash outer tape A

<<

A

>>

>>

A

<<

2.

Door sash outer tape B

Rear door sash outer tape
removal steps

<<

A

>>

>>

B

<<

3.

Door sash outer tape C

<<

A

>>

>>

B

<<

4.

Door sash outer tape D
