Wiper blade assembly removal
steps

1.

Wiper blade assembly

>>

A

<<

2.

Wiper blade
Windshield wiper motor removal
steps

>>

B

<<

3.

Wiper arm and blade assembly

4.

Hood weather strip

5.

Front deck garnish

6.

Windshield wiper motor and link
assembly

7.

Windshield wiper link

<<

A

>>

8.

Windshield wiper motor

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-30

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-89

.

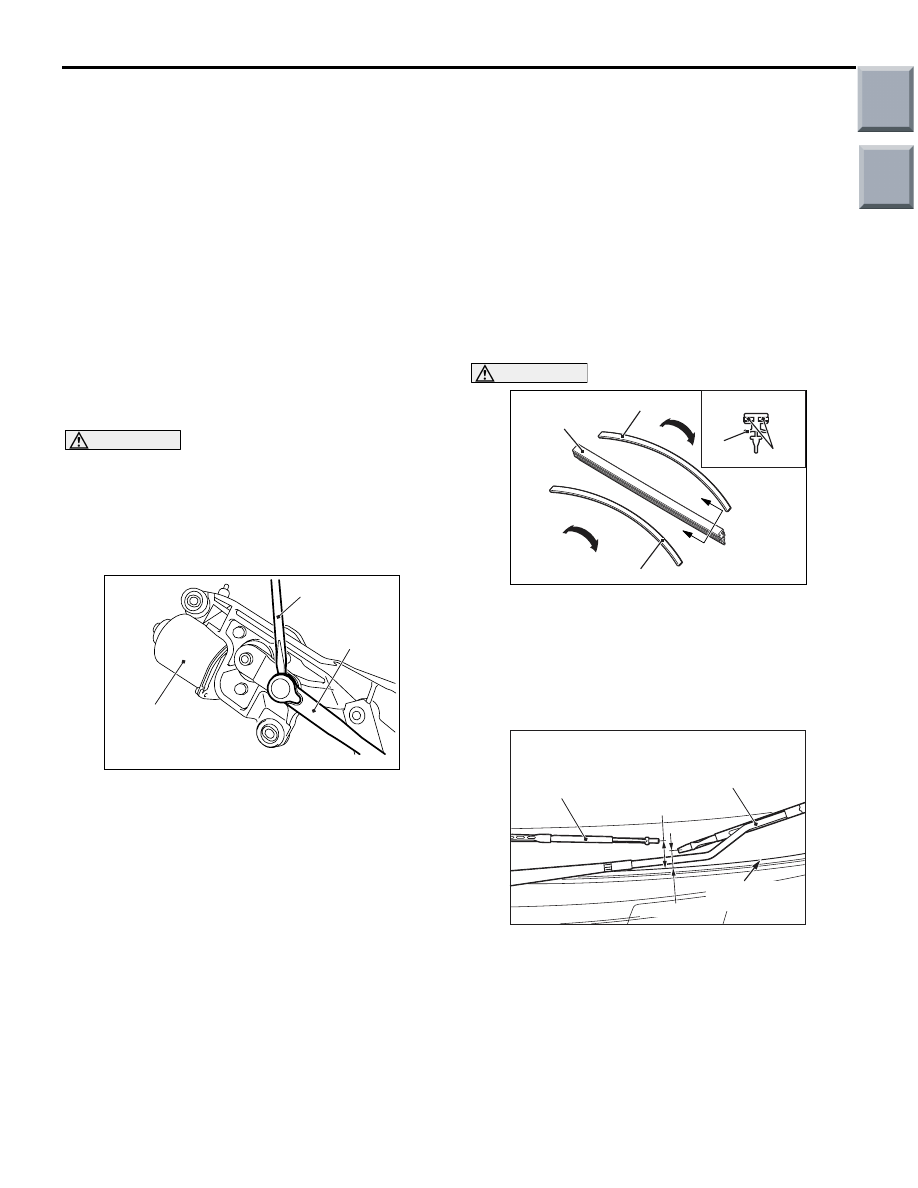

REMOVAL SERVICE POINT
<<A>> WINDSHIELD WIPER MOTOR
REMOVAL

1. Remove the windshield wiper motor mounting

bolts.

CAUTION

Don't remove the crank arm of the windshield
wiper motor if not necessary, because it is
installed to the motor body to the specified
auto-stop angle. If it is necessary to remove the
crank arm, make the mating marks on the crank
arm and the motor body.

AC207096

AB

Wiper motor

Wiper link
assembly

Flat-tipped
screwdriver

2. Disconnect the crank arm of the windshield wiper

motor and the windshield wiper link assembly with
a flat-tipped screwdriver, and then remove the
windshield wiper motor.

INSTALLATION SERVICE POINT
>>A<< WIPER BLADE INSTALLATION

AC101090

AE

A

A

Wiper blade

Backing

Backing

Section A – A

Wiper
blade

Backing

CAUTION

Ensure that the backings are bent in the shown
direction, and then install the backings to the
wiper blade.

>>B<< WIPER BLADE ASSEMBLY
INSTALLATION

AC207110

40 ± 5 mm

25 ± 5 mm

AB

Wiper arm and
blade assembly (LH)

Front deck
garnish terminal

Wiper arm and
blade assembly (RH)

Install the wiper arm and blade assembly so that its
tip is positioned as shown.

Windshield wiper motor removal
steps (Continued)

Main

Index

Group

TOC

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-31

INSPECTION

M1511019101032

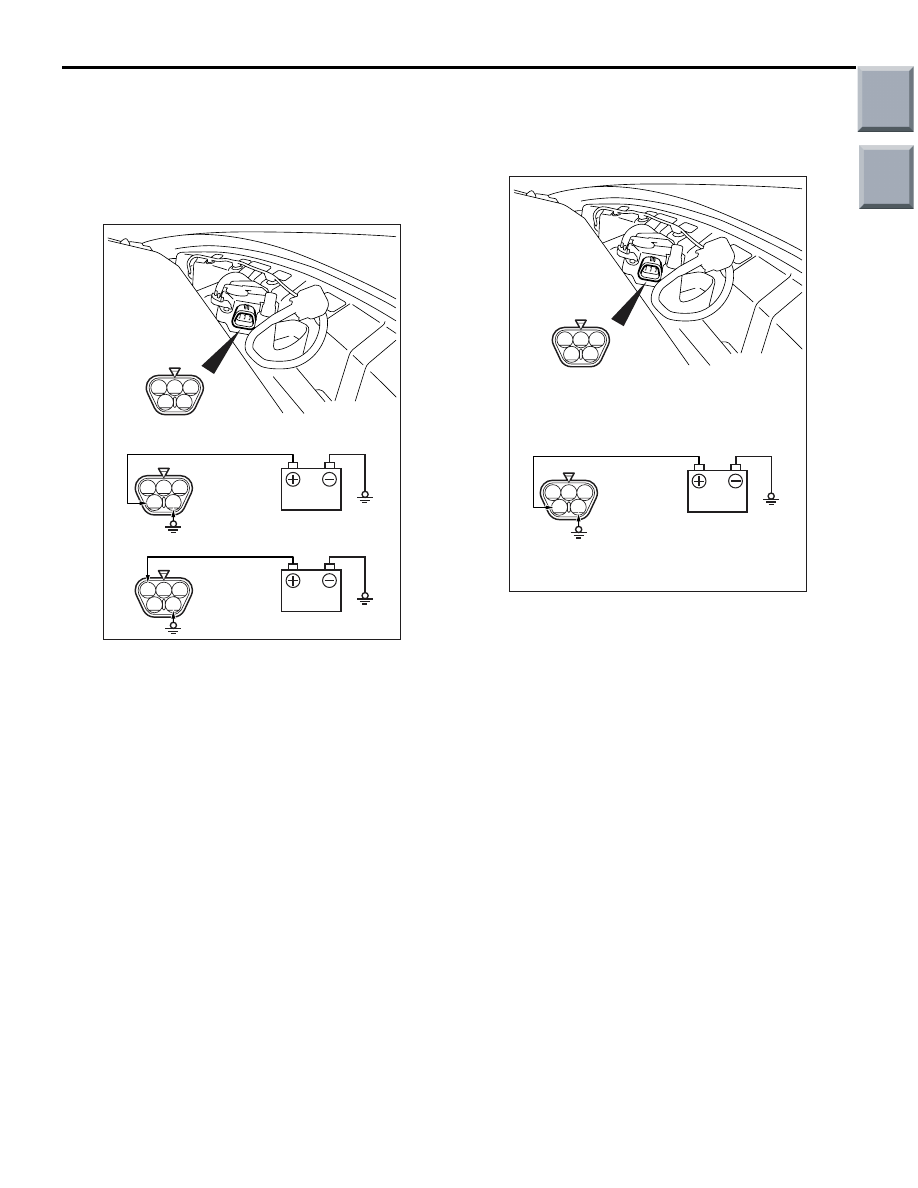

WINDSHIELD WIPER MOTOR CHECK
OPERATION CHECK OF THE WIND-
SHIELD WIPER MOTOR WHEN IT IS
WORKING AT LOW OR HIGH SPEED

1

4

2 3

5

1

4

2 3

5

1

4

2 3

5

AC208222

1. Connect the positive battery terminal to

windshield wiper motor connector terminal No.4
as shown. Check the low-speed operation of the
motor by earthing windshield wiper motor
connector terminal No.5.

2. Connect the positive battery terminal to

windshield wiper motor connector terminal No.1
as shown. Check the high-speed operation of the
motor by earthing windshield wiper motor
connector terminal No.5.

CHECK OF STOP POSITION OF THE
WINDSHIELD WIPER MOTOR

Prior to this check, ensure that there is no excessive
play at the windshield wiper link.

1

4

2 3

5

1

4

2 3

5

AC208257

1. Connect the positive battery terminal to

windshield wiper motor connector terminal No.4
as shown. Operate the motor at low speed by
earthing the motor.

2. Disconnect the battery cable from motor

connector terminal No.4. The motor should stop.

Main

Index

Group

TOC

1

4

2 3

5

1

4

2 3

5

AC208258

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-32

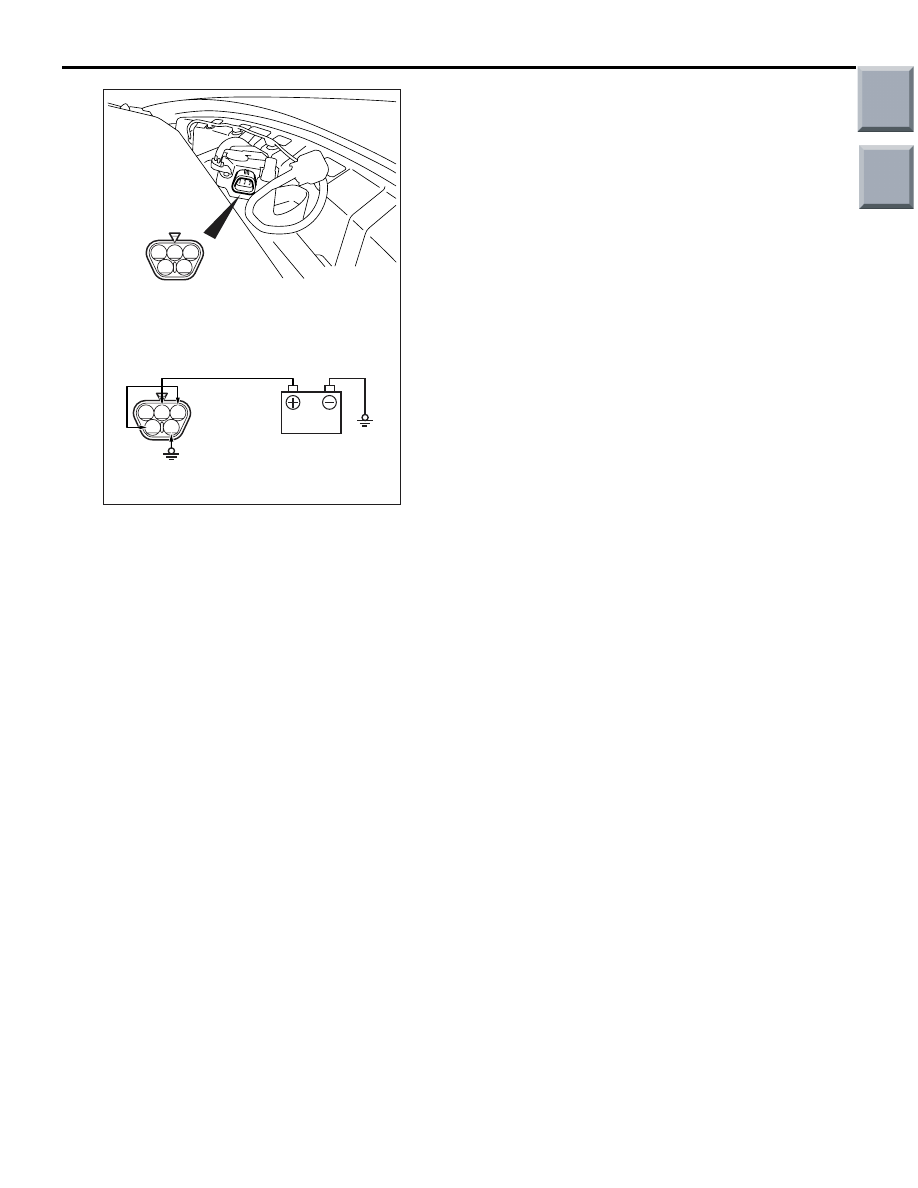

3. Connect the positive battery terminal to motor

connector terminal No.2 as shown.

4. Connect motor connector terminal No.3 to No.4

as shown.

5. Check to see that the motor runs at low speed

and then stops at the automatic stop position.

WINDSHIELD WIPER SWITCH CHECK

Check the input signals (mist, intermittent, low speed
and high speed) from the windshield wiper switch.
(Refer to GROUP 54B, Troubleshooting

P.54B-35

 or

GROUP 54C, Troubleshooting

P.54C-29

).

Main

Index

Group

TOC

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-33

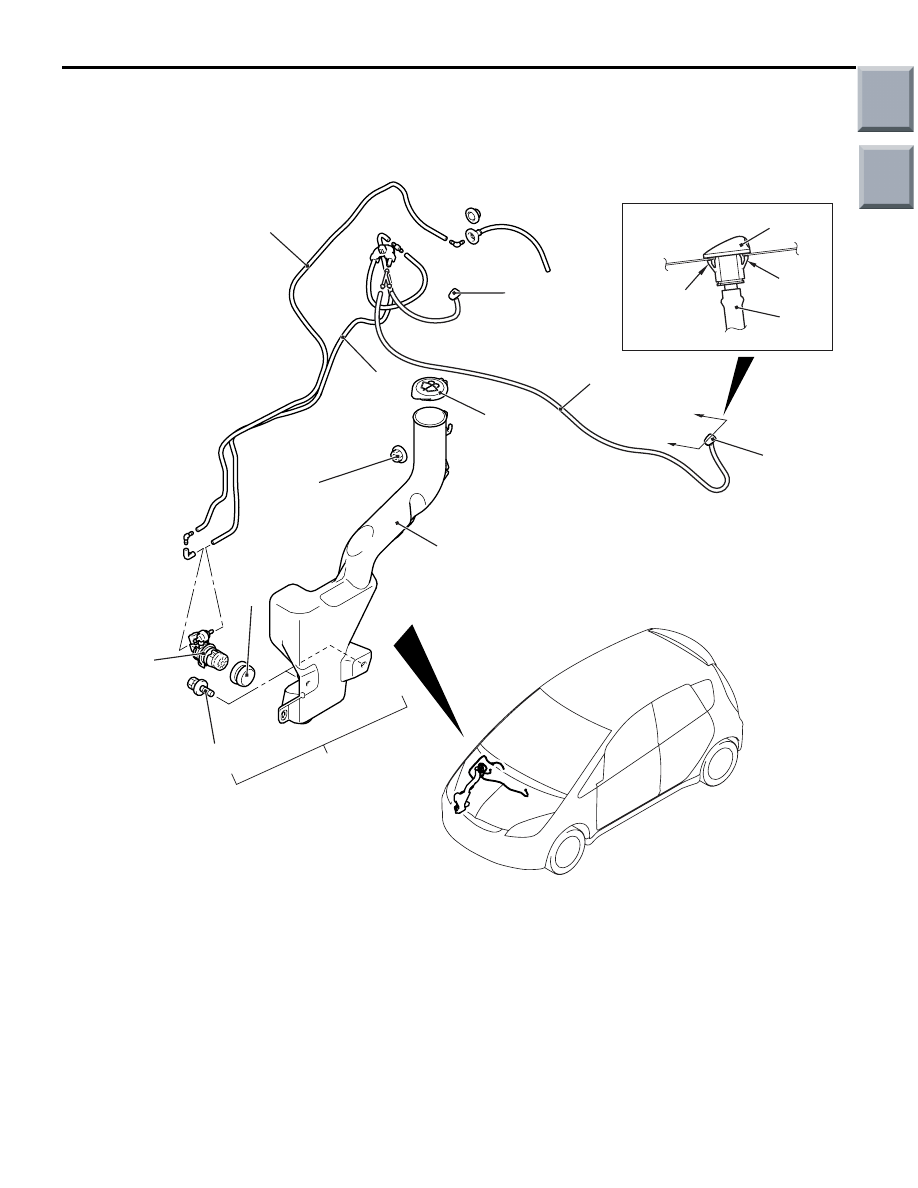

WINDSHIELD WASHER

REMOVAL AND INSTALLATION

M1511008200690

AC403712

AC402056

2

1

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

1

1

6

4

7

8

5

2

2

3

A

A

AC

Claw

Claw

Section A – A

Windshield washer nozzle
removal steps

•

Hood insulator

1.

Windshield washer nozzle

2.

Front washer hose
Washer tank removal steps

•

Headlamp assembly mounting clips

•

Washer motor connector
connection

•

Windshield washer hose
connection

3.

Rear washer hose connection

4.

Washer tank assembly

5.

Washer tank

6.

Cap
Washer motor removal steps

•

Splash shield mounting clips

•

Washer motor connector
connection

•

Windshield washer hose connector
connection

•

Rear washer hose connector
connection

<<

A

>>

7.

Washer motor

8.

Gasket

Washer tank removal steps
