Mitsubishi Colt Ralliart. Manual - part 504

DOOR

BODY

42-38

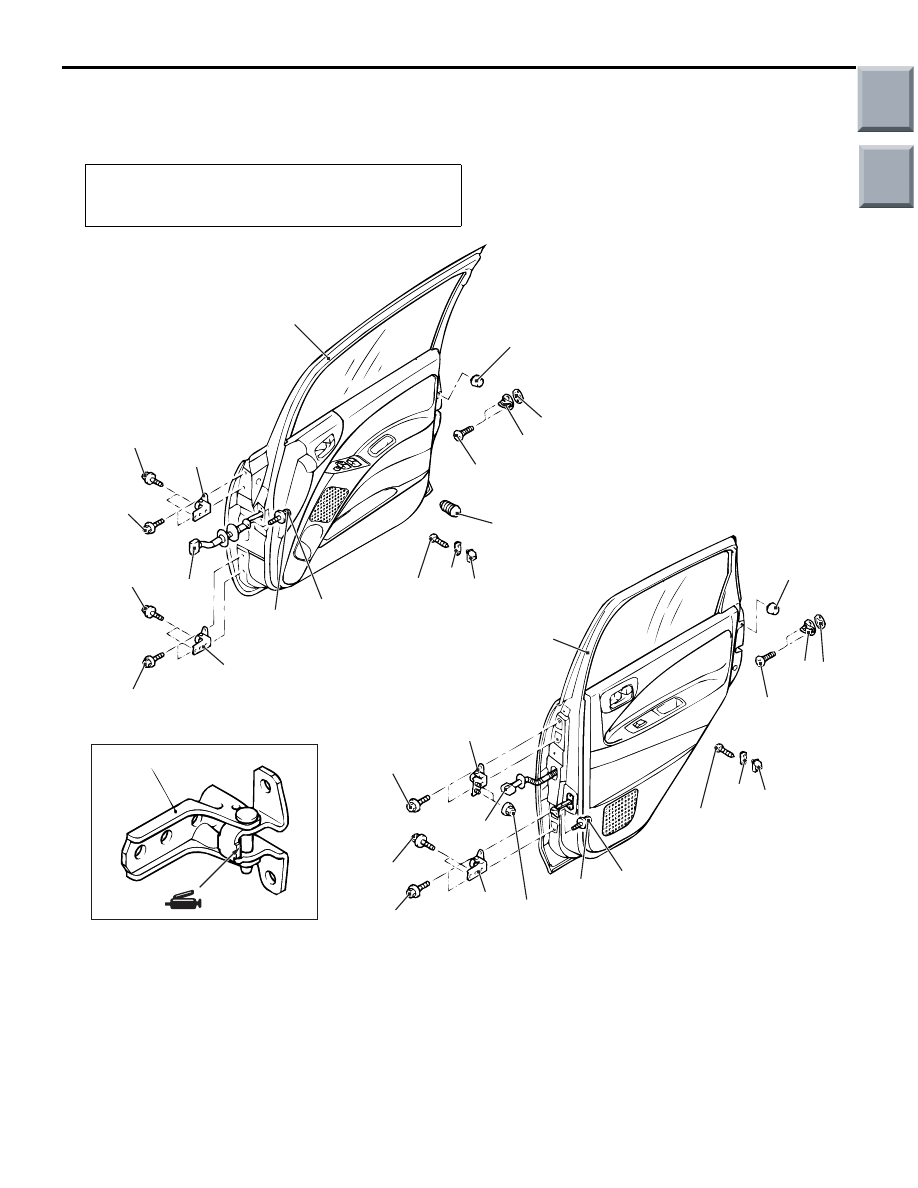

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

M1423002200409

Post-installation Operation
• Door Fit Adjustment (Refer to

P.42-33

).

• Adjustment of Door Height (Refer to

P.42-34

).

AC208245AB

1

1

1

2

2

3

3

4

4

5

6

5

6

7

8

7 8

9

10

9

10

5, 6

<Front door>

<Rear door>

11 ± 2 N·m

11 ± 2 N·m

3.9 ± 1.0 N·m

3.9 ± 1.0 N·m

24 ± 4 N·m

24 ± 4 N·m

27 ± 5 N·m

27 ± 5 N·m

27 ± 5 N·m

27 ± 5 N·m

21 ± 4 N·m

21 ± 4 N·m

21 ± 4 N·m

21 ± 4 N·m

Damper removal

1. Damper

Door assembly removal steps

•

Scuff Plate and Cowl Side Trim
<Front door> (Refer to GROUP 52A,
Interior Trim

P.52A-11

).

•

Front pillar pad <Front door> (Refer to

P.42-7

).

2. Wiring harness connector connection
3. Door check connecting bolt

Door assembly removal steps
(Continued)

4. Door assembly
•

Centre pillar trim lower (Refer to
GROUP 52A, Interior Trim

P.52A-11

).

5. Door upper hinge
6. Door lower hinge

Striker removal

>>

A

<< 7. Striker

8. Striker shim

Main

Index

Group

TOC

Door switch removal steps

9. Door switch cover
10. Door switch

DOOR

BODY

42-39

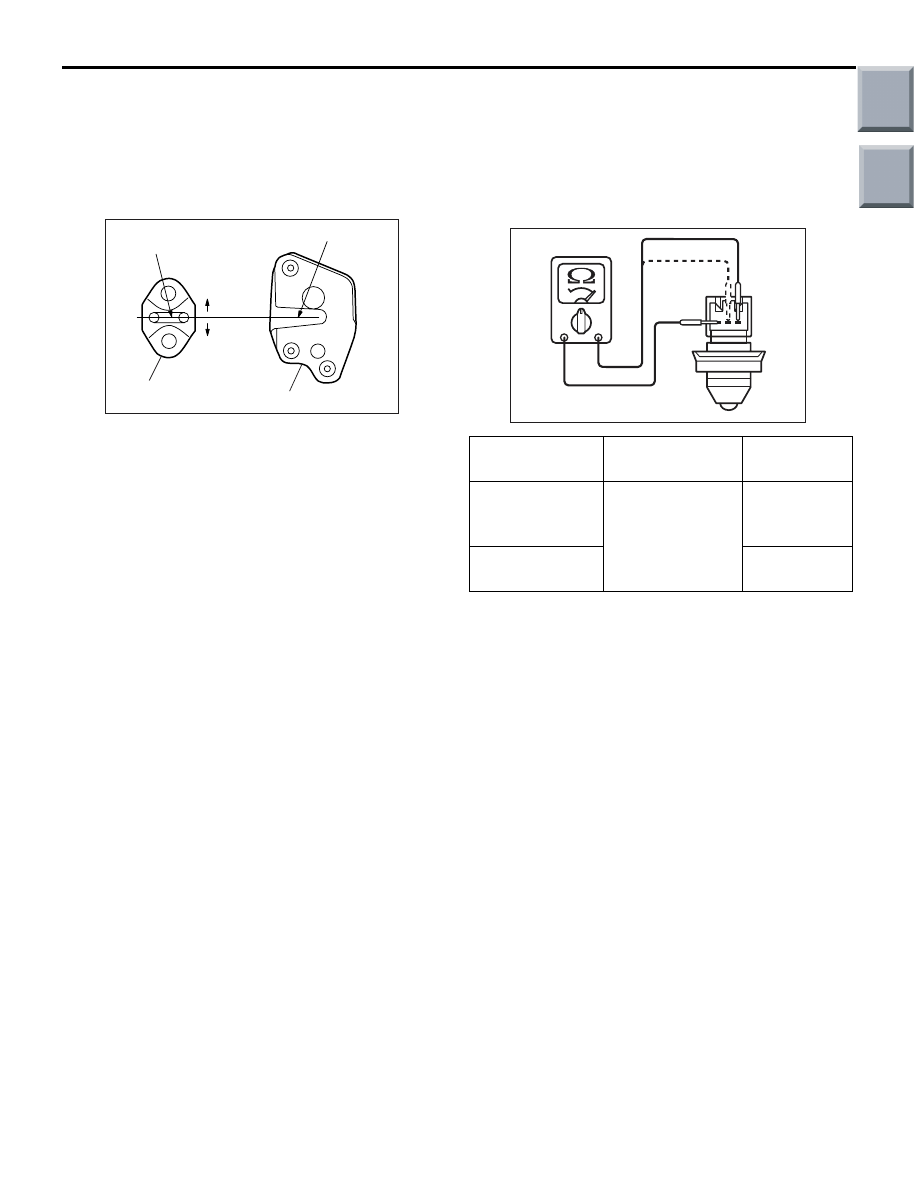

INSTALLATION SERVICE POINT
>>A<< STRIKER INSTALLATION

AC006126AB

Striker centre

Striker

Latch centre

Latch

+1.5 mm

-1.5 mm

Align the centre of the striker and latch within

±1.5

mm, and install.

 INSPECTION

M1423006000560

DOOR SWITCH CHECK

AC005656AB

1

2

3

Switch position Tester

connection

Specified
condition

Released (ON)

1

− 3, 2 − 3

Continuity
(Less than
2

Ω)

Depressed
(OFF)

Open circuit

Main

Index

Group

TOC

DOOR

BODY

42-40

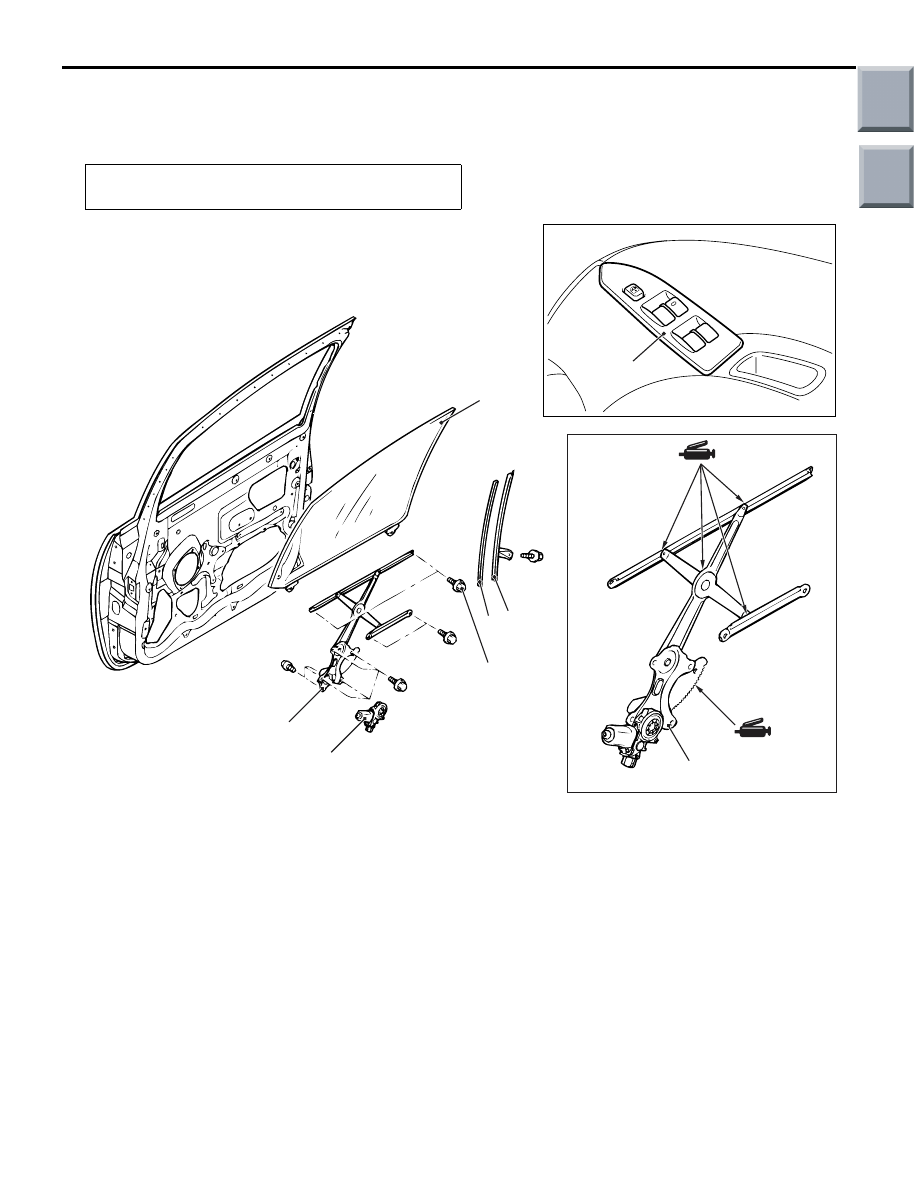

DOOR GLASS AND REGULATOR

REMOVAL AND INSTALLATION

M1429001300553

Post-installation Operation
• Door Window Glass Adjustment (Refer to

P.42-34

).

AC208133

1

2

4

5

5

6

AB

3

6.5 ± 0.5 N·m

<Front door>

Power window switch removal
steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-13

.)

1.

Power window main switch
<driver’s side>, power window sub
switch <passenger’s side> (Refer
to GROUP 52A, Door Trim

P.52A-13

.)

Door window glass assembly
removal steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-13

.)

•

Waterproof film (Refer to

P.42-48

.)

•

Beltline moulding, beltline
weatherstrip inner, door window
glass runchannel (Refer to

P.42-48

.)

>>

A

<<

2.

Rear lower sash

3.

Window glass runchannel rear

4.

Door window glass assembly
Power window regulator removal
steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-13

.)

•

Waterproof film (Refer to

P.42-48

.)

<<

A

>>

5.

Power window regulator

6.

Power window motor

Door window glass assembly
removal steps (Continued)

Main

Index

Group

TOC

AC208134

1

4

6

7

7

8

AB

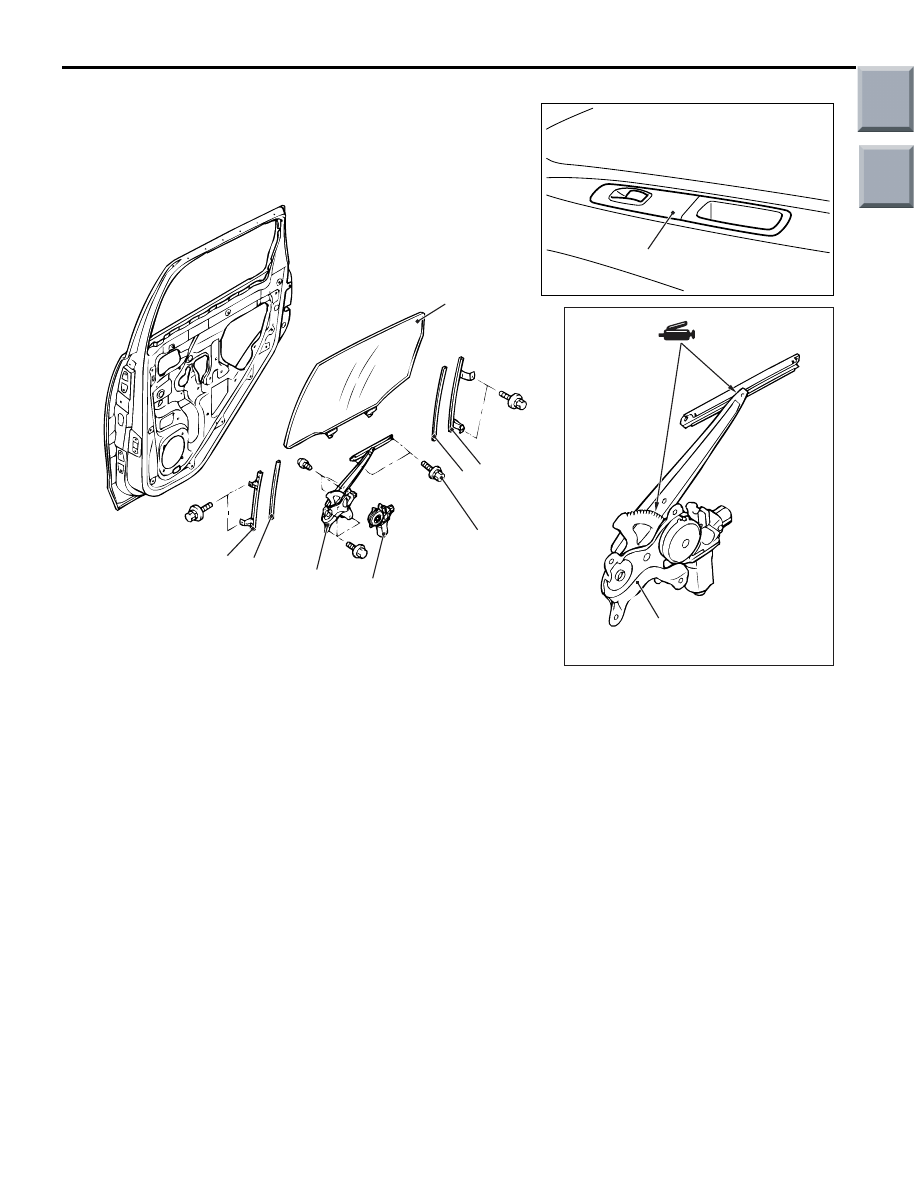

<Rear door>

5

2

3

6.5 ± 0.5 N·m

Power window sub switch
removal

1.

Power window sub switch (Refer to
GROUP 52A, Door Trim

P.52A-13

.)

Door window glass assembly
removal steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-13

.)

•

Waterproof film (Refer to

P.42-48

.)

•

Beltline moulding, beltline
weatherstrip inner, door window
glass runchannel (Refer to

P.42-48

.)

2.

Front lower sash

3.

Window glass runchannel front

>>

A

<<

4.

Rear lower sash

5.

Window glass runchannel rear

6.

Door window glass assembly
Power window regulator removal
steps

1.

Power window sub switch (Refer to
GROUP 52A, Door Trim

P.52A-13

.)

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-13

.)

•

Waterproof film (Refer to

P.42-48

.)

<<

A

>>

7.

Power window regulator

8.

Power window motor

DOOR

BODY

42-41

Door window glass assembly
removal steps (Continued)

Main

Index

Group

TOC
