Mitsubishi Colt Ralliart. Manual - part 496

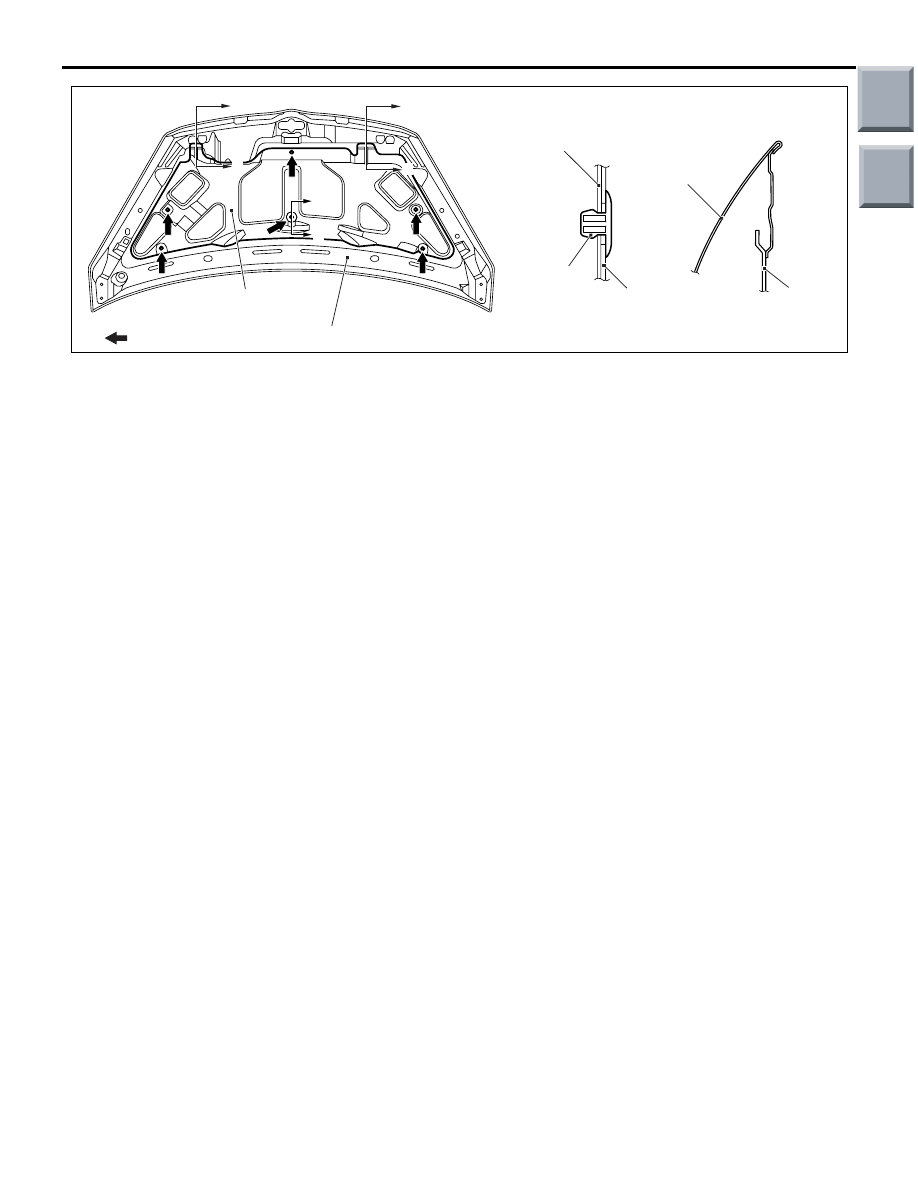

AC402179

AC506025

AC402180

A

A

B

B

B

B

6

6

6

12

12

12

AC

NOTE
         : Clip positions

Clip

Section A – A

Section B – B

Damper removal step

1. Damper

Hood latch and hood lock release
cable removal steps

•

Front bumper assembly (Refer to
GROUP 51, Front Bumper and
Radiator Grille

P.51-2

 <Except for

RALLIART Version-R>,

P.51-2



<RALLIART Version-R>).

2. Hood latch cover <RALLIART

Version-R>

3. Hood latch
4. Hood lock release handle
•

Splash shield (Refer to

P.42-7

).

5. Hood lock release cable

Hood removal steps

6. Hood insulator <5M/T>
7. Hood weatherstrip
8. Hood weatherstrip front
9. Hood weatherstrip rear
10. Hood air inlet duct plate <RALLIART

Version-R>

11. Hood air outlet garnish  <RALLIART

Version-R>

•

Washer hose, Washer nozzle (Refer
to GROUP 51, Windshield Washer

P.51-33

).

12. Hood
13. Hood support rod
•

Front deck garnish (Refer to GROUP
51,Windshield Wiper

P.51-29

).

14. Hood hinge

HOOD

BODY

42-6

Main

Index

Group

TOC

FENDER

BODY

42-7

FENDER

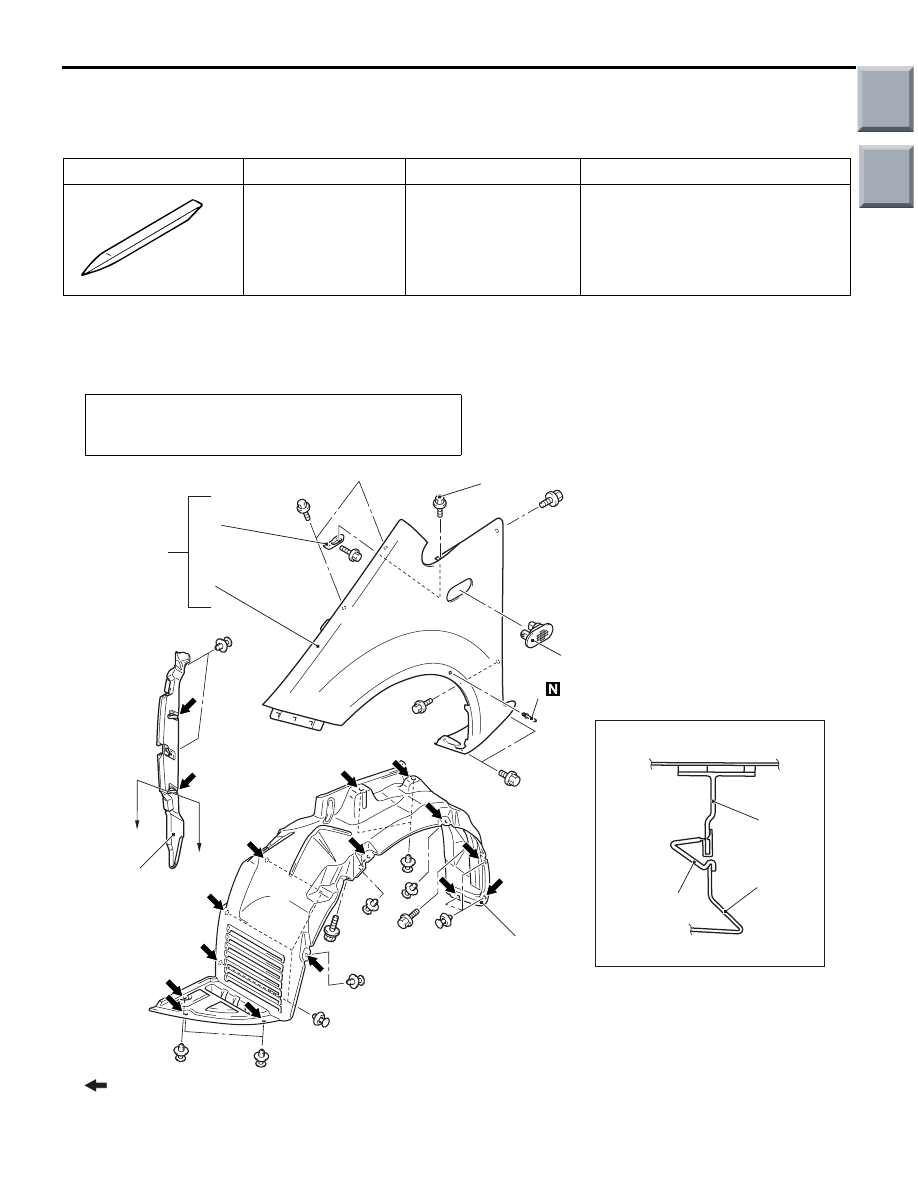

SPECIAL TOOL

M1421000600375

Tool

Number

Name

Use

MB990784

MB990784

Ornament remover

Side turn-signal lamp removal

FENDER

REMOVAL AND INSTALLATION

M1421001900971

Pre-removal Operation
• Overfender Removal <Vehicles with overfender> (Refer to

GROUP 51, Overfender

P.51-11

).

AC601318

1

2

2

3

5

6

7

8

8

AC

A

A

4

NOTE
         : Clip positions

Clip

Section A – A

Main

Index

Group

TOC

Splash shield removal step

1. Splash shield

Fender removal steps

1. Splash shield
2. Fender rear protector
•

Front deck garnish (Refer to GROUP
51, Windshield Wiper

P.51-29

).

•

Front side bracket (Refer to GROUP
51, Front Bumper and Radiator Grille

P.51-2

 <Except for RALLIART

Version-R>,

P.51-2

 <RALLIART

Version-R>.)

•

Headlamp assembly (Refer to
GROUP 54A, Headlamp

P.54A-73

).

•

Side air dam <Vehicles with side air
dam> (Refer to GROUP 51, Side Air
Dam

P.51-23

 <Except for RALLIART

Version-R>,

P.51-25

 <RALLIART

Version-R>.)

<<

A

>> >>

A

<< 3. Side turn signal lamp

<<

B

>> >>

B

<< 4. Rivet <Vehicles with RALLIART

Version-R>

5. Fender assembly
6. Fender bracket mounting bolt
7. fender bracket
8. Fender

FENDER

BODY

42-8

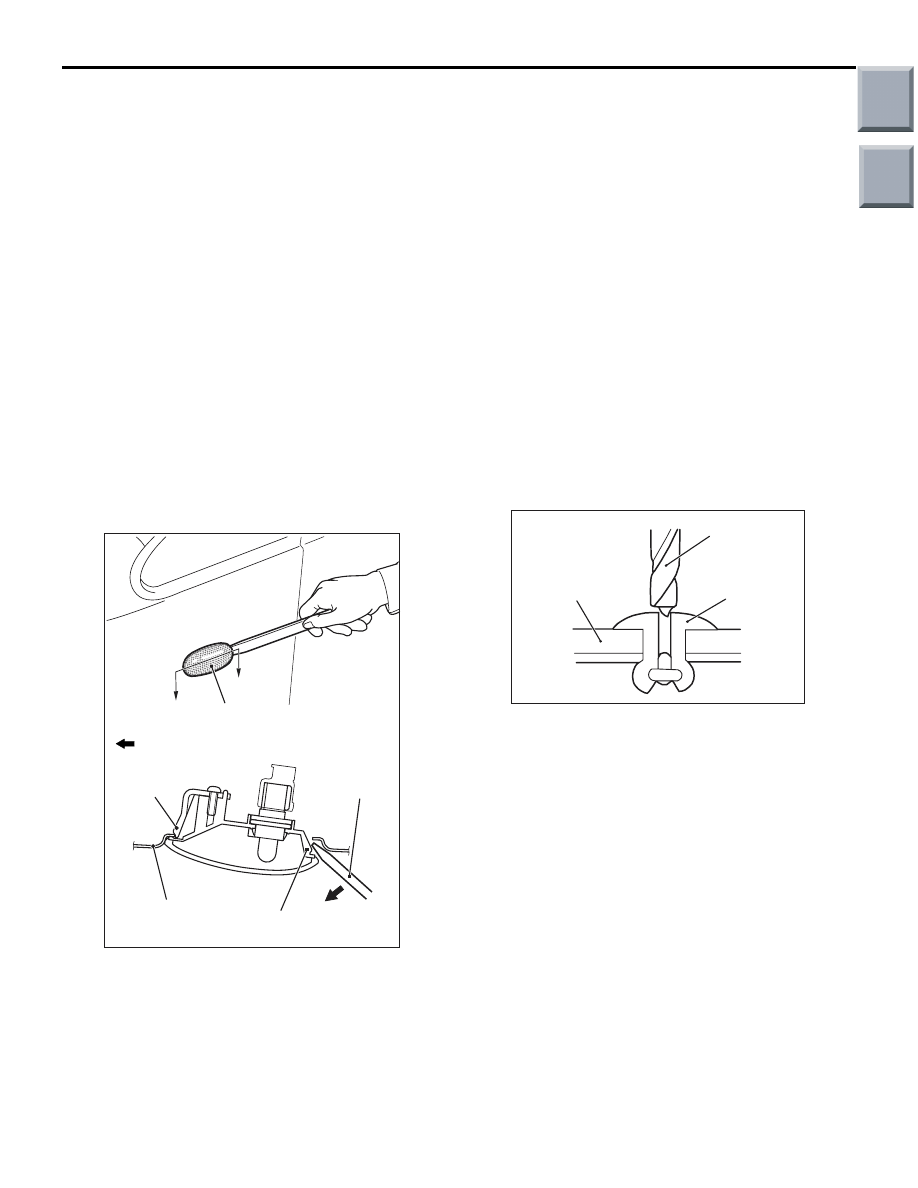

REMOVAL SERVICE POINT
<<A>> SIDE TURN -SIGNAL LAMP
REMOVAL

AC207528

Claw

Fender panel

AC

: Front of vehicle

MB990784

Section A – A

A

A

Hook

Side turn signal lamp

Insert the special tool Ornament Remover
(MB990784) as shown to compress the hook and
then disengage the claw. Then remove the side turn
signal lamp.

<<B>> RIVET REMOVAL

AC303663AH

Rivet

Drill

Upper frame to
front pillar brace

Use a drill (4.0 mm) to make a hole in the rivet to
break it, and then remove the rivet.

Fender removal steps (Continued)

Main

Index

Group

TOC

FENDER

BODY

42-9

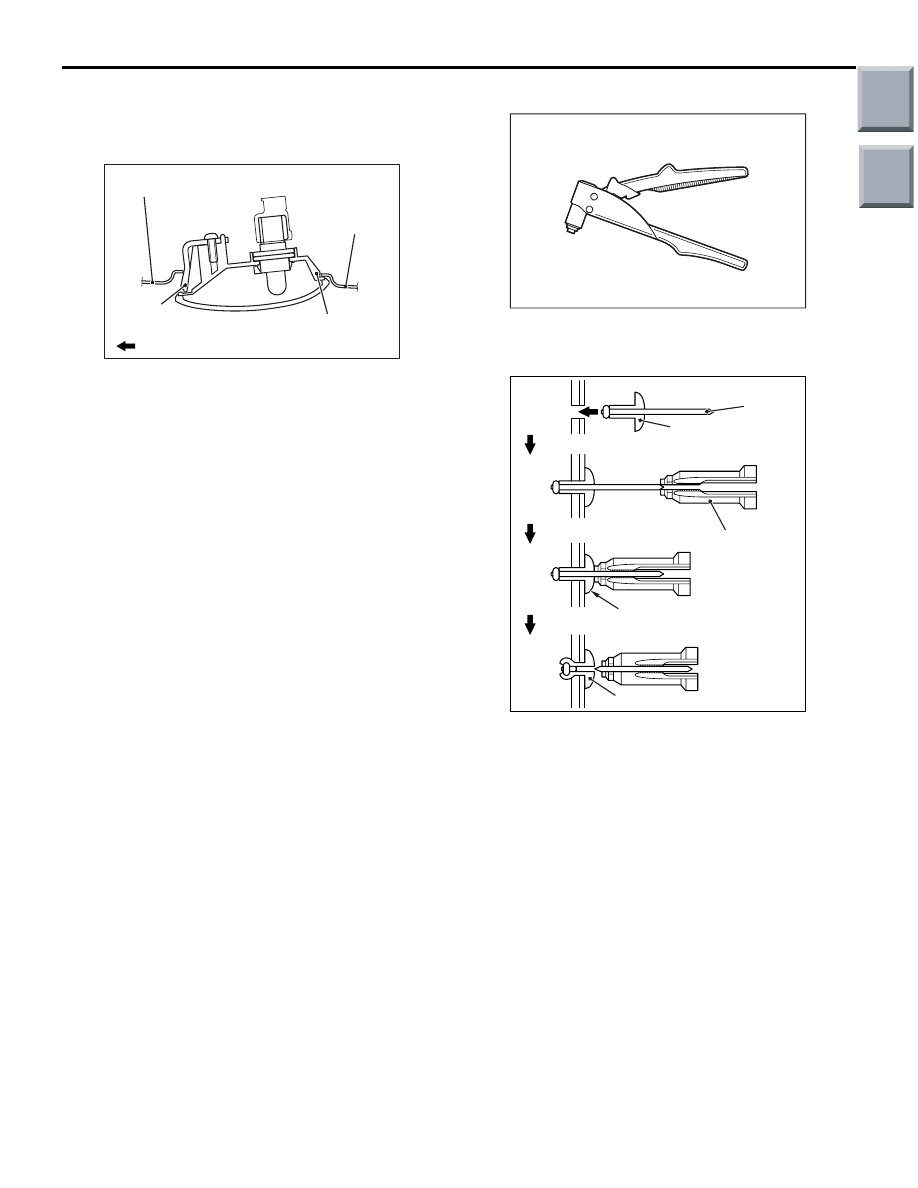

INSTALLATION SERVICE POINT
>>A<< SIDE TURN -SIGNAL LAMP
INSTALLATION

AC207529

Hook

Fender panel

Claw

Fender panel

AC

: Front of vehicle

Engage the claw and then the hook into the fender
panel to install the side turn signal lamp.

>>B<< RIVET INSTALLATION

AC205819AB

Recommended tool

Use recommended tool shown in the illustration to
connect the rivet by the following procedure.

AC601325

AC

1

2

3

4

Section A

Flange

Rivet

Rivet

Recommended
tool

1. Insert the rivet into the base material (upper frame

to front pillar brace and front fender side bracket).

2. Place the recommended tool over section A of the

rivet.

3. While pushing the flange surface of the rivet with

the recommended tool, press the handle of the
tool.

4. The thin part of section A of the rivet will break

and the rivet will then be attached.
