FUEL FILLER LID

BODY

42-10

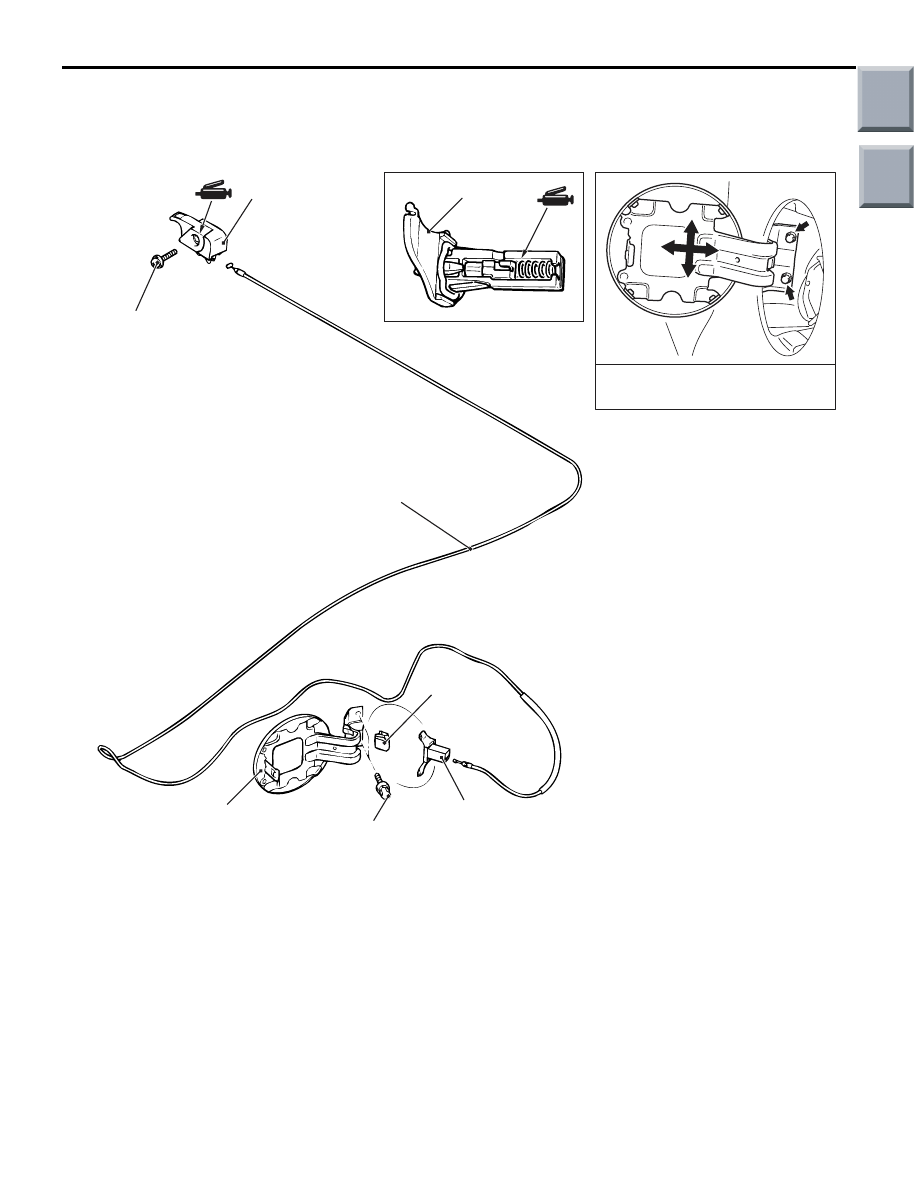

FUEL FILLER LID

REMOVAL AND INSTALLATION

M1421002500426

AC207527AC

4

3

4

2

1

5

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

Fuel filler lid height and clearance
adjustment

Removal steps

1.

Fuel filler lid panel assembly

2.

Fuel filler lid damper spring

•

Front scuff plate, Rear scuff plate,
Centre pillar trim lower (Refer to
GROUP 52A, Interior Trim

P.52A-11

).

3.

Fuel filler lid lock release handle

•

Front seat <Driver's side> (Refer to
GROUP 52A, Front Seat

P.52A-20

).

•

Rear seat (Refer to GROUP 52A,
Rear Seat

P.52A-27

).

•

Quarter trim lower (Refer to
GROUP 52A, Interior Trim

P.52A-11

).

4.

Fuel filler lid hook

5.

Fuel filler lid lock release cable

Removal steps (Continued)

Main

Index

Group

TOC

STRUT TOWER BAR <4G1>

BODY

42-11

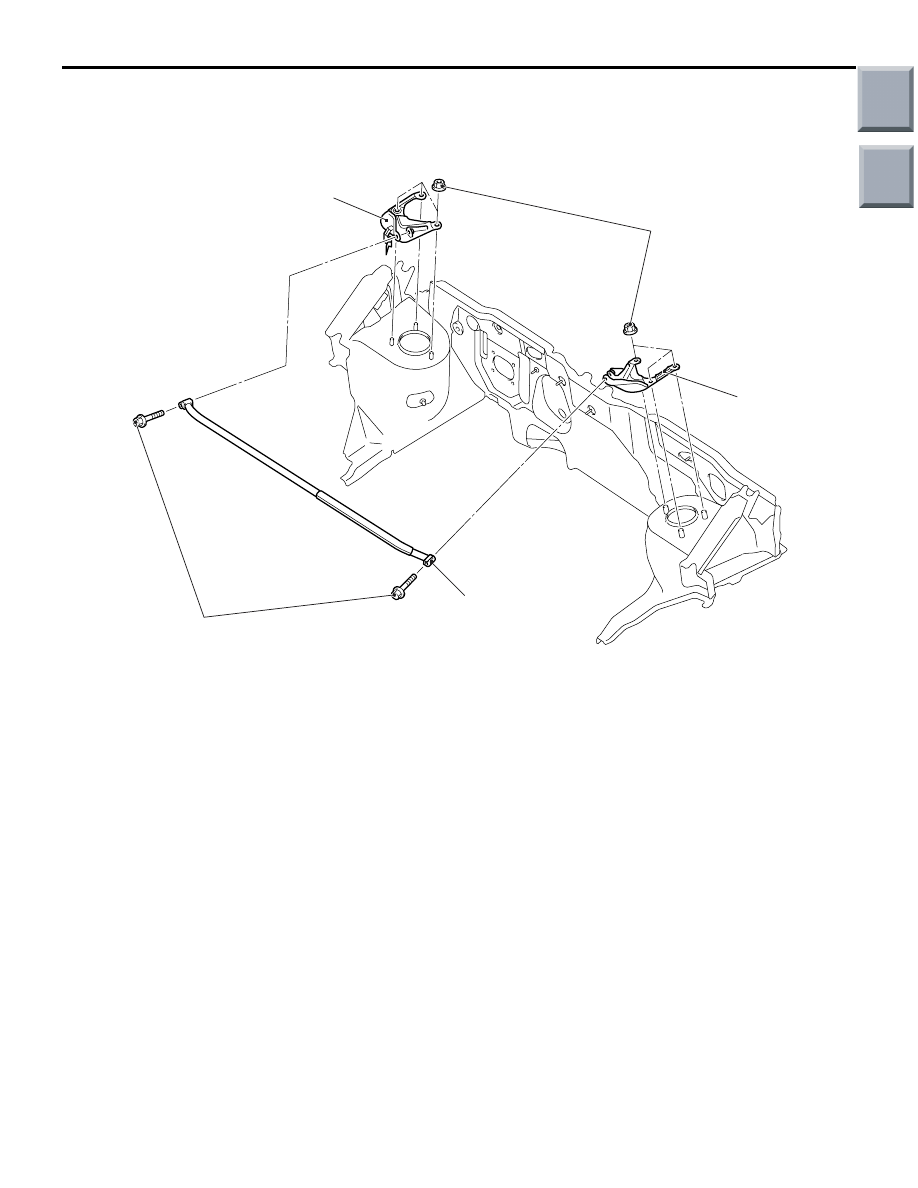

STRUT TOWER BAR <4G1>

REMOVAL AND INSTALLATION

M1421005600187

AC402174

AB

1

2

2

50 ± 5 N·m

44 ± 5 N·m

Removal steps

1.

Strut tower bar

•

Cowl top panel (Refer to

P.42-81

.)

2.

Strut stiffener plate

Removal steps (Continued)

Main

Index

Group

TOC

PROTECTOR FILM

BODY

42-12

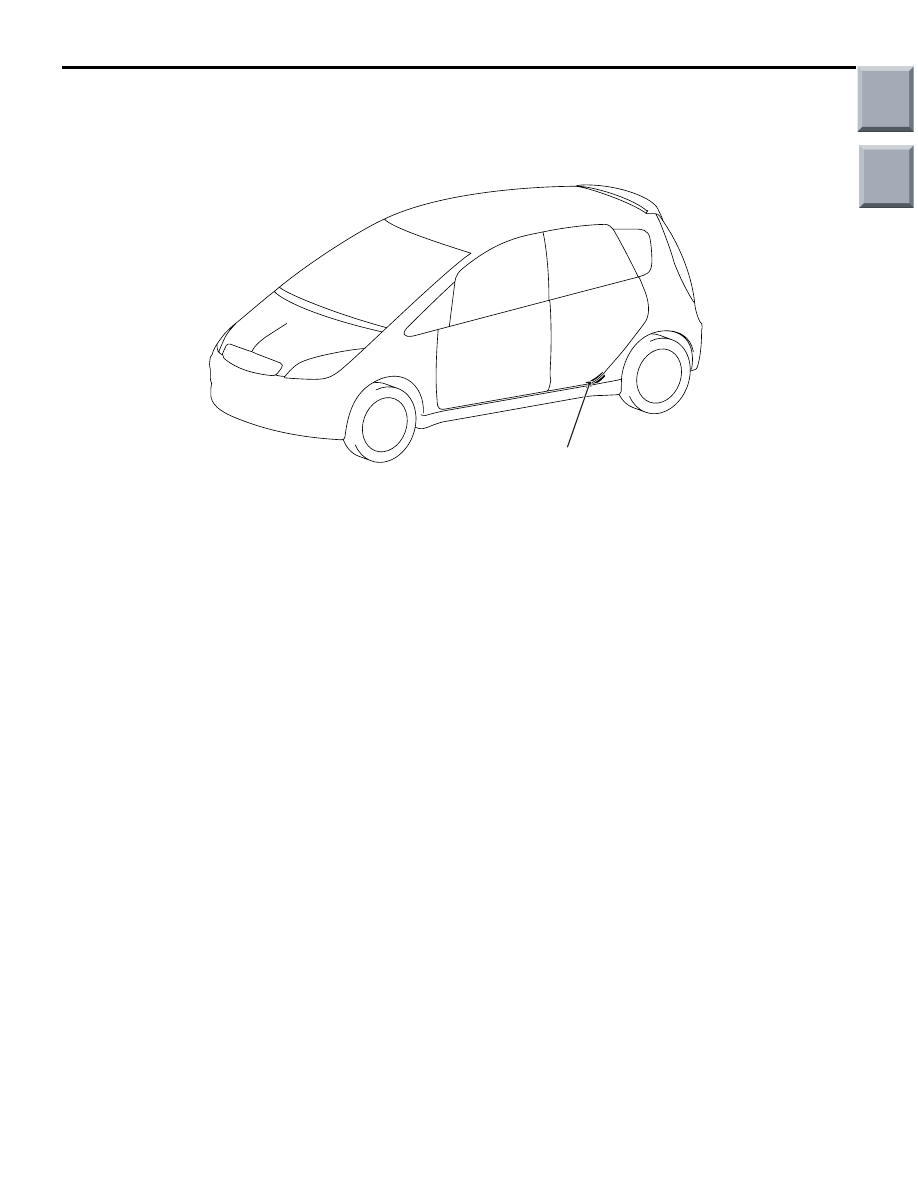

PROTECTOR FILM

REMOVAL AND INSTALLATION

M1421007800132

AC206464

AB

1

Removal

>>

A

<<

1.

Protector film A <Vehicles without
side air dam>

Main

Index

Group

TOC

PROTECTOR FILM

BODY

42-13

INSTALLATION SERVICE POINT
>>A<<PROTECTOR FILM A INSTALLA-
TION

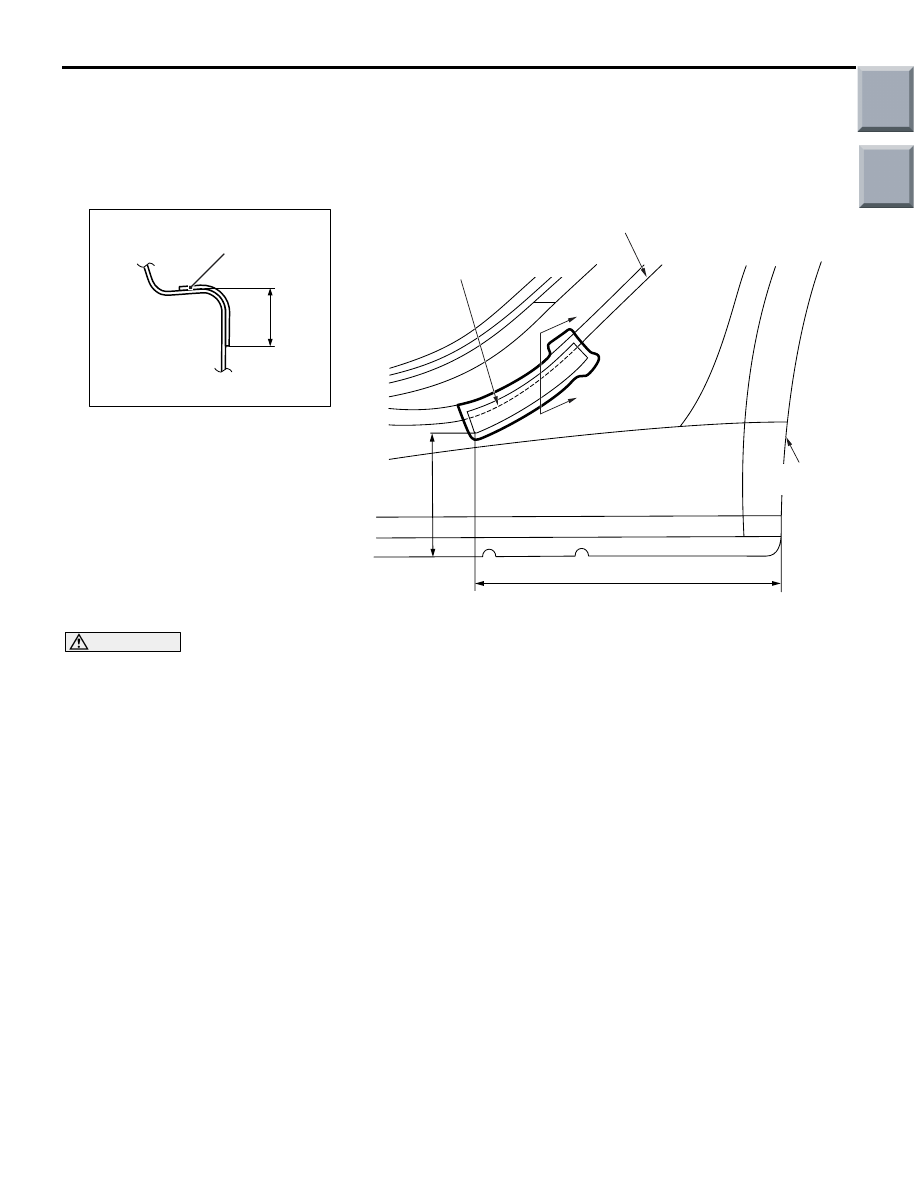

1.  Installation point

AC207652

AC

Door opening line on side sill

250 mm

100 mm

10 mm
or more

Section C – C

Protector film A

C

C

(1) Protector film A

Align the stitch line on protector
film A backing paper with the side
sill door opening line.

End of
side sill

CAUTION

• The ambient temperature should be 20 to

38

°C. Ensure that the working area is clean.

• If ambient temperature is less than 20°C, heat

the protector film and application surface to a
temperature of 20 to 30

°C.

• Be careful that air bubbles are not formed

under the protector film.

2. Installation procedure

(1) Use isopropyl alcohol to degrease the

protector film application surface.

(2) Remove backing paper from the protector film,

and apply the film to the specified position.
