ROOF ANTENNA

CHASSIS ELECTRICAL

54A-121

ROOF ANTENNA

REMOVAL AND INSTALLATION

M1544006400087

AC401969

AB

1

2

3

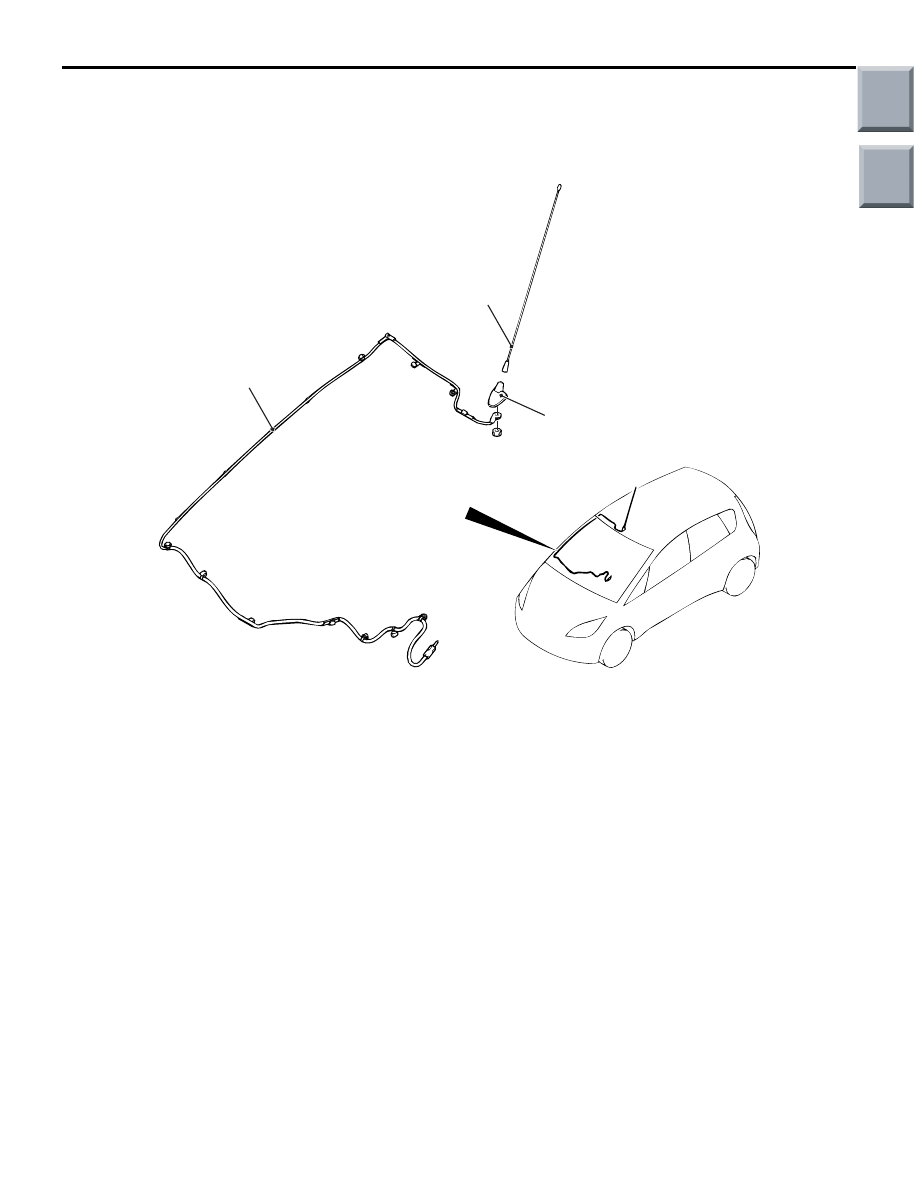

Removal steps

1.

Roof antenna pole

•

Headlining (Refer to GROUP 52A,
Headlining

P.52A-16

.)

2.

Roof antenna base

•

Instrument panel assembly (Refer
to GROUP 52A, Instrument panel
assembly

P.52A-3

.)

3.

Antenna feeder cable

Removal steps (Continued)

Main

Index

Group

TOC

DEFOGGER

CHASSIS ELECTRICAL

54A-122

DEFOGGER

TROUBLESHOOTING

M1543019600419

Refer to GROUP 55A, Troubleshooting

P.55A-10

.

ON-VEHICLE SERVICE

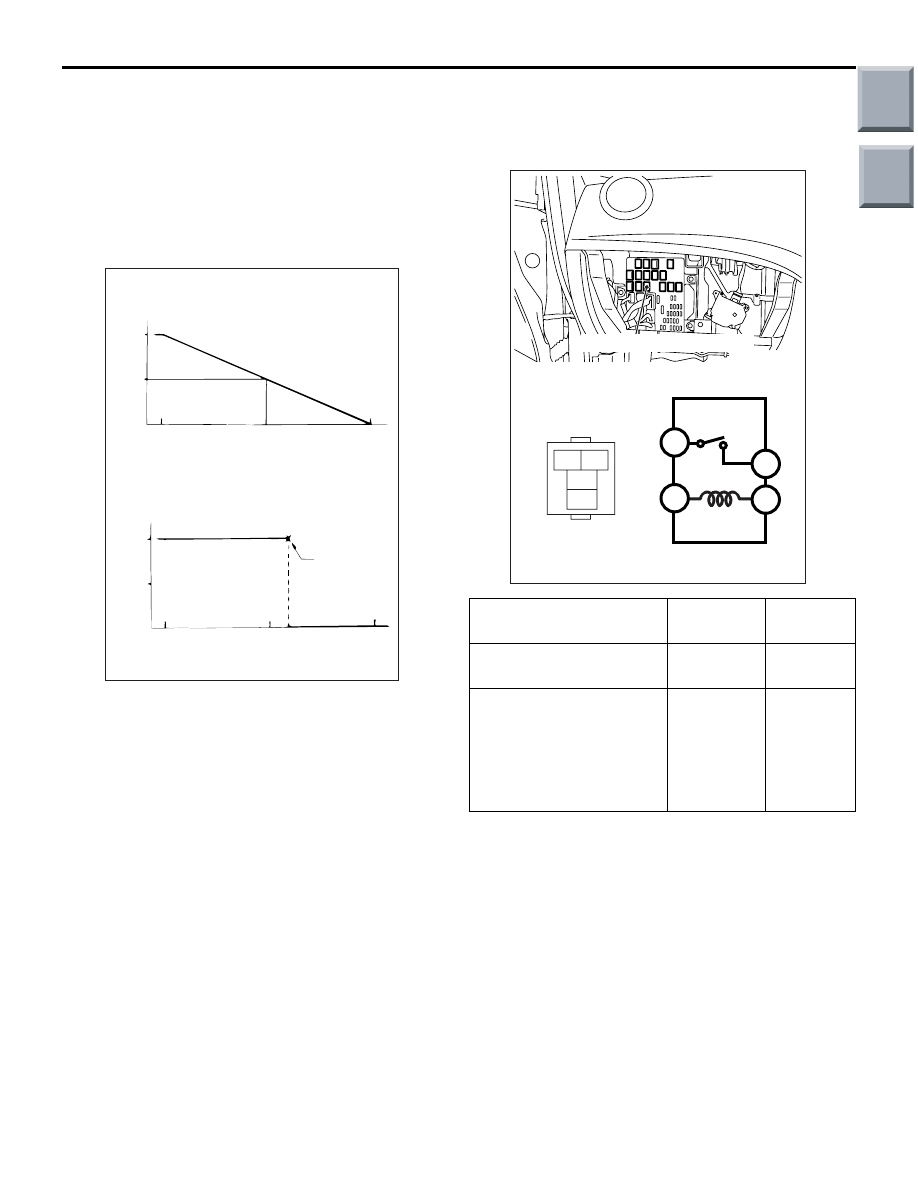

PRINTED HEATER LINES CHECK

M1543019504618

ACX00813

Approximately 6 V

AE

12 V

6 V

0 V

12 V

6 V

0 V

Voltage

A (Centre point)

Positive
terminal

Voltage

Open
circuit
point

Print heater line

Normal characteristic curve

Abnormal characteristic curve

Positive
terminal

Negative
terminal

Negative
terminal

Print heater line

1. Run engine at 2,000 r/min. Check heater element

with battery at full.

2. Turn "ON" rear window defogger switch. Measure

heater element voltage with circuit tester at rear
window glass centre A. Condition is good if it
indicates about six volts.

3. If 12 volts is indicated at A, there is a break in the

negative terminals from A. Move test bar slowly to
negative terminal to detect where voltage
changes suddenly (0 volts).

4. If 0 volts is indicated at A, there is a break in the

positive terminals from A. Defect where the
voltage changes suddenly (12 volts) in the same
method described above.

REAR WINDOW DEFOGGER RELAY
CHECK

AC208719

;

AO

2

4

1

3

3

1

4

2

Rear window defogger relay

Battery voltage

Tester
connection

Specified
condition

Not supplied

3

− 4

Open
circuit

• Connect terminal1 to

the positive battery
terminal

• Connect terminal 2 to

the negative battery
terminal

3

− 4

Continuity
exists (2

Ω

or less)

Main

Index

Group

TOC

DEFOGGER SWITCH

CHASSIS ELECTRICAL

54A-123

DEFOGGER SWITCH

REMOVAL AND INSTALLATION

M1543030800065

<VEHICLES WITH MANUAL AIR CONDI-
TIONER>

Refer to GROUP 55A, Heater Control Assembly

P.55A-54

.

<VEHICLES WITH AUTOMATIC AIR CON-
DITIONER>

Refer to GROUP 55B, Automatic Air Conditioner
Panel Assembly

P.55B-29

.
