RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-117

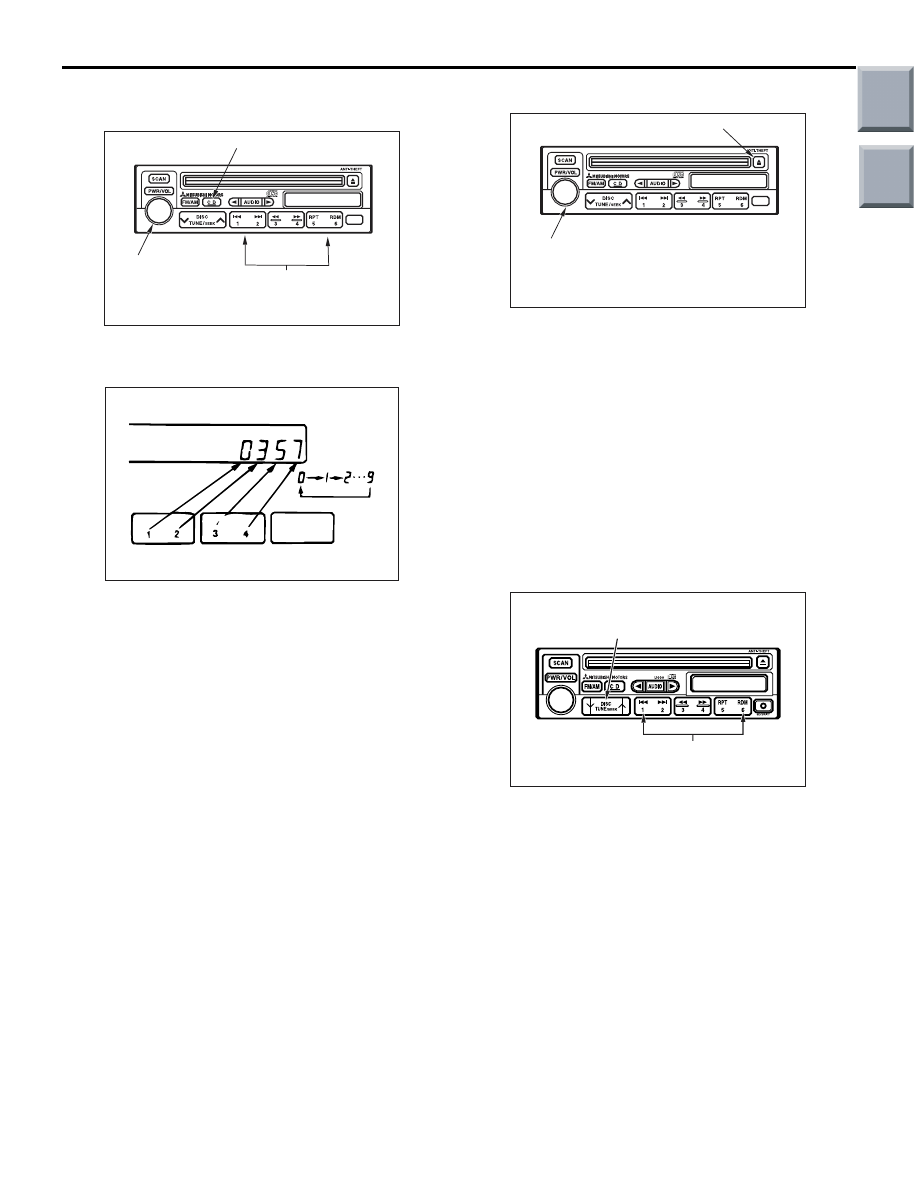

3. Turn the ignition key to the "ACC" or "ON"

position.

P901

AC211324 AB

CD button

Power button

Memory select
button (1, 6)

4. Press the "PWR" button, and "CODE" will be

displayed.

ACX01948

5. Press number 1 through number 4 memory select

button to set the four-digit security code shown on
the card. Every time each digit key is pressed, the
figure changes as follows: 0 to 1 to 2 to 3 to 4 to 5
to 6 to 7 to 8 to 9 to 0

6. Press the "CD" button, and a beep will be heard. If

entered correctly, the radio and CD player will
work.

7. If the security code is not accepted, "1Err" is

displayed. In a few seconds, it will change to
"CODE." Then repeat steps 5 and 6.
NOTE:

.

•

The anti-theft system will allow three attempts
maximum to input the correct code.

•

The second error is displayed as "2 Err."
When the third error is made, "3 Err" is dis-
played and then the display changes to "OFF."
If this should occur, the unit will not work any
more.

•

To input the security code again, turn the igni-
tion switch to the "ACC" or "ON" position and
wait for one hour when "OFF" is displayed.
After "OFF" disappears on the display and
changes into "CODE" the security code can be
input again.

THREE-MINUTE OPERATION MODE

P901

AC211324 AC

Eject button

Power button

To facilitate replacement or check, the radio and CD
player can be operated for three minutes without
inputting the security code.
1. Press the "PWR" button and "EJECT" button

together to operate the radio and CD player.

2. In three minutes the unit will not be able to work.

Then the radio and CD player will be switched off.

SPEAKER TEST

M1544005400396

Enter the speaker test mode according to the follow-
ing steps:
1. Turn the Ignition switch to the "ACC" or "ON"

position and switch off the radio and CD player.

AC401635

Memory select button (1, 6)

TUNE/SEEK button

Radio and CD player

AB

2. Press the following buttons in that order within

sixty seconds from step (1).
(1) Memory select "1" button
(2) "TUNE/SEEK (DOWN)" button
(3) "TUNE/SEEK (UP)" button
(4) Memory select "6" button

Main

Index

Group

TOC

ACX01941

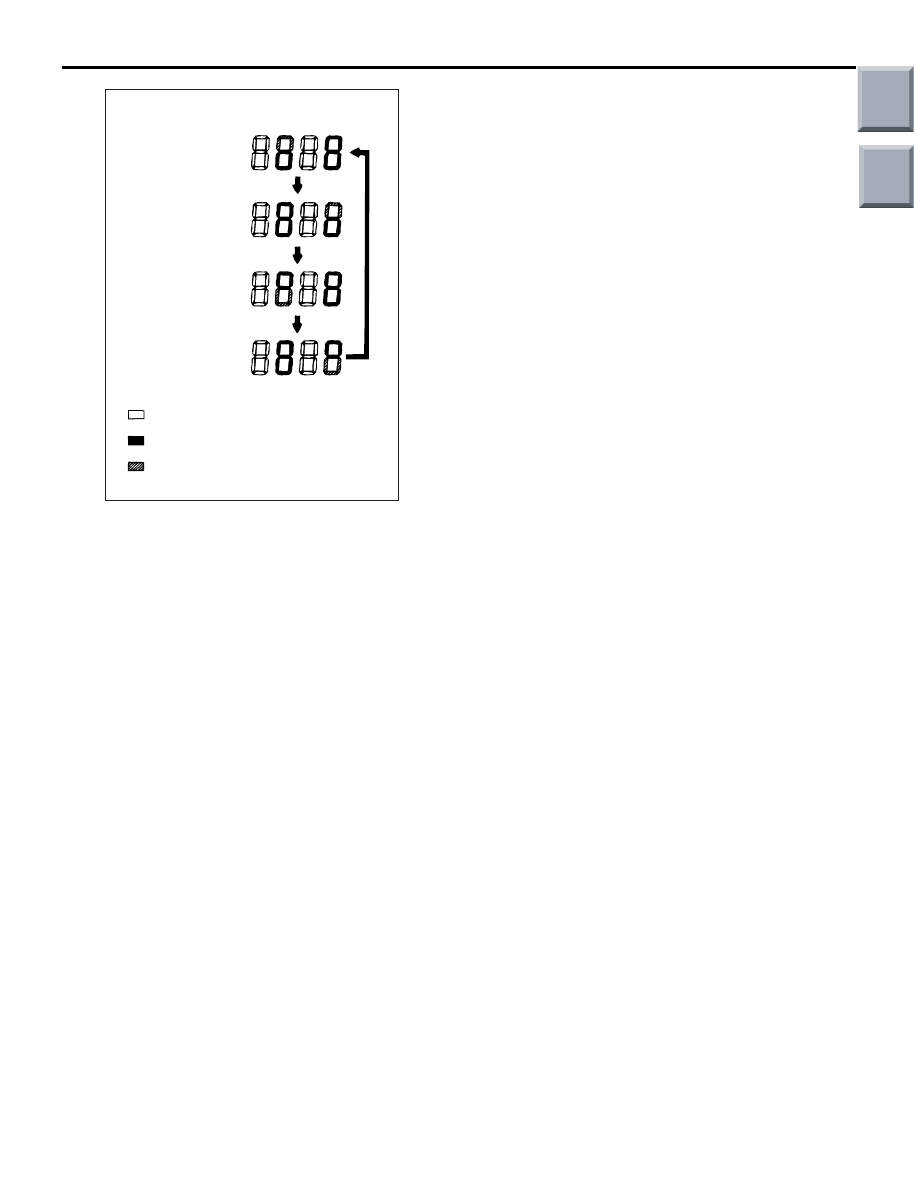

Front speaker and
tweeter (LH)

Rear speaker (LH)

Illuminates

Front speaker and
tweeter (RH)

Rear speaker (RH)

Off

Flash

AF

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-118

3. Check that the speaker, which is displayed on the

radio panel display, sounds (If the memory select
"6" button is pressed, the speaker will be
changed).

4. If a button other than the memory select "6" button

and "EJECT" button (CD) is pressed, or the
ignition switch is turned to "LOCK" (OFF) position,
you will exit from the speaker test mode.

Main

Index

Group

TOC

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-119

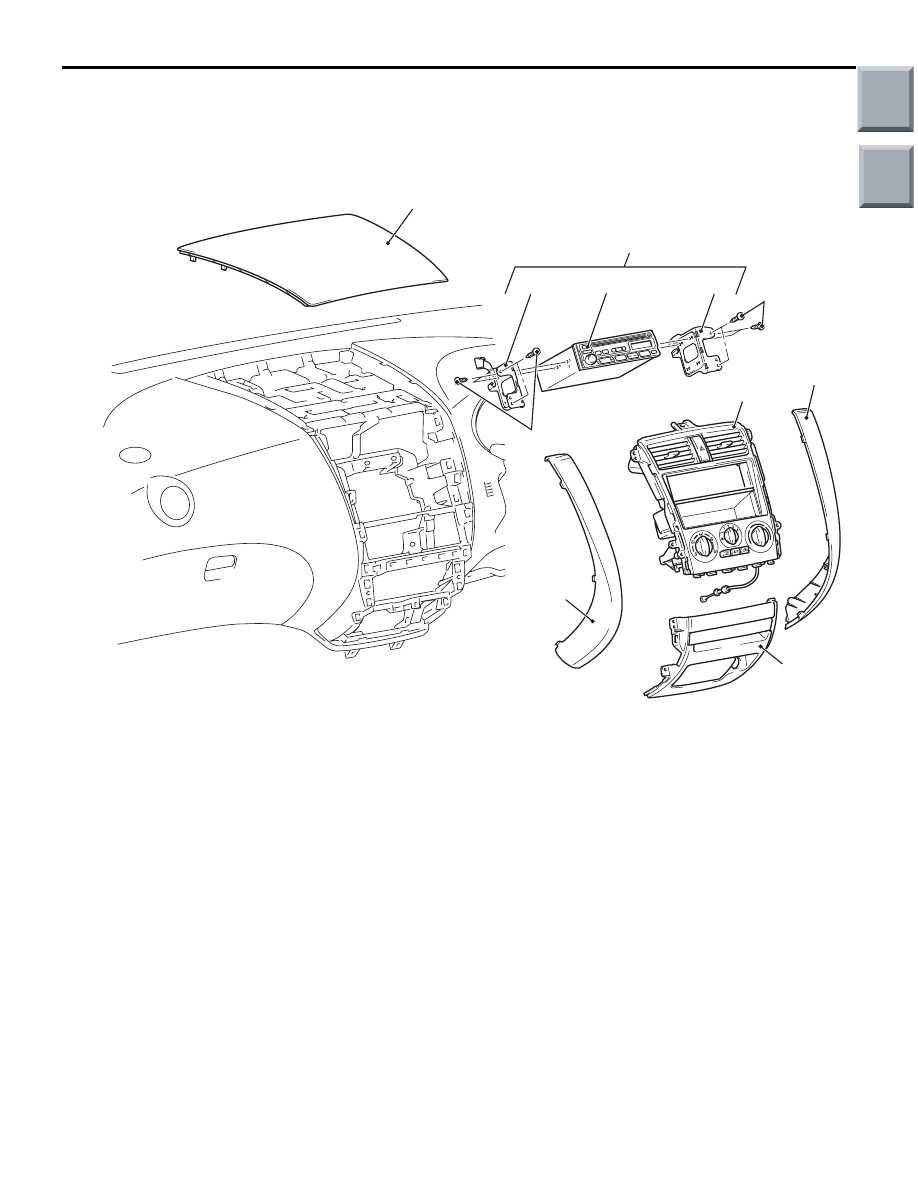

RADIO AND CD PLAYER

REMOVAL AND INSTALLATION

M1544011500024

AC401634 AB

1

2

2

3

4

5

6

6

7

1.5 ± 0.5 N·m

1.5 ± 0.5 N·m

Removal steps

1.

Upper centre panel (Refer to
GROUP 52A, Instrument Panel
Assembly

P.52A-3

.)

2.

Console panel (Refer to GROUP
52A, Instrument Panel Assembly

P.52A-3

.)

3.

Lower contre panel (Refer to
GROUP 52A, Instrument Panel
Assembly

P.52A-3

.)

4.

Heater control panel (Refer to
GROUP 52A, Instrument Panel
Assembly

P.52A-3

.)

5.

Radio and CD player assembly

6.

Bracket

7.

Radio and CD player

Removal steps (Continued)

Main

Index

Group

TOC

SPEAKER

CHASSIS ELECTRICAL

54A-120

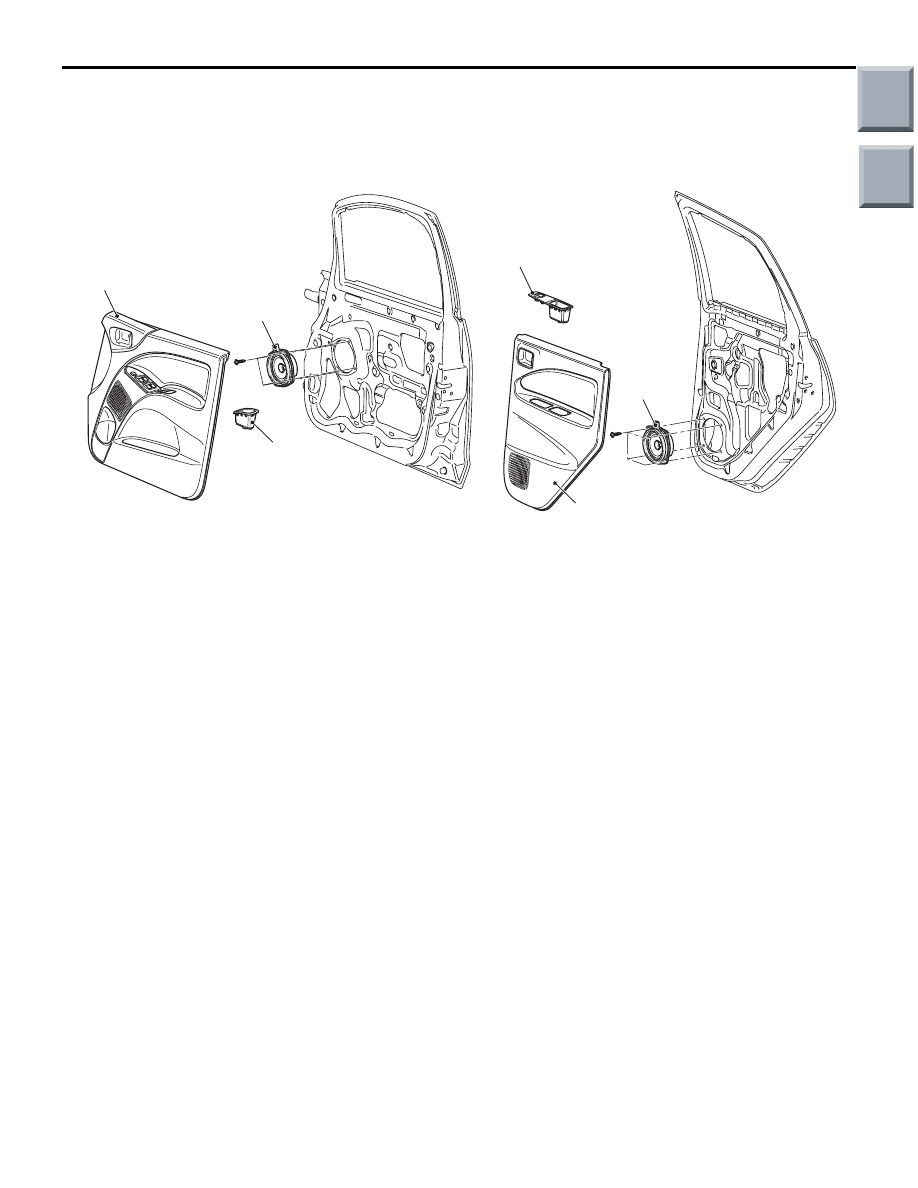

SPEAKER

REMOVAL AND INSTALLATION

M1544002600669

AC314155

1

2

AB

3

4

5

6

Front speaker removal steps

1.

Pull handle box

2.

Front door trim (Refer to GROUP
52A, Door trim

P.52A-13

.)

3.

Front speaker

Rear speaker removal steps

4.

Power window switch assembly

5.

Rear door trim (Refer to GROUP
52A, Door trim

P.52A-13

.)

6.

Rear speaker
