Mitsubishi Colt Ralliart. Manual - part 485

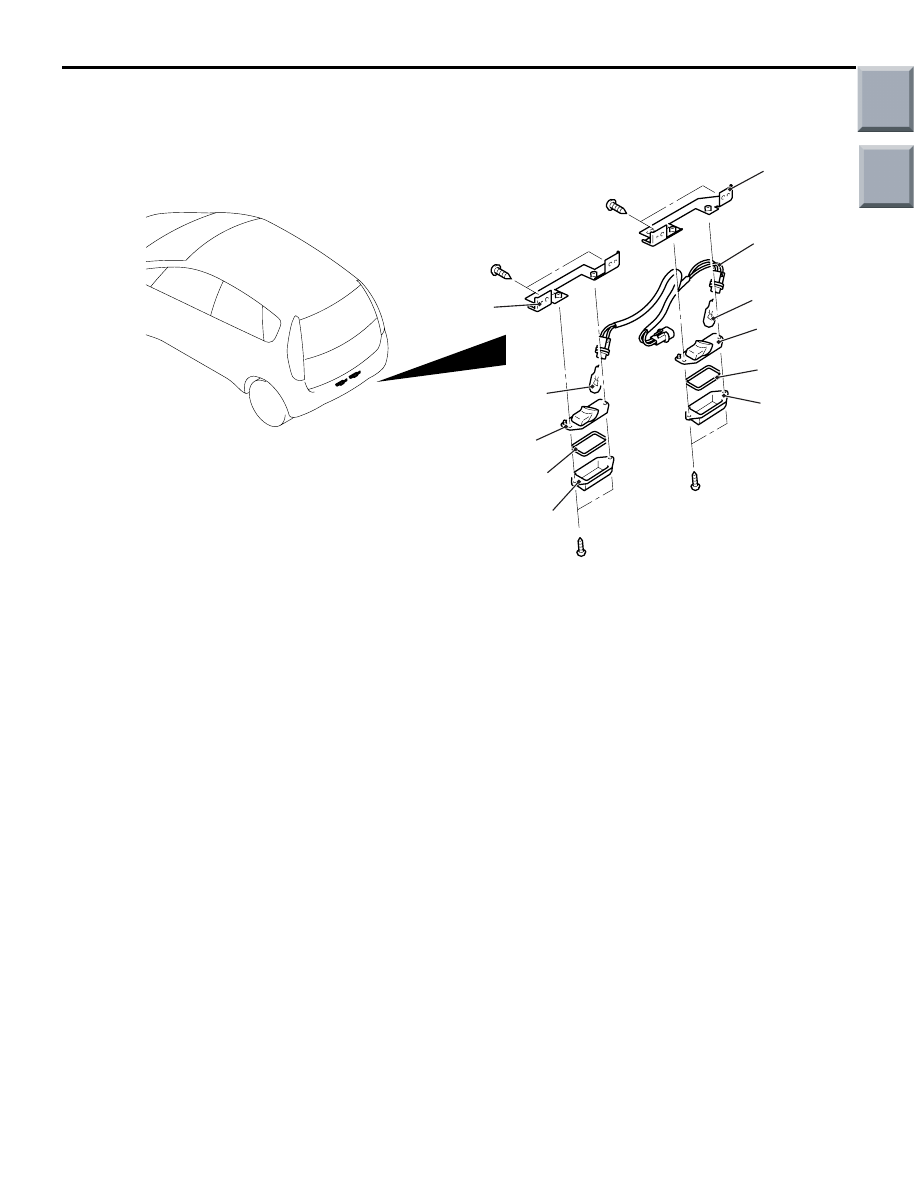

LICENCE PLATE LAMP

CHASSIS ELECTRICAL

54A-85

LICENCE PLATE LAMP

REMOVAL AND INSTALLATION

M1542004200337

AC401631

1

2

3

4

6

1

2

3

4

5

6

AB

Removal steps

1.

Licence plate lamp lens

2.

Packing

3.

Licence plate lamp body

4.

Bulb

5.

Harness

•

Rear bumper assembly (GROUP
51, Rear bumper assembly

P.51-7

.)

6.

Bracket

Removal steps (Continued)

Main

Index

Group

TOC

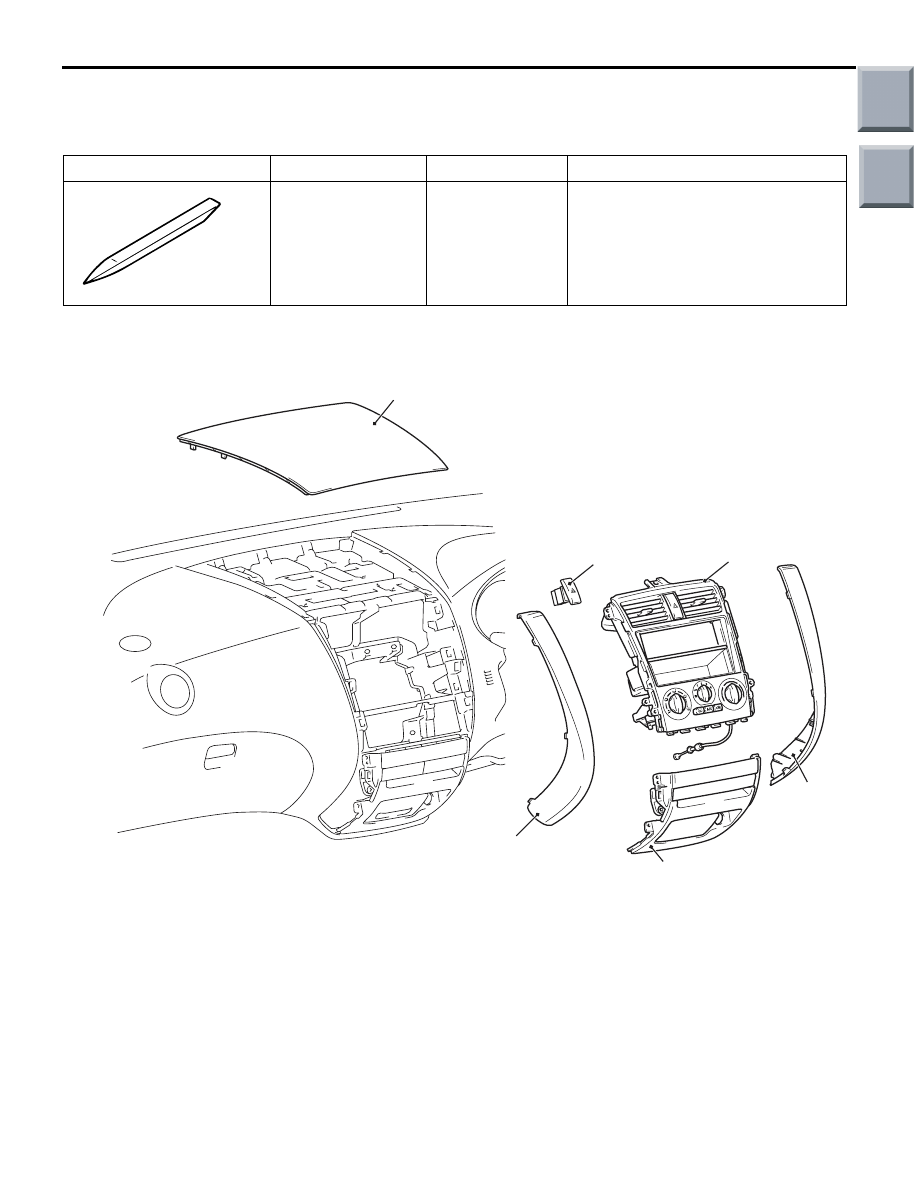

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-86

HAZARD WARNING LAMP SWITCH

SPECIAL TOOL

M1542000601466

Tool

Number

Name

Use

MB990784

MB990784

Ornament
remover

Removal of upper centre panel,
console panel, lower centre panel
and centre panel assembly

REMOVAL AND INSTALLATION

M1542006600643

AC401967

3

5

2

2

4

1

AB

Removal steps

1.

Upper centre panel (Refer to
GROUP 52A, Instrument panel
assembly

P.52A-3

.)

2.

Console panel (Refer to GROUP
52A, Instrument panel assembly

P.52A-3

.)

3.

Lower centre panel (Refer to
GROUP 52A, Instrument panel
assembly

P.52A-3

.)

4.

Heater control panel (Refer to
GROUP 52A, Instrument panel
assembly

P.52A-3

.)

5.

Hazard warning lamp switch

Removal steps (Continued)

Main

Index

Group

TOC

HORN

CHASSIS ELECTRICAL

54A-87

INSPECTION

M1542011202755

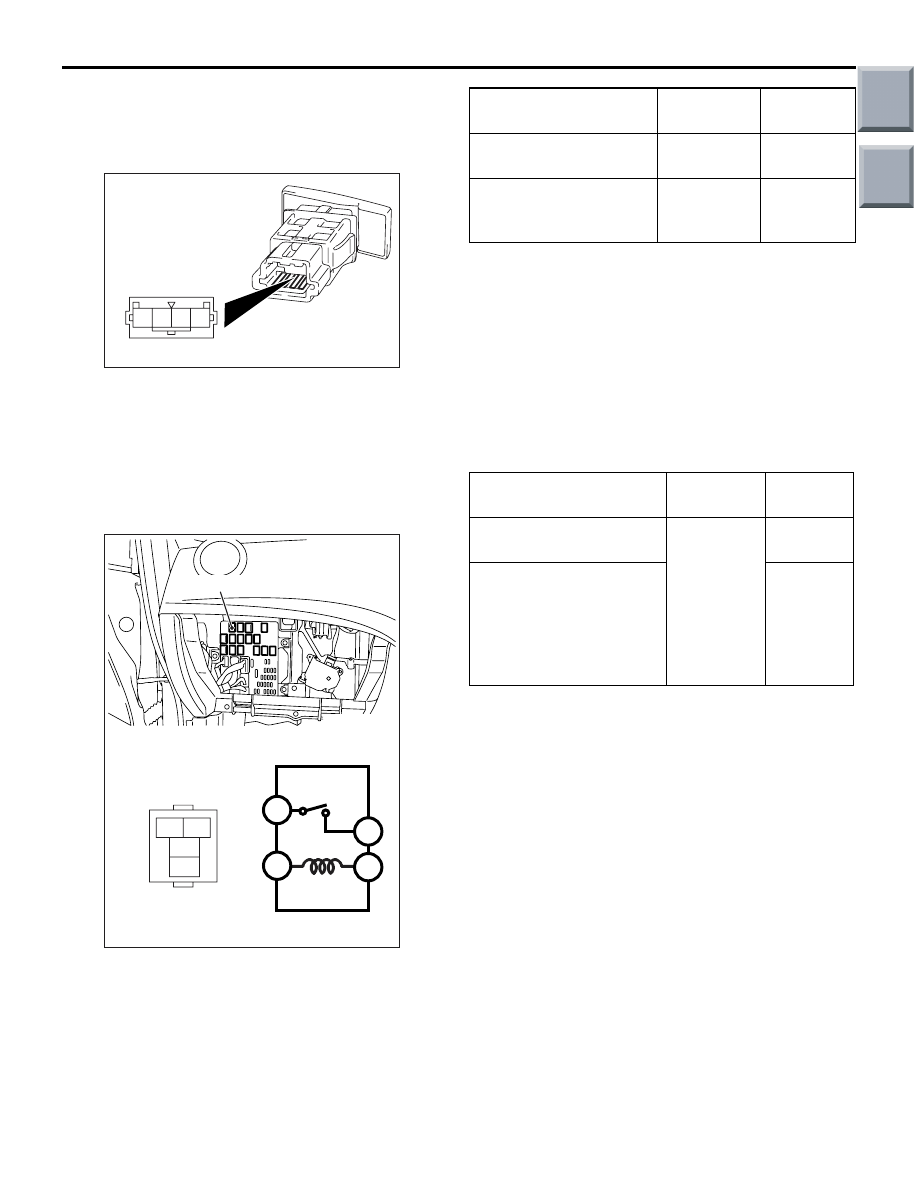

HAZARD WARNING LAMP SWITCH CON-
TINUITY CHECK

AC206401

3 4

1 2

AB

Switch position

Tester
connection

Specified
condition

Released

1

− 2

Open
circuit

Pressed

1

− 2

Continuity
exists (2

Ω

or less)

HORN

INSPECTION

M1543019504599

HORN RELAY CONTINUITY CHECK

AC208719

;

AQ

2

4

1

3

3

1

4

2

Horn relay

Battery voltage

Tester
connection

Specified
condition

Not applied

3

− 4

Open
circuit

• Connect terminal 1 to

the positive battery
terminal

• Connect terminal 2 to

the negative battery
terminal

Continuity
exists (2

Ω

or less)

Main

Index

Group

TOC

CIGARETTE LIGHTER

CHASSIS ELECTRICAL

54A-88

CIGARETTE LIGHTER

INSPECTION

M1543019503187

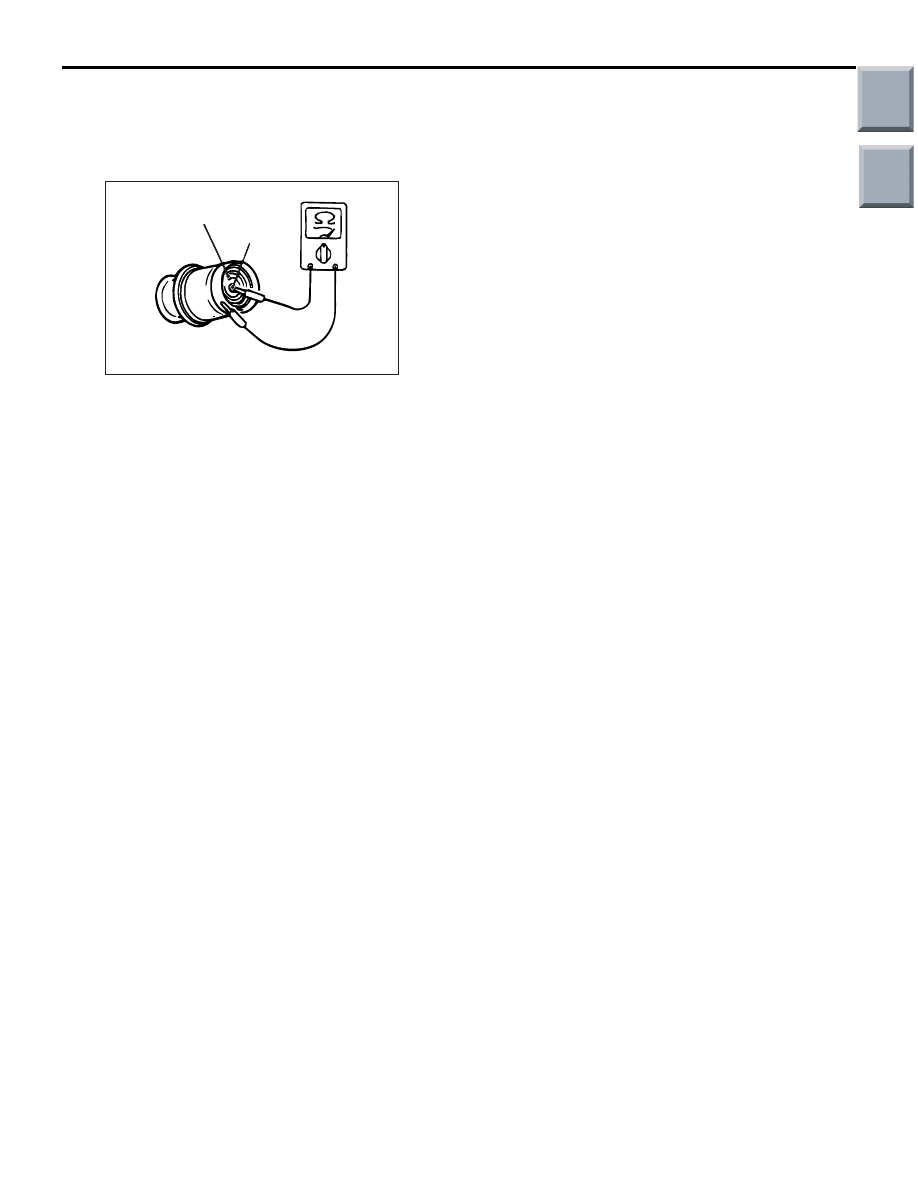

CIGARETTE LIGHTER CHECK

ACX01832AE

Element

Spot

• Take out the plug, and check for a worn edge on

the element spot connection, and for shreds of
tobacco or other material on the element.

• Using an ohmmeter, check that the element

resistance value is 1.7 ohms.
