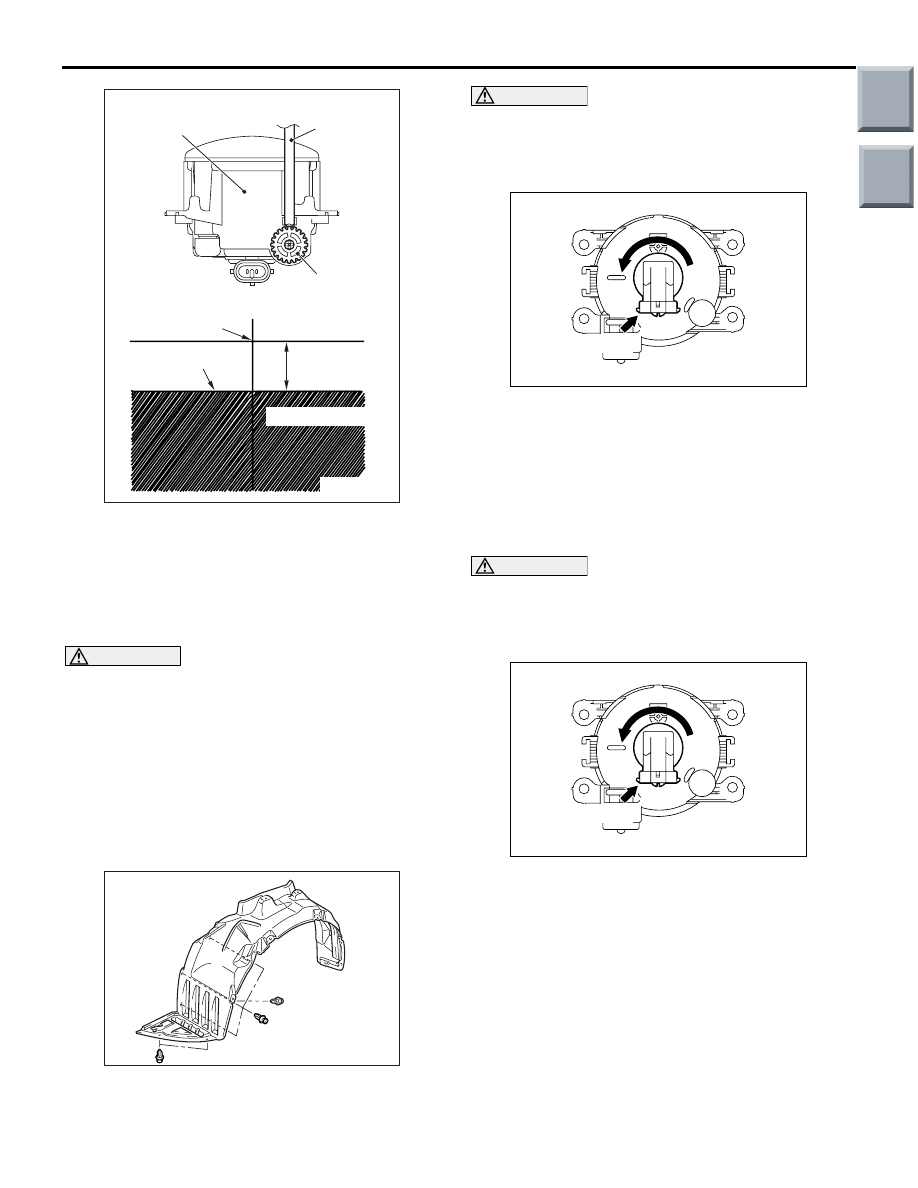

AC600650

Phillips
screwdriver

Lamp centre

High intensity zone

Cut off line

Vertical direction

AE

H

 V

Adjusting
screw

Fog lamp unit

FOG LAMP

CHASSIS ELECTRICAL

54A-77

7. Adjust the cut off line (boundary between light and

dark) position to the standard value with the
adjusting screw.

Standard value:
(Vertical direction) 60 mm (1.15

°) below hori-

zontal (H)

CAUTION

When marking the aiming adjustment, be sure to
mask those lamps which are not being adjusted.
NOTE: The horizontal direction is non-adjustable. If
the deviation of the light beam axis exceeds the
standard value, check to be sure that the mounting
location or some other point is not defective.

BULB REPLACEMENT

M1542001301639

<EXCEPT FOR RALLIART VERSION-R>

AC209035

1. Remove the splash shield assembling bolts and

clips as shown.

CAUTION

Don't touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, clean it with alcohol or thinner immediately
and dry well, and then install it.

AC403172

Fog lamp bulb

AC

2. Disconnect the connector and withdraw the bulb.
3. Replace the valve, and connect securely the

connector.

<RALLIART VERSION-R>

1. Remove the front fog lamp bezel.
2. Remove the front fog lamp assembly.

CAUTION

Don't touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, clean it with alcohol or thinner immediately
and dry well, and then install it.

AC403172

Fog lamp bulb

AC

3. Disconnect the connector and withdraw the bulb.
4. Replace the valve, and connect securely the

connector.

Main

Index

Group

TOC

FOG LAMP

CHASSIS ELECTRICAL

54A-78

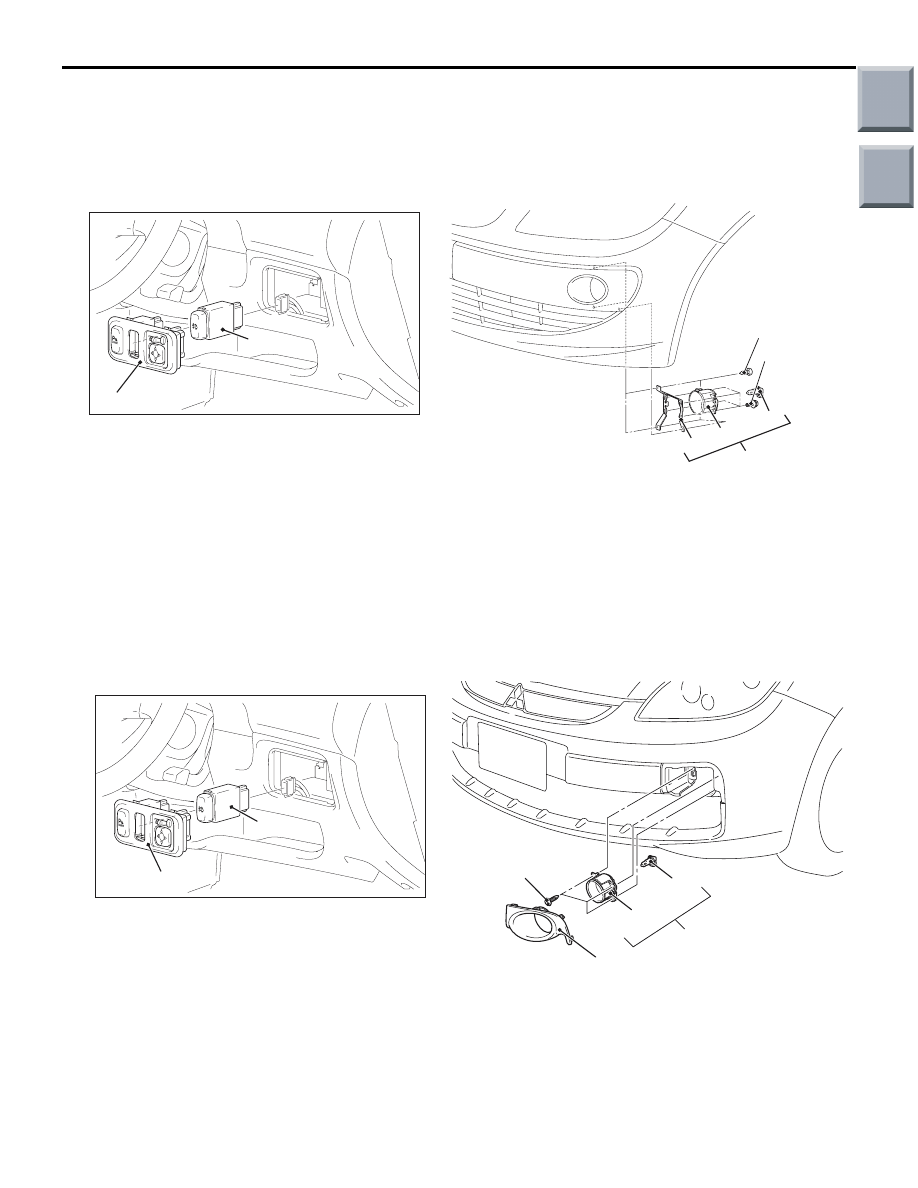

FOG LAMP

REMOVAL AND INSTALLATION

M1542001500986

<EXCEPT FOR RALLIART VERSION-R>

AC601155

0.9 ± 0.1 N·m

2.5 ± 0.3 N·m

AB

1

2

4

5

6

3

Fog lamp switch removal steps

1.

Switch panel

2.

Fog lamp switch
Fog lamp removal steps

<<

A

>>

3.

Fog lamp assembly

4.

Bulb

5.

Fog lamp unit

6.

Fog lamp bracket

<RALLIART VERSION-R>

AC601156

5

0.9 ± 0.1 N·m

3

4

6

1

2

AB

Fog lamp switch removal steps

1.

Switch panel

2.

Fog lamp switch

Fog lamp removal steps

3.

Front fog lamp bezel

4.

Front fog lamp assembly

5.

Fog lamp unit

6.

Bulb

Main

Index

Group

TOC

FOG LAMP

CHASSIS ELECTRICAL

54A-79

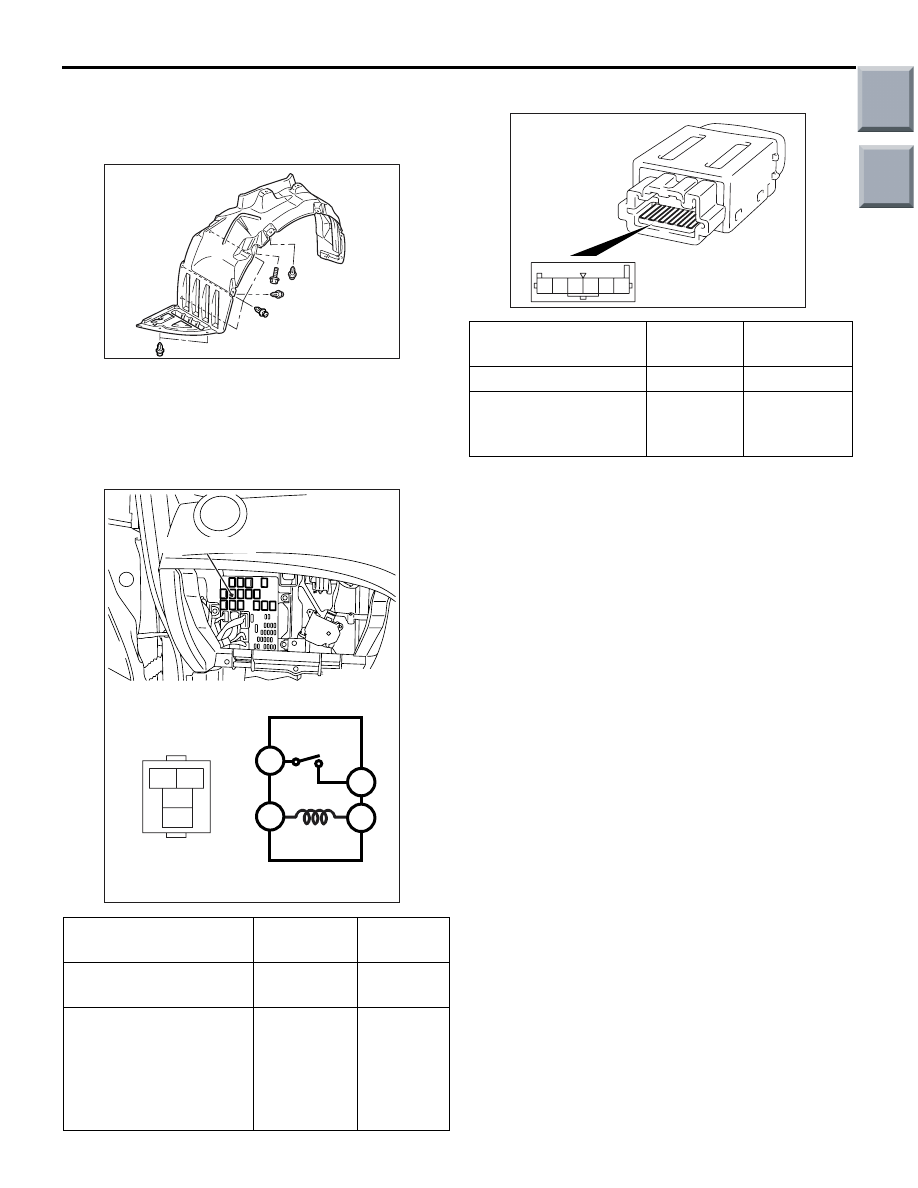

REMOVAL SERVICE POINT
<<A>>FOG LAMP ASSEMBLY REMOVAL
<EXCEPT FOR RALLIART VERSION-R>

AC206649

Remove the splash shield assembling bolts and clips
as shown.

INSPECTION

M1542011202744

FOG LAMP RELAY CONTINUITY CHECK

AC208719

;

AM

2

4

1

3

3

1

4

2

Fog lamp relay

Battery voltage

Tester
connection

Specified
condition

Not supplied

3

− 4

Open
circuit

• Connect terminal 1 to

the positive battery
terminal

• Connect terminal 2 to

the negative battery
terminal

3

− 4

Continuity
exists (2

Ω

or less)

FOG LAMP SWITCH CONTINUITY CHECK

AC206402

5 6

3

2

4

1

AB

Switch position

Terminal
number

Normal
conditions

OFF

1

− 2

Open circuit

ON

1

− 2

Continuity
exists (2

Ω or

less)

Main

Index

Group

TOC

SIDE TURN-SIGNAL LAMP

CHASSIS ELECTRICAL

54A-80

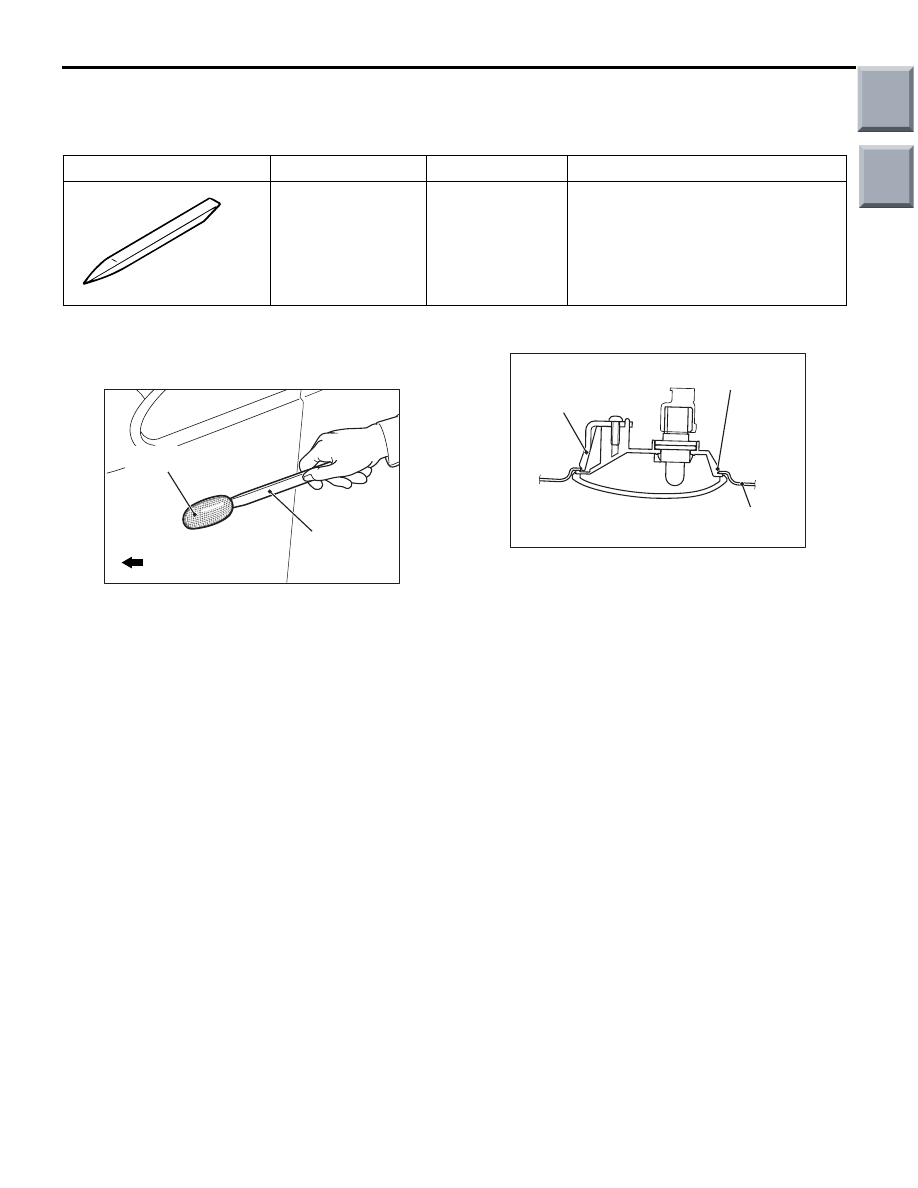

SIDE TURN-SIGNAL LAMP

SPECIAL TOOL

M1542000601433

Tool

Number

Name

Use

MB990784

MB990784

Ornament
remover

Removal of side turn-signal lamp

REMOVAL AND INSTALLATION

M1542012000156

REMOVAL SERVICE POINT

AC205704AC

Side turn-signal lamp

MB990784

: Front of vehicle

Use an appropriate tool such as MB990874 to pry
out the tab from the fender, and remove the side turn
signal lamp.

INSTALLATION SERVICE POINT

AC205705AC

Hook

Tab

Fender panel

Insert pawls into fender panel and install side
turn-signal lamp.

ROOM LAMP

ON-VEHICLE SERVICE

M1542000800605

HOW TO ADJUST THE ROOM LAMP
DELAY-OFF TIME

The room lamp delay-off time can be adjusted by the
smart wiring system (SWS). (Refer to GROUP 54C,
On-vehicle service

P.54C-240

.)
