REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-81

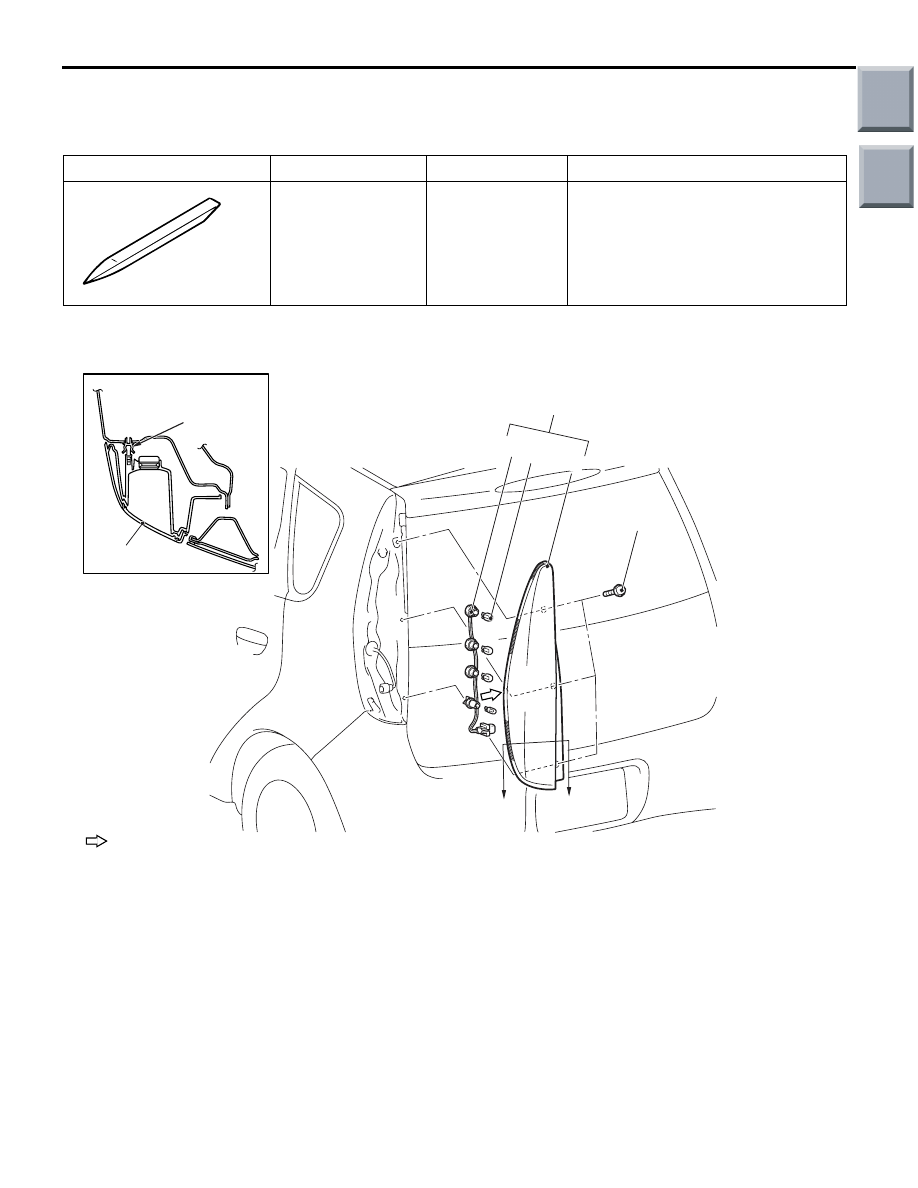

REAR COMBINATION LAMP

SPECIAL TOOL

M1542000601444

Tool

Number

Name

Use

MB990784

MB990784

Ornament
remover

Removal of rear combination lamp
assembly

REMOVAL AND INSTALLATION

M1542003900935

AC509608

A

2

4

3

1

A

AB

2.5 ± 0.3 N·m

NOTE
         : Clip Position

1

SECT A - A

Clip

Removal steps

•

Rear combination lamp connector

1.

Rear combination lamp assembly

>>A<<

2.

Rear combination lamp

3.

Socket assembly

4.

Bulb

Removal steps (Continued)

Main

Index

Group

TOC

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-82

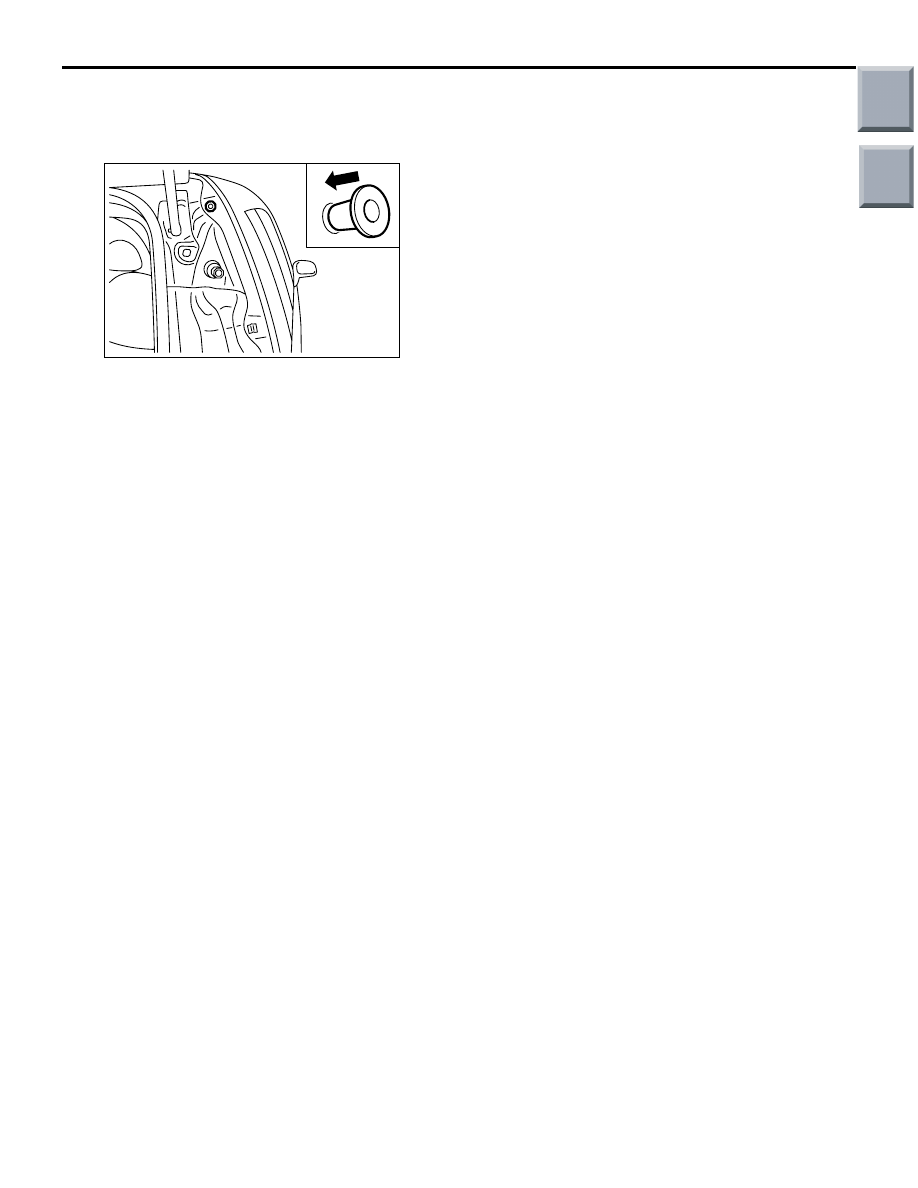

INSTALLATION SERVICE POINT
>>A<< REAR COMBINATION LAMP
INSTALLATION

AC209033

Install the cover to the vehicle body, and then install
the rear combination lamp assembly.

Main

Index

Group

TOC

HIGH-MOUNTED STOP LAMP

CHASSIS ELECTRICAL

54A-83

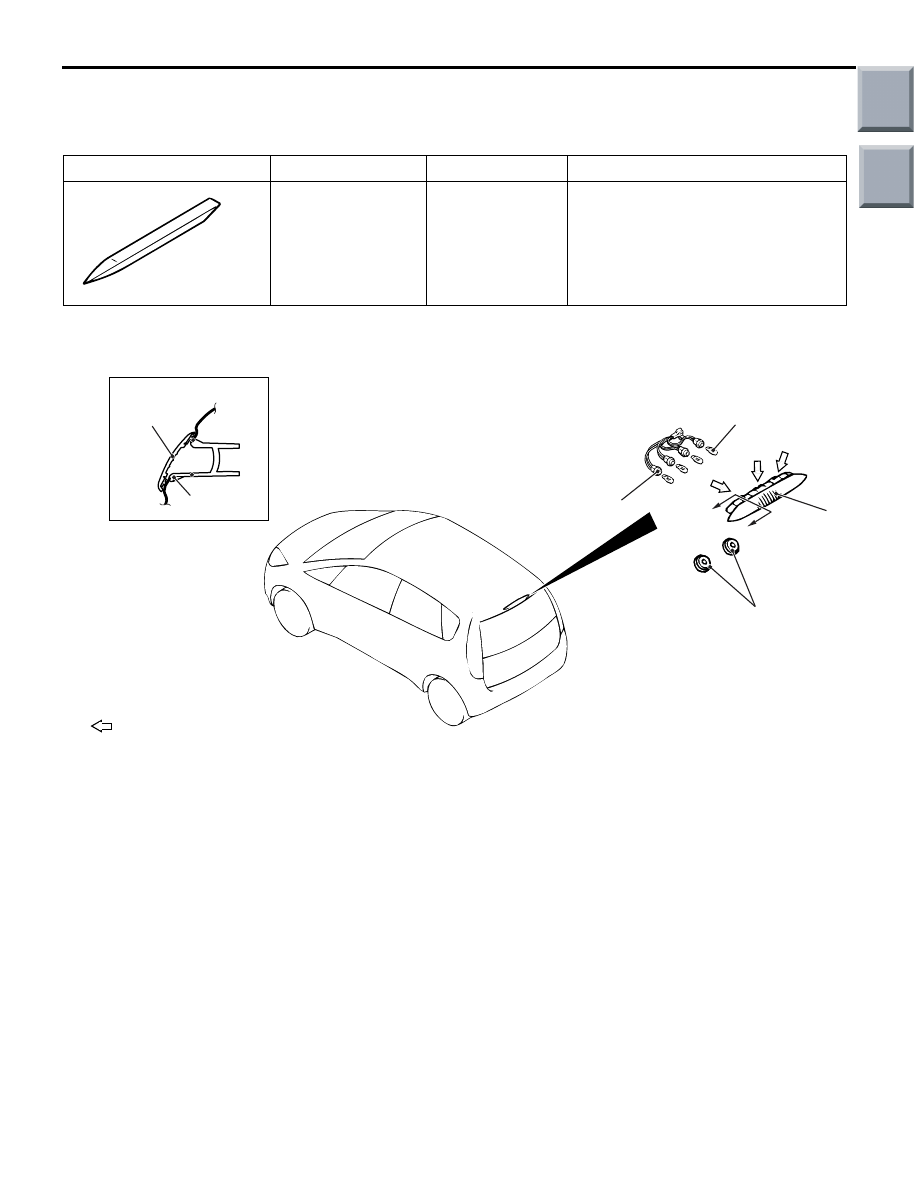

HIGH-MOUNTED STOP LAMP

SPECIAL TOOL

M1542000601455

Tool

Number

Name

Use

MB990784

MB990784

Ornament
remover

Removal of high-mounted stop lamp
assembly

REMOVAL AND INSTALLATION

M1542005100786

AC510217AB

1

4

2

3

Section A-A

2

Claw

A

A

NOTE
       : Claw positions

Removal steps

1.

Grommet

<<A>>

2.

High-mounted stop lamp

3.

Socket assembly

4.

Bulb

Removal steps (Continued)

Main

Index

Group

TOC

HIGH-MOUNTED STOP LAMP

CHASSIS ELECTRICAL

54A-84

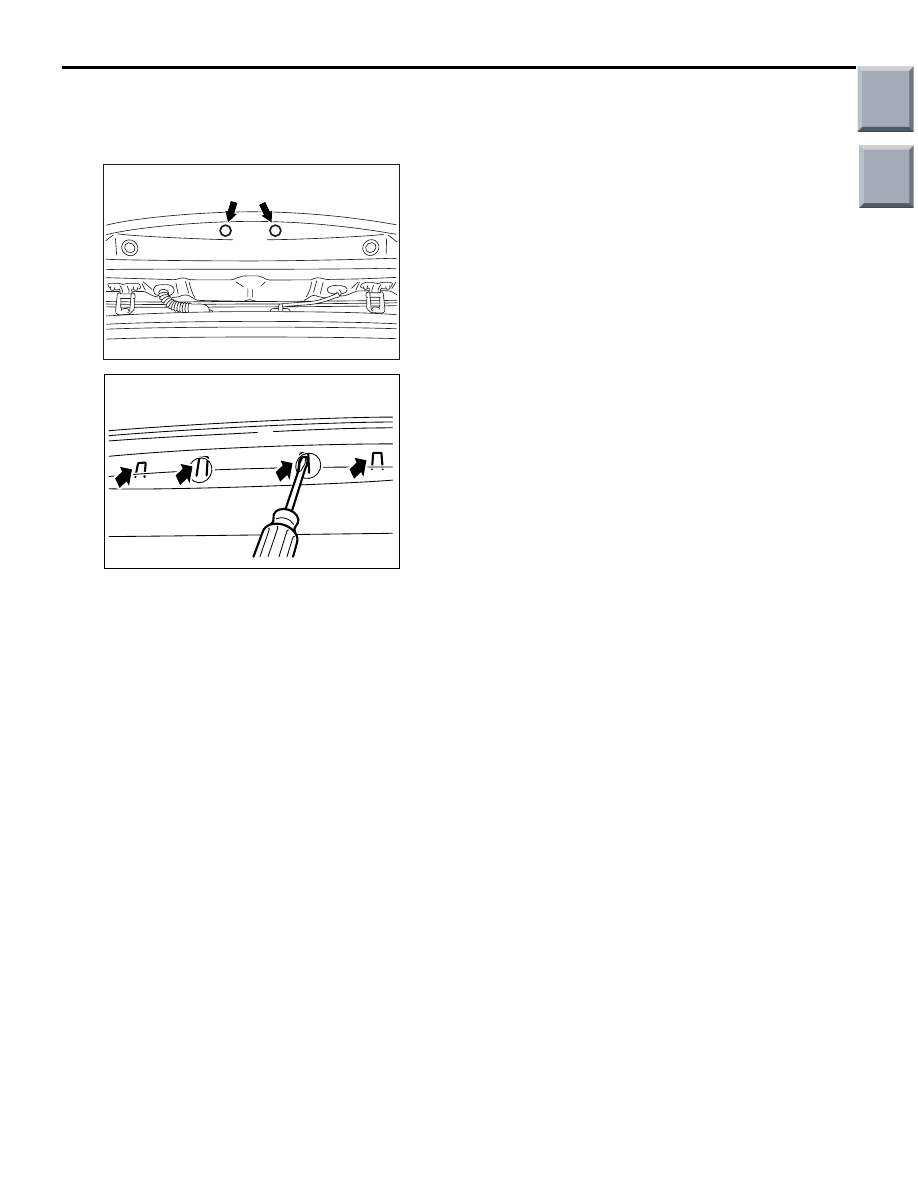

REMOVAL SERVICE POINT
<<A>> HIGH-MOUNTED STOP LAMP
REMOVAL

AC208975AC

Service hole

AC209034

Use the following steps to easily route high-mounted
stop light harness in the event of installation:
Insert a flat-tipped screwdriver through the service
hole as shown to disengage the claw to remove the
high-mounted stop lamp.
