HEADLAMP

CHASSIS ELECTRICAL

54A-73

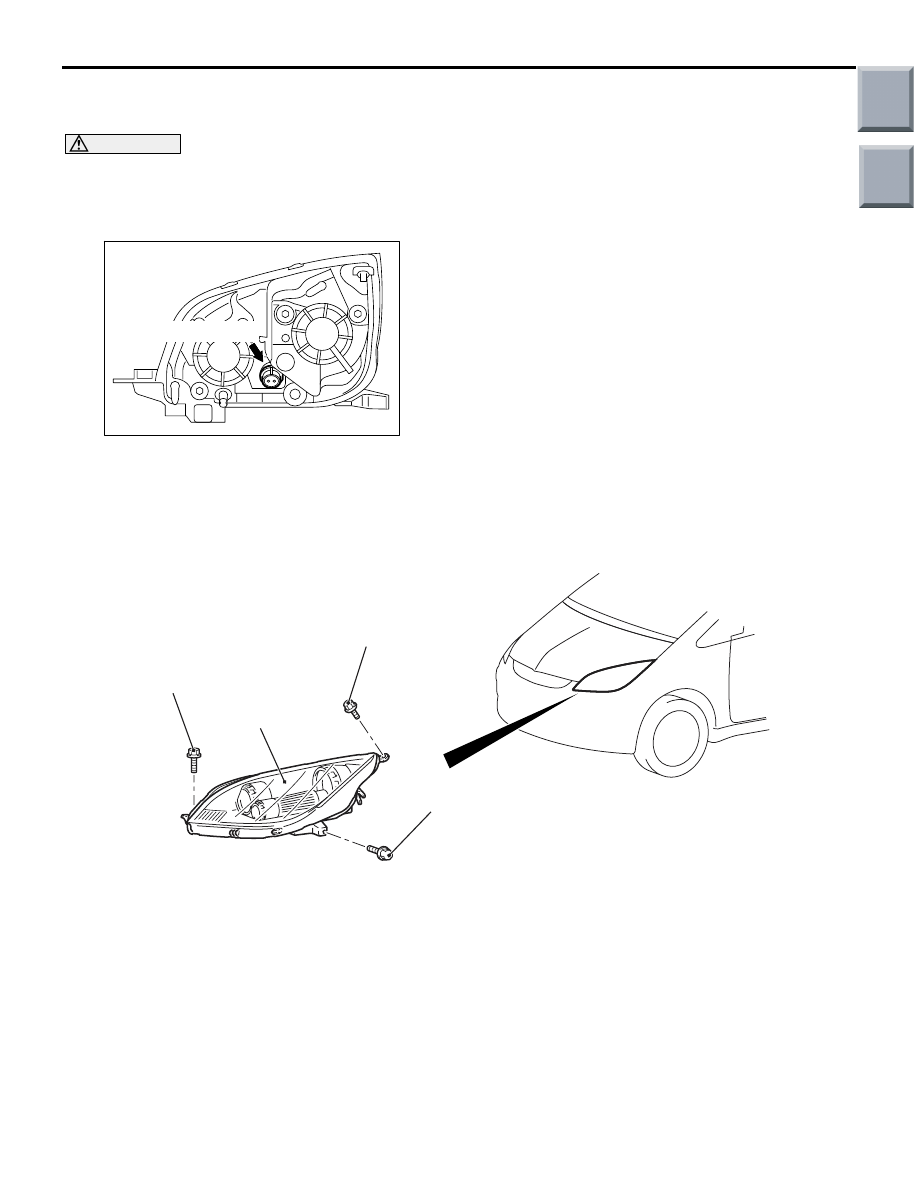

FRONT TURN SIGNAL LAMP BULB
REPLACEMENT

CAUTION

Don't touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, clean it with alcohol or thinner immediately
and dry well, and then install it.

AC205029

AC

Front turn-signal lamp

Disconnect the connector, and twist the front turn sig-
nal lamp socket to remove it.

REMOVAL AND INSTALLATION

M1542001800686

AC509607

1

4.9 ± 0.7 N·m

4.9 ± 0.7 N·m

1.5 ± 0.3 N·m

AB

Removal step

•

Front bumper assembly (Refer to
GROUP 51, Front bumper
assembly and radiator grille

P.51-2

)

1.

Headlamp assembly

Main

Index

Group

TOC

HEADLAMP

CHASSIS ELECTRICAL

54A-74

INSPECTION

M1542011202733

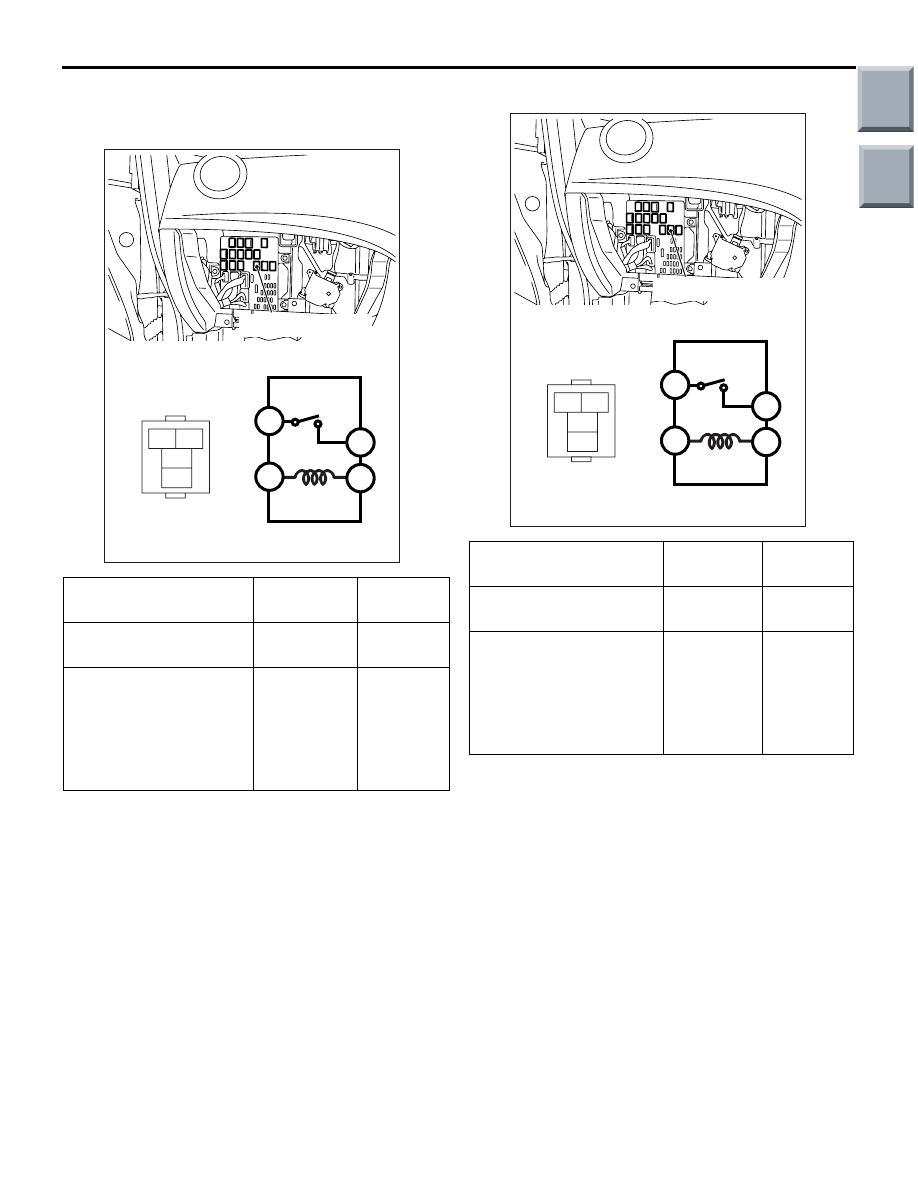

HEADLAMP  RELAY (LO) CHECK

AC208719

;

AK

2

4

1

3

3

1

4

2

Headlamp relay (LO)

Battery voltage

Tester
connection

Specified
condition

Not supplied

3

− 4

Open
circuit

• Connect terminal 1 to

the positive battery
terminal

• Connect terminal 2 to

the negative battery
terminal

3

− 4

Continuity
exists (2

Ω

or less)

HEADLAMP  RELAY (HI) CHECK

AC208719

;

AP

2

4

1

3

3

1

4

2

Headlamp relay (HI)

Battery voltage

Tester
connection

Specified
condition

Not supplied

3

− 4

Open
circuit

• Connect terminal 1 to

the positive battery
terminal

• Connect terminal 2 to

the negative battery
terminal

3

− 4

Continuity
exists (2

Ω

or less)

Main

Index

Group

TOC

FOG LAMP

CHASSIS ELECTRICAL

54A-75

FOG LAMP

SERVICE SPECIFICATION

M1542000301034

Item

Standard value

Front fog lamp aiming

Vertical direction

60 mm (1.15

°) below horizontal

(H)

SPECIAL TOOL

M1542000602470

Tool

Number

Name

Use

MB990784

MB990784

Ornament remover Removal of fog lamp switch panel

and front fog lamp bezel

ON-VEHICLE SERVICE

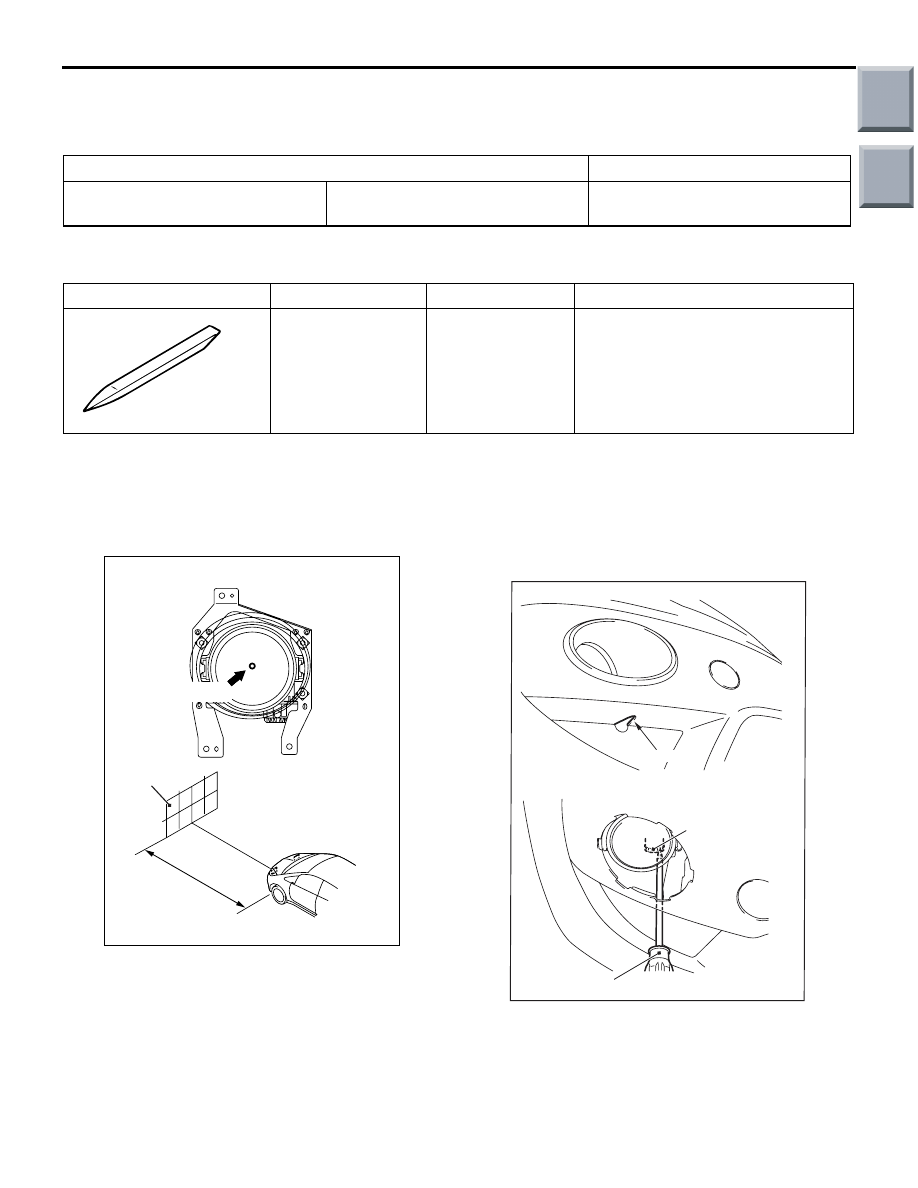

FOG LAMP AIMING

M1542001100922

<EXCEPT FOR RALLIART VERSION-R>

AC402040

AD

Lamp centre

3 m

Screen

1. Measure the centre of the front fog lamps, as

shown in the illustration.

2. Set the distance between the screen and the

centre of the front fog lamps as shown in the
illustration.

3. Inflate the types to the specified pressures and

there should be no other load in the vehicles other
than driver or substituted weight of approximately
75 kg placed in the driver’s position.

4. With the engine running at 2,000 r/min, aim the

front fog lamp.

AC405218 AB

Service hole

Adjusting screw

Phillips screwdriver

5. Insert a Phillips screwdriver into the service hole

and place it on the adjusting screw.
NOTE: If the adjusting screw cannot be seen from
the service hole, remove the fog lamp bezel so
that it will be easier to see the position of the
adjusting screw.

Main

Index

Group

TOC

AC600650

Phillips
screwdriver

Lamp centre

High intensity zone

Cut off line

Vertical direction

AE

H

 V

Adjusting
screw

Fog lamp unit

FOG LAMP

CHASSIS ELECTRICAL

54A-76

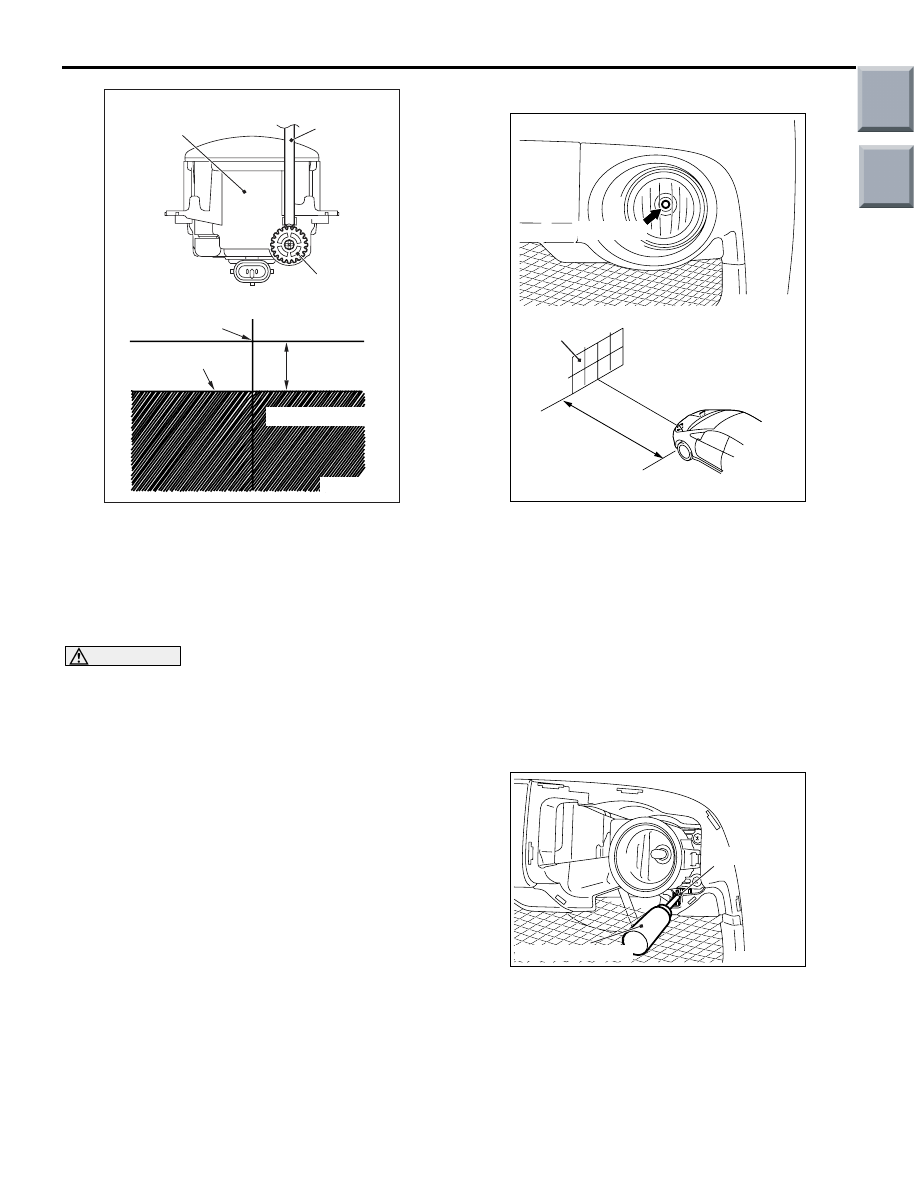

6. Adjust the cut off line (boundary between light and

dark) position to the standard value with the
adjusting screw.

Standard value:
(Vertical direction) 60 mm (1.15

°) below hori-

zontal (H)

CAUTION

When marking the aiming adjustment, be sure to
mask those lamps which are not being adjusted.
NOTE: The horizontal direction is non-adjustable. If
the deviation of the light beam axis exceeds the
standard value, check to be sure that the mounting
location or some other point is not defective.

<RALLIART VERSION-R>

AC601057

AD

Lamp centre

Screen

3 m

1. Measure the centre of the front fog lamps, as

shown in the illustration.

2. Remove the front fog lamps bezel.
3. Set the distance between the screen and the

centre of the front fog lamps as shown in the
illustration.

4. Inflate the types to the specified pressures and

there should be no other load in the vehicles other
than driver or substituted weight of approximately
75 kg placed in the driver’s position.

5. With the engine running at 2,000 r/min, aim the

front fog lamp.

AC600800

AC

Phillips screwdriver

Adjusting screw

6. Insert a Phillips screwdriver into the service hole

and place it on the adjusting screw.

Main

Index

Group
