HEADLAMP

CHASSIS ELECTRICAL

54A-69

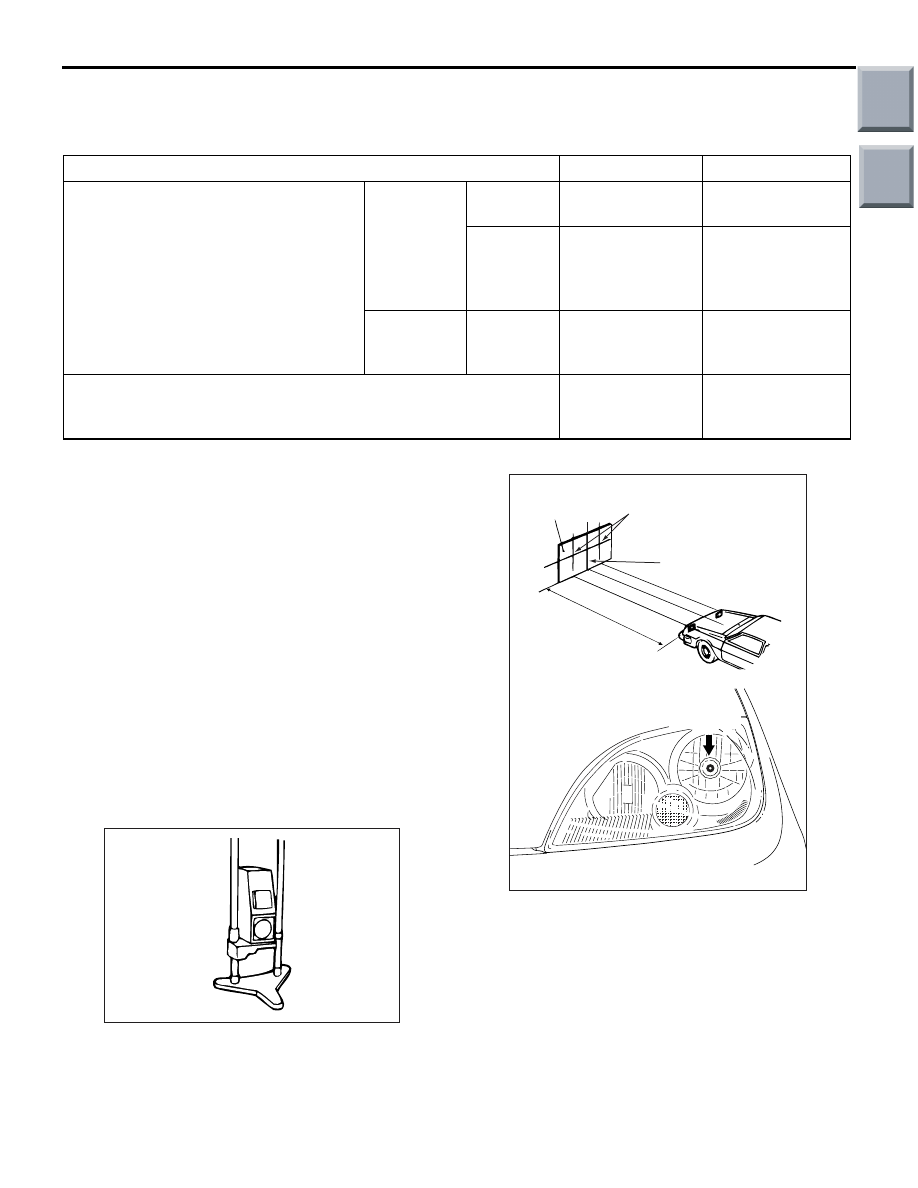

HEADLAMP

SERVICE SPECIFICATIONS

M1542000300655

Item

Standard value

Limit

Headlamp aiming

Low-beam

Vertical
direction

60 mm below
horizontal (H)

−

Horizontal
direction

15

° sloping

section intersects
the vertical line
(V)

−

High-beam

Vertical
direction

Within
0.40

°below

horizontal (H)

−

Headlamp luminous intensity measurement cd
(Corresponding to the illumination 40 m ahead of the vehicle at
low-beam)

−

30,000 cd or more

PRECAUTIONS ON HOW TO USE THE
HEADLAMP ASSEMBLY

Be careful with the following items as resin lenses
are used in the headlamp assembly.

• Don't illuminate the headlamp for three minutes

or more when the headlamp is covered with
scratch protector.

• Don't tape the outer lens.

• Don't scratch the outer lens surface with a sharp

edged special tool.

• Use the specified wax remover and rinse the wax

off cleanly.

• Use the specified genuine bulb.

ON-VEHICLE SERVICE

HEADLAMP AIMING

M1542000900732

<USING A BEAM SETTING EQUIPMENT>

AC102583

1. The headlamps should be aimed with the proper

beam setting equipment, and in accordance with
the equipment manufacture’s instructions.

2. Alternately turn the adjusting screw to adjust the

headlamp aiming.

<USING A SCREEN> (LOW -BEAM)

AC313203 AB

Headlamp centre line

Vehicle centre line

Screen

5 m

Bulb centre

1. Inflate the tyres to the specified pressures and

there should be no other load in the vehicles other
than driver or substituted weight of approximately
75 kg placed in driver’s position.

2. Set the distance between the screen and the

centre marks of the headlamps as shown in the
illumination.

Main

Index

Group

TOC

AC103656AD

Distance of
vertical direction

Headlamp
(low-beam)
centre

High intensity

zone

15˚

(H)

(V)

HEADLAMP

CHASSIS ELECTRICAL

54A-70

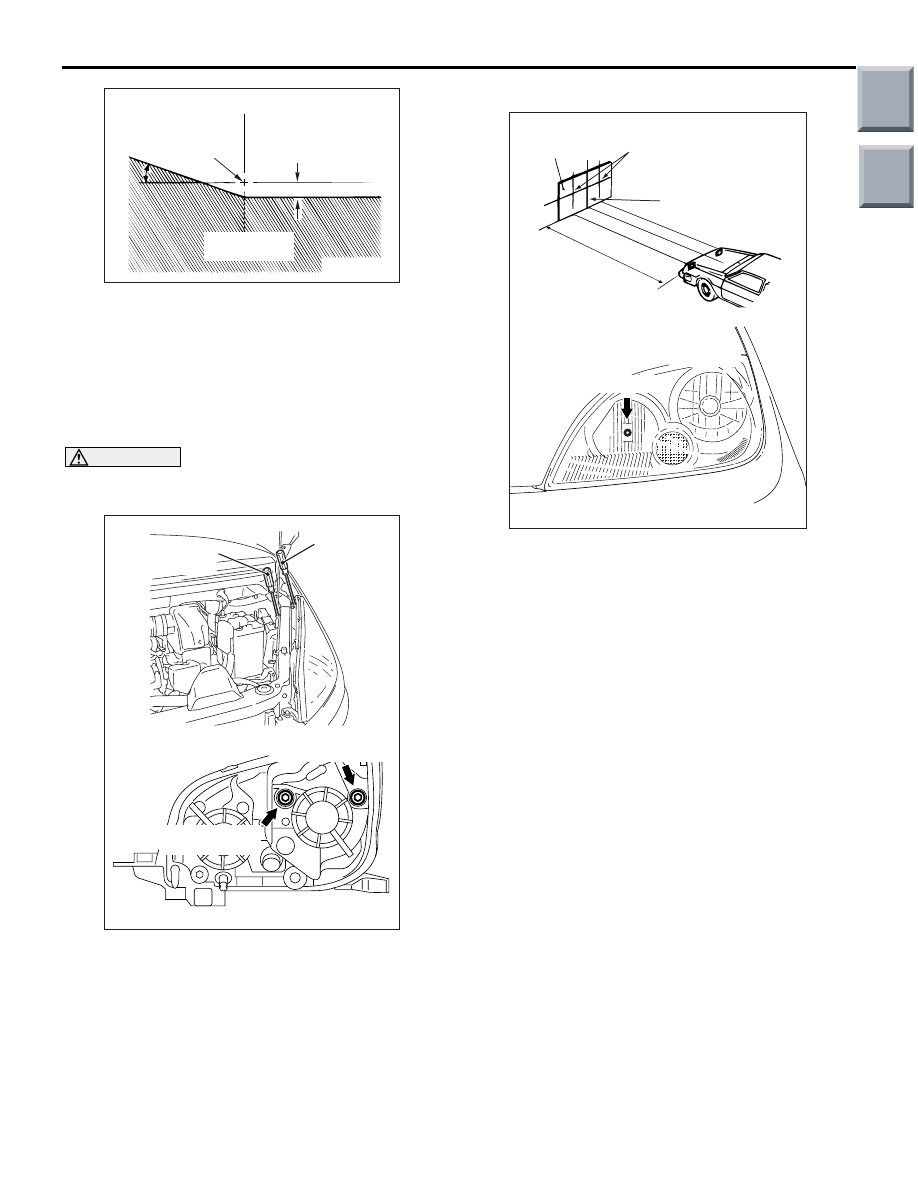

3. Check if the beam shining onto the screen is at

the standard value.

Standard value:
(Vertical direction) 60 mm below horizontal
(H)
(Horizontal direction) 15

° sloping section

intersects the vertical line (V)

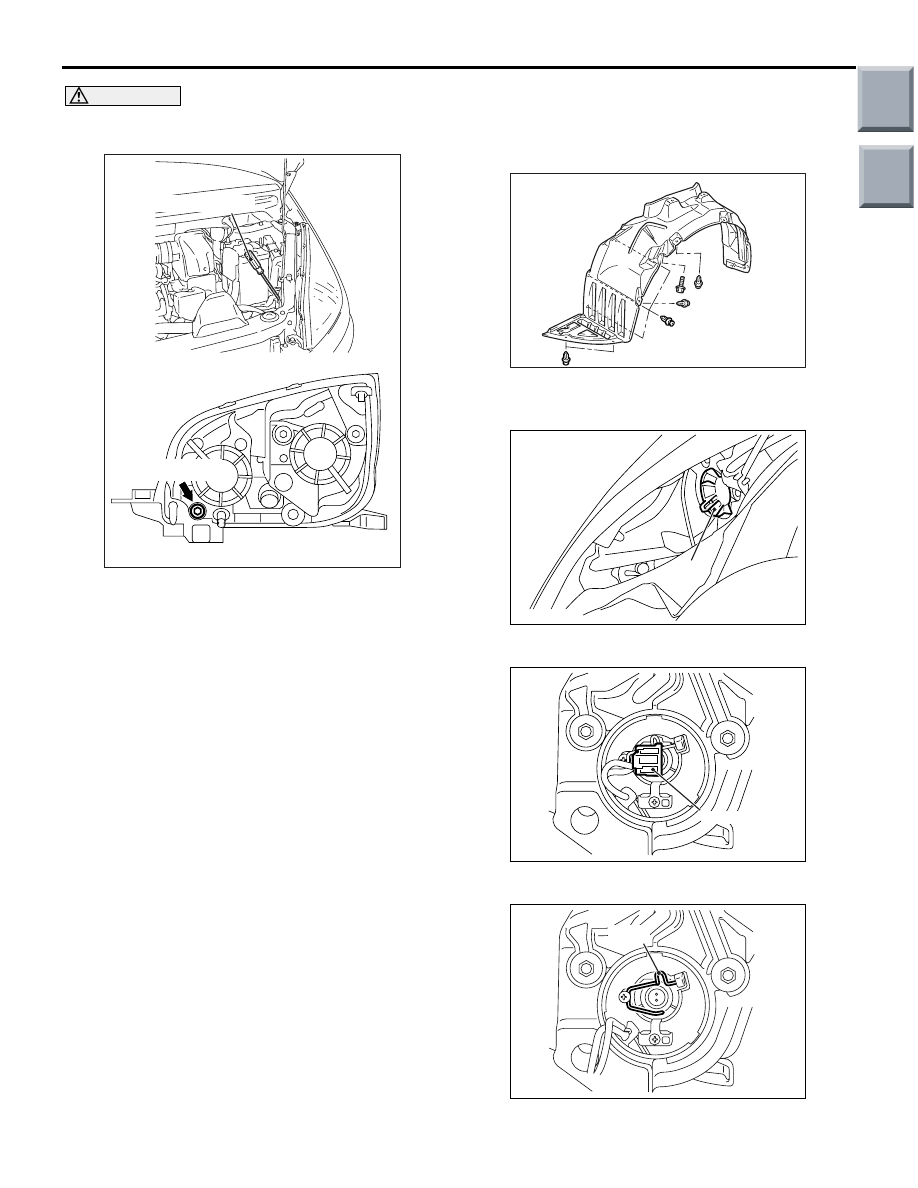

CAUTION

Be sure to adjust the aiming adjustment screw in
the tightening direction.

AC207304

AC

Vertical direction
adjustment

Horizontal
direction
adjustment

Horizontal direction
adjustment

Vertical direction
adjustment

4. Alternately turn the adjusting screw to adjust the

headlamp aiming.

<USING A SCREEN> (HIGH-BEAM)

AC313206 AB

Bulb centre

Headlamp centre line

Vehicle centre line

Screen

5 m

1. Inflate the tyres to the specified pressures and

there should be no other load in the vehicles other
than driver or substituted weight of approximately
75 kg placed in driver’s position.

2. Set the distance between the screen and the

centre marks of the headlamps as shown in the
illumination.

3. Check if the beam shining onto the screen is at

the standard value.

Standard value:
(Vertical direction) Within 0.40

°below hori-

zontal (H)

Main

Index

Group

TOC

HEADLAMP

CHASSIS ELECTRICAL

54A-71

CAUTION

Be sure to adjust the aiming adjustment screw in
the tightening direction.

AC207303

AC

Vertical direction

Vertical direction

4. Alternately turn the adjusting screw to adjust the

headlamp aiming.

HEADLAMP INTENSITY MEASUREMENT

M1542001000602

Using a photometer, and following its manufacture’s
instruction manual, measure the headlamp intensity
and check to be sure that the limit value is satisfied.

Limit: 30,000 cd or more

NOTE:

.

1. When measuring the intensity, maintain an

engine speed of 2,000 r/min, with the battery in
the charging condition.

2. There may be special local regulations pertaining

to headlamp intensity, be sure to make any
adjustments necessary to satisfy such regula-
tions.

3. If an illuminometer is used to make the measure-

ments, convert its values to photometer values by
using the following formula.
I = Er

2

 Where:

I=intensity (cd)
E=illumination (Iux)
r=distance (m) from headlamps to illuminome-

ter

BULB REPLACEMENT

M1542001301004

HEADLAMP BULB <LOW BEAM>
REPLACEMENT

AC206649

1. Remove the splash shield assembling bolts and

clips as shown.

AC206683

AC

Cover

2. Rotate the cover to remove.

AC401639 AB

Connector

3. Disconnect the connector.

AC401640 AB

Spring

4. Remove the spring.

Main

Index

Group

TOC

HEADLAMP

CHASSIS ELECTRICAL

54A-72

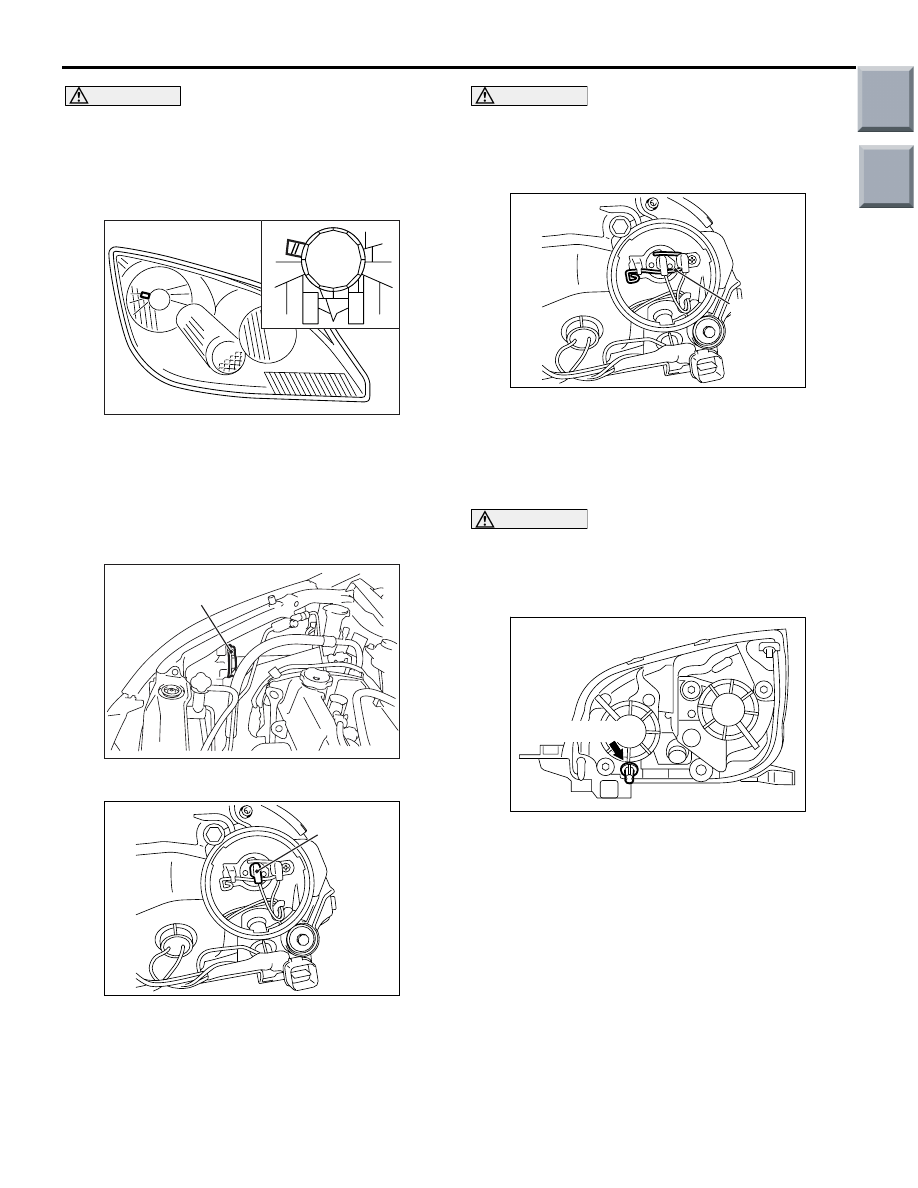

CAUTION

Don't touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, clean it with alcohol or thinner immediately
and dry well, and then install it.
5. Remove the bulb.

AC401940

6. Replace the bulb, and check the spring is installed

securely through the headlamp lens.

7. Connect the connector securely.

HEADLAMP BULB <HIGH BEAM>
REPLACEMENT

AC401642 AB

Cover

1. Rotate the cover to remove.

AC401641

AB

Connector

2. Disconnect the connector.

CAUTION

Don't touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, clean it with alcohol or thinner immediately
and dry well, and then install it.

AC206684

AC

Spring

3. Remove the spring to withdraw the bulb.
4. Replace the bulb, and connect securely the

connector.

POSITION LAMP BULB REPLACEMENT

CAUTION

Don't touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, clean it with alcohol or thinner immediately
and dry well, and then install it.

AC205030

AC

Position lamp

Disconnect the connector, and twist the position
lamp socket to remove it.
