COMBINATION METER

CHASSIS ELECTRICAL

54A-61

NOTE:

*

 indicates that the slowest vehicle speed is 5

km/h.

C6

CVT indicator: L

Shift position : Other than
L position

OFF

Shift position : L position ON

D3

ASC OFF indicator lamp ASC OFF indicator lamp

: OFF

OFF

ASC OFF indicator lamp
: ON

ON

D4

ASC indicator lamp

ASC indicator lamp :
OFF

OFF

ASC indicator lamp : ON ON

Item No.

Check items

Check conditions

Normal conditions

Main

Index

Group

TOC

COMBINATION METER

CHASSIS ELECTRICAL

54A-62

ACTUATOR TEST TABLE

M1543007400333

Item
No.

Check items

Test content

Check conditions

Normal conditions

80

Speedometer

Set the speedometer
to 0 km/h

Turn the ignition
switch to the ON
position.

Speedometer shows 0
km/h

81

Set the speedometer
to 40 km/h

Speedometer shows
40 km/h

82

Set the speedometer
to 100 km/h

Speedometer shows
100 km/h

84

Tachometer

Set the tachometer to
0 r/min

Turn the ignition
switch to the ON
position.

Tachometer shows 0
r/min

85

Set the tachometer to
2000 r/min

Tachometer shows
2000 r/min

86

Set the tachometer to
5000 r/min

Tachometer shows
5000 r/min

88

Water thermometer

Set the water
thermometer to 0

°C

Turn the ignition
switch to the ON
position.

Water thermometer
shows 0

°C

89

Set the water
thermometer to 85

°C

Water thermometer
shows 85

°C

8A

Set the water
thermometer to 126
°C

Water thermometer
shows 126

°C

8C

Fuel gauge

Set the fuel gauge to 0
%

Turn the ignition
switch to the ON
position.

Fuel gauge shows 0 %

8D

Set the fuel gauge to
50 %

Fuel gauge shows 50
%

8E

Set the fuel gauge to
100 %

Fuel gauge shows 100
%

90

Fuel gauge (target
value)

Set the fuel gauge to 0
%

Turn the ignition
switch to the ON
position.

Fuel gauge shows 0 %

91

Set the fuel gauge to
50 %

Fuel gauge shows 50
%

92

Set the fuel gauge to
100 %

Fuel gauge shows 100
%

93

Combination meter
illumination

Set the combination
meter illumination to 0
%

Turn the ignition
switch to the ON
position.

Combination meter
illumination is 0 %

94

Set the combination
meter illumination to
50 %

Combination meter
illumination is 50 %

95

Set the combination
meter illumination to
100 %

Combination meter
illumination is 100 %

Main

Index

Group

TOC

COMBINATION METER

CHASSIS ELECTRICAL

54A-63

A0

Indicator lamp and
warning lamp

Illuminate the indicator
lamp and the warning
lamp.

Turn the ignition
switch to the ON
position.

The turn-signal lamps,
the door lamps, the fog
lamps, the electric
power steering
warning lamp, the
high-beam indicator,
the brake warning
lamp, the high coolant
temperature warning
lamp, the CHECK
ENGINE warning
lamp, the charge
warning lamp, the oil
pressure indicator
lamp, the SRS, the
ABS, the seat belt and
the fuel warning lamp
illuminate.

A1

Extinguish the
indicator lamps and
the warning lamps.

The turn-signal lamps,
the door lamps, the fog
lamps, the electric
power steering
warning lamp, the
high-beam indicator,
the brake warning
lamp, the high coolant
temperature warning
lamp, the CHECK
ENGINE warning
lamp, the charge
warning lamp, the oil
pressure indicator
lamp, the SRS, the
ABS, the seat belt and
the fuel warning lamp
extinguish.

A2

Shift indicator lamp

Illuminate the shift
indicator lamp.

Turn the ignition
switch to the ON
position.

The shift indicator
lamp illuminates.

A3

Extinguish the shift
indicator lamp.

The shift indicator
lamp extinguishes.

A5

lndicator lamp

Illuminate the indicator
lamp.

Turn the ignition
switch to the ON
position.

The tail lamp indicator
lamp illuminates.

A6

Extinguish the
indicator lamp.

The tail lamp indicator
lamp extinguishes.

Item
No.

Check items

Test content

Check conditions

Normal conditions

Main

Index

Group

TOC

COMBINATION METER

CHASSIS ELECTRICAL

54A-64

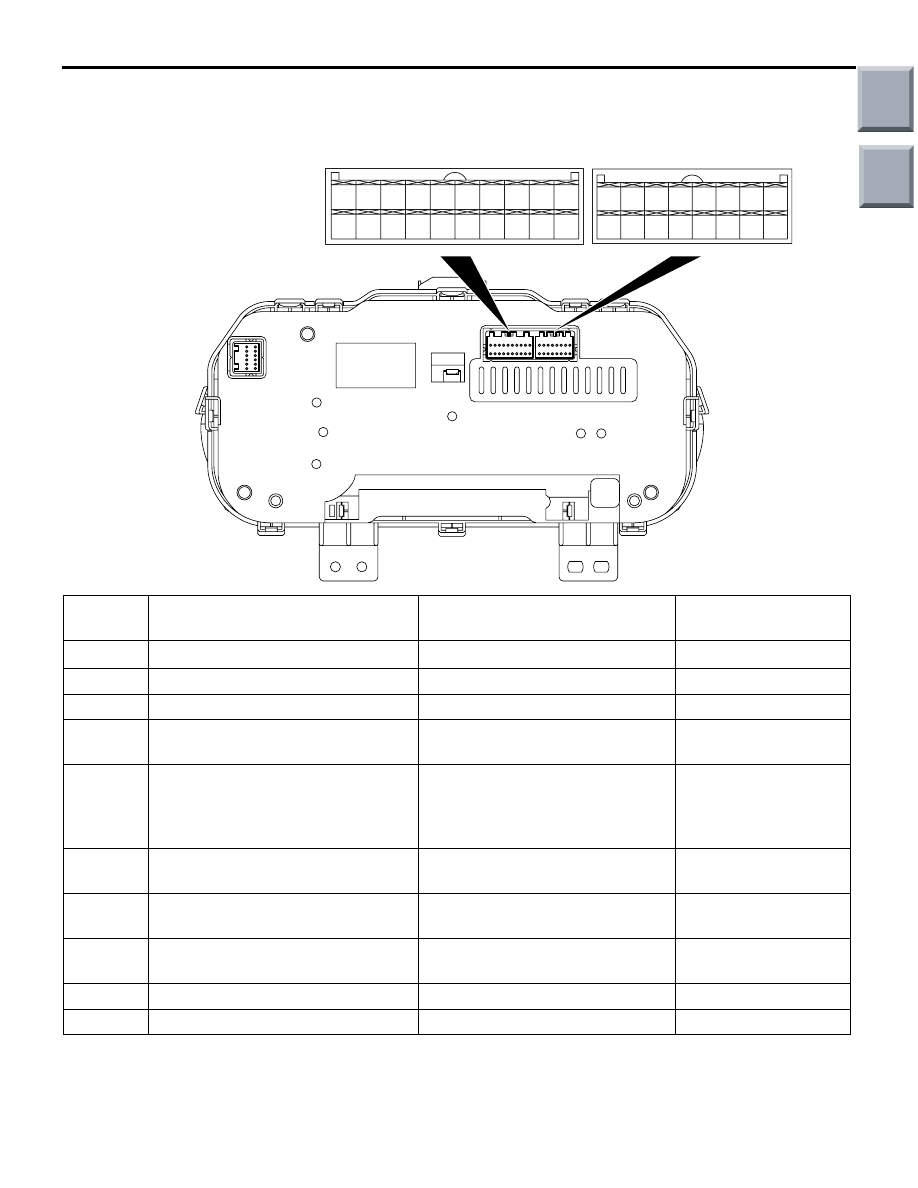

CHECK AT ECU TERMINALS

M1543007601255

AC206265

AF

35

34

252627

32

31

24

2223

33

29

21

30

36

28

20

19

18

17

7

6

15

14

4

3

1112 13

5

1

9 10

2

16

8

B-15

B-14

Terminal
No.

Check items

Check conditions

Normal conditions

22

Input of fuel gauge

Always

−

23

Illumination (earth)

Always

0 V

24

Illumination (power supply)

Illumination switch: ON

System voltage

25

Oil pressure switch

Ignition switch: ON and before
starting the engine

−

28

Input of parking brake switch and
brake fluid level switch

• Ignition switch: ON and parking

brake switch: ON

• Ignition switch: ON and brake

fluid level switch: ON

−

27

Input of seatbelt switch

Ignition switch: ON and the
driver's seat belt is unfastened.

−

31

Power supply from ignition switch
(IG1)

Ignition switch: ON

System voltage

32

Power supply from ignition switch
(IG2)

Ignition switch: ON

System voltage

33

Battery power supply

Always

System voltage

36

Earth

Always

0 V
