FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-12

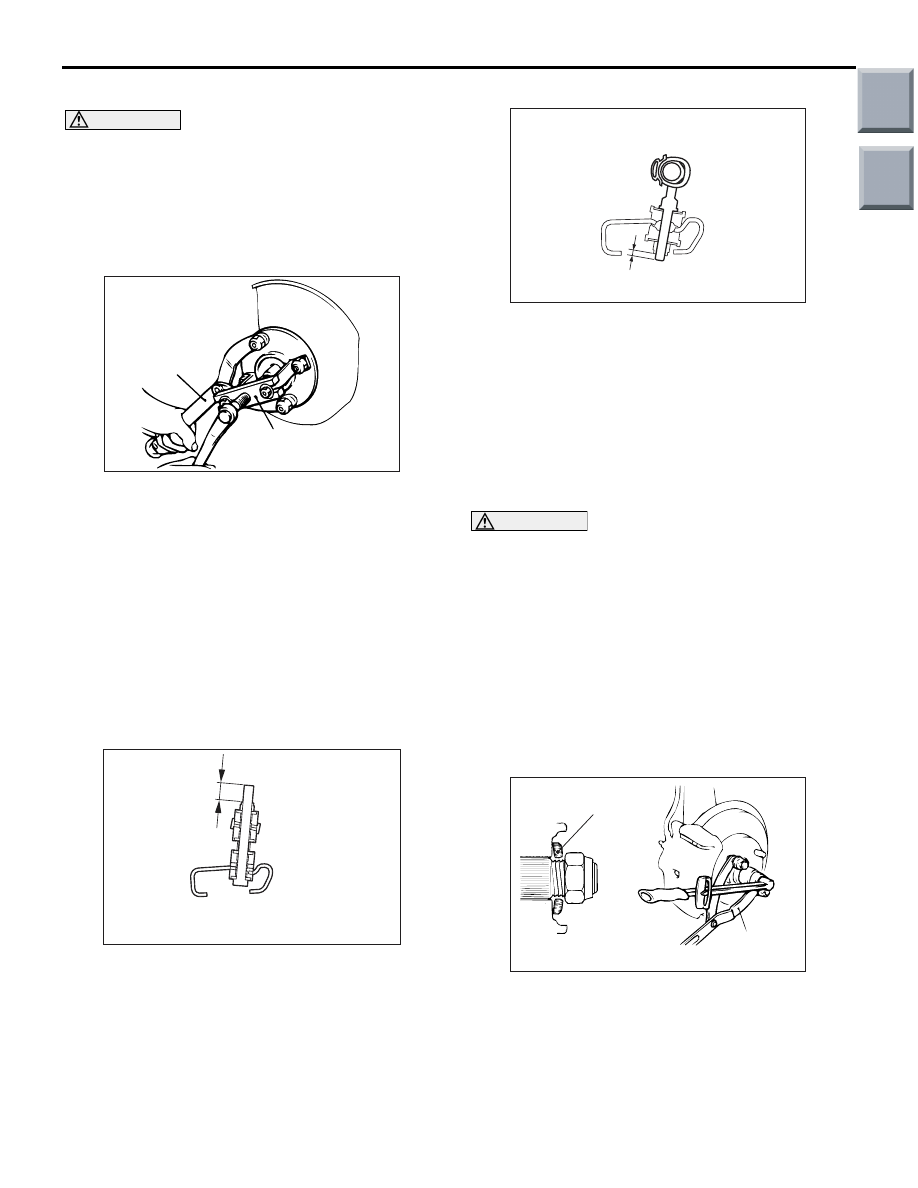

<<D>> DRIVESHAFT REMOVAL

CAUTION

• The magnetic encoder collects any metallic

particle easily, because it is magnetized. Make
sure that the magnetic encoder does not col-
lect any metallic particle.

•

AC100128AC

MB990241

MB990767

When the driveshaft is removed, make sure
that it does not contact with the magnetic
encoder to avoid damage.

Use the following special tools to push out the drive-
shaft from the hub.

• Front hub & flange yoke holder (MB990767)

• Axle shaft puller (MB990241)

INSTALLATION SERVICE POINT
>>A<< STABILIZER RUB-
BER/SELF-LOCKING NUT/STABILIZER
LINK BUSH (B)/STABILIZER LINK
ASSEMBLY/STABILIZER LINK BUSH (A)
INSTALLATION

<4A9>

AC207017AE

<4A9>

Install the stabilizer rubber as shown in the figure,
and tighten the self-locking nut so that the protruding
length of the stabilizer bar mounting bolt meets its
standard value (A).

Standard value (A): 19

± 1.5 mm

<4G1>

AC403361

<4G1>

Install the stabilizer link bush (B), stabilizer link
assembly and stabilizer link bush (A) as shown in the
figure, and tighten the stabilizer link bush (A) so that
the protruding length of the stabilizer link assembly
meets its standard value (A).

Standard value (A): 5

± 1.5 mm

>>B<< WASHER/DRIVESHAFT NUT
INSTALLATION

CAUTION

• The magnetic encoder collects any metallic

particle easily, because it is magnetized. Make
sure that the magnetic encoder should not
collect any metallic particle. Check that there
is not any trouble prior to reassembling it.

• When the driveshaft is installed, make sure

that it does not contact with the magnetic
encoder to avoid damage.

•

AC102465

Washer

MB990767

Before securely tightening the driveshaft
nuts, make sure there is no load on the wheel
bearings. Otherwise the wheel bearings will
be damaged.

1. Be sure to install the driveshaft washer in the

specified direction.

2. Using special tool front hub & flange yoke holder

(MB990767), tighten the driveshaft nut to the
specified torque.

Tightening torque: 245

± 29 N⋅m

Main

Index

Group

TOC

FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-13

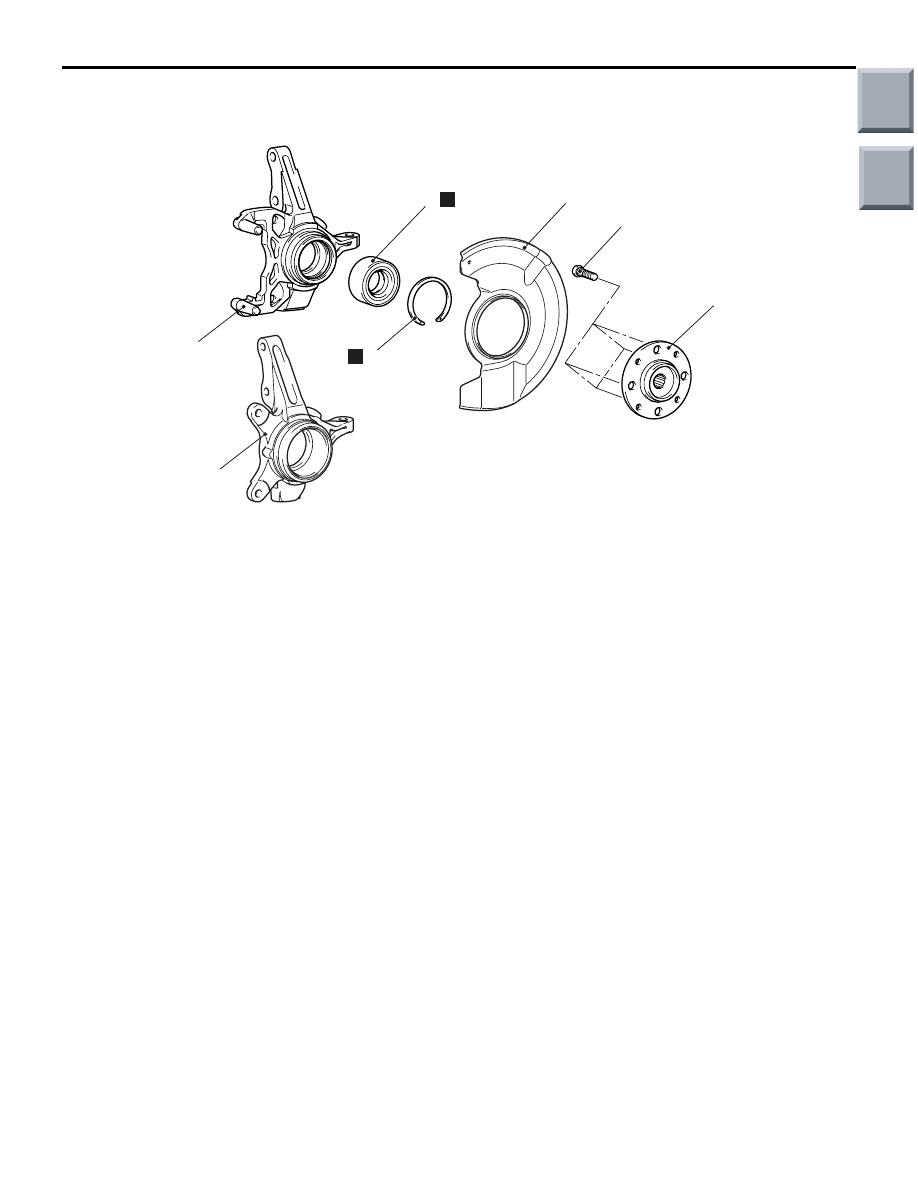

DISASSEMBLY AND REASSEMBLY

M1261001900476

AC402026

Disassembly steps

Front wheel hub

Hub bolt

Dust cover

Snap ring

Wheel bearing

Knuckle
Reassembly steps

Knuckle

<< 5.

Wheel bearing

Snap ring

<< 3.

Dust cover

Hub bolt

<< 1.

Front wheel hub

<< •

Wheel bearing starting torque
check

<< •

Wheel bearing axial play check

Reassembly steps (Continued)

Main

Index

Group

TOC

FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-14

DISASSEMBLY SERVICE POINTS
<<A>> FRONT WHEEL HUB REMOVAL

CAUTION

When the front wheel hub assembly has been
removed, always replace it with a new part
because wheel bearing frictional surface will be
damaged when removing the front wheel hub
assembly.

AC100130

Tighten the nut
with the bolt
secured

MB991056 or
MB991355

MB991017

MB991000

Use the following special tools to pull out the front
wheel hub assembly from the knuckle.

• Knuckle arm bridge (MB991056 or MB991355)

• Front hub remover and Installer (MB991017)

• Spacer (MB991000)

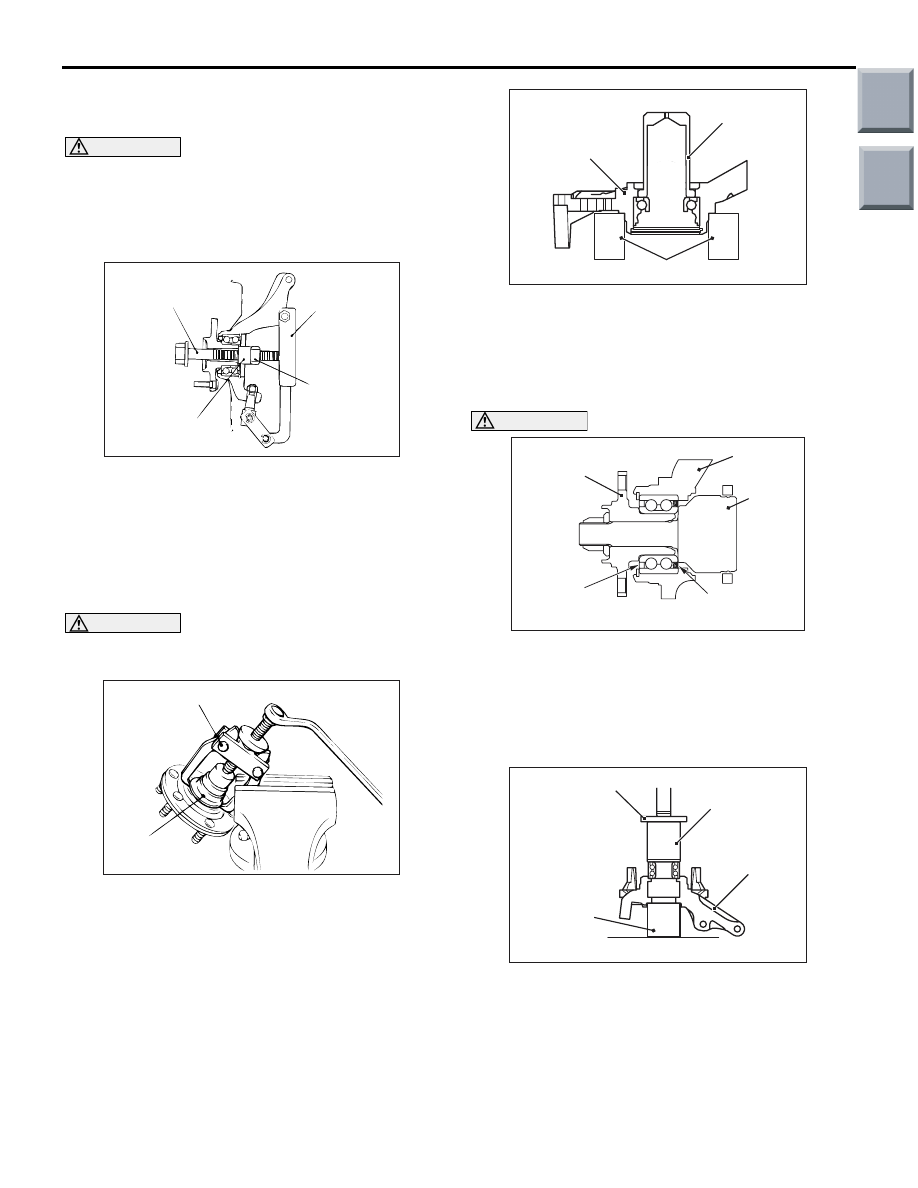

<<B>> WHEEL BEARING REMOVAL

CAUTION

When removing the inner race (outside) from the
hub, be careful not to let the hub drop.

AC102509

MB990810

Inner race
(outside)

1. Remove the wheel bearing inner race (outside)

from the front hub by using special tool side
bearing puller (MB990810).

AC208278AB

MD998382

Iron piece

Knuckle

2. Use special tool crankshaft front oil seal installer

(MD998382) to push out the wheel bearing.

REASSEMBLY SERVICE POINTS
>>A<< WHEEL BEARING INSTALLATION

CAUTION

•

AC209054 AB

Drive
shaft

Hub

Knuckle

Magnetic
encoder (silver)

Oil seal
(pale gold)

The magnetic encoder is integrated into the

wheel bearing. Make sure that the wheel bear-
ing is installed as shown in the illustration.

•

AC209148

MB990890

MB991389

Iron piece

Knuckle

Press the outer race when pressing-in the
wheel bearing. Otherwise the wheel bearing
will be damaged.

Press-in the bearing by using the following special
tools.

• Rear suspension bush base (MB990890)

• Bush remover base (MB991389)

Main

Index

Group

TOC

FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-15

>>B<< DUST COVER INSTALLATION

AC305166

MD998338

Dust cover

Knuckle

MB990890

Iron piece

Use the following special tools to install the dust
cover.

• Rear suspension bush base (MB990890)

• Spring compressor (MD998338)

>>C<< FRONT WHEEL HUB
INSTALLATION

AC209149

MB990880

Dust cover

Hub

Iron piece

Knuckle

Use special tool rear suspension bush arbour
(MB990880) to press-fit the front wheel hub.

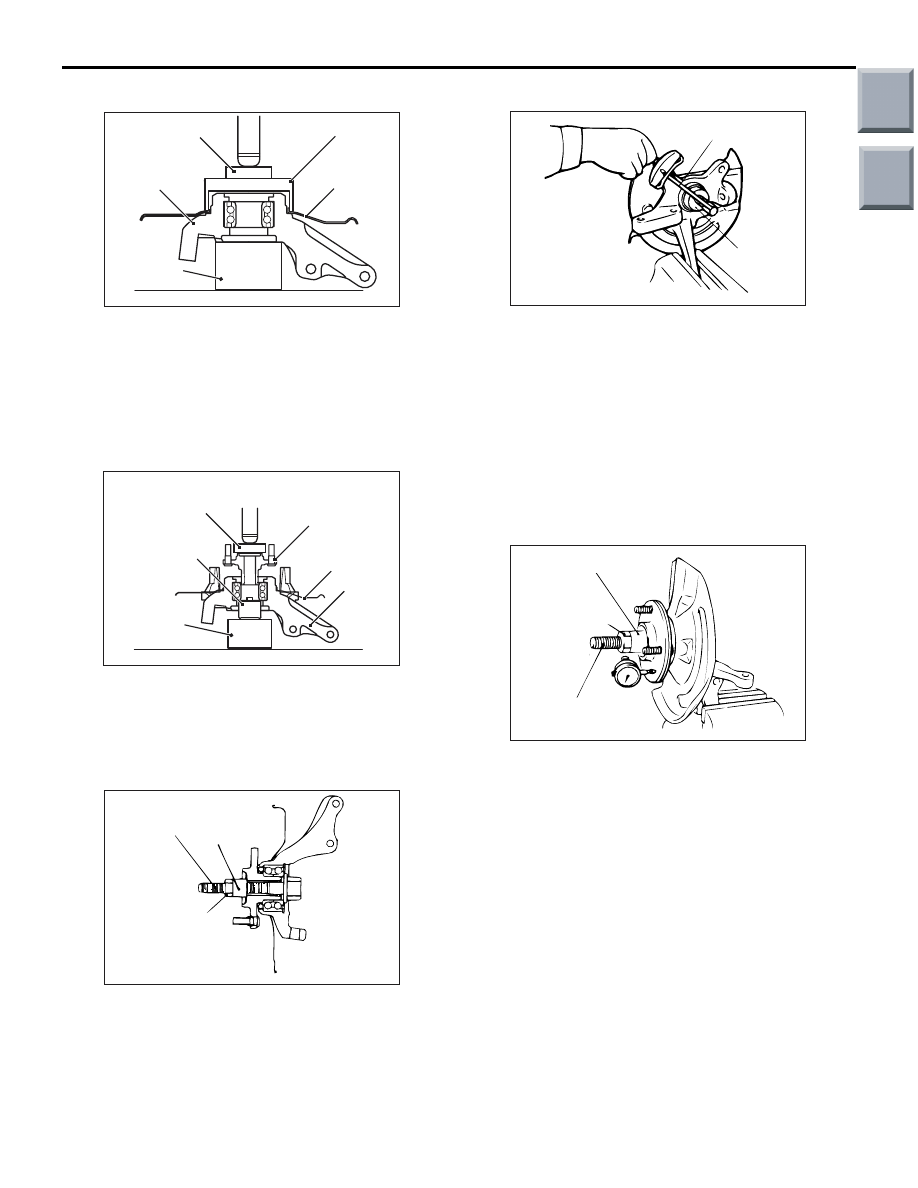

>>D<<WHEEL BEARING STARTING
TORQUE CHECK

AC210929 AC

MB991000

MB991017

245 ± 29 N·m

Tighten the nut
with the bolt secured

1. Tighten the following special tools to the specified

torque, and then press-in the front wheel hub
assembly into the knuckle.

• Front hub remover and installer (MB991017)

• Spacer (MB991000)

2. Rotate the hub in order to seat the bearing.

AC100136

MB990685

MB990326

3. Measure the wheel bearing starting torque by

using the following special tools.

• Torque wrench (MB990685)

• Preload socket (MB990326)

Limit: 1.6 N

⋅m <4A9>, 1.76N⋅m <4G1>

4. The starting torque must be within the limit and

the hub rotation must be smooth.

>>E<<WHEEL BEARING AXIAL PLAY
CHECK

AC100137

MB991000

MB991017

245 ± 29 N·m

Tighten the nut
with the bolt
secured

1. Measure to determine whether the wheel bearing

axial play is within the limit or not by using the
following special tools.

• Front hub remover and installer (MB991017)

• Spacer (MB991000)

Limit: 0.05 mm

2. If the play is not within the limit range while the nut

is tightened to 245

± 29 N⋅m, the bearing, hub

and/or knuckle have probably not been installed
correctly. Replace the bearing and re-install.
