Mitsubishi Colt Ralliart. Manual - part 251





MB990810

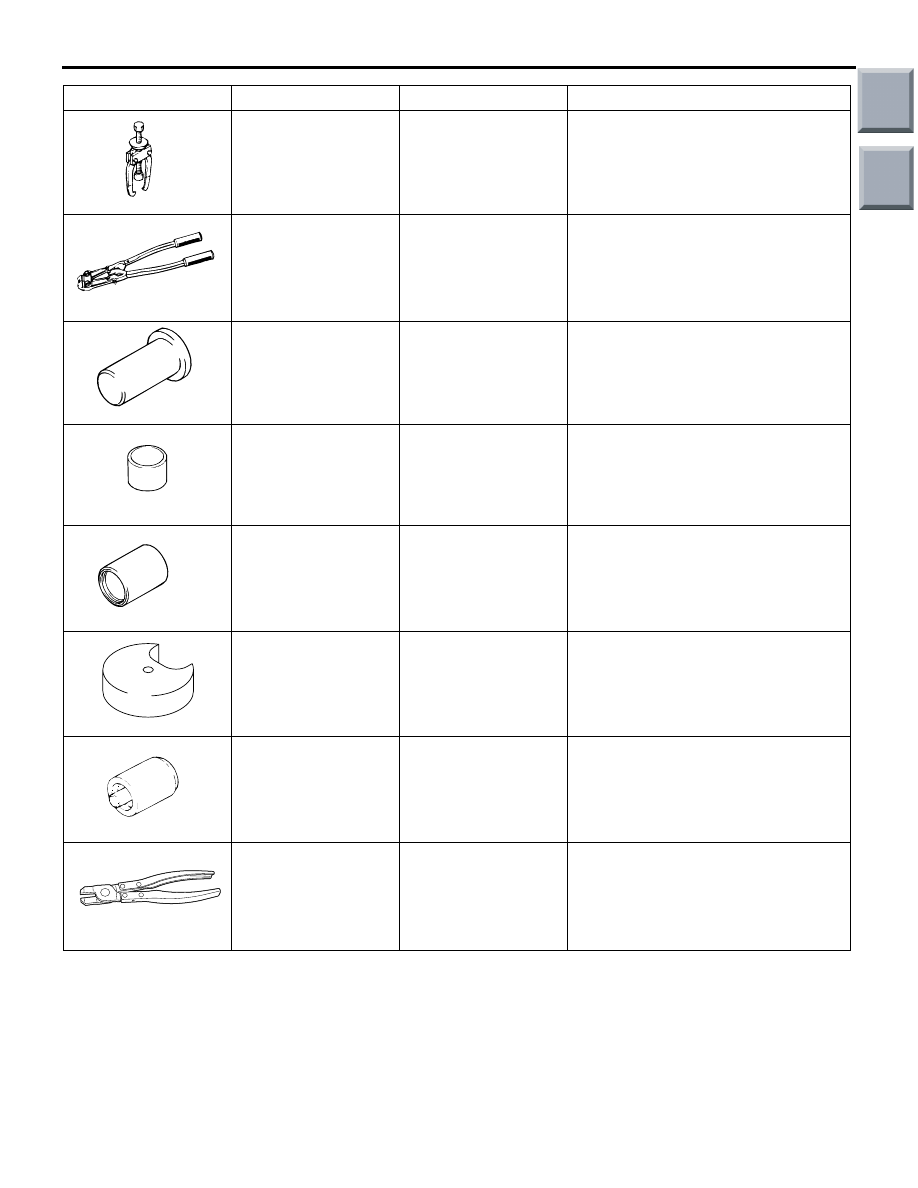

SPECIAL TOOLS

FRONT AXLE

26-4

MB990810

Side bearing puller

Removal of wheel bearing outer inner
race

MB991561

MB991561

Boot band crimping
tool

EBJ boot (resin boot) band
installation

D998382

MD998382

Crankshaft front oil
seal installer

Removal of wheel bearing

MB991389

MB991389

Bush remover base

Press-fitting of wheel bearing

MB990890

MB990890

Rear suspension
bush base

• Press-fitting of wheel bearing

• Dust cover installation

MD998338

Spring compressor

Dust cover installation

MB990881

MB990880

Rear suspension
bush arbour

Hub installation

MB992194

MB992194

Boot band crimping
tool

TJ boot band installation

Tool

Number

Name

Use

Main

Index

Group

TOC

ON-VEHICLE SERVICE

FRONT AXLE

26-5

ON-VEHICLE SERVICE

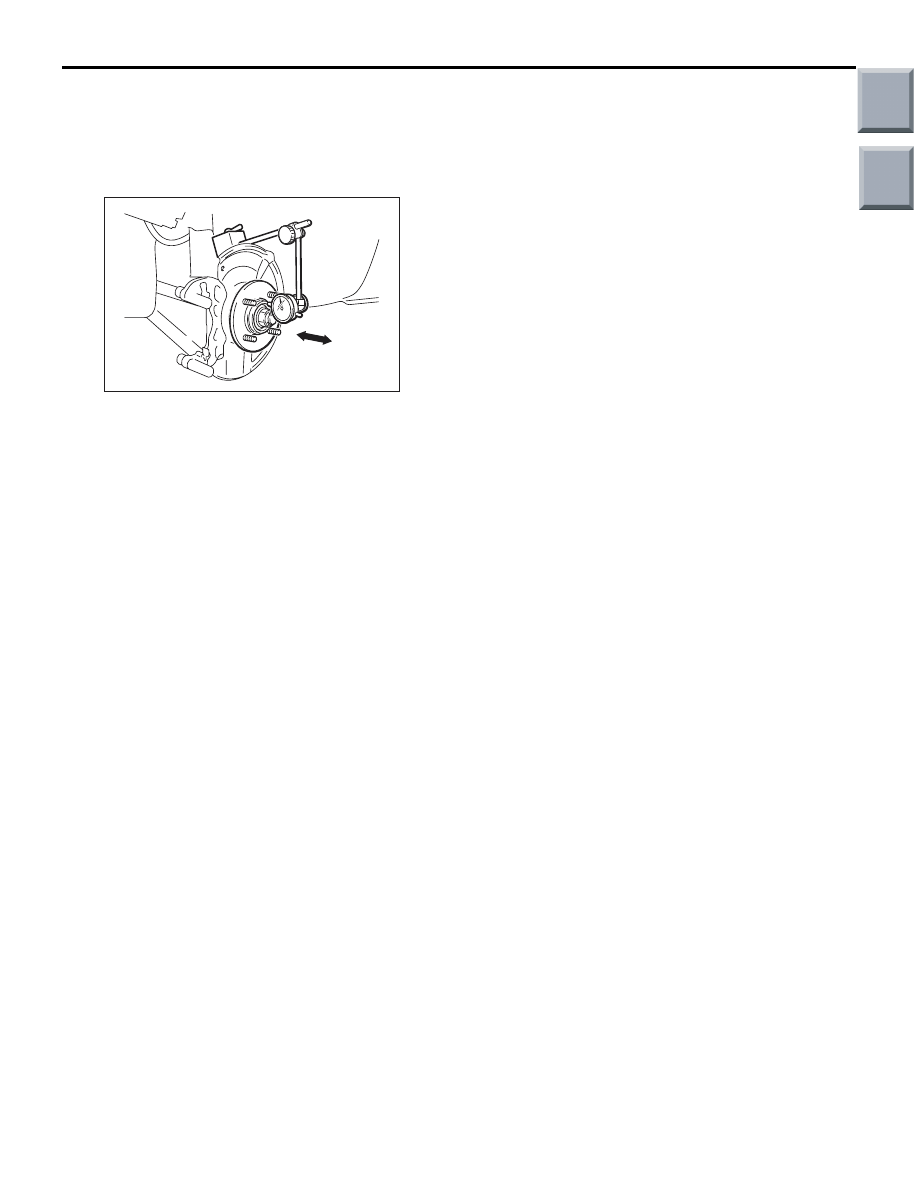

WHEEL BEARING AXIAL PLAY CHECK

M1261001100276

1. Remove the caliper assembly and suspend it with

a wire (Refer t

P.26-6

P.26-9

).

AC208063AB

2. Attach a dial gauge as shown in the illustration,

and then measure the axial play while moving the
hub in the axial direction.

Limit: 0.05 mm

3. If axial play exceeds the limit, replace the front

wheel hub assembly.

Main

Index

Group

TOC

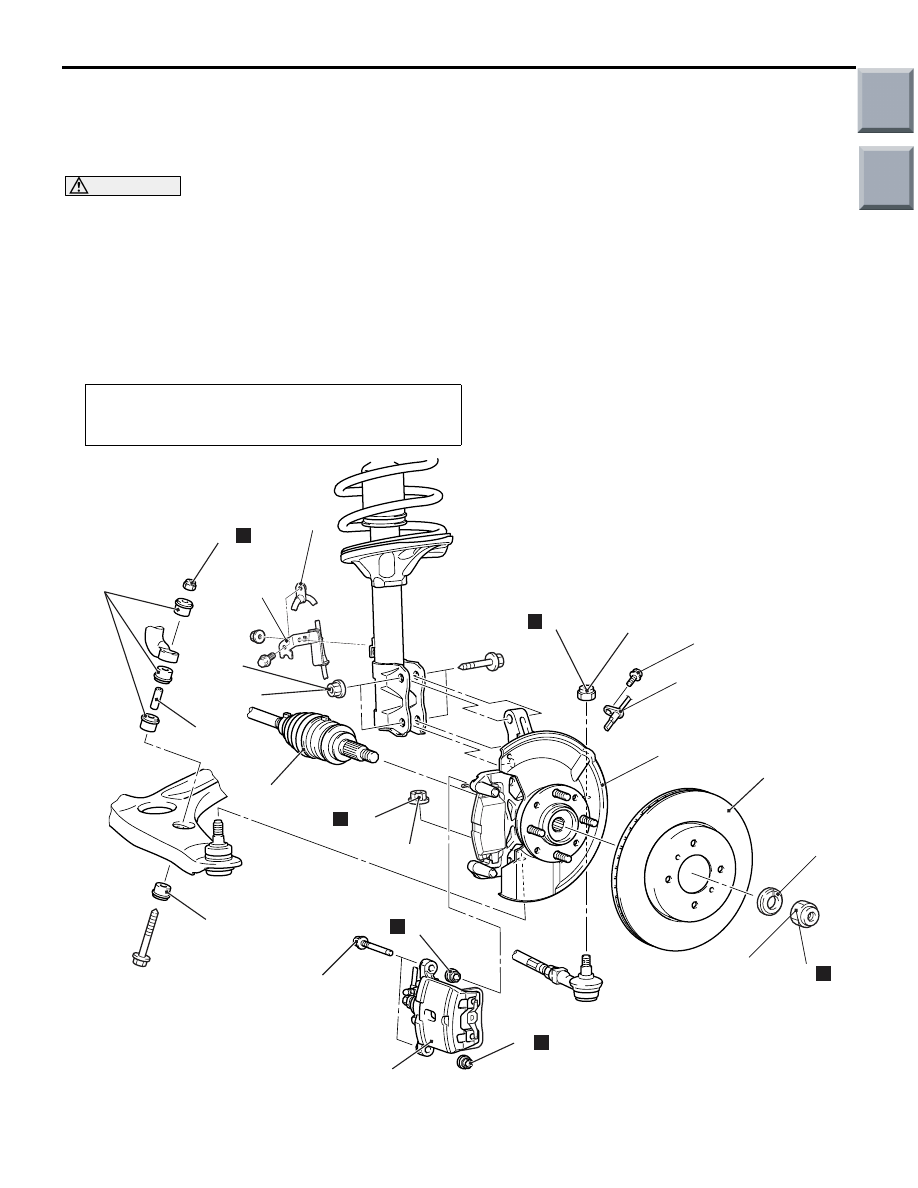

FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-6

FRONT AXLE HUB ASSEMBLY

REMOVAL AND INSTALLATION
<VEHICLES WITH 14 INCH-DISC BRAKE>

M1261001700814

CAUTION

• Do not disassemble the front wheel hub assembly.
• The magnetic encoder collects any metallic particle easily, because it is magnetized. Make sure

that the magnetic encoder should not collect any metallic particle. Check that there is not any
trouble prior to reassembling it.

• When the front wheel hub assembly is removed and installed, make sure that the magnetic

encoder does not contact with surrounding parts to avoid damage.

Post-installation Operation
Check the dust cover for cracks or damage by pushing it with
your finger.

AC208557

N

1

245 ± 29 N·m

AB

2

3

4

5

6

7

7

8

9

N

10

11

10

12

N

66 ± 6 N·m

13

N

80 ± 10 N·m

15

25 ± 5 N·m

16

44 ± 5 N·m

14

N

N

5 ± 1 N·m

When the front wheel speed sensor is removed and installed, make sure that its pole piece does
not contact with surrounding parts to avoid damage.

Removal steps

<<

A

>> >>

C

<< 1.

Driveshaft nut

>>

C

<< 2.

Washer

3.

Front wheel speed sensor

4.

Brake hose bracket

Removal steps (Continued)

Main

Index

Group

TOC

FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-7

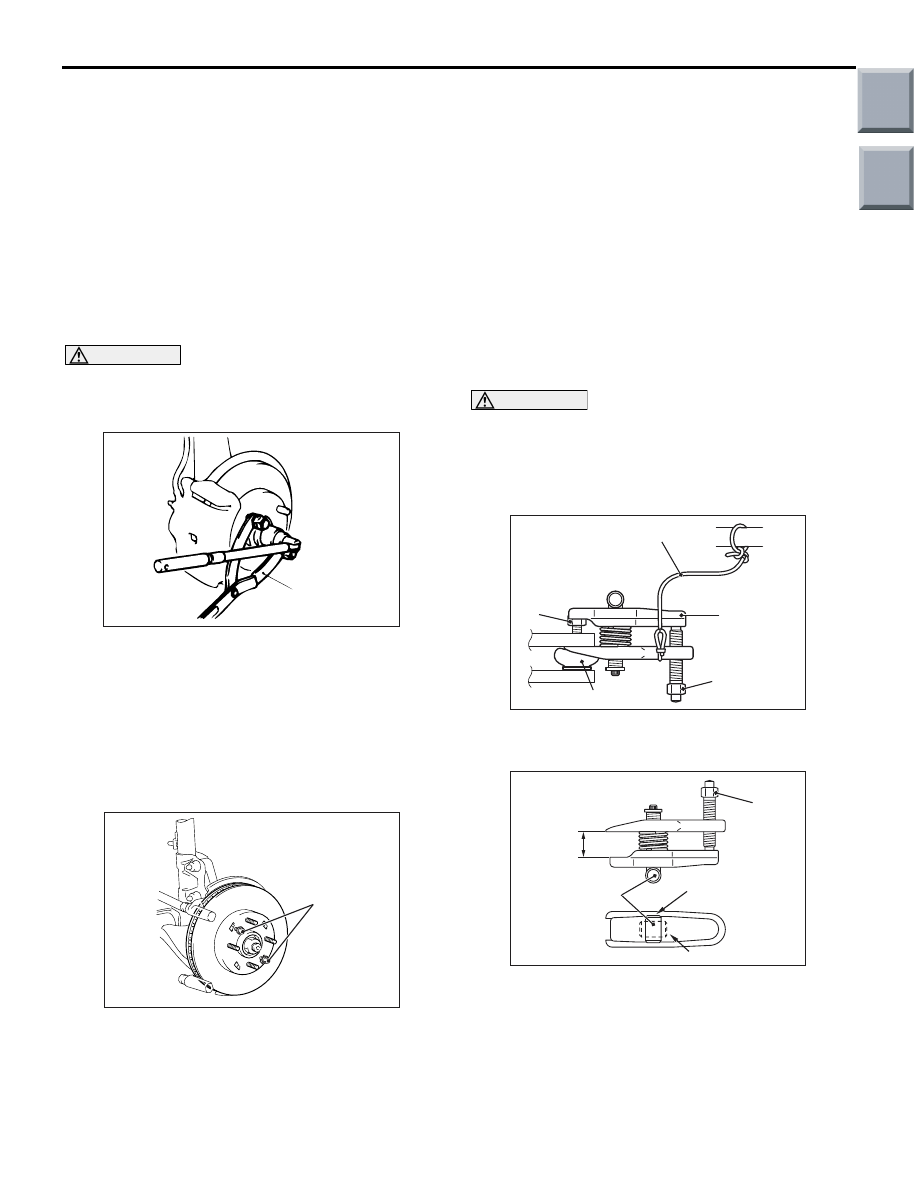

REMOVAL SERVICE POINTS
<<A>> DRIVESHAFT NUT REMOVAL

CAUTION

Do not apply pressure to wheel bearing by the
vehicle weight to avoid possible damage when
driveshaft nut is loosened.

AC102462

MB990767

AB

Use special tool front hub & flange yoke holder
(MB990767) to fix the hub and remove the driveshaft
nut.

<<B>> CALIPER ASSEMBLY REMOVAL

Secure the removed caliper assembly with wire, etc.

<<C>> BRAKE DISK REMOVAL

AC208364 AB

Bolts
(M8×1.25)

If the brake disc is seized, install M8

× 1.25 bolts as

shown, and remove the disc by tightening the bolts
evenly and gradually.

<<D>> SELF-LOCKING NUT (TIE ROD
END CONNECTION)/SELF-LOCKING NUT
(LOWER ARM BALL JOINT
CONNECTION) REMOVAL

CAUTION

• Do not remove the nut from ball joint. Loosen

it and use the special tool to avoid possible
damage to ball joint threads.

AC208247AJ

Cord

Bolt

MB991897
or
MB992011

Nut

Ball joint

Hang the special tool with cord to prevent it
from falling.

1. Install special tool ball joint remover (MB991897

or MB992011) as shown in the figure.

AC106821

Knob

Parallel

Bolt

Correct

Wrong

AD

2. Turn the bolt and knob as necessary to make the

jaws of special tool  parallel, tighten the bolt by
hand and confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make
sure the knob is in the position shown in the fig-
ure.

3. Tighten the bolt with a wrench to disconnect the

tie rod end, lower arm ball joint.

5.

Front wheel speed sensor harness
bracket

<<

B

>>

6.

Caliper assembly

>>

B

<< 7.

Pin boot

<<

C

>>

8.

Brake disc

>>

A

<< 9.

Self-locking nut

10. Stabilizer rubber
11. Collar

Removal steps (Continued)

<<

D

>>

12. Self-locking nut (tie rod end

connection)

<<

D

>>

13. Self-locking nut (lower arm ball

joint connection)

<<

E

>>

14. Driveshaft
15. Nut (hub and knuckle to strut

connection)

16. Hub and knuckle assembly

Removal steps (Continued)
