Mitsubishi Colt Ralliart. Manual - part 249

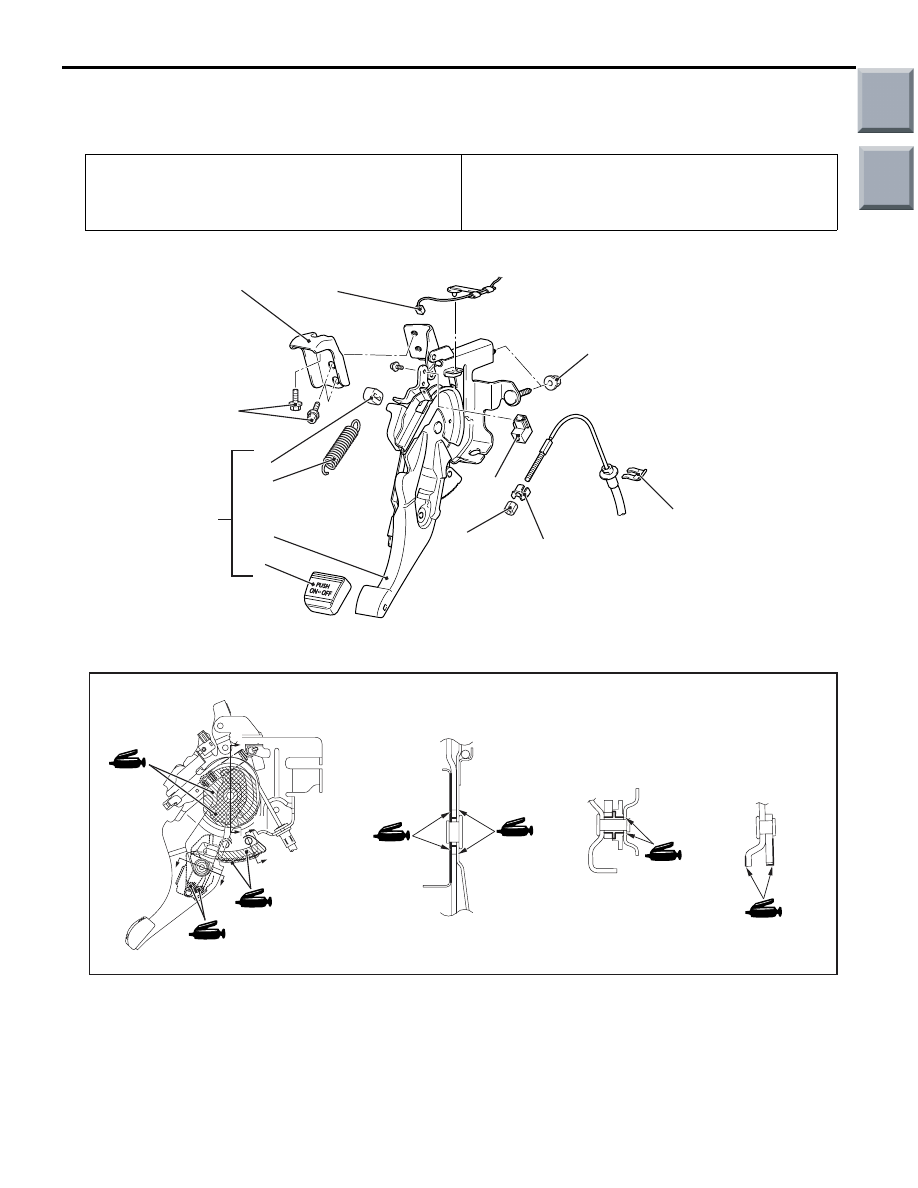

PARKING BRAKE PEDAL <CVT>

PARKING BRAKES

36-6

PARKING BRAKE PEDAL <CVT>

REMOVAL AND INSTALLATION

M1361001600193

Pre-removal Operation
• Lower Panel Removal (Refer to GROUP 52A, Instrument

Panel Assembly

P.52A-3

).

Post-installation Operation
• Lower Panel Installation (Refer to GROUP 52A, Instru-

ment Panel Assembly

P.52A-3

).

• Parking Brake Pedal Stroke Adjustment (Refer to

P.36-4

).

AC208267

AC208312

AC208315

AC208313

AC208314

AC208910AB

1

2

3

7

6

8

9

10

11

5

4

12

B

B

C

A

A

C

Section A - A

Section B - B

Section C - C

12 ± 2 N·m

Removal steps

1.

Parking brake switch harness

2.

Parking brake switch

3.

Adjuster

4.

Adjuster holder

5.

Parking brake pedal bracket

6.

Parking brake pedal mounting nut

7.

Clip

8.

Parking brake pedal assembly

9.

Pedal pad

10. Return spring
11. Stopper
12. Parking brake pedal

Removal steps (Continued)

Main

Index

Group

TOC

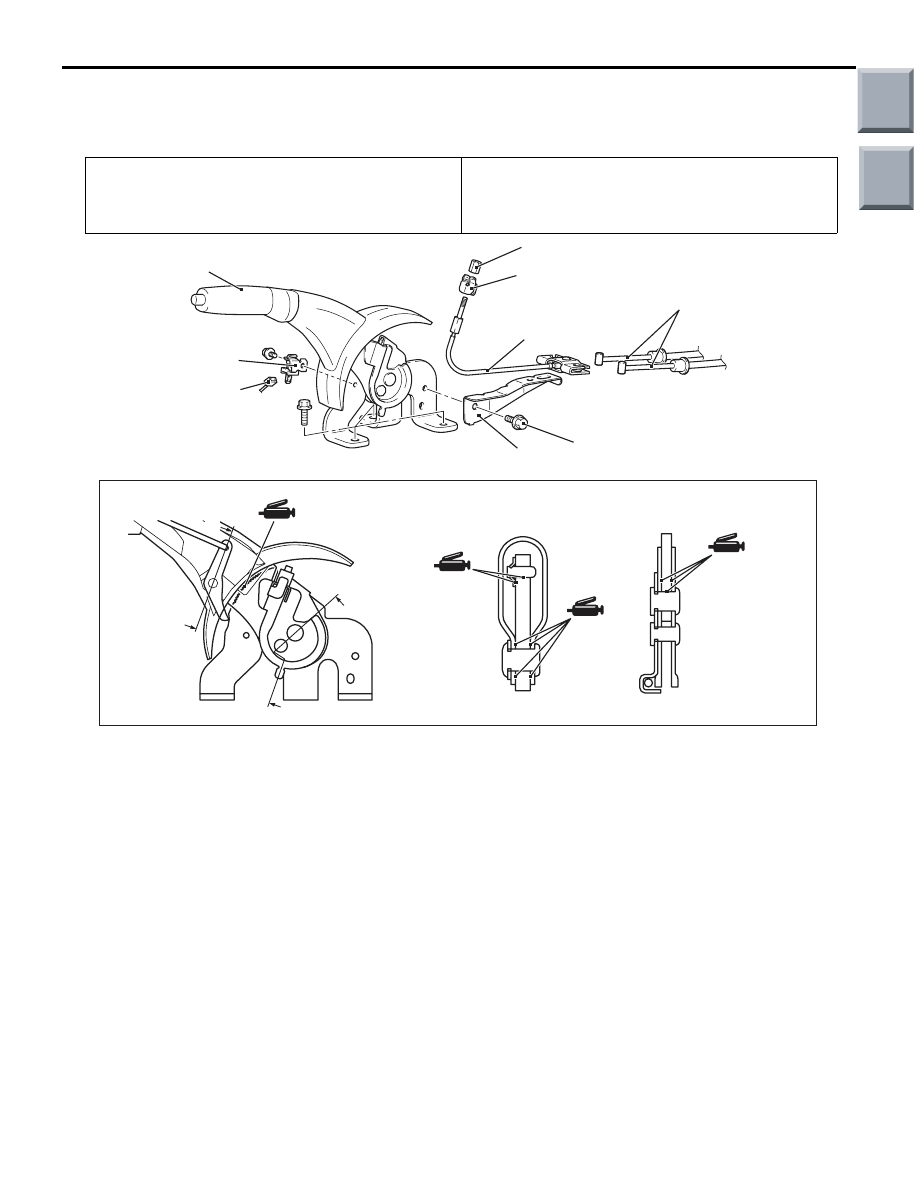

PARKING BRAKE LEVER <M/T>

PARKING BRAKES

36-7

PARKING BRAKE LEVER <M/T>

REMOVAL AND INSTALLATION

M1361001300664

Pre-removal Operation
Floor Console Assembly Removal (Refer to GROUP 52A,
Floor Console

P.52A-10

).

Post-installation Operation
• Parking Brake Lever Stroke Adjustment (Refer to

P.36-4

).

• Floor Console Assembly Installation (Refer to GROUP

52A, Floor Console Assembly

P.52A-10

).

AC600816

AC600815

AC600814

AC601059AC

1

5

6

3

2

4

8

7

A

B

B

A

8.5 ± 1.5 N·m

Section A – A

Section B – B

Removal steps

1.

Adjuster

2.

Nut holder

3.

Parking brake switch connector

4.

Rear parking brake cable connection

5.

Parking brake lever assembly

6.

Parking brake switch

7.

Floor console rear bracket

8.

Front parking brake cable

Main

Index

Group

TOC

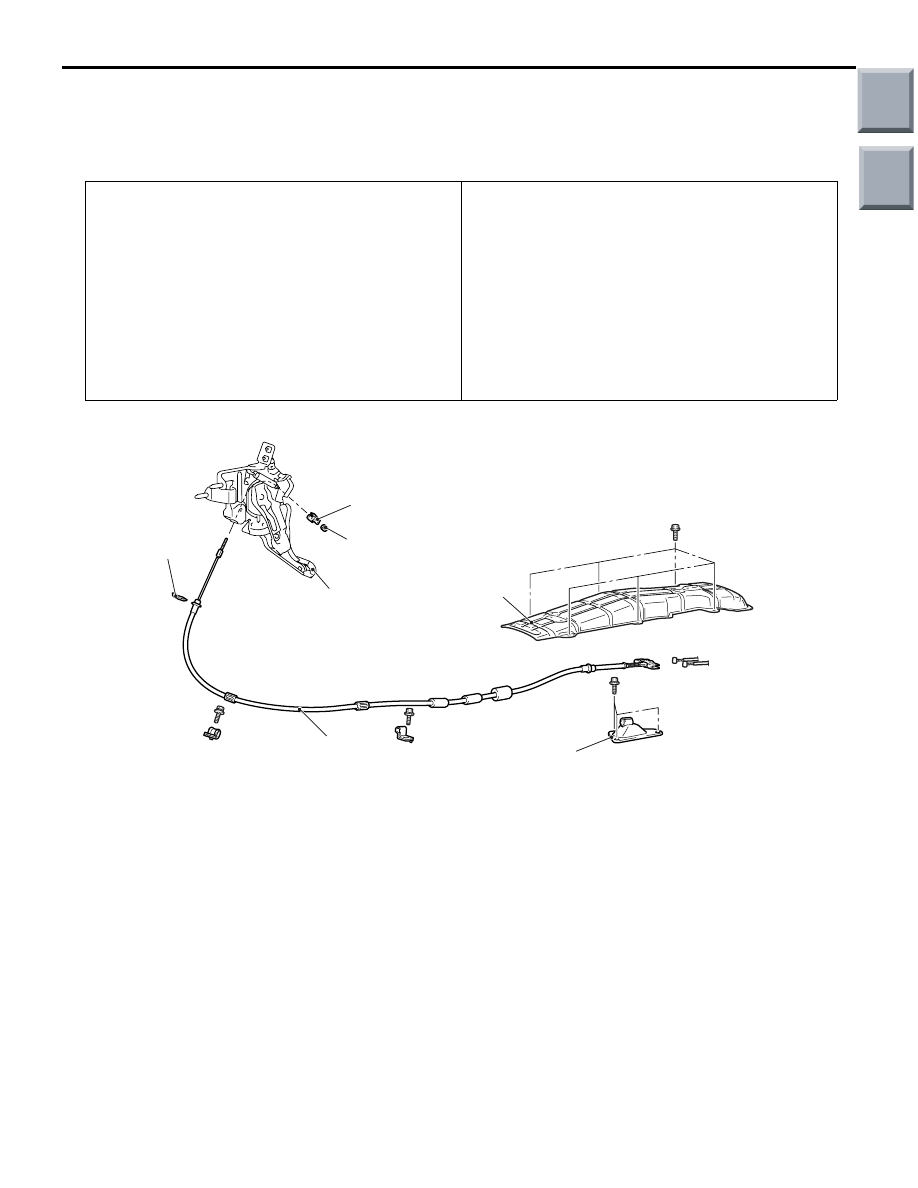

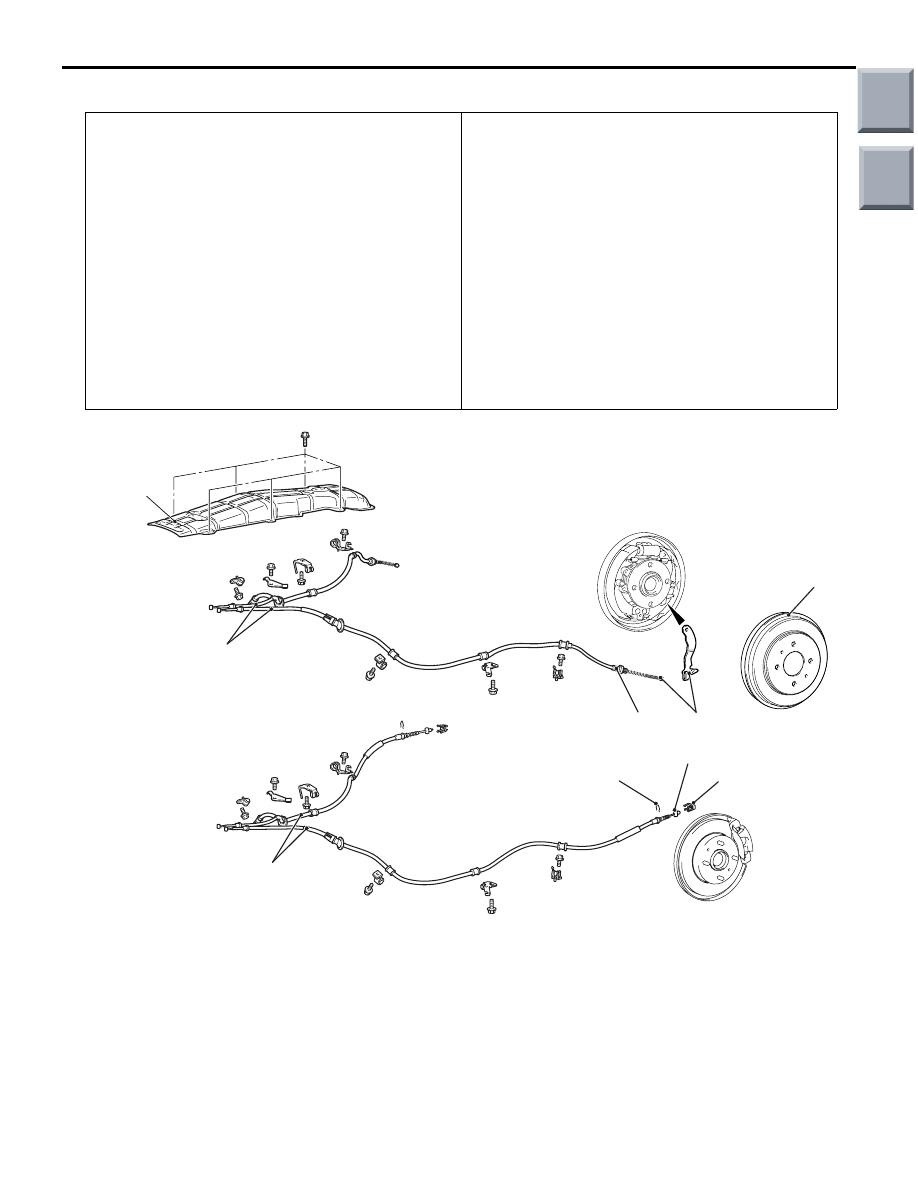

PARKING BRAKE CABLE

PARKING BRAKES

36-8

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

M1361001901119

<FRONT (CVT)>

Pre-removal Operation
• Foot Rest Removal

• Front Scuff Plate, Rear Scuff Plate, Cowl Side Trim,

Lower Centre Pillar Trim Removal (Refer to GROUP 52A,

Interior trims

P.52A-11

).

• Heater Unit Assembly Removal (Refer to GROUP 55,

Heater Unit and Cooling Unit

P.55A-57

).

• Front Seat Assembly Removal (Refer to GROUP 52A,

Front Seat Assembly

P.52A-20

).

• Rear Seat Assembly Removal (Refer to GROUP 52A,

Rear Seat Assembly

P.52A-27

).

• Floor Carpet Removal

Post-installation Operation
• Floor Carpet Installation

• Rear Seat Assembly Installation (Refer to GROUP 52A,

Rear Seat Assembly

P.52A-27

).

• Front Seat Assembly Installation (Refer to GROUP 52A,

Front Seat Assembly

P.52A-20

).

• Heater Unit Assembly Installation (Refer to GROUP 55,

Heater Unit and Cooling Unit

P.55A-57

).

• Front Scuff Plate, Rear Scuff Plate, Cowl Side Trim,

Lower Centre Pillar Trim Installation (Refer to GROUP

52A, Interior trims

P.52A-11

).

• Foot Rest Installation

• Parking Brake Pedal Stroke Adjustment (Refer to

P.36-4

).

AC509631AB

1

2

4

3

5

6

7

Removal steps

1.

Parking brake pedal assembly
(Refer

P.36-6

).

2.

Adjuster

3.

Adjuster holder

4.

Parking brake cable cover

5.

Clip

6.

Front parking brake cable

7.

Front parking brake cable bracket

Removal steps (Continued)

Main

Index

Group

TOC

PARKING BRAKE CABLE

PARKING BRAKES

36-9

<REAR (EXCEPT FOR RALLIART Version-R)>

Pre-removal Operation
• Foot Rest Removal
• Floor Console Removal (Refer to GROUP 52A, Floor con-

sole assembly

P.52A-10

). <vehicles with floor shift>

• Front Scuff Plate, Rear Scuff Plate, Cowl Side Trim,

Lower Centre Pillar Trim Removal (Refer to GROUP 52A,

Interior trims

P.52A-11

).

• Heater Unit Assembly Removal (Refer to GROUP 55,

Heater Unit and Cooling Unit

P.55A-57

).

• Front Seat Assembly Removal (Refer to GROUP 52A,

Front Seat Assembly

P.52A-20

).

• Rear Seat Assembly Removal (Refer to GROUP 52A,

Rear Seat Assembly

P.52A-27

).

• Floor Carpet Removal

Post-installation Operation
• Floor Carpet Installation
• Rear Seat Assembly Installation (Refer to GROUP 52A,

Rear Seat Assembly

P.52A-27

).

• Front Seat Assembly Installation (Refer to GROUP 52A,

Front Seat Assembly

P.52A-20

).

• Heater Unit Assembly Installation (Refer to GROUP 55,

Heater Unit and Cooling Unit

P.55A-57

).

• Front Scuff Plate, Rear Scuff Plate, Cowl Side Trim,

Lower Centre Pillar Trim Installation (Refer to GROUP

52A, Interior trims

P.52A-11

).

• Floor Console Installation (Refer to GROUP 52A, Floor

console assembly

P.52A-10

). <vehicles with floor shift>

• Foot Rest Installation
• Parking Brake Pedal Stroke Adjustment (Refer to

P.36-4

).

<CVT>

• Parking Brake Lever Stroke Adjustment (Refer to

P.36-4

).

<M/T>

AC509632AB

3

4

5

<Vehicles with drum brake>

<Vehicles with disc brake>

6

1

2

7

7

4

Removal steps

1.

Clip <Vehicles with disc brake>

2.

Cable retainer <Vehicles with disc
brake>

<<

A

>>

3.

Brake drum <vehicles with drum
brake>

4.

Rear parking brake cable and
parking lever connection

<<

B

>>

5.

Rear parking brake cable and
backing plate connection <vehicles
with drum brake>

6.

Parking brake cable cover <CVT>

7.

Rear parking brake cable

Removal steps (Continued)
