GENERAL INFORMATION

PARKING BRAKES

36-2

GENERAL INFORMATION

M1361000100689

<CVT>

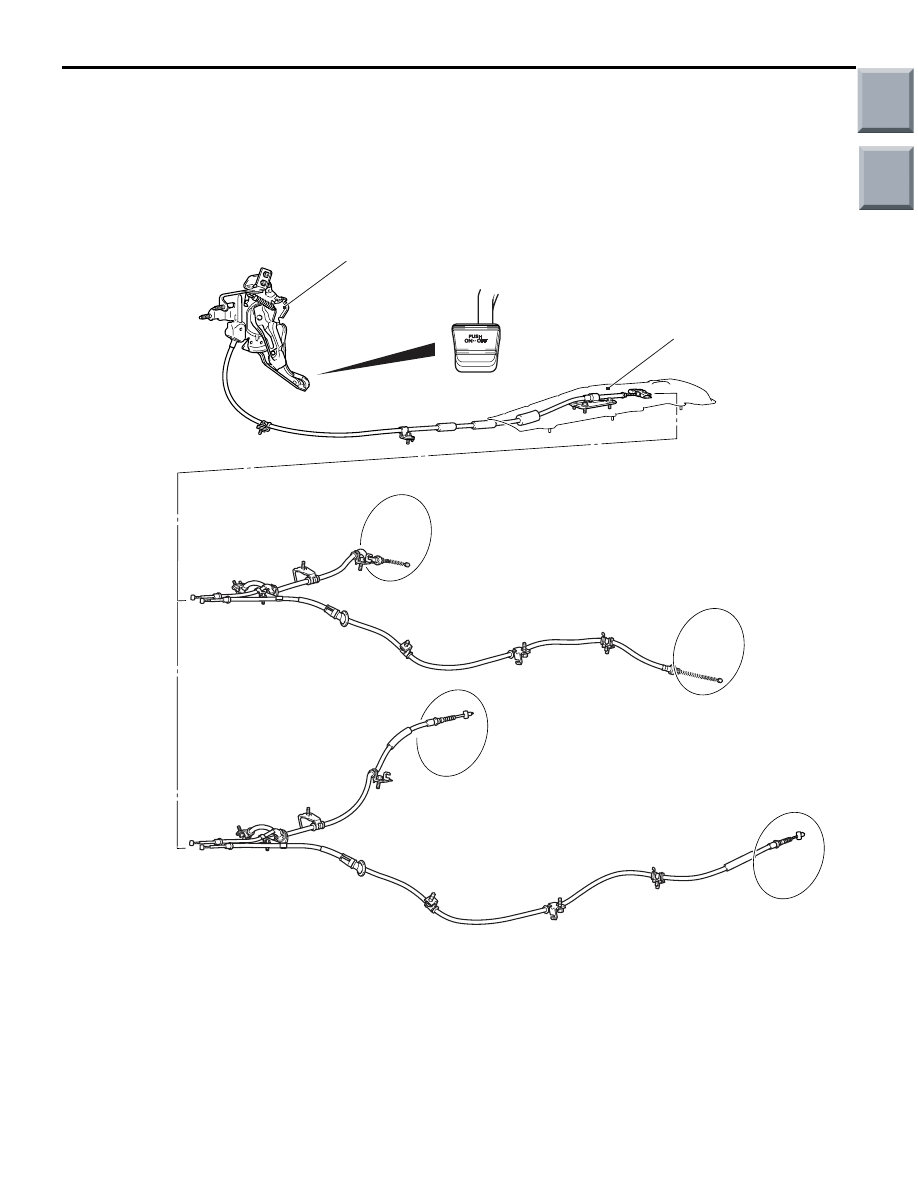

By using a pedal-type parking brake, a certain space
can be ensured between the front seats, thus ena-
bling side walk-through facility.
A push-on push-release method makes the pedal
operation easier.

AC506311AC

Parking brake cable cover

Parking brake pedal assembly

<LS>

<VR-X>

Main

Index

Group

TOC

SERVICE SPECIFICATIONS

PARKING BRAKES

36-3

<M/T>

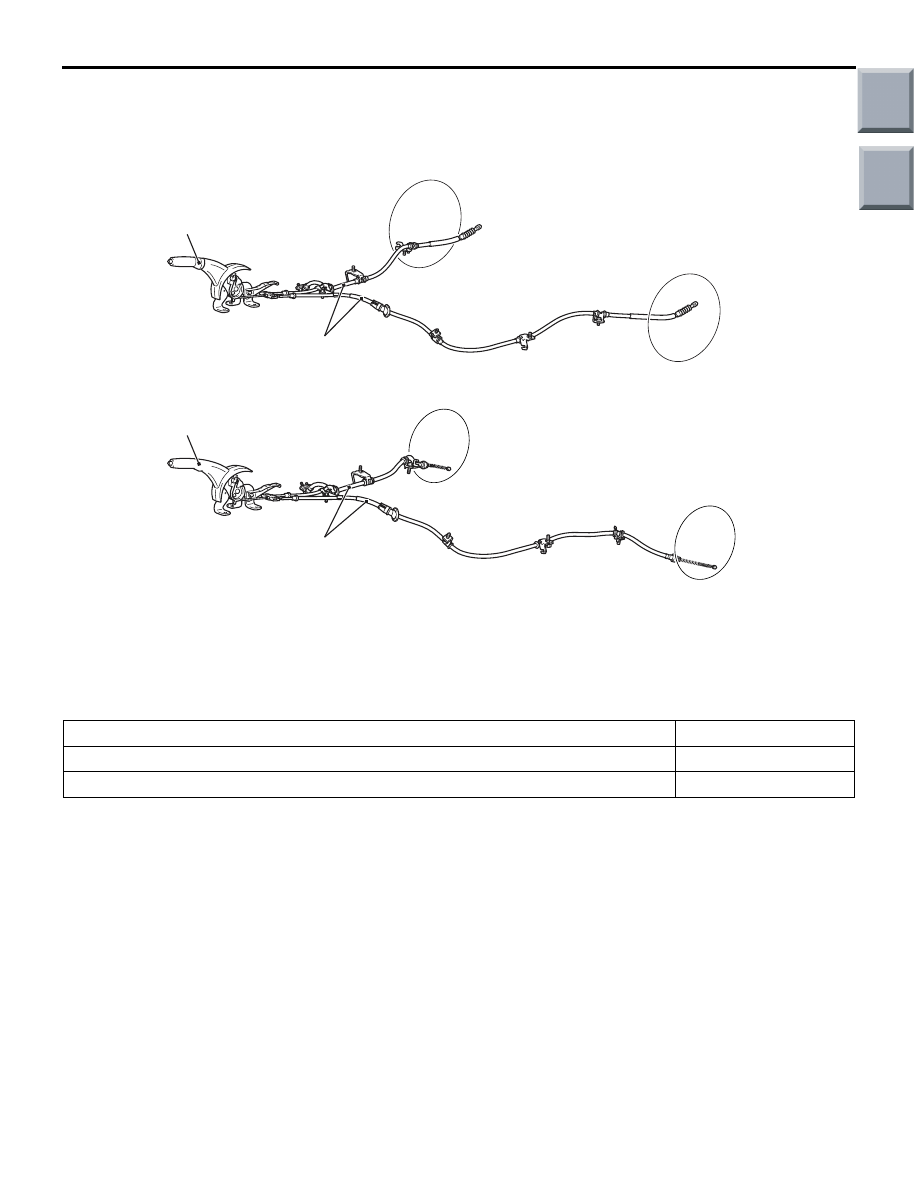

The parking brake is of a mechanical rear-wheel act-
ing type, and its operation utilises a parking brake
lever.

AC601652

Parking brake lever

Parking brake cable

Parking brake lever (Leather grip)

Parking brake cable

AB

<RALLIART Version-R>

<LS, VR>

SERVICE SPECIFICATIONS

SERVICE SPECIFICATION

M1361000300809

Item

Standard value

Parking brake pedal stroke (depressing force: 200 N) <CVT>

1

− 2 notches

Parking brake lever stroke (Operation force: 200 N) <M/T>

5

− 7 notches

Main

Index

Group

TOC

ON-VEHICLE SERVICE

PARKING BRAKES

36-4

ON-VEHICLE SERVICE

PARKING BRAKE PEDAL STROKE
CHECK AND ADJUSTMENT <CVT>

M1361005000159

1. Depress the parking brake pedal by 200 N.

Standard value: 1

− 2 notches

2. If the parking brake pedal stroke is not within the

standard value, adjust as described below.

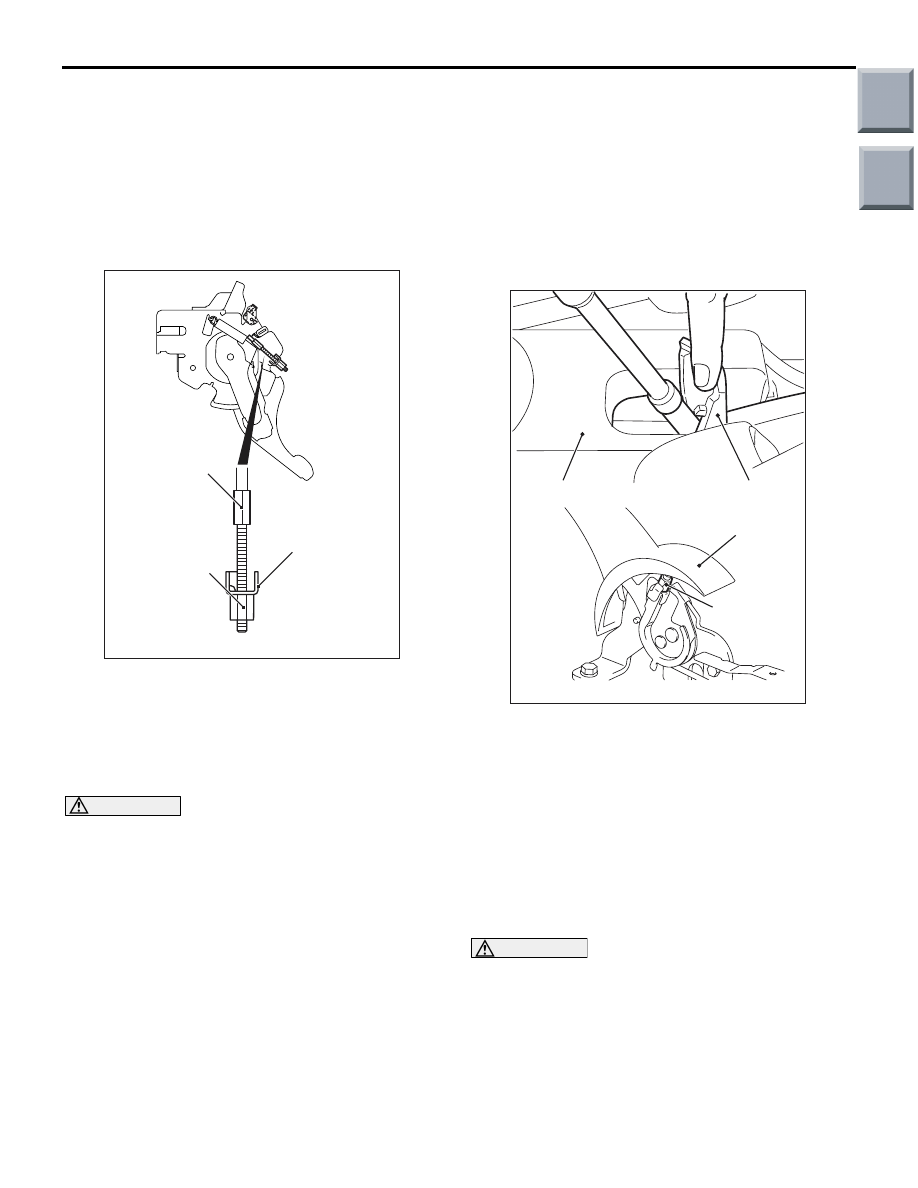

AC208325 AB

Cable rod

Adjusting nut

Adjuster holder

(1) Loosen the adjusting nut to the end of the

cable rod in order to allow slack in the cables.

(2) Depress the brake pedal repeatedly until the

brake pedal has no change in its stroke.

NOTE: Depressing the brake pedal repeatedly
adjusts shoe clearance correctly.

CAUTION

If the parking brake lever stroke is below the
standard value and the braking is too firm, the
rear brakes may drag.

(3) Adjust the parking brake pedal stroke to the

standard value by turning the adjusting nut.
After the adjustment, ensure that there is no
free play between the adjusting nut and the
parking brake pedal. In addition, check that
the adjusting nut is secured by the adjuster
holder.

(4) After the parking brake pedal stroke is

adjusted, raise the rear of the vehicle. Release
the parking brake, turn the rear wheels to
confirm that the rear brakes are not dragging.

PARKING BRAKE LEVER STROKE
CHECK AND ADJUSTMENT <M/T>

M1361000900674

1. Pull the parking brake lever with a force of 200 N

and count the number of notches.

Standard value: 5

− 7 notches

2. If the parking brake lever stroke is not the

standard value, adjust as described below.

AC600818AC

Adjuster

Flange

Flange

Floor console

(1) Turn up the flange of the parking brake lever,

and loosen the adjuster to the end of the cable
rod through the space on the floor console in
order to free the cables.

(2) With the engine idling, forcefully depress the

brake pedal five or six times and confirm that
the pedal stroke stops changing.

NOTE: If the pedal stroke stops changing, the
automatic-adjustment mechanism is function-
ing normally, and the clearance between the
shoe and drum is correct

CAUTION

If the parking brake lever stroke is below the
standard value and the braking is too firm, the
rear brakes may drag.

(3) Adjust the parking brake lever stroke to the

standard value by turning the adjusting nut.
After the adjustment, ensure that there is no
free play between the adjusting nut and the
parking brake lever.

Main

Index

Group

TOC

ON-VEHICLE SERVICE

PARKING BRAKES

36-5

(4) After the parking brake lever stroke is

adjusted, raise the rear of the vehicle. Release
the parking brake, turn the rear wheels to
confirm that the rear brakes are not dragging.

PARKING BRAKE SWITCH CHECK
<CVT>

M1361003300905

AC208326AB

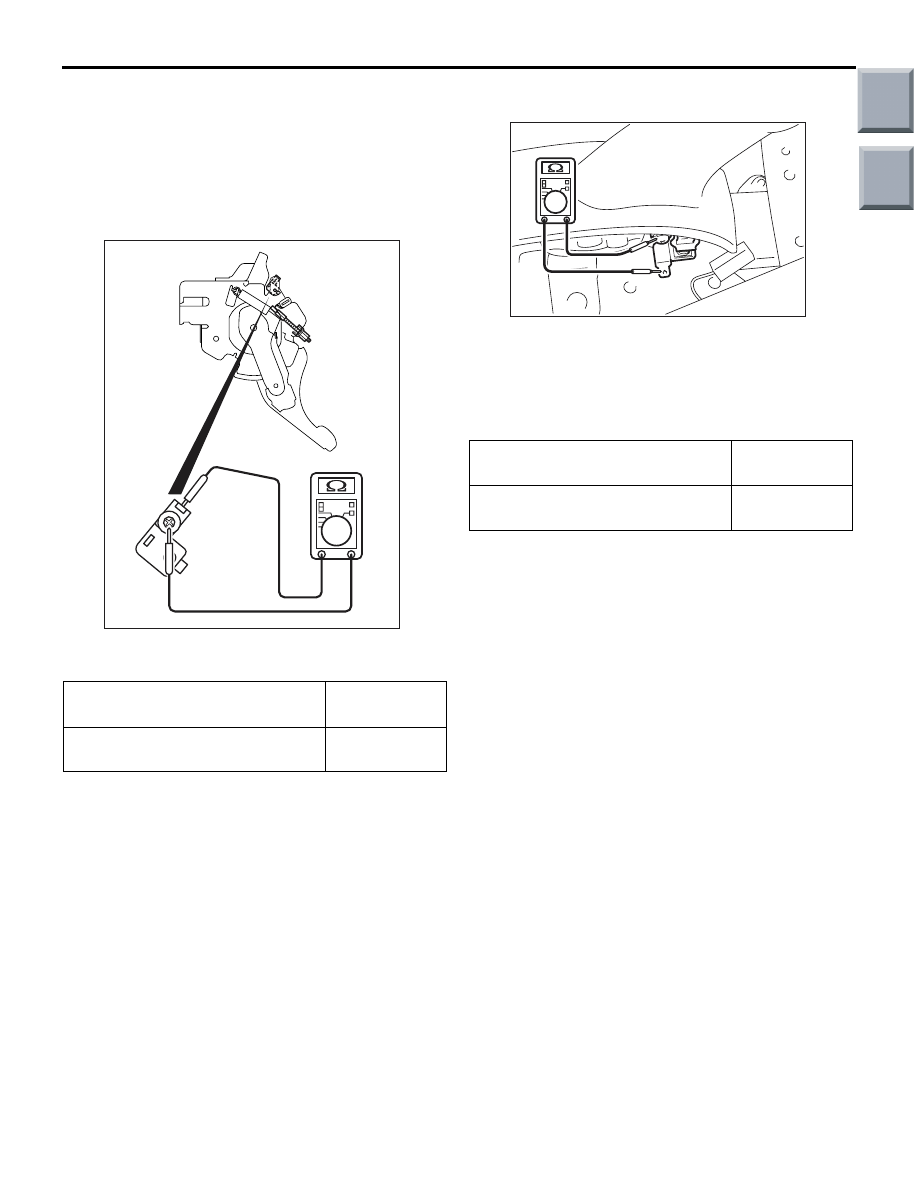

Check for continuity between the parking brake
switch terminal and the switch mounting bolt.

When parking brake pedal is
depressed

Continuity
(Less than 2

Ω)

When parking brake pedal is
released

Open circuit

PARKING BRAKE SWITCH CHECK <M/T>

M1361003300875

AC600817

1. Remove the floor console assembly. (Refer to

GROUP 52A,  Floor Console Assembly

P.52A-10

).

2. Check for continuity between the parking brake

switch terminal and the switch mounting bolt.

When parking brake lever is pulled Continuity

(Less than 2

Ω)

When parking brake lever is
released

Open circuit
