ABS SENSOR

ANTI-SKID BRAKING SYSTEM (ABS)

35B-80

ABS SENSOR

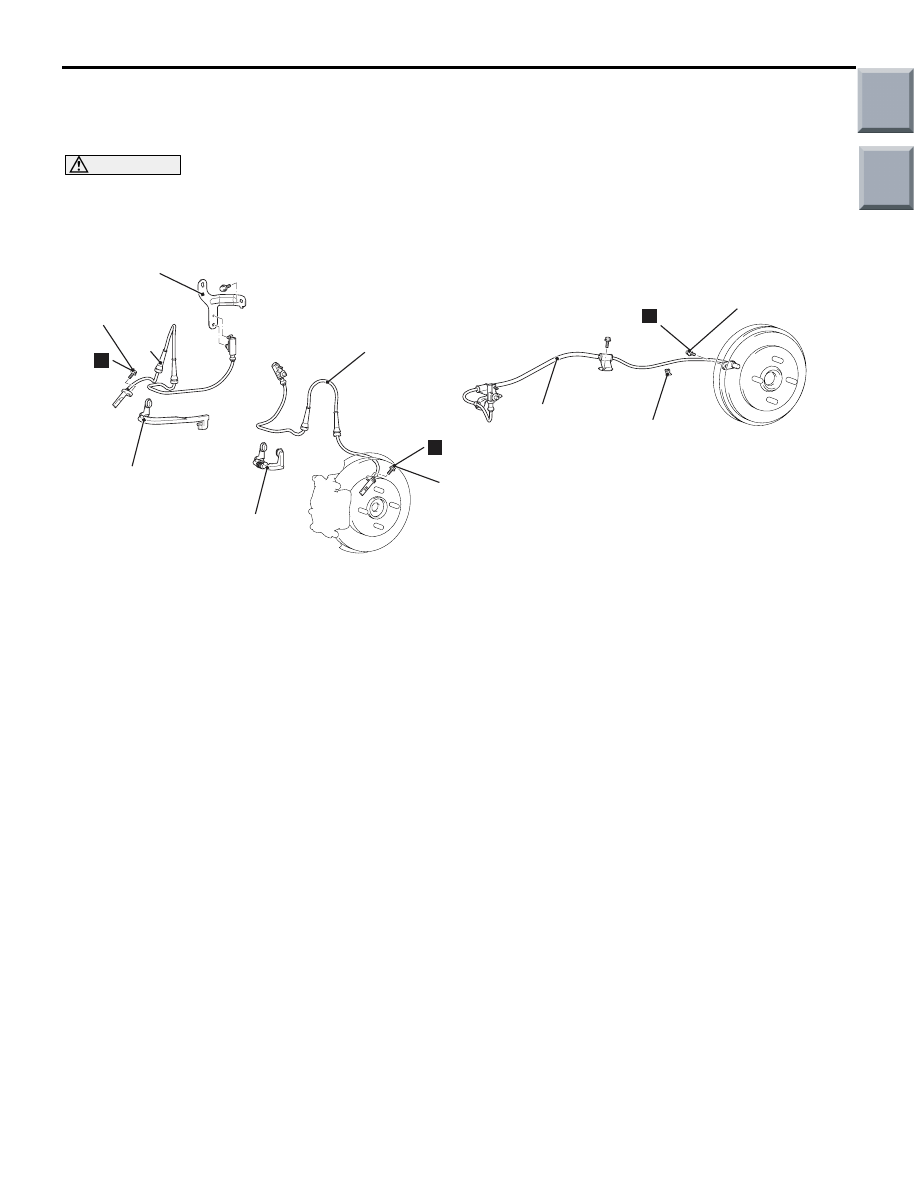

REMOVAL AND INSTALLATION

M1352008300689

CAUTION

The vehicle speed detection encoder collects any metallic particle easily, because it is magnetised.
Make sure that the encoder should not collect any metallic particle. Check that there is not any trou-
ble prior to reassembling it.

NOTE:

.

•

The encoder for detecting front wheel speed is a
non-disassemble part integrated with the wheel
bearing.

•

The encoder for detecting rear wheel speed is a
non-disassemble part press fitted to the rear hub
inner ring.

AC208393

AC208405

AC312767AB

1

2

3

4

5

1

2

6.7 ± 1.3 N·m

6.7 ± 1.3 N·m

6.7 ± 1.3 N·m

N

N

N

Front wheel speed sensor
removal steps

>>

A

<<

1.

Front wheel speed sensor heat
protector

2.

Front wheel speed sensor

3.

Front wheel speed sensor bracket
Rear wheel speed sensor
removal steps

4.

Clip

5.

Rear wheel speed sensor

Main

Index

Group

TOC

ABS SENSOR

ANTI-SKID BRAKING SYSTEM (ABS)

35B-81

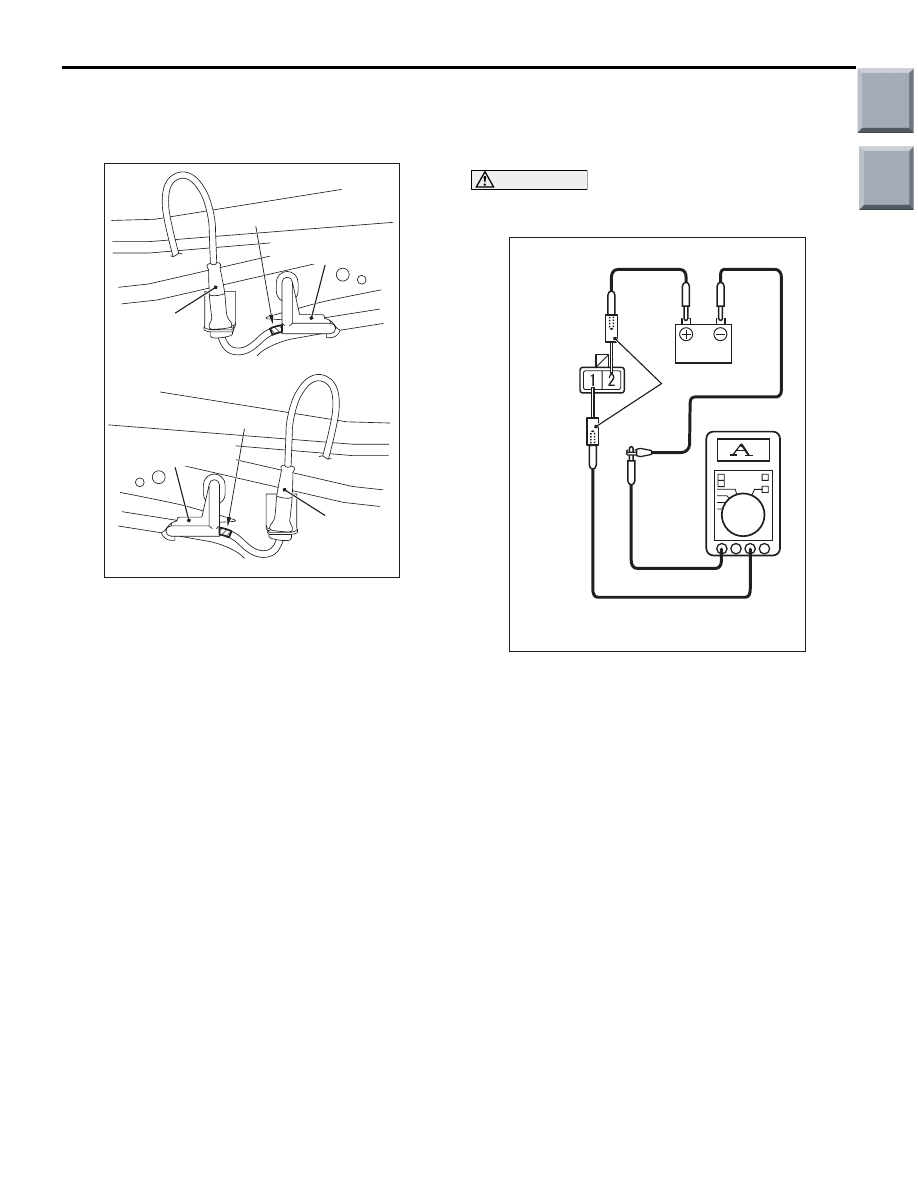

INSTALLATION SERVICE POINT
>>A<< FRONT WHEEL SPEED SENSOR
HEAT PROTECTOR INSTALLATION

Align the end of the white marking of the front wheel
speed sensor with the edge of the front wheel speed
sensor heat protector as shown in the figure.

INSPECTION

M1352008400534

CURRENT INSPECTION OF WHEEL
SPEED SENSOR

CAUTION

To prevent the wheel speed sensor damage, ver-
ify that the battery terminals are normal.

1. Connect the circuit tester to the wheel speed

sensor using the probe (special tool MB991222),
and measure the sensor current as a single unit.

Standard value: 5.9 - 8.4mA

2. If not within the specification, replace the wheel

speed sensor with a new one.

AC208395

AC208740

AC208741AB

White Marking

Front wheel speed
sensor heat protector

White Marking

Front wheel
speed sensor

Front wheel speed
sensor heat protector

<LH>

<RH>

Front wheel
speed sensor

AC303389AB

MB991222

Main

Index

Group

TOC

ABS SENSOR

ANTI-SKID BRAKING SYSTEM (ABS)

35B-82

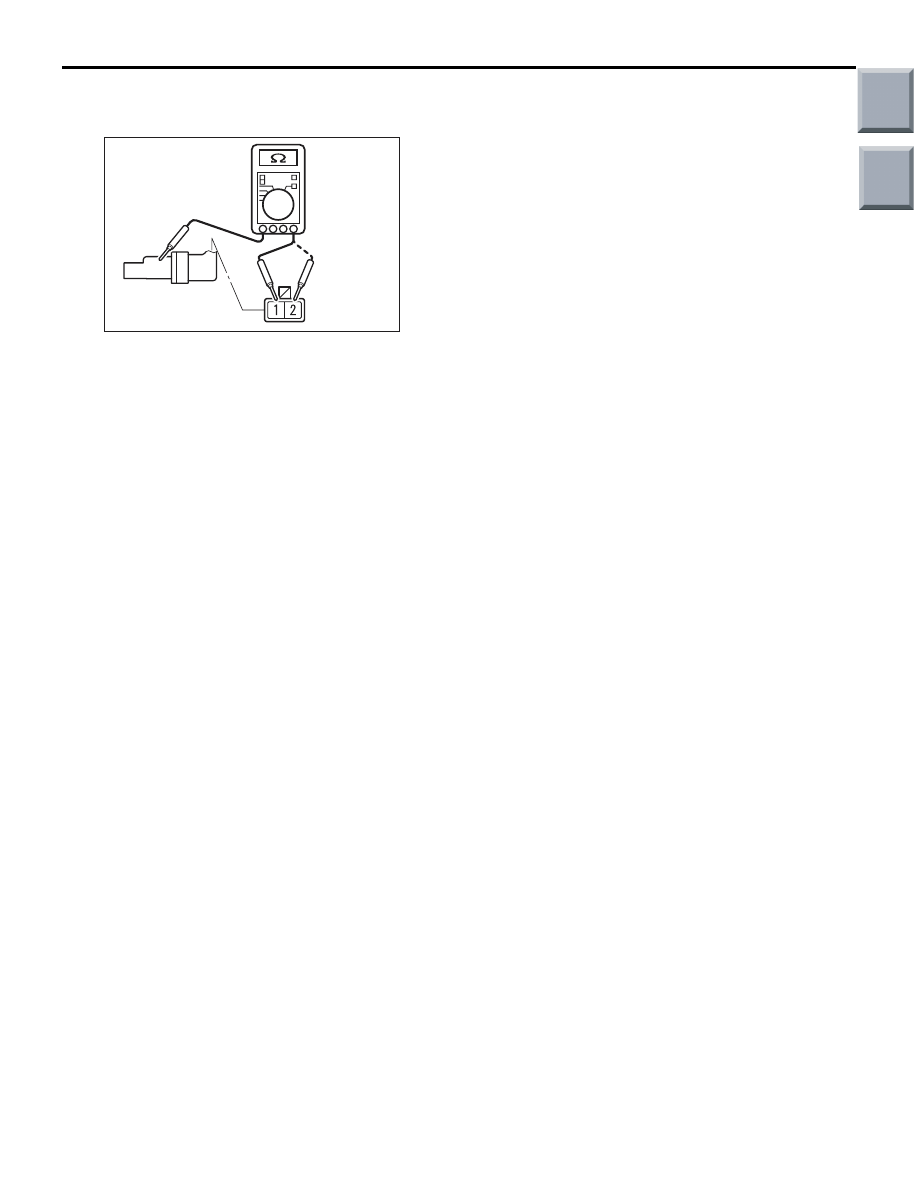

INSULATION INSPECTION OF WHEEL
SPEED SENSOR

1. Measure the insulation resistance of the wheel

speed sensor between the terminals No.1/No.2
and wheel speed sensor body as a single unit.

Standard value: 5 - 100 M

Ω

2. If not within the specification, replace the wheel

speed sensor with a new one.

AC208514 AB

Main

Index

Group

TOC

GROUP 36

PARKING BRAKES

CONTENTS

GENERAL INFORMATION . . . . . . . .

36-2

SERVICE SPECIFICATIONS. . . . . . .

36-3

SERVICE SPECIFICATION . . . . . . . . . . . .

36-3

ON-VEHICLE SERVICE. . . . . . . . . . .

36-4

PARKING BRAKE PEDAL STROKE



CHECK AND ADJUSTMENT <CVT> . . . . .

36-4

PARKING BRAKE LEVER STROKE



CHECK AND ADJUSTMENT <M/T>  . . . . .

36-4

PARKING BRAKE SWITCH CHECK



<CVT>. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36-5

PARKING BRAKE SWITCH CHECK



<M/T> . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36-5

PARKING BRAKE PEDAL <CVT>. . .

36-6

REMOVAL AND INSTALLATION  . . . . . . . .

36-6

PARKING BRAKE LEVER <M/T> . . .

36-7

REMOVAL AND INSTALLATION  . . . . . . . .

36-7

PARKING BRAKE CABLE. . . . . . . . .

36-8

REMOVAL AND INSTALLATION  . . . . . . . .

36-8
