FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-8

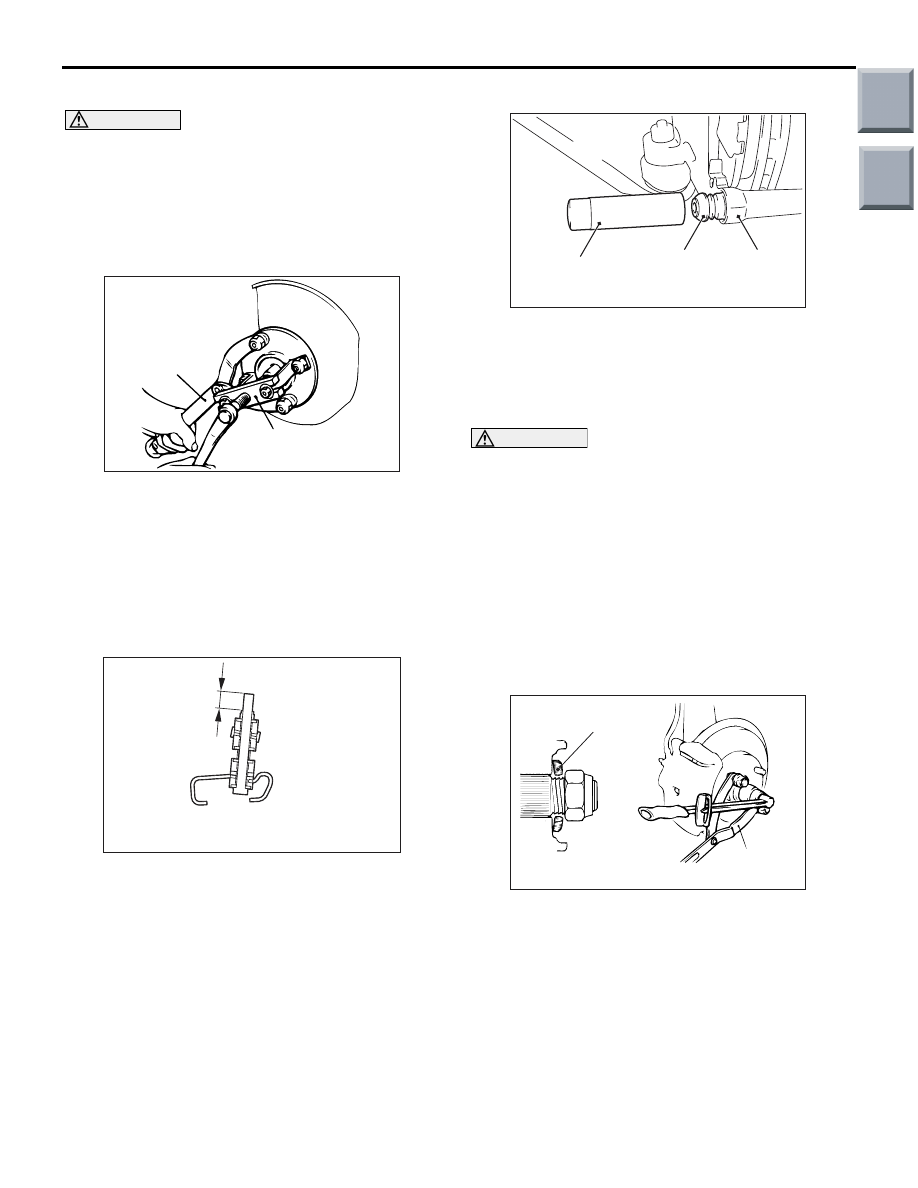

<<E>> DRIVESHAFT REMOVAL

CAUTION

• The magnetic encoder collects any metallic

particle easily, because it is magnetized. Make
sure that the magnetic encoder does not col-
lect any metallic particle.

•

AC100128AC

MB990241

MB990767

When the driveshaft is removed, make sure
that it does not contact with the magnetic
encoder to avoid damage.

Use the following special tools to push out the drive-
shaft from the hub.

• Front hub & flange yoke holder (MB990767)

• Axle shaft puller (MB990241)

INSTALLATION SERVICE POINT
>>A<< SELF-LOCKING NUT INSTALLA-
TION

AC207017AB

A

Install the stabilizer rubber and collar as shown in the
figure, and tighten the self-locking nut so that the
protruding length of the stabilizer  bar mounting bolt
protruding part meets its standard value (A).

Standard value (A): 19

± 1.5 mm

>>B<<PIN BOOT INSTALLATION

AC209151AB

19 mm deep
socket

Pin boot

Knuckle

Use a 19 mm deep socket to drive a pin boot into the
knuckle.

>>C<< WASHER/DRIVESHAFT NUT
INSTALLATION

CAUTION

• The magnetic encoder collects any metallic

particle easily, because it is magnetized. Make
sure that the magnetic encoder should not
collect any metallic particle. Check that there
is not any trouble prior to reassembling it.

• When the driveshaft is installed, make sure

that it does not contact with the magnetic
encoder to avoid damage.

•

AC102465

Washer

MB990767

AB

Before securely tightening the driveshaft
nuts, make sure there is no load on the wheel
bearings. Otherwise the wheel bearings will
be damaged.

1. Be sure to install the driveshaft washer in the

specified direction.

2. Using special tool front hub & flange yoke holder

(MB990767), tighten the driveshaft nut to the
specified torque.

Tightening torque: 245

± 29 N⋅m

Main

Index

Group

TOC

FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-9

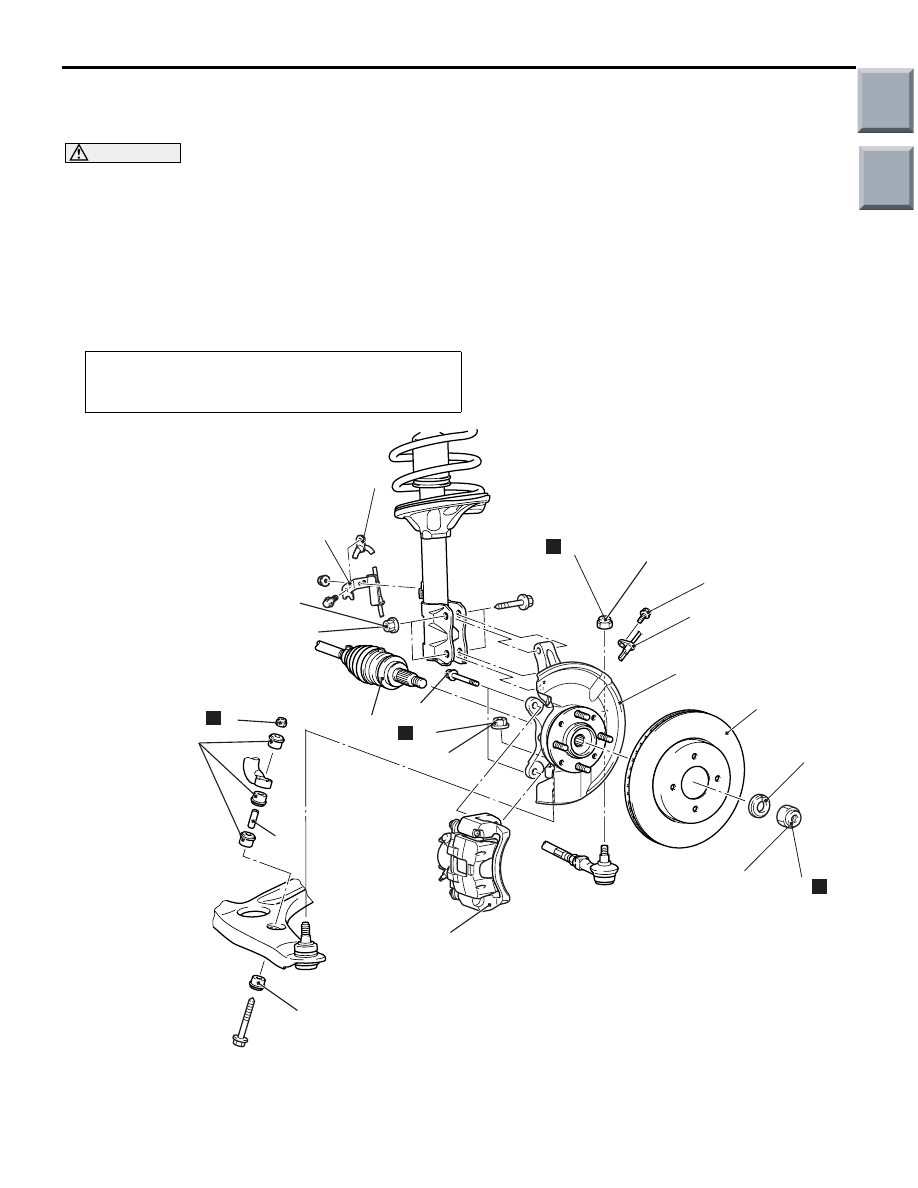

REMOVAL AND INSTALLATION
<VEHICLES WITH 15 INCH-DISC BRAKE>

M1261001701033

CAUTION

• Do not disassemble the front wheel hub assembly.
• The magnetic encoder collects any metallic particle easily, because it is magnetized. Make sure

that the magnetic encoder should not collect any metallic particle. Check that there is not any
trouble prior to reassembling it.

• When the front wheel hub assembly is removed and installed, make sure that the magnetic

encoder does not contact with surrounding parts to avoid damage.

•

Post-installation Operation
Check the dust cover for cracks or damage by pushing it with
your finger.

AC507587

N

245 ± 29 N·m

AC

9

N

66 ± 6 N·m

N

80 ± 10 N·m

25 ± 5 N·m

100 ± 10 N·m

N

5 ± 1 N·m

1

3

2

4

7

5

6

8

10

9

<4A9>

11

12

14

13

15

When the front wheel speed sensor is removed and installed, make sure that its pole piece does
not contact with surrounding parts to avoid damage.

Main

Index

Group

TOC

Removal steps

<<

A

>> >>

B

<< 1.

Driveshaft nut

>>

B

<< 2.

Washer

3.

Front wheel speed sensor

4.

Brake hose bracket

5.

Front wheel speed sensor harness
bracket

<<

B

>>

6.

Caliper assembly

7.

Brake disc

>>

A

<< 8.

Self-locking nut

>>

A

<< 9.

Stabilizer rubber

10. Collar

<<

C

>>

11. Self-locking nut (tie rod end

connection)

<<

C

>>

12. Self-locking nut (lower arm ball

joint connection)

<<

D

>>

13. Driveshaft
14. Nut (hub and knuckle to strut

connection)

15. Hub and knuckle assembly

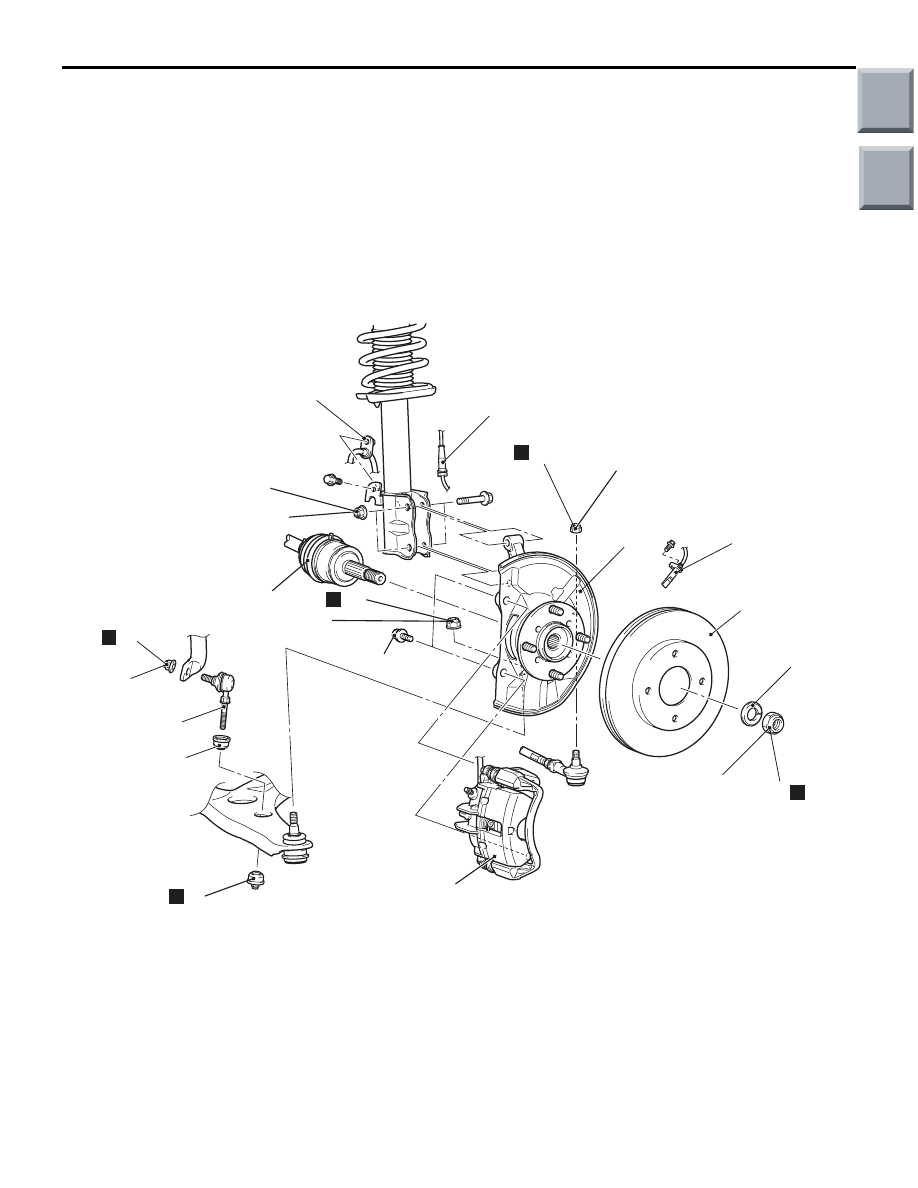

AC511654

N

245 ± 29 N·m

AE

60 ± 6 N·m

N

80 ± 10 N·m

28 ± 3 N·m

30 ± 5 N·m

N

105 ± 5 N·m

3

2

4

7

5

6

N

1

N

<4G1>

9

8

10

11

12

14

13

15

16

Removal steps

<<

A

>> >>

B

<< 1.

Driveshaft nut

>>

B

<< 2.

Washer

3.

Front wheel speed sensor

4.

Brake hose bracket

5.

Front wheel speed sensor harness

<<

B

>>

6.

Caliper assembly

7.

Brake disc

>>

A

<< 8.

Stabilizer link bush (A)

>>

A

<< 9.

Self-locking nut

10. Stabilizer link assembly
11. Stabilizer link bush (B)

<<

C

>>

12. Self-locking nut (tie rod end

connection)

<<

C

>>

13. Self-locking nut (lower arm ball

joint connection)

<<

D

>>

14. Driveshaft
15. Nut (hub and knuckle to strut

connection)

16. Hub and knuckle assembly

FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-10

Removal steps (Continued)

Removal steps (Continued)

Main

Index

Group

TOC

FRONT AXLE HUB ASSEMBLY

FRONT AXLE

26-11

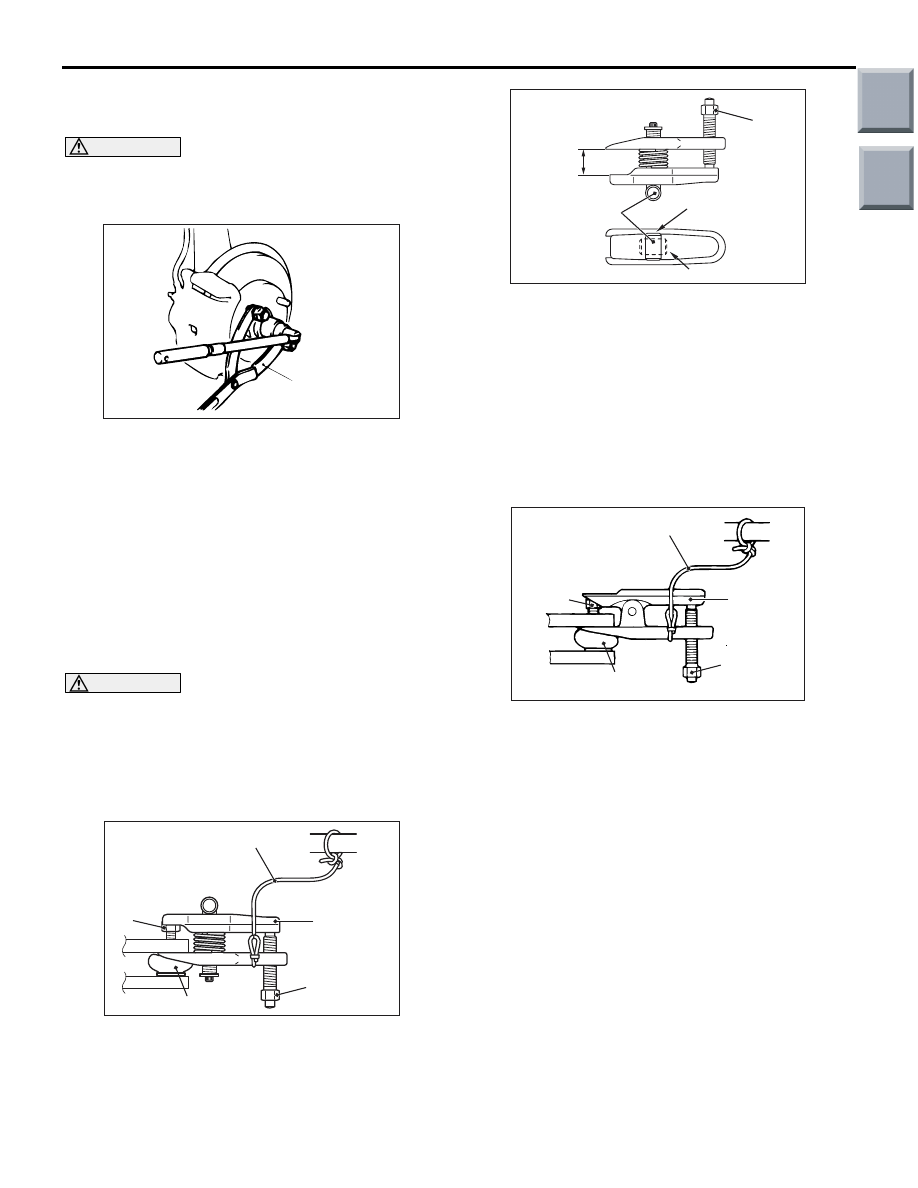

REMOVAL SERVICE POINTS
<<A>> DRIVESHAFT NUT REMOVAL

CAUTION

Do not apply pressure to wheel bearing by the
vehicle weight to avoid possible damage when
driveshaft nut is loosened.

AC102462

MB990767

AB

Use special tool front hub & flange yoke holder
(MB990767) to fix the hub and remove the driveshaft
nut.

<<B>> CALIPER ASSEMBLY REMOVAL

Secure the removed caliper assembly with wire, etc.

<<C>> SELF-LOCKING NUT (TIE ROD
END CONNECTION)/SELF-LOCKING NUT
(LOWER ARM BALL JOINT
CONNECTION) REMOVAL

CAUTION

• Do not remove the nut from ball joint. Loosen

it and use the special tool to avoid possible
damage to ball joint threads.

• Hang the special tool with cord to prevent it

from falling.

<4A9>

AC208247AJ

Cord

Bolt

MB991897
or
MB992011

Nut

Ball joint

1. Install special tool ball joint remover (MB991897

or MB992011) as shown in the figure.

AC106821

Knob

Parallel

Bolt

Correct

Wrong

AD

2. Turn the bolt and knob as necessary to make the

jaws of special tool  parallel, tighten the bolt by
hand and confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make
sure the knob is in the position shown in the fig-
ure.

3. Tighten the bolt with a wrench to disconnect the

tie rod end, lower arm ball joint.

<4G1>

AC102599AC

Cord

Bolt

MB991113

Nut

Ball joint

Replace the self-locking nut with a regular nut, and
then install special tool steering linkage puller
(MB991113) as shown in the figure.
