FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-26

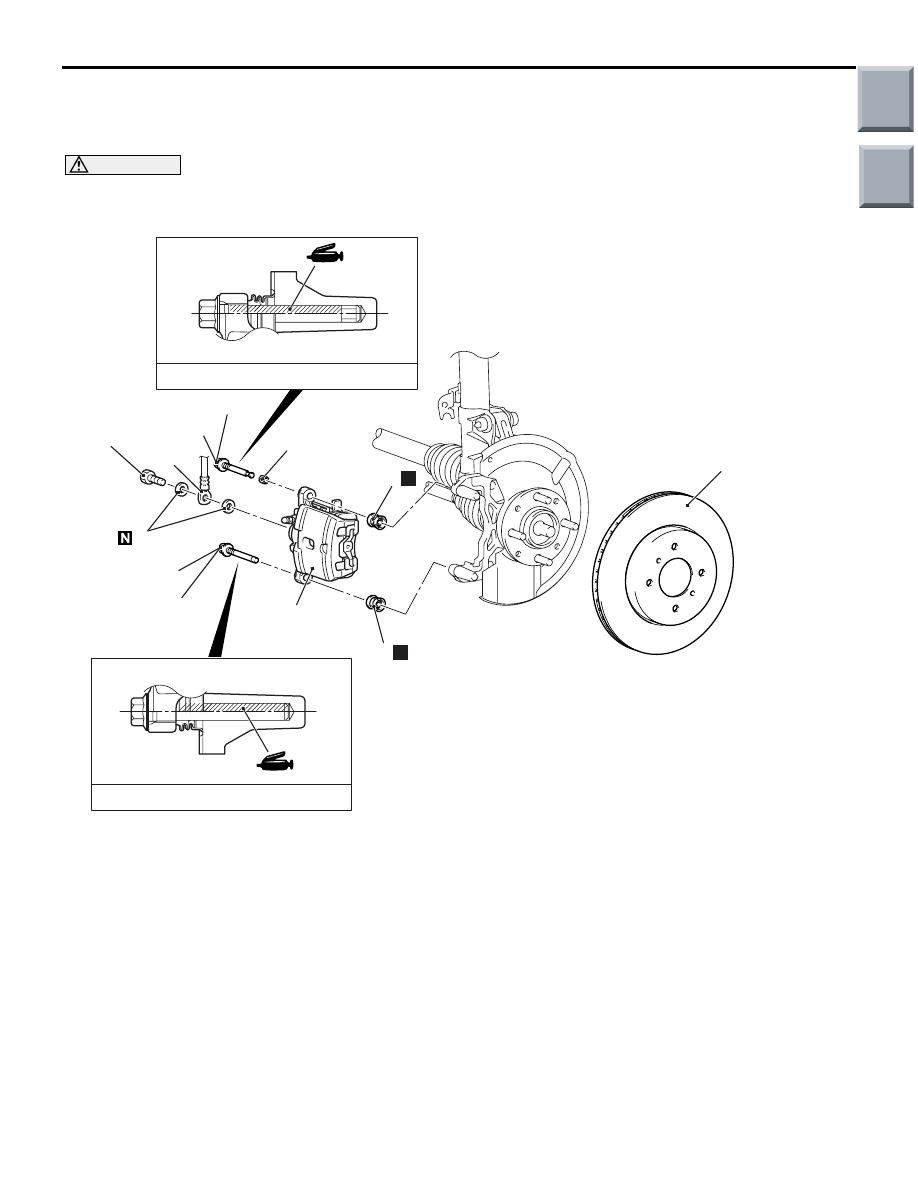

FRONT DISC BRAKE ASSEMBLY

REMOVAL AND INSTALLATION <14-INCH>

M1351006000924

CAUTION

Do not wipe off the special grease that is on the lock pin and guide pin or allow it to contaminate the
lock pin and guide pin.

AC601451

Grease: Niglube RM

Grease: Niglube RM

AB

30 ± 4 N·m

1

2

3

8

44 ± 5 N·m

44 ± 5 N·m

4

7

7

6

5

N

N

Removal steps

•

Brake fluid draining

1. Connection between brake hose and

brake caliper

2. Gasket
3. Guide pin
4. Lock pin
5. Brake caliper assembly
6. Bushing
7. Pin boot

<<

A

>>

8. Brake disc

Installation steps

8. Brake disc

>>

A

<< 7. Pin boot

6. Bushing

>>

B

<< 5. Brake caliper assembly

>>

C

<< 4. Lock pin

>>

C

<< 3. Guide pin

2. Gasket

>>

D

<< 1. Brake hose connection

•

Brake fluid supplying and air bleeding
(Refer to

P.35A-10

).

>>

E

<< • Brake drag force check

Main

Index

Group

TOC

FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-27

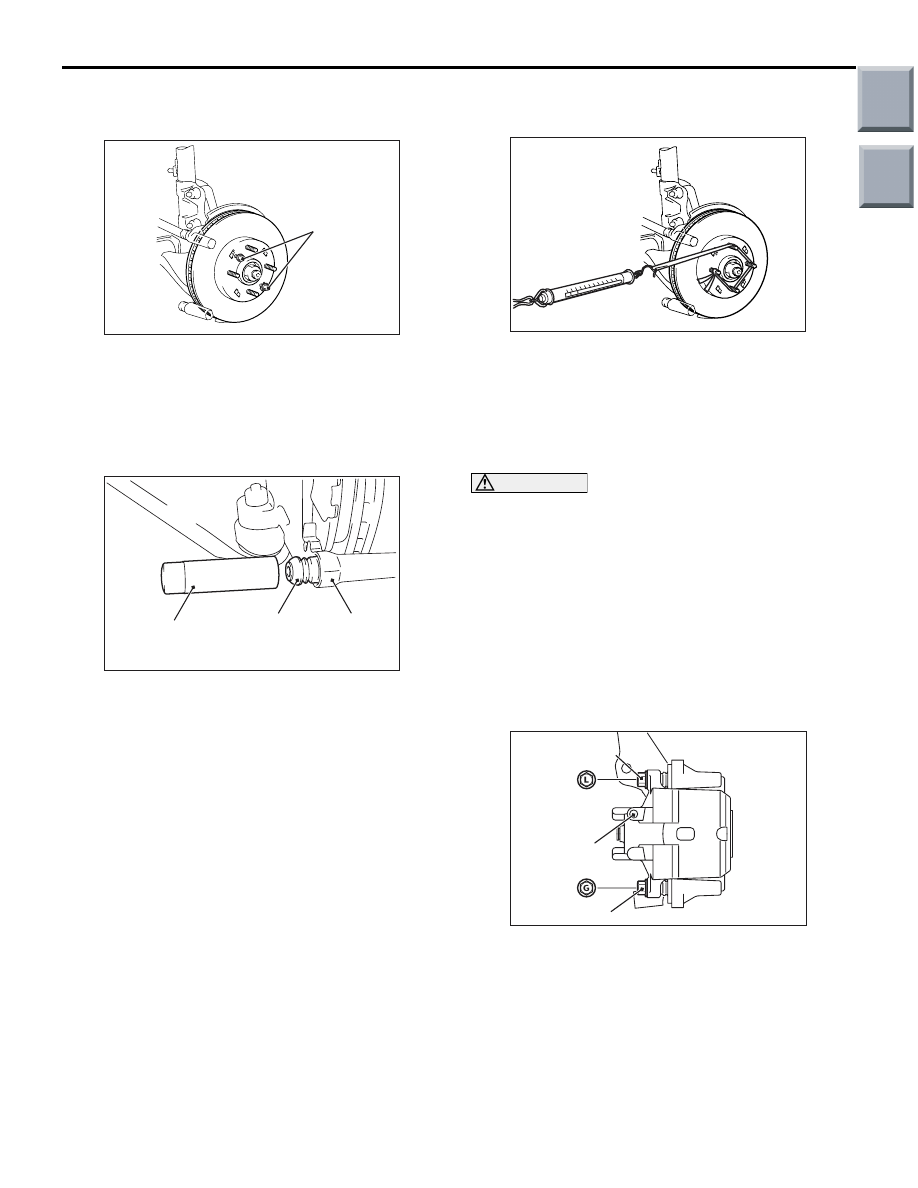

REMOVAL SERVICE POINT
<<A>> BRAKE DISC REMOVAL

AC208364 AB

Bolts
(M8×1.25)

If the brake disc is seized, install a M8 x 1.25 bolts as
shown, and remove the disc by tightening the bolts
evenly and gradually.

INSTALLATION SERVICE POINTS
>>A<< PIN BOOT INSTALLATION

AC209151AB

19 mm deep
socket

Pin boot

Knuckle

Use a 19-mm deep socket to press the pin boot into
the knuckle.

>>B<< BRAKE CALIPER ASSEMBLY
INSTALLATION

AC208291AB

1. In order to measure the brake drag torque,

measure the hub torque with the pads removed by
the following procedure.
(1) Use a spring balance to measure the hub

torque in the forward direction.

(2) Record hub torque with pads removed.

CAUTION

Do not let any oil, grease or other contamination
get onto the friction surfaces of the pads and
brake discs.
2. Assemble the pad and wear indicator assembly,

the pad clip and the shim to the knuckle, and then
the outer pad and shim to the caliper body.

3. Install the caliper assembly, being careful not to

pinch the piston boot.

>>C<< LOCK PIN/GUIDE PIN
INSTALLATION

AC208319AB

Bleeder
screw

Guide pin

Lock pin

Install the lock pin to the bleeder screw side of the
caliper body, and the guide pin to the opposite side.

Main

Index

Group

TOC

FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-28

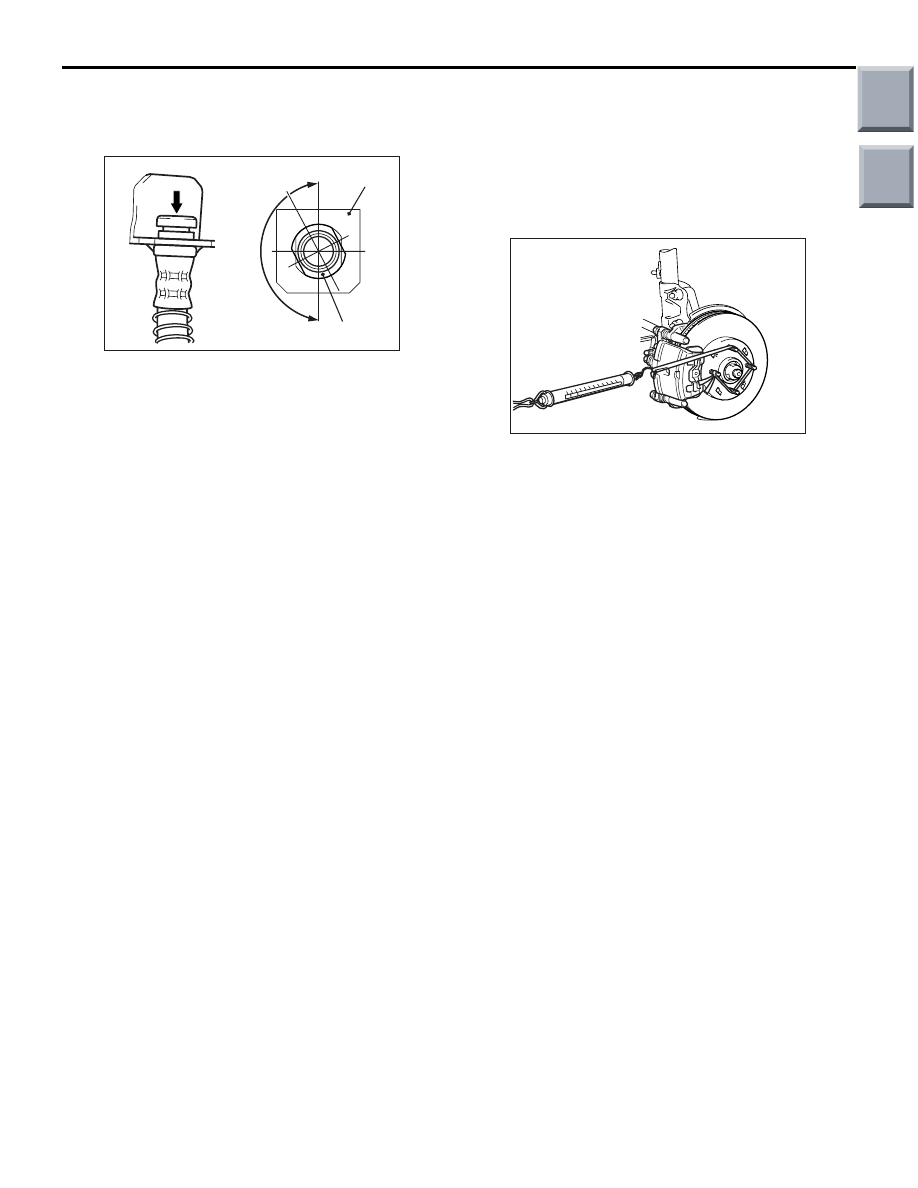

>>D<< BRAKE HOSE INSTALLATION

1. Install the brake hose end on the bracket and

another end on the front brake assembly.

AC403716

A

AC

Brake hose

Wrong

Correct

Bracket

View A

2. Twist the brake hose towards the lesser torsion

between the brake hose and bracket as shown
and secure it to the bracket.

>>E<< BRAKE DRAG FORCE CHECK

1. Check the brake drag force as follows.

(1) Start the engine and hold the brake pedal

down for 5 seconds. (Pedal depression force:
approximately 200 N)

(2) Stop the engine.
(3) Turn the brake disc forward 10 times.

AC208292AB

(4) Use a spring balance to measure the hub

torque with pads installed in the same
direction as earlier.

(5) Calculate the drag force of the disc brake

[difference between hub torque with pads
installed and hub torque with pads removed].

Standard value: 46 N or less

2. If the brake drag force exceeds the standard

value, disassemble and clean the piston. Check
for corrosion or worn piston seal, and check the
sliding condition of the lock pin and guide pin.

Main

Index

Group

TOC

FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-29

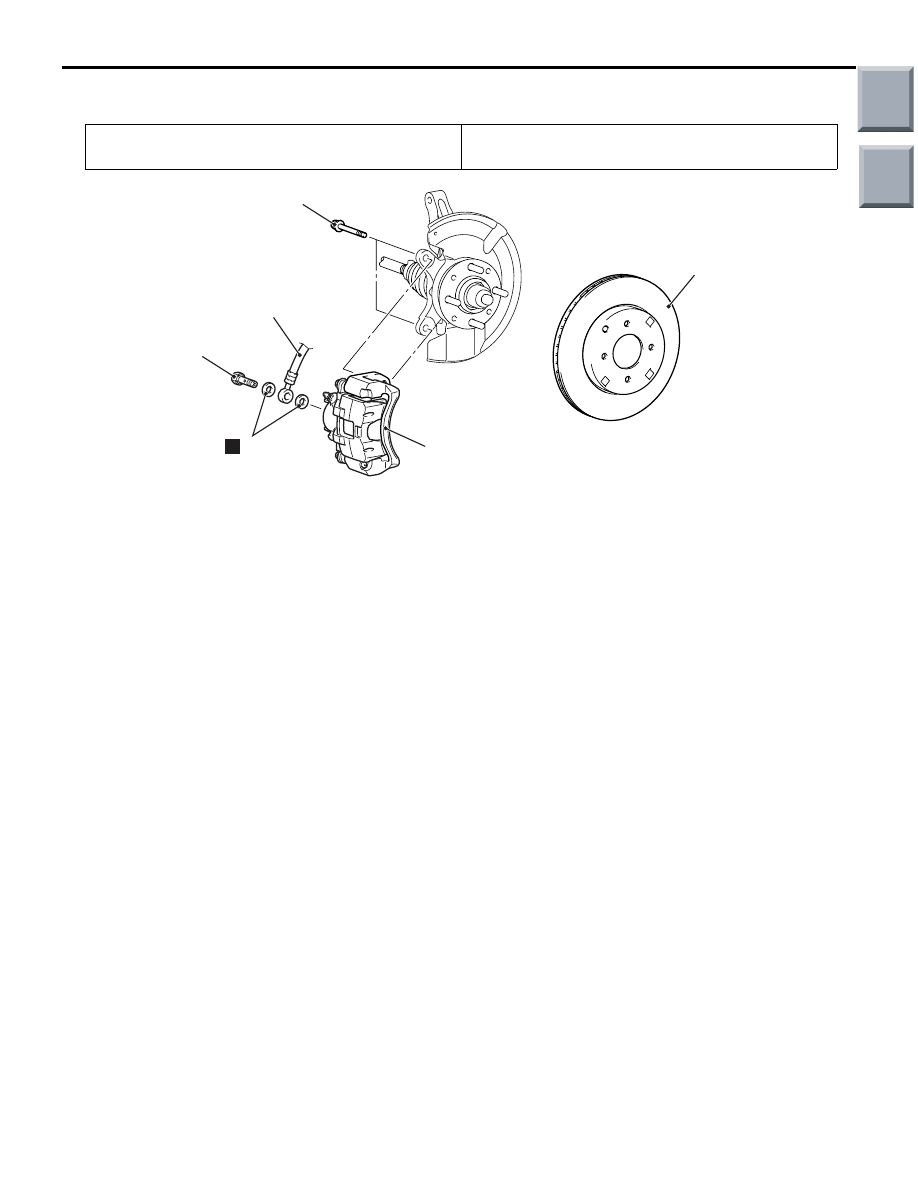

REMOVAL AND INSTALLATION <15-INCH (VR-X)>

M1351006000935

Pre-removal Operation
Brake fluid draining

Post-installation Operation
Brake fluid refilling and air bleeding (Refer to

P.35A-10

).

AC402738AB

100 ± 10 N·m

30 ± 4 N·m

4

3

1

2

N

Removal steps

>>

B

<<

1.

Connection between brake hose
and brake caliper

2.

Gasket

>>

A

<<

3.

Brake caliper assembly

4.

Brake disc

Removal steps (Continued)
